74780-0103

Description
I/O connector assy hssdc2 dual row row (2x7) mirror FC
CategoryThe connector    The connector
File Size28KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

74780-0103 Overview

I/O connector assy hssdc2 dual row row (2x7) mirror FC

74780-0103 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codecompli
ECCN codeEAR99
Other featuresPOLARIZED, SHIELDED
Body/casing typeRECEPTACLE
Connector typeTELECOM AND DATACOM CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialNOT SPECIFIED
DIN complianceNO
empty shellNO
Filter functionNO
IEC complianceNO
insulator materialLIQUID CRYSTAL POLYMER
MIL complianceNO
Manufacturer's serial number74780
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation typeBOARD
OptionsGENERAL PURPOSE
Shell materialLIQUID CRYSTAL POLYMER
Total number of contacts14
UL Flammability Code94V-0

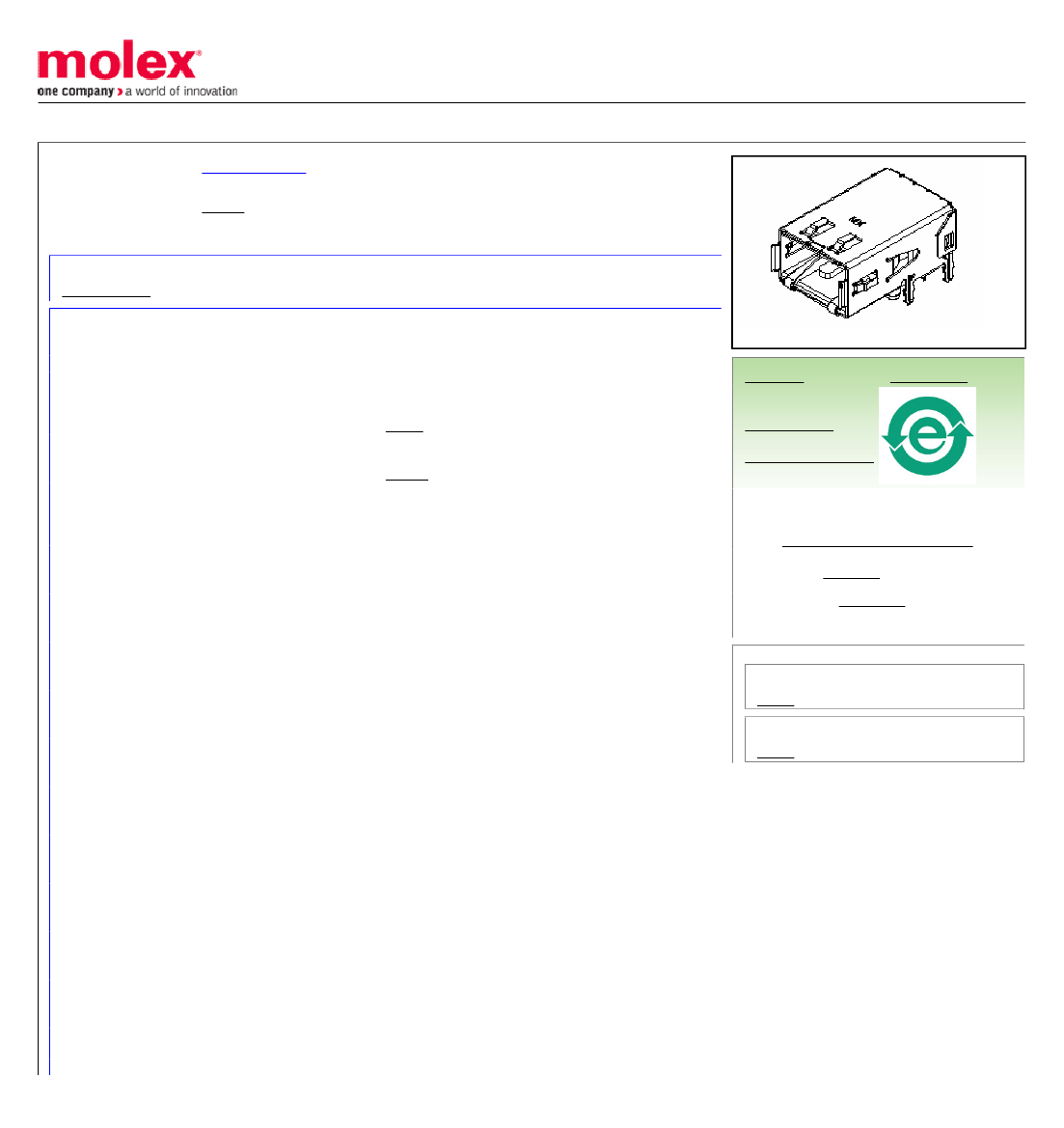

This document was generated on 11/24/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0747800103
Obsolete
hssdc2
1.27mm (.050") Pitch HSSDC2 Receptacle, Shielded, Right Angle, Dual Row, 14
Circuits
Documents:
Drawing (PDF)
Agency Certification
CSA
UL
LR19980
E29179
Series
image - Reference only
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Low-Halogen Status
Not Reviewed
China RoHS
General
Product Family
Series
Application
Component Type
Overview
Product Name
Type
I/O Connectors
74780
Wire-to-Board
Receptacle
hssdc2
HSSDC2
N/A
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Boot Color
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
Flammability
Gender
Keying to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length
PCB Locator
PCB Retention
Packaging Type
Panel Mount
Pitch - Mating Interface
Pitch - Termination Interface
Polarized to Mating Part
Polarized to PCB
Ports
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
Waterproof / Dustproof
Wire Size AWG
N/A
14
14
Natural
250
94V-0
Receptacle
Yes
Yes
High Performance Alloy (HPA)
Gold
Tin-Lead
High Temperature Thermoplastic
2
Right Angle
2.62mm (.103")
Yes
Yes
Tray
No
1.27mm (.050")
1.27mm (.050")
Yes
Yes
1
Yes
-10°C to +60°C
Surface Mount
No
N/A
Search Parts in this Series
74780Series
Mates With
74514
Electrical
Current - Maximum per Contact
0.5A
