D1NS6-7084 datasheet, PDF - EEWORLD Datasheet

D1NS6-7084: DescriptionSchottky (diode and rectifier) vrm=60 ifsm=30; Categorysemiconductor Discrete semiconductor; File Size453KB，2 Pages; ManufacturerSHINDENGEN; Websitehttps://www.shindengen.com; Environmental Compliance

Download Datasheet Parametric Compare View All

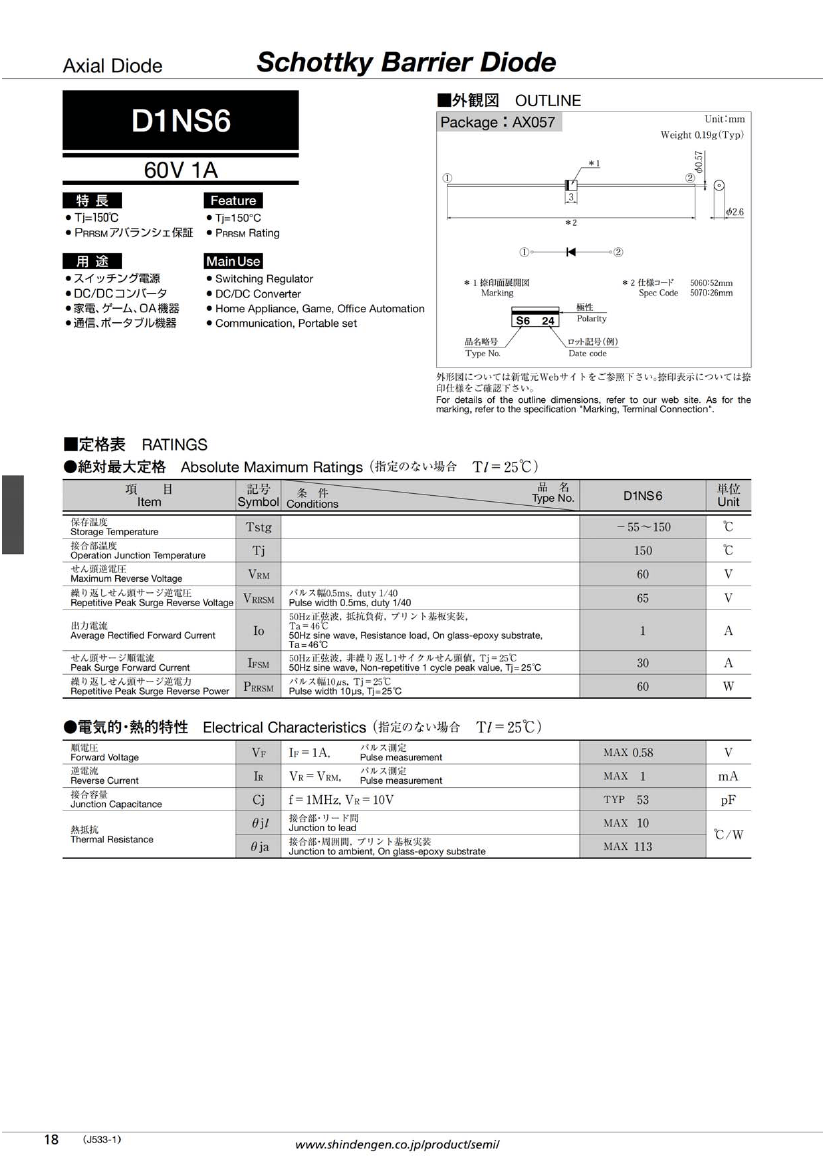

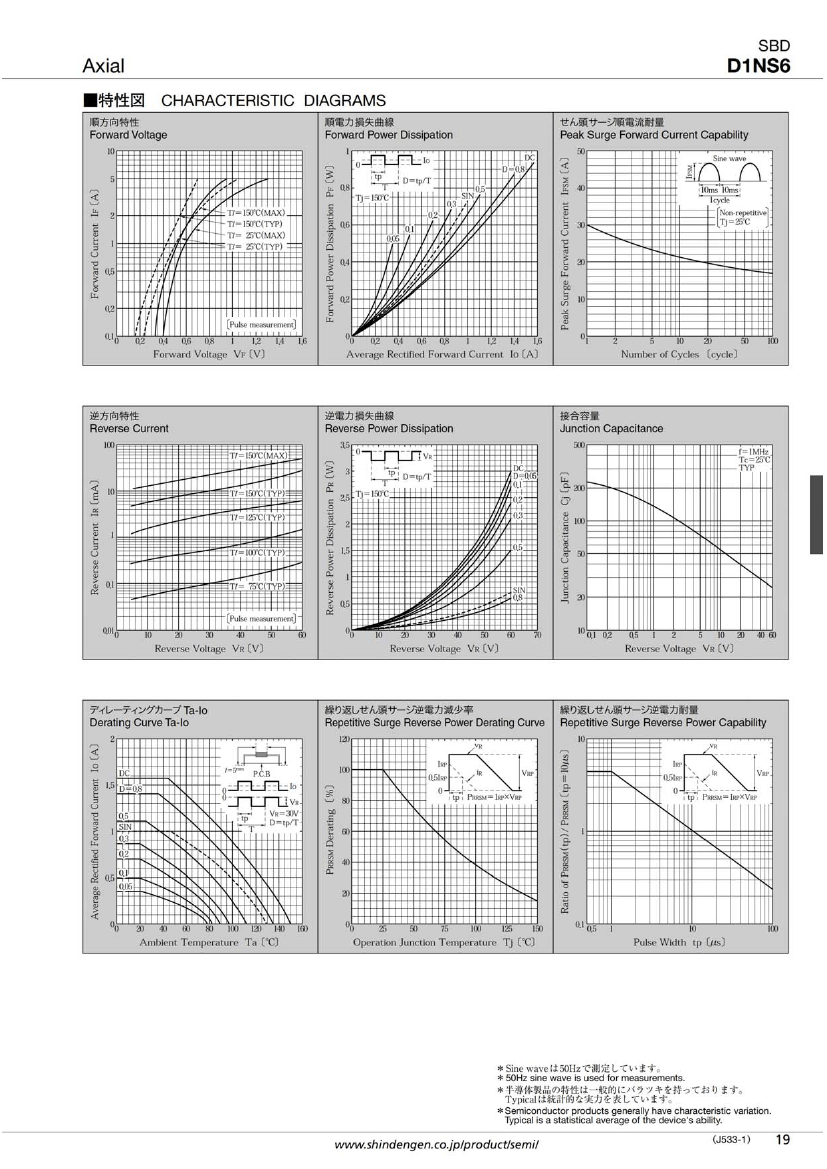

D1NS6-7084 Overview

Schottky (diode and rectifier) vrm=60 ifsm=30

Parameter Name	Attribute value
Maker	SHINDENGEN
Product Category	Schottky (diodes and rectifiers)
RoHS	yes
product	Schottky Rectifiers
Peak reverse voltage	60 V
forward continuous current	1 A @ Ta=46C
Maximum surge current	30 A
Configuration	Single
forward voltage drop	0.58 V
Maximum reverse leakage current	1 mA
range of working temperature	+ 150 C
Installation style	Through Hole
Package/box	AX057
Encapsulation	Reel

	D1NS6-7084	D1NS6-7070	D1NS6-4060	D1NS6-7083	D1NS6-4070
Description	Schottky (diode and rectifier) vrm=60 ifsm=30	Schottky (diode and rectifier) vrm=60 ifsm=30	Schottky (diode and rectifier) vrm=60 ifsm=30	Schottky (diode and rectifier) vrm=60 ifsm=30	Schottky (diode and rectifier) vrm=60 ifsm=30
Maker	SHINDENGEN	SHINDENGEN	SHINDENGEN	SHINDENGEN	SHINDENGEN
Configuration	Single	Single	SINGLE	Single	SINGLE
Product Category	Schottky (diodes and rectifiers)	Schottky (diodes and rectifiers)	-	Schottky (diodes and rectifiers)	-
RoHS	yes	yes	-	yes	-
product	Schottky Rectifiers	Schottky Rectifiers	-	Schottky Rectifiers	-
Peak reverse voltage	60 V	60 V	-	60 V	-
forward continuous current	1 A @ Ta=46C	1 A @ Ta=46C	-	1 A @ Ta=46C	-
Maximum surge current	30 A	30 A	-	30 A	-
forward voltage drop	0.58 V	0.58 V	-	0.58 V	-
Maximum reverse leakage current	1 mA	1 mA	-	1 mA	-
range of working temperature	+ 150 C	+ 150 C	-	+ 150 C	-
Installation style	Through Hole	Through Hole	-	Through Hole	-
Package/box	AX057	AX057	-	AX057	-
Encapsulation	Reel	Reel	-	Reel	-
