Date:
12-03-09
Ref.#:
TW-700172

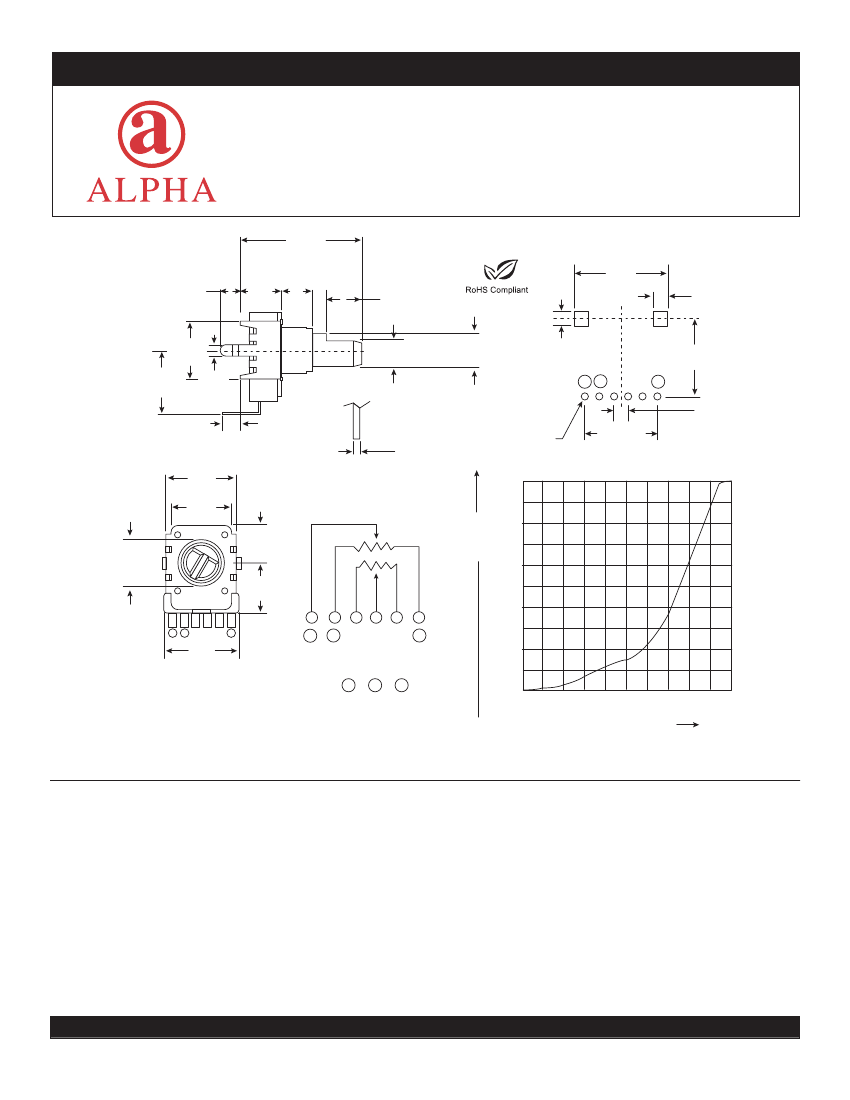

Potentiometers
317-2100F-1K, 317-2100F-2K, 317-2100F-5K,
317-2100F-10K , 317-2100F-50K, 317-2100F-100K,
317-2100F-500K, 317-2100F-1M
25±0.5
(.984±.02)
5.0
6.9 (.197)
(.272)
P.C.B. Mounting Hole Detail
3.5
(.138)
10.0
(.394)
11.0
(.433)
2.0
(.079)
13.0
(.512)
12±0.2
(.276±.008)
ø6.0±0.1
4.5±0.1
(.177±.004) (.236±.004)
2.1±0.1
(.083±.008)
2 1 1 2 3 3
2.0±0.1
(.079±.004)
11.0
(.433)
3.2
(.126)
12.0
(.472)
11.0
(.433)
8.0±0.2
(.315±.004)
6.7
(.264)
8.7
(.343)
2
1 1
2 3
3
0.7
(.028±.004)
Terminal Detail
6-ø1.0±0.2
(.039±.008)
100
90
Term. 1-2 Output Voltage
x100%
Term. 1-3 Input Voltage
80
70
60
50
40
30
20
10
0
2x5=10
3A Taper (JIS A)
2
(.079)
13
(.512)
2
1
R1: 1
R2: 1
1 2
2
2
3
3
3
3
10 20 30 40 50 60 70 80 90 100
Term "3"
Term "1" Rotation Travel (%)
Dimensions mm (in.)
Specifications:
•
Value (Ω): 1K, 2K, 5K, 10K, 50K, 100K, 500K, 1M
•
Electrical Characteristics:
Overall resistance range: 1KΩ~1MΩ (tolerance±20%)
Power rating: 0.05W (tolerance±30%)
Taper: Audio
Rotation noise (refer to JIS): 100mV max. (W :250mV max)
Insulation resistance: 100MΩ min. at DC 250 volts
Dielectric test: Units shall be designed to withstand 300V AC
between resistance elements and case for a period of
one minute without damage or arcing.
Maximum operating voltage: 50V AC this potentiometer is
designed for AC voltage only.
•
Dual unit, single shaft
•
Endurance Characteristics:
Rotational life: More than 15,000 cycles
•
RoHS Compliant
Available from Mouser Electronics
www.mouser.com
(800) 346-6873
Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
