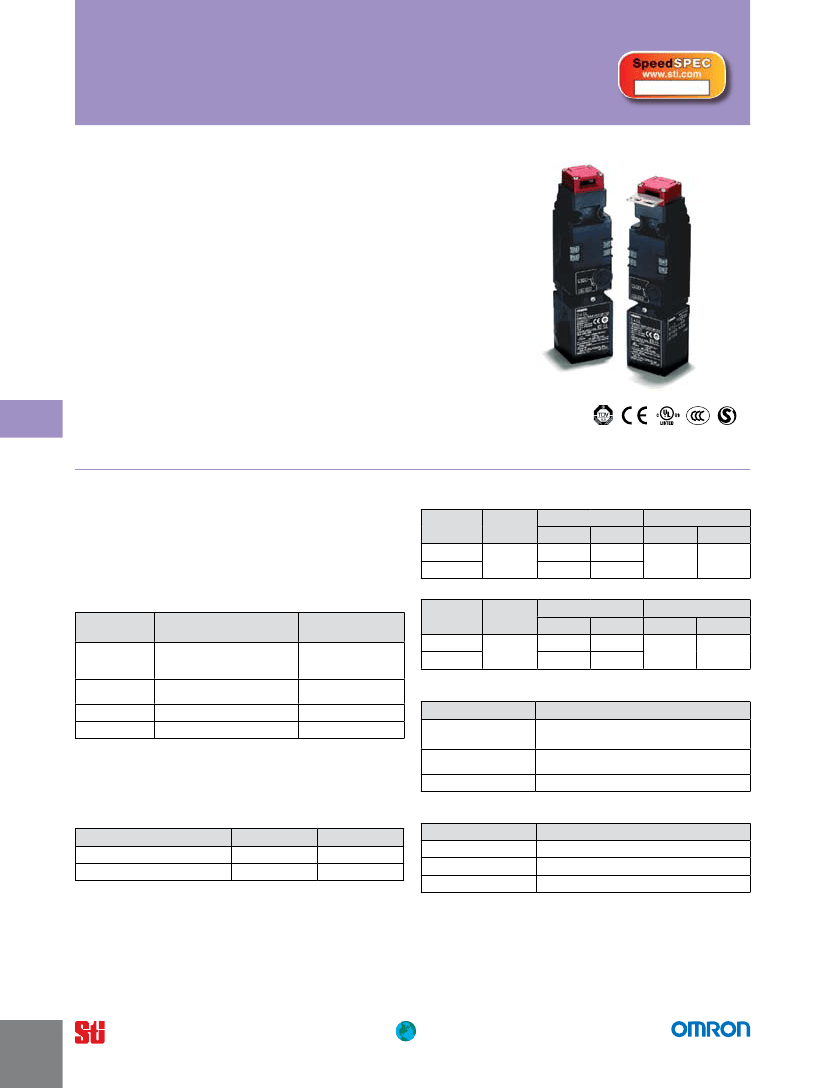

Safety interlock Switches
D4gl
•
•
•
•
•
•
•
•
D4GL
guard lock Safety-Door Switch
Vertically mounting guard lock safety-door switch ideal for limited installation space
Selectable operation key insertion direction
Slim safety-door switch with an electromagnetic lock or unlock mechanism
Built-in switches with multiple-contact construction are available
A key holding force of 1,000 N minimum
Can be used for either standard loads or microloads
Lineup includes models with a conduit size of M20
Variety of metallic heads available
g
Specifications
Standards and ec Directives
conforms to the following ec Directives:
• Machinery Directive
• Low Voltage Directive
• EN 1088
• EN 60204-1
• GS-ET-19
certified Standards
certification
body
TÜV SÜD
UL *1
CQC (CCC)
KOSHA *2
Standard
EN 60947-5-1
(certified direct opening)
UL 508, CSA C22.2 No.14
GB14048.5
EN60947-5-1
file no.
Consult your
representative for
details.
E76675
2003010305064264
2007-26
S
Ul/cSA (Ul 508, cSA c22.2 no. 14)
c300
rated
voltage
120 VAC
240 VAC
Q300
rated
voltage
125 VDC
250 VDC
carry
current
2.5 A
current (A)
make
0.55
0.27
Break
0.55
0.27
Volt-amperes (VA)
make
69
Break
69
carry
current
2.5 A
current (A)
make
15
7.5
Break
1.5
0.75
Volt-amperes (VA)
make
1,800
Break
180
Solenoid coil characteristics
item
type
24 VDc
24 VDC ±10%
Approx.
200 mA
Class F (130°C max.)
Rated operating
voltage (100% ED)
Current consumption
Insulation Class
*1. Certification for CSA C22.2 No. 14 is authorized by the UL mark.
*2. Only certain models have been certified.
certified Standard ratings
tÜV (en 60947-5-1), ccc (gB14048.5)
item
Utilization category
Ac-15
0.75 A
240 V
Dc-13
0.27 A
250 V
Rated operating current (Ie)
Rated operating voltage (Ue)
indicator characteristics
item
Rated voltage
Current consumption
Color (LED)
type
leD
24 VDC
Approx. 3 mA
Orange/Green
Note: Use a 10 A fuse type gI or gG that conforms to IEC 60269 as a short-
circuit protection device.
g46
OmrOn Scientific technOlOgieS, inc.
USA
Tel. 1/888/510-4357
canada
Tel. 1/866/986-6766
For the Latest Information
On the Internet:
www.sti.com
or
www.omron.ca
D4gl
Safety interlock Switches
connections
contact form
Indicates conditions where the Key is inserted and the lock is applied. Terminals 12 and 41 are connected internally (as per BIA GS-ET-19).
contact
(door open/closed
detection and lock
monitor)
contact form
Door open/
lock
closed
monitor
detection
Door open/
closed detection
Zb
11
12
33
34
Lock monitor
Zb
41
53
42
54
model
Operating pattern
Lock position
remarks
D4GL-□AF□-□
1NC/1NO + 1NC/1NO
11-42
33-34
53-54
Stroke
Operation Key insertion
completion position
ON
Only NC contact 11-12
has a certified direct
opening mechanism.
The terminals 11-42,
33-34, and 53-54 can
be used as unlike poles.
Only NC contact 11-12,
has a certified direct
opening mechanism.
The terminals 11-42,
33-34, and 51-52 can
be used as unlike poles.
Only NC contacts 11-12
and 21-22 have a
certified direct opening
mechanism.
The terminals 11-42,
21-22, and 53-54 can
be used as unlike poles.
Only NC contacts 11-12
and 21-22 have a
certified direct opening
mechanism.
The terminals 11-42,
21-22, and 51-52 can
be used as unlike poles.
Only NC contacts 11-12
and 21-22 have a
certified direct opening
mechanism.
The terminals 11-42,
21-22, 33-34, and 53-54
can be used as unlike
poles.
Only NC contacts 11-12
and 21-22 have a
certified direct opening
mechanism.
The terminals 11-42,
21-22, 33-34, and 51-52
can be used as unlike
poles.
Only NC contacts 11-12,
21-22, and 31-32 have a
certified direct opening
mechanism.
The terminals 11-42,
21-22, 31-32, and 53-54
can be used as unlike
poles.
Only NC contacts 11-12,
21-22, and 31-32 have a
certified direct opening
mechanism.
The terminals 11-42,
21-22, 31-32, and 51-52
can be used as unlike
poles.
Extraction completion
position
Lock position
D4GL-□BF□-□
1NC/1NO + 2NC
Door open/
closed detection
Zb
11
12
33
34
Lock monitor
Zb
41
51
42
52
11-42
33-34
51-52
Stroke
Operation Key insertion
completion position
ON
Extraction completion
position
Lock position
D4GL-□CF□-□
2NC + 1NC/1NO
Door open/
closed detection
Zb
11
12
21
22
Lock monitor
Zb
41
53
42
54
11-42
21-22
53-54
Stroke
Operation Key insertion
completion position
ON
g
Extraction completion
position
Lock position
D4GL-□DF□-□
2NC + 2NC
Door open/
closed detection
Zb
11
12
21
22
Lock monitor
Zb
41
51
42
52
11-42
21-22
51-52
Stroke
Operation Key insertion
completion position
ON
Extraction completion
position
D4GL-□EF□-□
2NC/1NO + 1NC/1NO
Door open/
closed detection
Zb
11
12
21
33
22
34
Lock monitor
Zb
41
53
42
54
Lock position
11-42
21-22
33-34
53-54
Stroke
Operation Key insertion
completion position
Extraction completion
position
ON
Lock position
D4GL-□FF□-□
2NC/1NO + 2NC
Door open/
closed detection
Zb
11
12
21
33
22
34
Lock monitor
Zb
41
51
42
52
11-42
21-22
33-34
51-52
Stroke
Operation Key insertion
completion position
ON
Extraction completion
position
Lock position
D4GL-□GF□-□
3NC + 1NC/1NO
Door open/
closed detection
Zb
12
11
21
31
22
32
Lock monitor
Zb
41
53
42
54
11-42
21-22
31-32
53-54
Stroke
Operation Key insertion
completion position
ON
Extraction completion
position
D4GL-□HF□-□
3NC + 2NC
Door open/
closed detection
Zb
11
12
21
31
22
32
Lock monitor
Zb
41
51
42
52
Lock position
11-42
21-22
31-32
51-52
Stroke
Operation Key insertion
completion position
ON
Extraction completion
position
OmrOn Scientific technOlOgieS, inc.
USA
Tel. 1/888/510-4357
canada
Tel. 1/866/986-6766
For the Latest Information
On the Internet:
www.sti.com
or
www.omron.ca
g47
D4gl
Safety interlock Switches

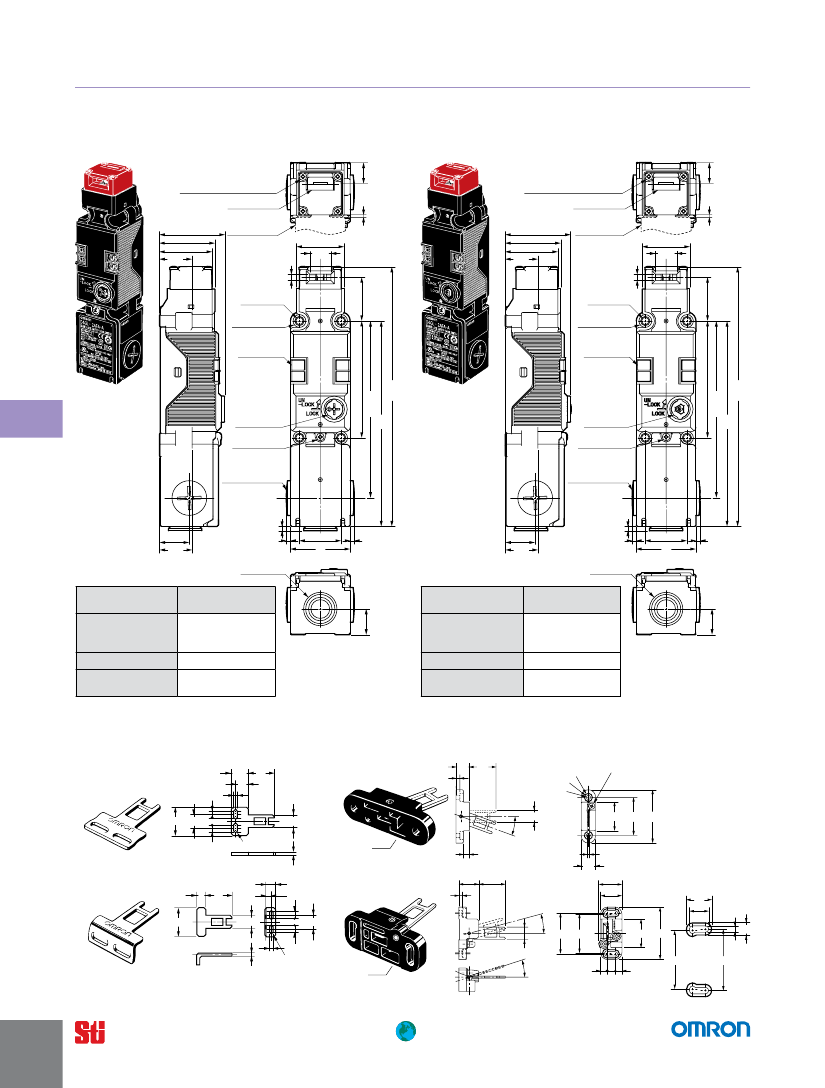

Dimensions and Operating characteristics
Switches
D4gl-□□□□-A
15.3
(mm)
D4gl-□□□□-A4
15.3
Four, head mounting screws
Head cap
Pre-travel
distance
34.4
15.3
47.8
40
38
23.5
Operation Key
34.4
15.3
Pre-travel
distance
Four, 9.2-dia. spot
facings (depth: 10)
Four, head mounting screws
Head cap
47
40
38
23.5
Operation Key
4.4
Four, 9.2-dia. spot
facings (depth: 10)
31.5
Four, LED
indicators
84±0.2
Four, LED
indicators
84±0.2
Release key
Cover mounting
screw
Two, cap screws
(21.5)
23.5
(3)
(3)
Conduit cap
30±0.2
43
31.5
(3)
56
Four, 5.2-dia.
holes
Four, 5.2-dia.
holes
4.4
g
Release key
Cover mounting
screw
Two, cap screws
(21.5)
23.5
(3)
(3)
Conduit cap
30±0.2
43
(3)
(18.5)
Operating
characteristics
Key insertion force
Key extraction
force
Pre-travel distance
movement before
being locked
(127.5)
148
(187)
D4gl-□□□□-A
15 N max.
40 N max.
10 mm max.
4 mm min.
Operating
characteristics
Key insertion force
Key extraction
force
Pre-travel distance
movement before
being locked
D4gl-□□□□-A4
15 N max.
40 N max.
10 mm max.
4 mm min.
(18.5)
Angle adjustment bolt
30
40
2
15
24.6
22.5
Operation Keys
D4DS-K1
7
30
15
7
Four, 2.15R
17.5
13
4.3
13
Black
28
D4DS-K3
14
4
28
8 dia.
4.5 dia.
9 dia.
13
20°
2
6.3
D4DS-K2
9
30
28
6
10.5
7
15
7
Four, 2.15R
D4DS-K5
20.9
4
28
Mounting Holes
(Enlargement)
17
15
4.5
8
13
15°
43
13
Black
18°
41
30
55
41
43
2 4.3
6.5
18
(7)
Note: Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.
g48
OmrOn Scientific technOlOgieS, inc.
USA
Tel. 1/888/510-4357
canada
Tel. 1/866/986-6766
For the Latest Information
On the Internet:
www.sti.com
or
www.omron.ca
(127.5)
148
(187)
D4gl
Safety interlock Switches

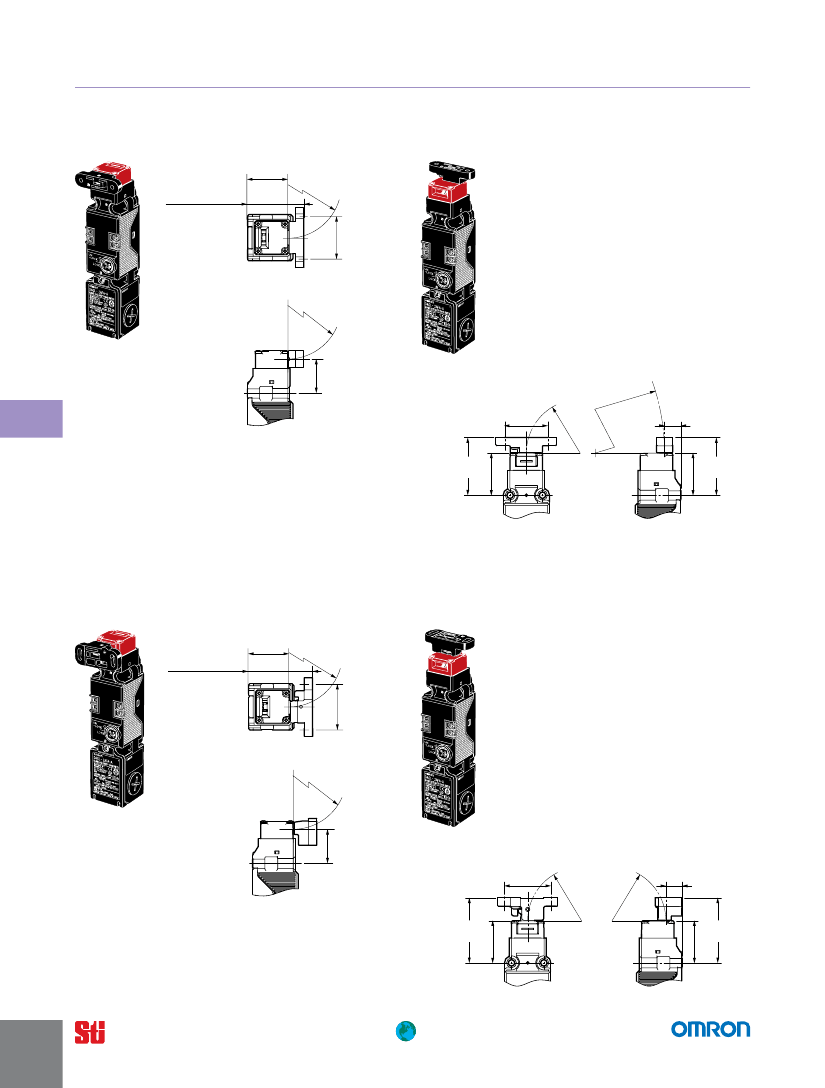

Dimensions and Operating characteristics (continued)

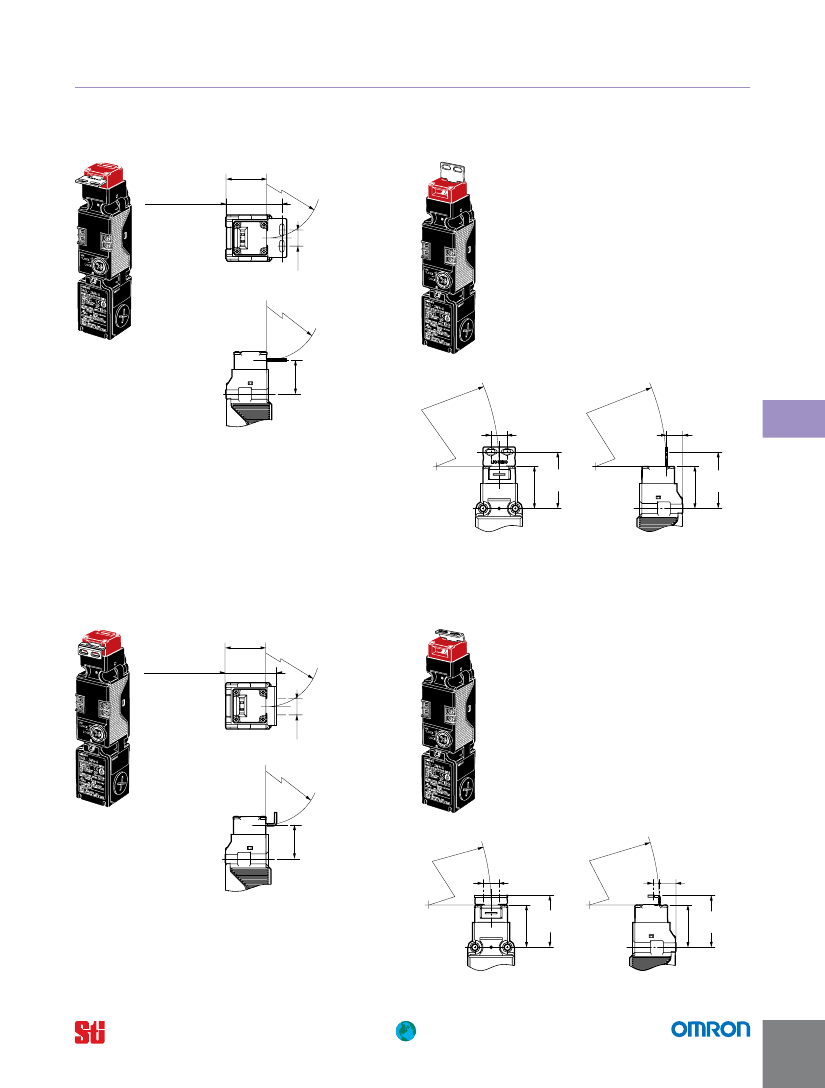

With Operation Key inserted
D4gl + D4DS-K1
(with front-inserted Operation Key)
(38)
51.5 min. 54 max.
Key insertion position
Horizontal
insertion radius:
R
≥
200
(mm)
D4gl + D4DS-K1
(with top-inserted Operation Key)
Center
tolerance of
key hole:
±1
Vertical
insertion radius:
R
≥
200
(15)
Center
tolerance of
key hole:
±1
Horizontal
insertion radius:
R
≥
200
(31.7)
Vertical
insertion radius:
R
≥
200
Center
tolerance of
key hole: ±1
Center
tolerance of
key hole: ±1
(15.2)
g
(15)
(39)
D4gl + D4DS-K2
(with front-inserted Operation Key)
(38)
47.5 min. 50 max.
Key insertion position
Horizontal
insertion radius:
R
≥
200
D4gl + D4DS-K2
Center
tolerance of
key hole:
±1
Vertical
insertion radius:
R
≥
200
(15)
Center
tolerance of
key hole:
±1
Horizontal
insertion radius:
R
≥
200
Center
tolerance of
key hole: ±1
Vertical
insertion radius:
R
≥
200
(15.2)
Center
tolerance of
key hole: ±1
(31.7)
(15)
(6)
(39)
OmrOn Scientific technOlOgieS, inc.
USA
Tel. 1/888/510-4357
canada
Tel. 1/866/986-6766
For the Latest Information
On the Internet:
www.sti.com
or
www.omron.ca
(39)
48.5 min. 51.0 max.
Key insertion position
(39)
52.5 min. 55.0 max.
Key insertion position
52.5 min. 55.0 max.
Key insertion position
48.5 min. 51.0 max.
Key insertion position
g49
D4gl
Safety interlock Switches
Dimensions and Operating characteristics (continued)
With Operation Key inserted
D4gl + D4DS-K3
(with front-inserted Operation Key)
(38)
52.5 min. 55 max.
Key insertion position
Center
tolerance of
key hole:
±1
(40)
Horizontal
insertion radius:
R
≥
50
(mm)
D4gl + D4DS-K3
(with top-inserted Operation Key)
Vertical
insertion radius:
R
≥
200
Center
tolerance of
key hole:
±1
Horizontal
insertion radius:
R
≥
50
Center
tolerance of
key hole: ±1
(40)
Vertical
insertion radius:
R
≥
200
g
(31.7)
(15.2)
Center
tolerance of
key hole: ±1
(39)
D4gl + D4DS-K5
(with front-inserted Operation Key)
Horizontal
insertion radius:
R
≥
50
D4gl + D4DS-K5
(with top-inserted Operation Key)
(38)
59.5 min. 62 max.
Key insertion position
(41 or 43)
Center
tolerance of
key hole:
±1
Vertical
insertion radius:
R
≥
50
Center
tolerance of
key hole:
±1
Center
tolerance of
key hole: ±1
43±0.1
41±0.1
(31.7)
Horizontal
insertion radius:
R
≥
50
Horizontal
insertion radius:
R
≥
50
(15.2)
Center
tolerance of
key hole: ±1
(39)
g50
OmrOn Scientific technOlOgieS, inc.
USA
Tel. 1/888/510-4357
canada
Tel. 1/866/986-6766
For the Latest Information
On the Internet:
www.sti.com
or
www.omron.ca
(39)
60.4 min. 62.9 max.
Key insertion position
(39)
53.5 min. 56.0 max.
Key insertion position
53.5 min. 56.0 max.
Key insertion position
60.4 min. 62.9 max.
Key insertion position
