KS2606SBK20NJ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> KS2606SBK20NJ

KS2606SBK20NJ: DescriptionGeneral Purpose Inductor, 0.02uH, 5%, 1 Element, Air-Core, SMD, LEAD FREE; CategoryPassive components inductor; File Size102KB，1 Pages; ManufacturerKOA Speer; Websitehttp://www.koaspeer.com/; Environmental Compliance

Download Datasheet Parametric View All

KS2606SBK20NJ Overview

General Purpose Inductor, 0.02uH, 5%, 1 Element, Air-Core, SMD, LEAD FREE

KS2606SBK20NJ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	KOA Speer
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
core material	AIR
DC Resistance	0.04 Ω
Nominal inductance(L)	0.02 µH
Inductor Applications	HIGH CURRENT INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e4
Manufacturer's serial number	KS
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Minimum quality factor (at nominal inductance)	100
Maximum rated current	2 A
self resonant frequency	2000 MHz
Shape/Size Description	CYLINDRICAL PACKAGE
shield	NO
surface mount	YES
Terminal surface	Silver (Ag)
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	800 MHz
Tolerance	5%
Base Number Matches	1

Preview

Download Datasheet

View All

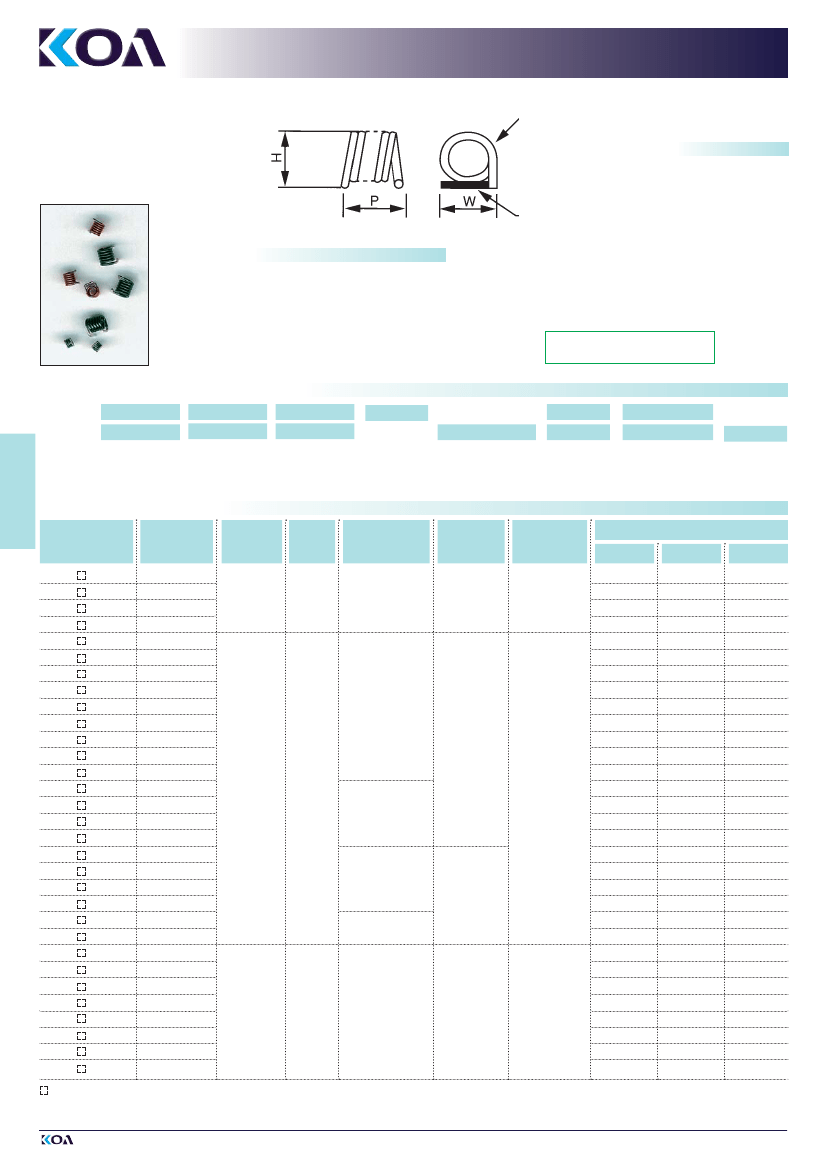

INDUCTORS

TECHNOLOGY OF TOMORROW

AIR CORE

SPRING COIL

STRUCTURE

Magnet wire

Solder plating

FEATURES

■

Low DC resistance and large allowable current

Mountable spring type inductors with extremely high Q

High SRF and excellent high frequency characteristics

Space saving electrode position structure

The small dimensions allow high density mounting

Customer specific spring coils on request

Operating temperature range: - 40° C ... + 125° C

Suitable for reflow soldering

Products with Pb-free terminations

meet RoHS requirements

TYPE DESIGNATION (HOW TO ORDER)

Old Part No.

New Part No.

(Pb-free)

PRODUCT CODE

WIRE DIAMETER

(20

0.2 mm)

(26

0.26 mm)

(30

0.3 mm)

TURN NUMBER

(03, 04, 05,

06, 07, 09)

INDUCTANCE

TOLERANCE

TERMINATION

SURFACE MATERIAL

T: Sn

S: Ag

L: Sn/Pb

TAPING*

TE, BK

*Please see “PACKAGING”

5N6

NOMINAL

INDUCTANCE

3 digits code

(see rating table)

Specifications given herein may be changed at any time without prior notice.

Please confirm technical specifications before you order and/or use.

INDUCTORS

INDUCTANCE

TOLERANCE

J: ±5%

K: ±10%

RATING AND DIMENSIONS

TYPE

KS2004

KS2603

KS2604

KS2605

KS2606

KS2607

KS2609

KS3004

KS3005

KS3006

KS3007

■

NOMINAL

INDUCTANCE

5.6 nH

9.1 nH

10 nH

12 nH

3.6 nH

5.6 nH

5.1 nH

6.2 nH

7.5 nH

9.1 nH

11 nH

12 nH

15 nH

10 nH

13 nH

15 nH

18 nH

20 nH

22 nH

24 nH

27 nH

24 nH

30 nH

10 nH

11 nH

15 nH

18 nH

22 nH

30 nH

16 nH

33 nH

INDUCTANCE

TOLERANCE

QUALITY

FACTOR

(MIN.)

SELF RESONANT

FREQUENCY

(MIN.)

RESISTANCE

(MAX.)

ALLOWABLE

DC CURRENT

(MAX.)

DIMENSIONS (mm)

1.15 ± 0.1

1.40 ± 0.1

1.70 ± 0.1

2.00 ± 0.1

2.30 ± 0.1

2.90 ± 0.1

1.70 ± 0.1

2.00 ± 0.1

2.30 ± 0.1

2.65 ± 0.1

1.05 ± 0.1

1.25 ± 0.1

1.35 ± 0.1

1.45 ± 0.1

1.20 ± 0.1

1.40 ± 0.1

1.20 ± 0.1

1.30 ± 0.1

1.40 ± 0.1

1.50 ± 0.1

1.60 ± 0.1

1.70 ± 0.1

1.80 ± 0.1

1.40 ± 0.1

1.50 ± 0.1

1.60 ± 0.1

1.70 ± 0.1

1.60 ± 0.1

1.70 ± 0.1

1.80 ± 0.1

1.70 ± 0.1

1.50 ± 0.1

1.60 ± 0.1

1.65 ± 0.1

1.55 ± 0.1

1.65 ± 0.1

1.85 ± 0.1

2.05 ± 0.1

1.55 ± 0.1

1.95 ± 0.1

1.30 ± 0.1

1.50 ± 0.1

1.60 ± 0.1

1.70 ± 0.1

1.50 ± 0.1

1.70 ± 0.1

1.50 ± 0.1

1.60 ± 0.1

1.70 ± 0.1

1.80 ± 0.1

1.90 ± 0.1

2.00 ± 0.1

2.10 ± 0.1

1.70 ± 0.1

1.80 ± 0.1

1.90 ± 0.1

2.00 ± 0.1

1.90 ± 0.1

2.00 ± 0.1

2.10 ± 0.1

2.00 ± 0.1

1.80 ± 0.1

1.90 ± 0.1

2.00 ± 0.1

1.90 ± 0.1

2.00 ± 0.1

2.20 ± 0.1

2.40 ± 0.1

1.90 ± 0.1

2.30 ± 0.1

TE 5N6

■

TE 9N1

■

TE 10N

■

TE 12N

■

TE 3N6

■

TE 5N6

■

TE 5N1

■

TE 6N2

■

TE 7N5

■

TE 9N1

■

TE 11N

■

TE 12N

■

TE 15N

■

TE 10N

■

TE 13N

■

TE 15N

■

TE 18N

■

TE 20N

■

TE 22N

■

TE 24N

■

TE 27N

■

TE 24N

■

TE 30N

■

TE 10N

■

TE 11N

■

TE 15N

■

TE 18N

■

TE 22N

■

TE 30N

■

TE 16N

■

TE 33N

■

J (± 5%)

K (± 10%)

100

5.0 GHz

10 mΩ

1.5 A

5.0 GHz

20 mΩ

J (± 5%)

K (± 10%)

100

3.0 GHz

2.0 A

2.0 GHz

40 mΩ

3.0 GHz

J (± 5%)

K (± 10%)

100

3.0 GHz

20 mΩ

2.5 A

Enter the code for termination surface material (T, S, L)

Measuring frequency: 800 MHz

Enter the code for inductance tolerance (J, K)

The above mentioned characteristic values are representative examples and can be changed according to the customer`s requirements.

EUROPE GmbH • Kaddenbusch 6 • D-25578 Dägeling / ITZEHOE • PHONE: +49 (0) 48 21 / 89 89-0 • FAX: +49 (0) 48 21/ 89 89 89 • Internet: www.koaeurope.de

Revision: 5. Nov. 2004
