Amphenol
Circular Interconnects
Mini-DIN

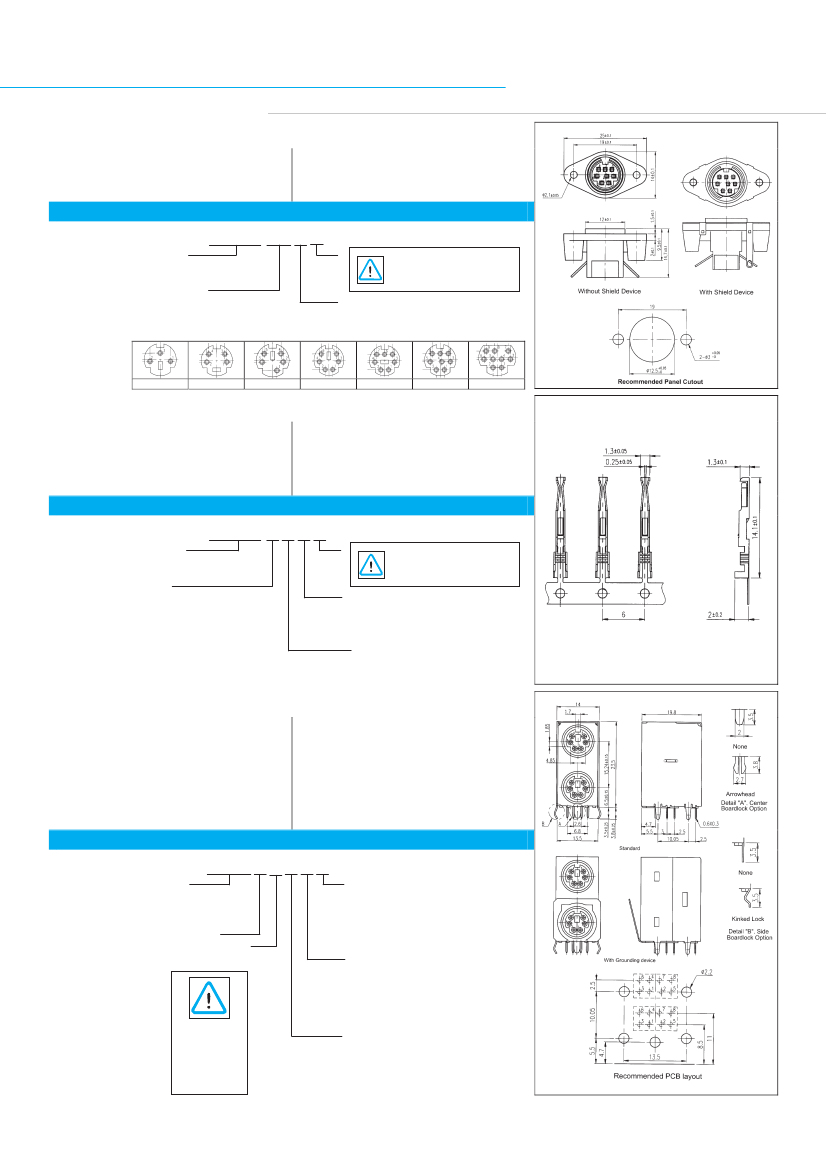

Receptacle Panel Mount Housing
Materials
Housing
Shield
Shield Plating
– 94V-0 thermoplastic
– Carbon steel
– 100µ” Tin/lead
Related Information
Socket Contact
Mating Half
– G18DC see below
– Page D-27
Part Number System:
G18DR XX X X
Mini-DIN Housing Rec.
Panel Mount for Crimp Contacts
NUMBER OF POSITIONS
03: 3 Position
04: 4 Position
05: 5 Position
Insert Arrangements
06: 6 Position
07: 7 Position
08: 8 Position
3 position
4 position
5 position
6 position
Suffix may be added to Part Number.
This Suffix is for Internal use mainly.
Additional Suffix ‘EU’ or ‘LF’ may be
added for RoHS compliant product.
SHIELDING OPTION
0: With Shielding
1: Without Shielding
7 position
8 position
9 position
Mini-DIN
Crimp Socket Contacts for G18DR
above
Materials
Contact
– P/B with 50µ” Ni
– 1.5A
– 250VAC/rms 60Hz
Durability
Gold Flash
15µ” Gold
30µ” Gold
100µ” Tin/lead
– 75 cycles
– 125 cycles
– 250 cycles
– 200 cycles
Electrical
Current
Voltage
Part Number System:
G18DC X X X X
Mini-DIN Contacts
Socket Crimp for 24~28AWG
CONTACT FINISH
0: Gold Flash
1: 30µ” Gold
3: 15µ” Gold
5: 100µ” Tin/Lead
Suffix may be added to Part Number.
This Suffix is for Internal use mainly.
Additional Suffix ‘EU’ or ‘LF’ may be
added for RoHS compliant product.
PACKING OPTION
3: Reel of 5,000
4: Reel of 10,000
PACKING STYLE
1: Right Hand Feed
2: Left Hand Feed
\
Mini-DIN Dual Port
R/A PCB Mount Receptacle
Materials
Housing
Shield
Shield Plating
Contact
– 94V-0 thermoplastic
– Carbon steel
– 100µ” Tin/lead
– P/B with 50µ” Ni
– 1.5A
– 250VAC/rms 60Hz
Durability
Gold Flash
15µ” Gold
30µ” Gold
100µ” Tin/lead
Mating Half
– 75 cycles
– 125 cycles
– 250 cycles
– 200 cycles
– D-27
Electrical
Current
Voltage
Related Information
Part Number System:
G18H X X X X X
Mini-DIN Dual Port Rec.
G18H: Standard Temperature
G18HM: High Temperature
NUMBER OF POSITIONS TOP
NUMBER OF POSITIONS BOTTOM
3: 3 Position
4: 4 Position
5: 5 Position
6: 6 Position
7: 7 Position
8: 8 Position
Suffix may be added
to Part Number.
9: 9 Position
BOARDLOCK OPTIONS
0: None
1: Centre Arrowhead only
2: Side Boardlock only
3: Both Centre & Side Locks
CONTACT FINISH
0: Gold Flash
1: 1: 30µ” Gold
3: 3: 15µ” Gold
5: 100µ” Tin/Lead
GROUNDING OPTION
0: Standard
1: With Grounding
This Suffix is for
Internal use mainly.
Additional Suffix ‘EU’
or ‘LF’ may be
added for RoHS
compliant product.
AMTA
D-27
Amphenol
Circular Interconnects

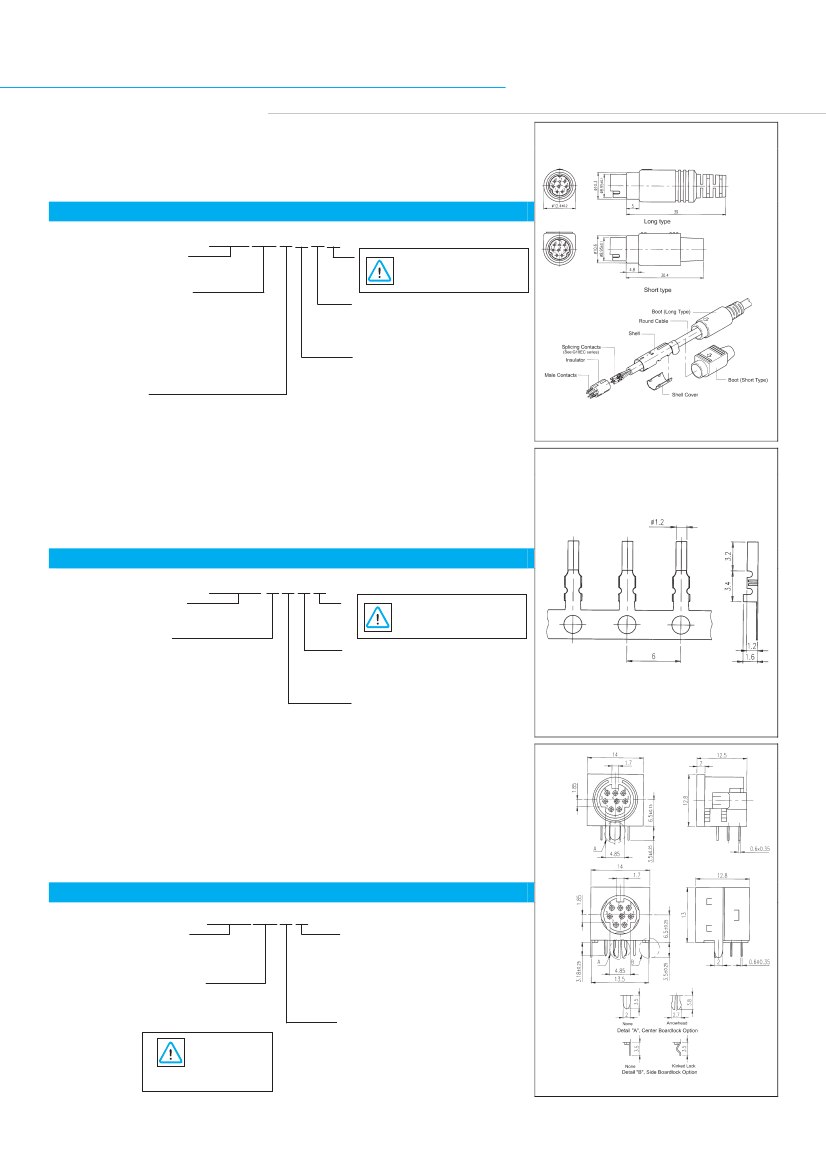

Mini-DIN Plug
Cable Mount Assembly
Materials
Housing
Shell
Boot
– 94V-0 thermoplastic
– Carbon steel
50µ” Ni
– 94V-0 PVC
Related Information
Splicing Contact
Mating Half
Inserts
– G18EC see below
– Page C-13 & below
– D-26
Part Number System:
G18E XX X X X X
Mini-DIN Plug Assembly
Crimp Type
NUMBER OF POSITIONS
03: 3 Position
04: 4 Position
05: 5 Position
06: 6 Position
07: 7 Position
08: 8 Position
SHELL FINISH
0: Tin/lead
1: Nickel
Suffix may be added to Part Number.
This Suffix is for Internal use mainly.
Additional Suffix ‘EU’ or ‘LF’ may be
added for RoHS compliant product.
BOOT STYLE
0: Long
1: Short
CONTACT FINISH
0: Gold Flash
1: 30µ” Gold
3: 15µ” Gold
5: 100µ” Tin/Lead
Mini-DIN Contact
Crimp Splice for G18E
above
Materials
Contact
– P/B with 50µ” Ni
– 1.5A
– 250VAC/rms 60Hz
Durability
Gold Flash
15µ” Gold
30µ” Gold
100µ” Tin/lead
– 75 cycles
– 125 cycles
– 250 cycles
– 200 cycles
Electrical
Current
Voltage
Part Number System:
G18EC X X X X
Mini-DIN Splice Contact
Crimp for 24~28AWG
CONTACT FINISH
0: Gold Flash
1: 30µ” Gold
3: 15µ” Gold
5: 100µ” Tin/Lead
Suffix may be added to Part Number.
This Suffix is for Internal use mainly.
Additional Suffix ‘EU’ or ‘LF’ may be
added for RoHS compliant product.
PACKING OPTION
3: Reel of 5,000
4: Reel of 10,000
PACKING STYLE
1: Right Hand Feed
2: Left Hand Feed
Mini-DIN PCB Mount
Right Angle Receptacle
Materials
Housing
Shield
Shield Plating
Contact
– 94V-0 thermoplastic
– Carbon steel
– 100µ” Tin/lead
– P/B with 50µ” Ni
– 1.5A
– 250VAC/rms 60Hz
Durability
Gold Flash
15µ” Gold
30µ” Gold
100µ” Tin/lead
Mating Half
Inserts
– 75 cycles
– 125 cycles
– 250 cycles
– 200 cycles
– See above
– D-26
K Type
J Type
Electrical
Current
Voltage
Related Information
Part Number System:
G18X XX X X
Mini-DIN Dual Port Rec.
G18J: Standard Temperature
G18K: Shielded
NUMBER OF POSITIONS
03: 3 Position
04: 4 Position
05: 5 Position
06: 6 Position
Suffix may be added
to Part Number.
07: 7 Position
This Suffix is for
08: 8 Position
Internal use mainly.
09: 9 Position
Additional Suffix ‘EU’ or ‘LF’ may be
added for RoHS compliant product.
AMTA
BOARDLOCK OPTIONS
0: None
1: Centre Arrowhead only
2: Side Boardlock (G18K only)
3: Both Centre & Side Locks
(G18K only)
CONTACT FINISH
0: Gold Flash
1: 1: 30µ” Gold
3: 3: 15µ” Gold
5: 100µ” Tin/Lead
D-28
