DM54LS164W datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> DM54LS164W

DM54LS164W: DescriptionSerial In Parallel Out, LS Series, 8-Bit, Right Direction, True Output, TTL, CDFP14, CERAMIC, FP-14; Categorylogic logic; File Size146KB，6 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

DM54LS164W Overview

Serial In Parallel Out, LS Series, 8-Bit, Right Direction, True Output, TTL, CDFP14, CERAMIC, FP-14

DM54LS164W Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Fairchild
Parts packaging code	DFP
package instruction	CERAMIC, FP-14
Contacts	14
Reach Compliance Code	unknown
Counting direction	RIGHT
series	LS
JESD-30 code	R-GDFP-F14
JESD-609 code	e0
Logic integrated circuit type	SERIAL IN PARALLEL OUT
Maximum Frequency@Nom-Sup	25000000 Hz
Number of digits	8
Number of functions	1
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	TRUE
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DFP
Encapsulate equivalent code	FL14,.3
Package shape	RECTANGULAR
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
propagation delay (tpd)	40 ns
Certification status	Not Qualified
Maximum seat height	2.032 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger type	POSITIVE EDGE
width	6.2865 mm
minfmax	25 MHz
Base Number Matches	1

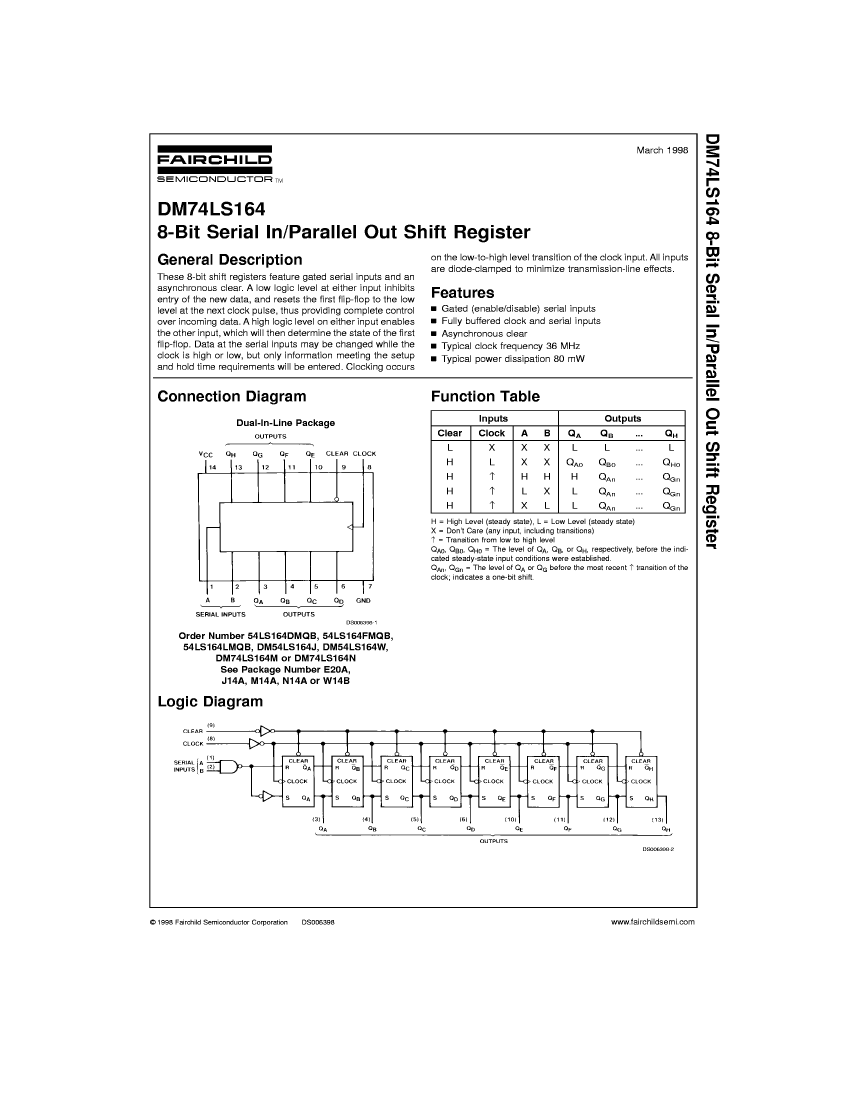

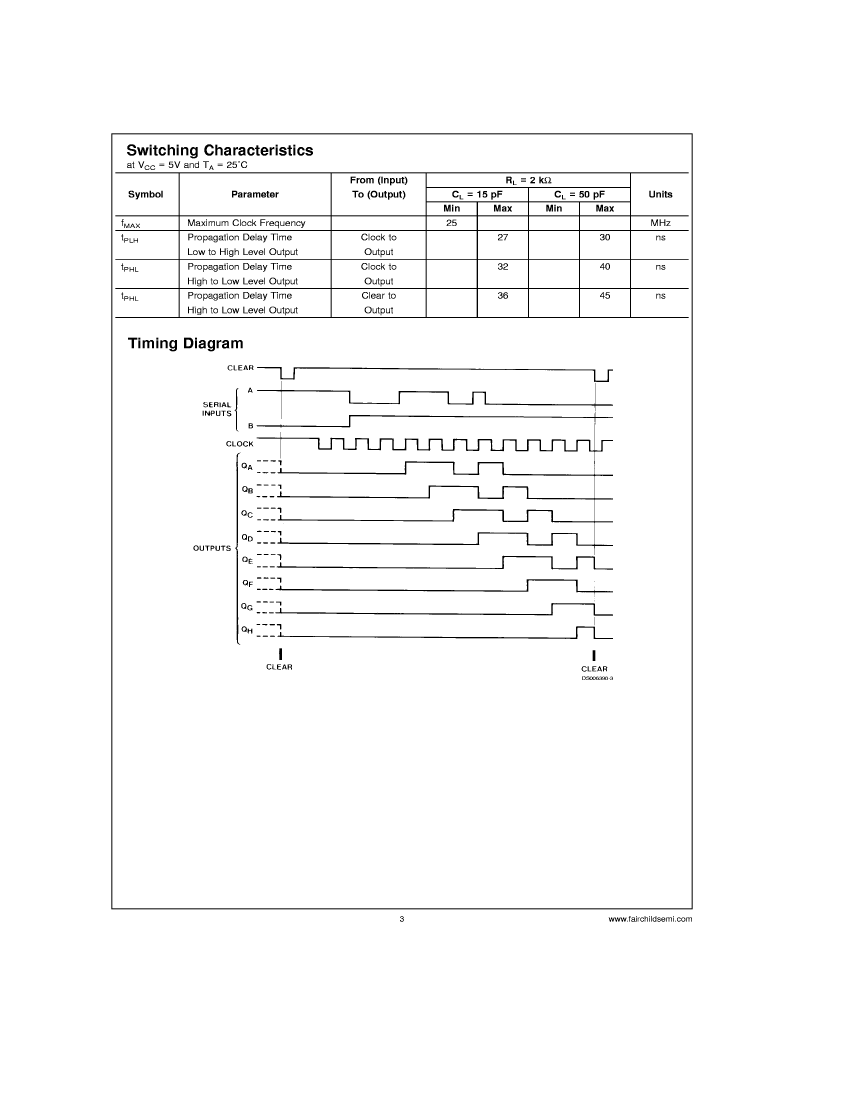

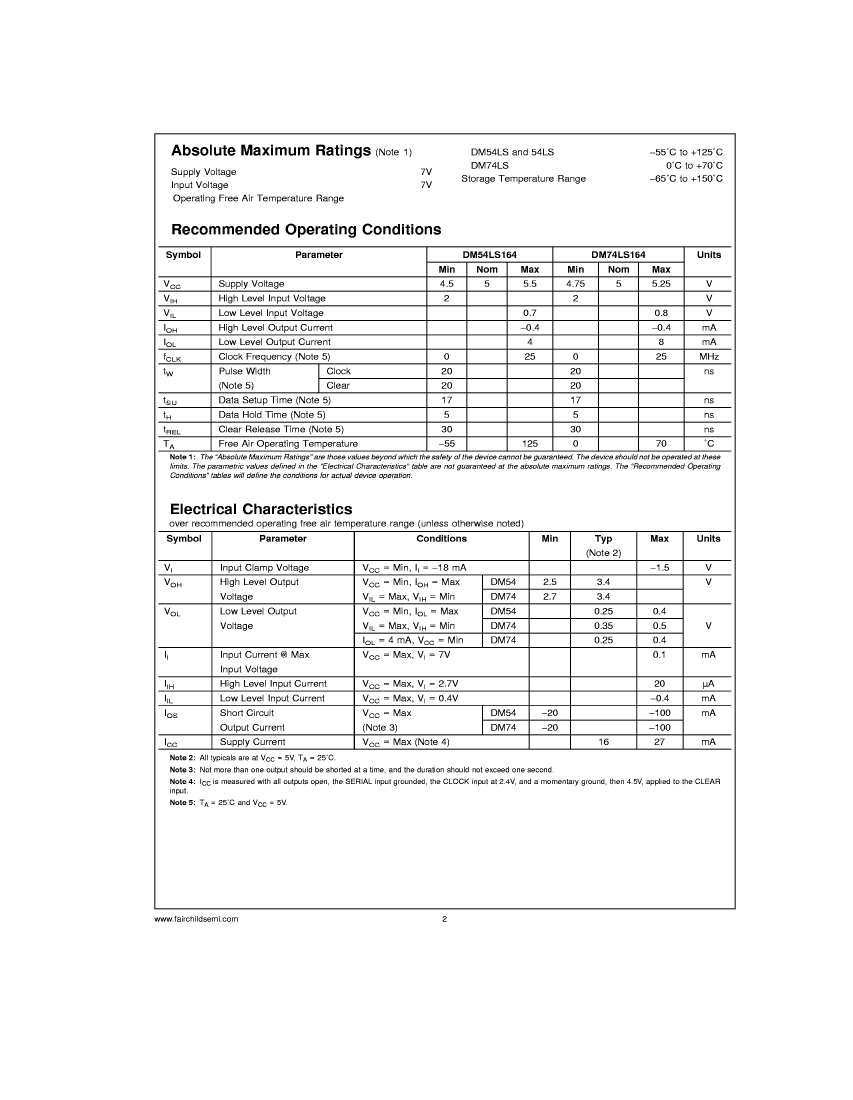

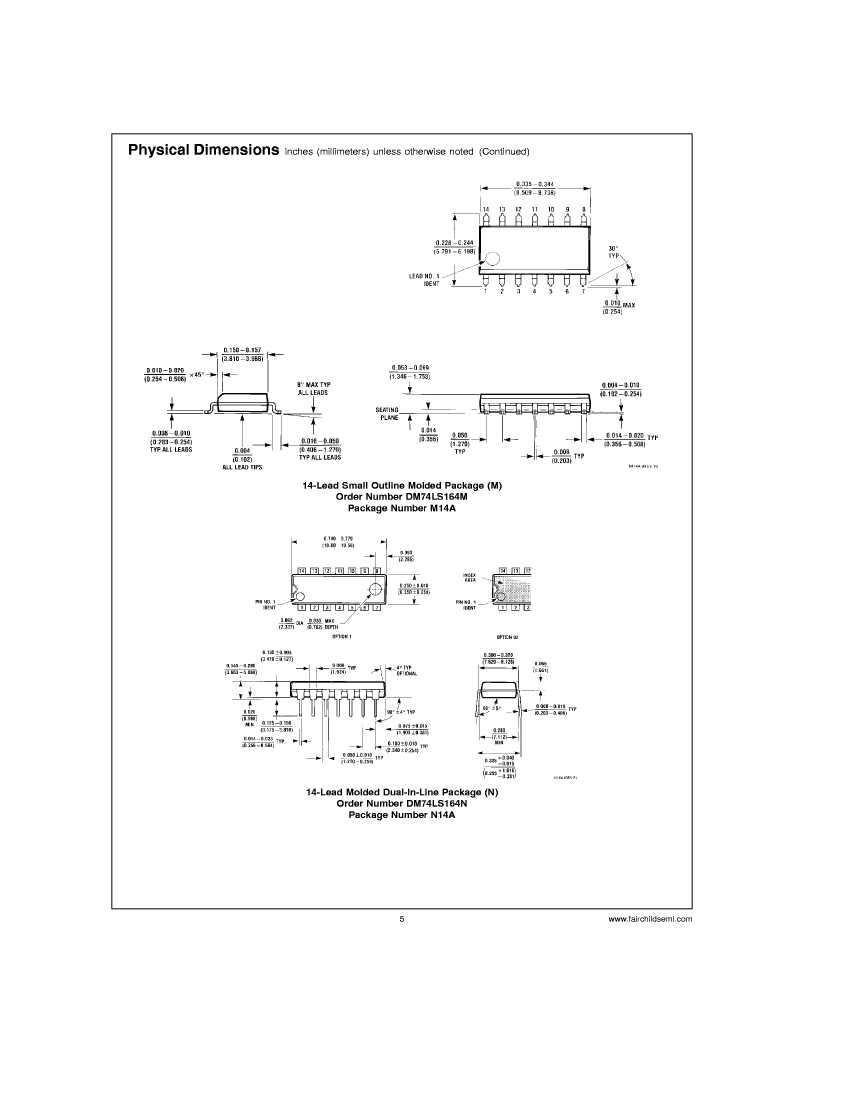

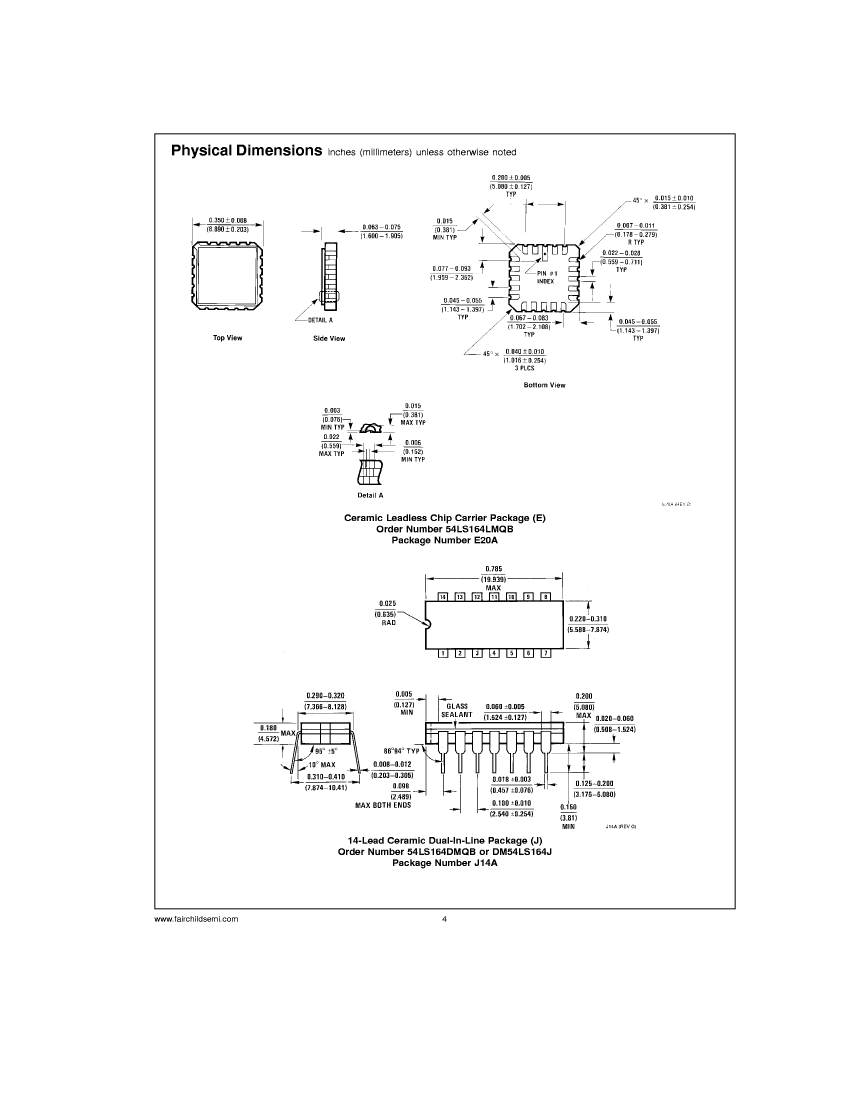

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

DM54LS164W Related Products

	DM54LS164W	54LS164DMQB	DM54LS164J	54LS164FMQB	54LS164LMQB
Description	Serial In Parallel Out, LS Series, 8-Bit, Right Direction, True Output, TTL, CDFP14, CERAMIC, FP-14	Serial In Parallel Out, LS Series, 8-Bit, Right Direction, True Output, TTL, CDIP14, CERAMIC, DIP-14	Serial In Parallel Out, LS Series, 8-Bit, Right Direction, True Output, TTL, CDIP14, CERAMIC, DIP-14	Serial In Parallel Out, LS Series, 8-Bit, Right Direction, True Output, TTL, CDFP14, CERAMIC, FP-14	Serial In Parallel Out, LS Series, 8-Bit, Right Direction, True Output, TTL, CQCC20, CERAMIC, LCC-20
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	DFP	DIP	DIP	DFP	QLCC
package instruction	CERAMIC, FP-14	DIP, DIP14,.3	CERAMIC, DIP-14	DFP, FL14,.3	QCCN, LCC20,.35SQ
Contacts	14	14	14	14	20
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Counting direction	RIGHT	RIGHT	RIGHT	RIGHT	RIGHT
series	LS	LS	LS	LS	LS
JESD-30 code	R-GDFP-F14	R-GDIP-T14	R-GDIP-T14	R-GDFP-F14	S-CQCC-N20
JESD-609 code	e0	e0	e0	e0	e0
Logic integrated circuit type	SERIAL IN PARALLEL OUT	SERIAL IN PARALLEL OUT	SERIAL IN PARALLEL OUT	SERIAL IN PARALLEL OUT	SERIAL IN PARALLEL OUT
Maximum Frequency@Nom-Sup	25000000 Hz	25000000 Hz	25000000 Hz	25000000 Hz	25000000 Hz
Number of digits	8	8	8	8	8
Number of functions	1	1	1	1	1
Number of terminals	14	14	14	14	20
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP	DIP	DIP	DFP	QCCN
Encapsulate equivalent code	FL14,.3	DIP14,.3	DIP14,.3	FL14,.3	LCC20,.35SQ
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE
Package form	FLATPACK	IN-LINE	IN-LINE	FLATPACK	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V	5 V	5 V
propagation delay (tpd)	40 ns	40 ns	40 ns	40 ns	40 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.032 mm	5.08 mm	5.08 mm	2.032 mm	1.905 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	NO	YES	YES
technology	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	FLAT	THROUGH-HOLE	THROUGH-HOLE	FLAT	NO LEAD
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
width	6.2865 mm	7.62 mm	7.62 mm	6.2865 mm	8.89 mm
minfmax	25 MHz	25 MHz	25 MHz	25 MHz	25 MHz
Base Number Matches	1	1	1	1	1
Maker	Fairchild	-	Fairchild	-	Fairchild
length	-	19.43 mm	19.43 mm	-	8.89 mm
Filter level	-	MIL-STD-883 Class B	-	MIL-STD-883 Class B	MIL-STD-883 Class B
