BAS70T
BAS70-04T
BAS70-05T
BAS70-06T
150mWatt, 70Volt
Schottky Barrier Diode
Features
•
•
•
•
•
Ultra-Small Surface Mount Package
Low turn on Voltage
Fast Switching
PN Junction Guard Ring for Transient andESD Protection
Case Material: Molded Plastic. UL Flammability
Classification Rating 94V-0
and MSL Rating 1
MCC
Part Number
BAS70T
BAS70-04T
BAS70-05T
BAS70-06T
Device
Marking
7C
7D
7E
7F
Type
Single
Dual
Dual
Dual
Pin
Configuration
Figure 1
Figure 2
Figure 3
Figure 4
SOT-523
A
D
Maximum Ratings
DC Blocking Voltage
Forward Continuous Current
Non-Repetitive Peak Forward Current t<1s
Total Power Dissipation @ T
A
= 25°C
Storage Temperature Range
Junction Temperature
V
R
I
F
I
FSM
P
D
T
stg
T
j
70V
70mA
100mA
150mW
-55°C to 150°C
-55°C to 150°C
E
B
C
G
H
J
K
DIMENSIONS
INCHES
MIN
MAX
.059
.067
.030
.033
.057
.069
.020 Nominal
.035
.043
.000
.004
.028
.031
.004
.008
.010
.014
MM
MIN
MAX
1.50
1.70
0.75
0.85
1.45
1.75
0.50Nominal
0.90
1.10
.000
.100
.70
0.80
.100
.200
.25
.35
Electrical Characteristics @ 25°C Unless Otherwise Specified
Ratings
Forward Voltage
Reverse Current
Reverse Breakdown
Voltage
Total Capacitance
Reverse Recovery
Time
Symbol
V
F
I
R
V
(BR)
C
T
t
rr
Max.
410mV
1000mV
100nA
>70V
2pF
5nS
Notes
I
F
=1mA
I
F
=15mA
V
R
= 50V
I
R
=10uA
Measured at
1.0MHz, V
R
=0V
I
F
=I
R
= 10mA ;
Irr=0.1*I
R
R
L
= 100Ω
DIM
A
B
C
D
E
G
H
J
K
NOTE
www.mccsemi.com
Revision: 2
1 of 3
2008/01/01
BAS70T/ -04T/ -05T/ -06T
I
F
, INSTANTANEOUS FORWARD CURRENT (mA)
100
T
A
= 125ºC
T
A
= 75ºC
T
A
= 25ºC
MCC
Micro Commercial Components
TM
10
1.0
T
A
= 0ºC
0.1
0
0.2
0.4
T
A
= -40ºC
0.6
0.8
1.0
1.2
1.4
1.6
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)

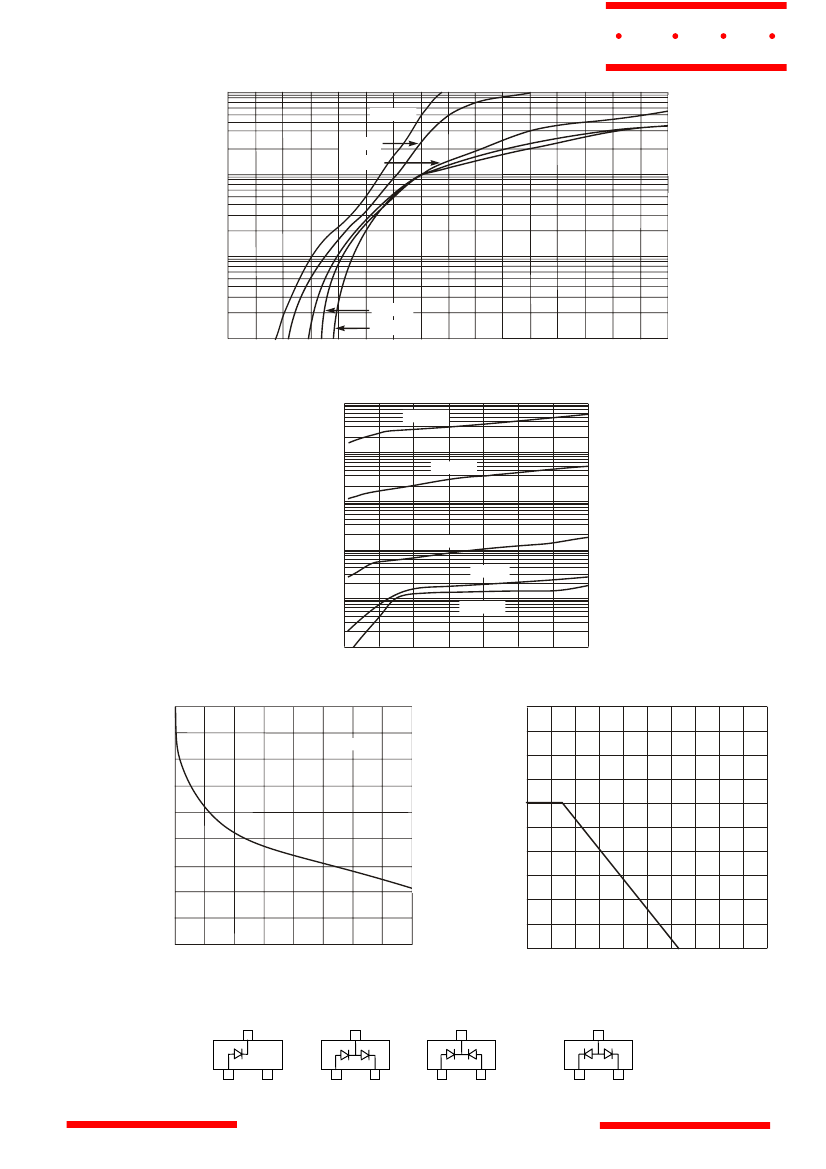

Fig. 1 Typical Forward Characteristics
I
R
, INSTANTANEOUS REVERSE CURRENT (nA)
10000
T
A
= 125ºC
1000
T
A
= 75ºC
100
10
T
A
= 25ºC
T
A
= 0ºC
1
T
A
= -40ºC
0.1
0
10
20
30
40
50
60
70
V
R
, REVERSE VOLTAGE (V)
Fig. 2 Typical Reverse Characteristics
1.8
1.6
250
f = 1.0MHz
P
d
, POWER DISSIPATION (mW)
40
C
T
, TOTAL CAPACITANCE (pF)
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0
0
5
10
15
20
25
30
35
200
150
100
50
0
0
100
200
V
R
, REVERSE VOLTAGE (V)
Fig. 3 Typical Capacitance
T
A
, AMBIENT TEMPERATURE (°C)
Fig. 4 Power Derating Curve, Total Package
Pin Configuration - Top View
Figure 1
Revision: 2
www.mccsemi.com
2 of 3
Figure 2
Figure 3
Figure 4
2008/01/01
MCC
Micro Commercial Components
TM
Ordering Information
Device
(Part Number)-TP
Packing
Tape&Reel;3Kpcs/Reel
