74ACT240SJX_NL Overview

buffers and line drivers finished good

74ACT240SJX_NL Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Fairchild
Parts packaging code	SOIC
package instruction	5.30 MM, LEAD FREE, EIAJ TYPE2, SOP-20
Contacts	20
Reach Compliance Code	compliant
Control type	ENABLE LOW
series	ACT
JESD-30 code	R-PDSO-G20
JESD-609 code	e3
length	12.6 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.024 A
Humidity sensitivity level	1
Number of digits	4
Number of functions	2
Number of ports	2
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP20,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
method of packing	TAPE AND REEL
Peak Reflow Temperature (Celsius)	260
power supply	5 V
Prop。Delay @ Nom-Sup	9.5 ns
propagation delay (tpd)	9.5 ns
Certification status	Not Qualified
Maximum seat height	2.1 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	5.3 mm
Base Number Matches	1

Preview

Download Datasheet

View All

74AC240, 74ACT240 — Octal Buffer/Line Driver with 3-STATE Outputs

January 2008

74AC240, 74ACT240

Octal Buffer/Line Driver with 3-STATE Outputs

Features

■

and I

reduced by 50%

■

Inverting 3-STATE outputs drive bus lines or buffer

General Description

The AC/ACT240 is an octal buffer and line driver

designed to be employed as a memory address driver,

clock driver and bus oriented transmitter or receiver

which provides improved PC board density.

memory address registers

■

Outputs source/sink 24mA

■

ACT240 has TTL-compatible inputs

Ordering Information

Order Number

74AC240SC

74AC240SJ

74AC240MTC

74AC240PC

74ACT240SC

74ACT240SJ

74ACT240MTC

74ACT240PC

Package

Number

M20B

M20D

MTC20

N20A

M20B

M20D

MTC20

N20A

Package Description

20-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-013, 0.300" Wide

20-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide

20-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm

Wide

20-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300" Wide

20-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-013, 0.300" Wide

20-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide

20-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm

Wide

20-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300" Wide

Device also available in Tape and Reel. Specify by appending suffix letter “X” to the ordering number.

All packages are lead free per JEDEC: J-STD-020B standard.

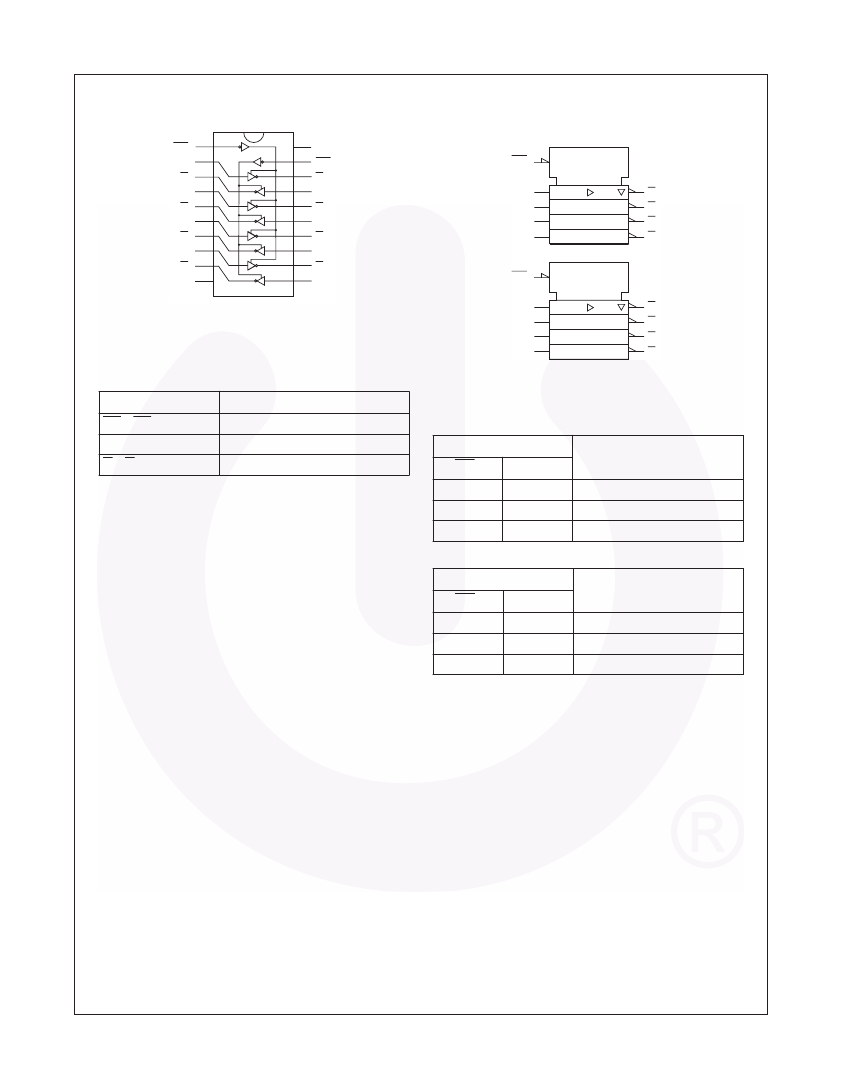

74AC240, 74ACT240 Rev. 1.2.0

www.fairchildsemi.com

74ACT240SJX_NL Related Products

	74ACT240SJX_NL	74ACT240MTCX	74ACT240SCX	74AC240MTCX	74ACT240SCTR	74ACT240SCXR	WBDDQSC-B-02-1961-B-F	74AC240SCTR
Description	buffers and line drivers finished good	buffers & line drivers octal buf/line drv	buffers & line drivers octal buf/line drv	IC inverter dual 4-input 20tssop	Bus Driver, ACT Series, 2-Func, 4-Bit, Inverted Output, CMOS, PDSO20, 0.300 INCH, MS-013, SOIC-20	Bus Driver, ACT Series, 2-Func, 4-Bit, Inverted Output, CMOS, PDSO20, 0.300 INCH, MS-013, SOIC-20	Array/Network Resistor, Bussed, 0.05W, 1960ohm, 100V, 0.1% +/-Tol, -50,50ppm/Cel, 1109,	Bus Driver, AC Series, 2-Func, 4-Bit, Inverted Output, CMOS, PDSO20, 0.300 INCH, MS-013, SOIC-20
Reach Compliance Code	compliant	compliant	compliant	compli	unknown	unknown	compliant	unknown
Maker	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	-	Fairchild
Parts packaging code	SOIC	TSSOP	SOIC	TSSOP	SOIC	SOIC	-	SOIC
package instruction	5.30 MM, LEAD FREE, EIAJ TYPE2, SOP-20	TSSOP, TSSOP20,.25	SOP, SOP20,.4	TSSOP, TSSOP20,.25	SOP,	SOP,	-	0.300 INCH, MS-013, SOIC-20
Contacts	20	20	20	20	20	20	-	20
series	ACT	ACT	ACT	AC	-	ACT	WBC-NETWORK	AC
JESD-30 code	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	-	R-PDSO-G20	-	R-PDSO-G20
length	12.6 mm	6.5 mm	12.8015 mm	6.5 mm	-	12.8015 mm	-	12.8015 mm
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	-	BUS DRIVER	-	BUS DRIVER
Number of digits	4	4	4	4	-	4	-	4
Number of functions	2	2	2	2	-	2	-	2
Number of ports	2	2	2	2	-	2	-	2
Number of terminals	20	20	20	20	-	20	24	20
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	-	85 °C	150 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-	-40 °C	-55 °C	-40 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	-	3-STATE	-	3-STATE
Output polarity	INVERTED	INVERTED	INVERTED	INVERTED	-	INVERTED	-	INVERTED
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY	-	PLASTIC/EPOXY
encapsulated code	SOP	TSSOP	SOP	TSSOP	-	SOP	-	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	-	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	-	SMALL OUTLINE	SMT	SMALL OUTLINE
method of packing	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	-	-	Tray	-
propagation delay (tpd)	9.5 ns	9.5 ns	9.5 ns	9 ns	-	9.5 ns	-	9 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	-	Not Qualified
Maximum seat height	2.1 mm	1.2 mm	2.642 mm	1.2 mm	-	2.642 mm	-	2.642 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	6 V	-	5.5 V	-	6 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	2 V	-	4.5 V	-	2 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	3.3 V	-	5 V	-	3.3 V
surface mount	YES	YES	YES	YES	-	YES	-	YES
technology	CMOS	CMOS	CMOS	CMOS	-	CMOS	-	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	-	INDUSTRIAL	-	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	-	GULL WING	-	GULL WING
Terminal pitch	1.27 mm	0.65 mm	1.27 mm	0.65 mm	-	1.27 mm	-	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	-	DUAL	-	DUAL
width	5.3 mm	4.4 mm	7.493 mm	4.4 mm	-	7.493 mm	-	7.493 mm
Base Number Matches	1	1	1	1	1	1	-	1
