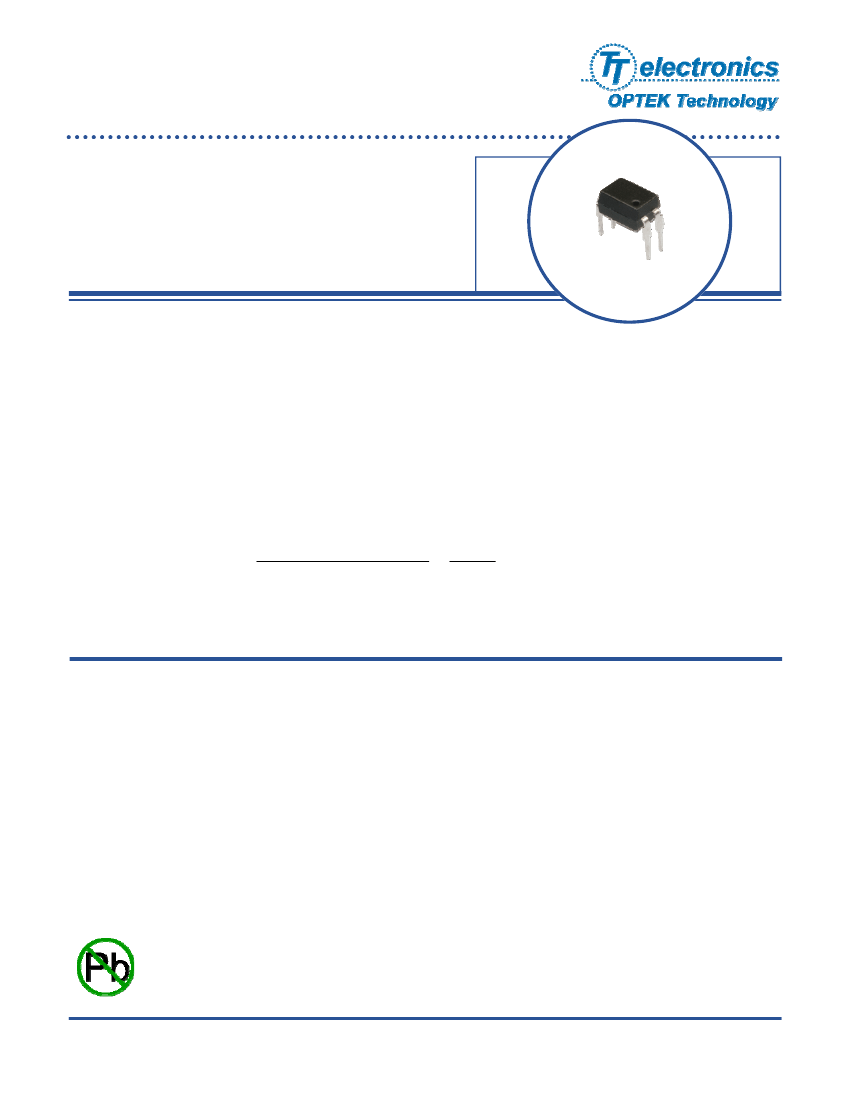

Optocoupler—DIP Package
OPIA400, OPIA410 through OPIA413
Features:
•
•
•
•
•
•
5,000 Vrms electrical isolation
Choice of a Single and Dual LED
Phototransistor or Photo Darlington Sensor
Low-cost plastic Dual-In-Line (DIP) package
UL Certification No: E58730
VDE Pending
Approval Agency:
Description:
The OPIA series optocouplers are designed for applications that use an analog output (Phototransistor or Photo
Darlington) in a dual-in-line package. A wide selection of configurations are available. With typical isolation
voltage of 5,000 Volts RMS, these products meet typical power system isolation requirements.
Theory of operation: The LED transmitter is used to illuminate the Photosensor providing electrical isolation
between two power systems while maintaining the ability to transmit information from one power system to the
other. In many applications, analog signal levels may be required to be transmitted between two power systems
while maintaining isolation between the power systems up to 5,000 volts RMS. A variety of LED and photosensor
configurations are available depending on the system requirements.
The ratio Current Transfer Ratio (CTR) is identified between the output current and input current for analog
photosensors. CTR ratios can range from as low as 5 to over 9,000 depending on the device.
CTR
=
Photosensor
−
Current
20
mA
=
* 100
=
200
LED
−
Current
10
mA
All DIP product is shipped in a shipping tube with “TU” identified on the end of the part number.
Example: OPI400DTU is a 4-Pin DIP shipped in a tube (TU).
Applications:
•
•
•
•
•
High voltage isolation, up to 5,000 Volts RMS
PCBoard power system isolation
Industrial equipment power isolation
Medical equipment power isolation
Office equipment
RoHS
OPTEK reserves the right to make changes at any time in order to improve design and to supply the best product possible.
Issue A.4
11/08
Page 1 of 17
OPTEK Technology Inc. —
1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747
FAX: (972) 323-2396 sensors@optekinc.com www.optekinc.com
Optocoupler—DIP Package
OPIA400, OPIA410 through OPIA413

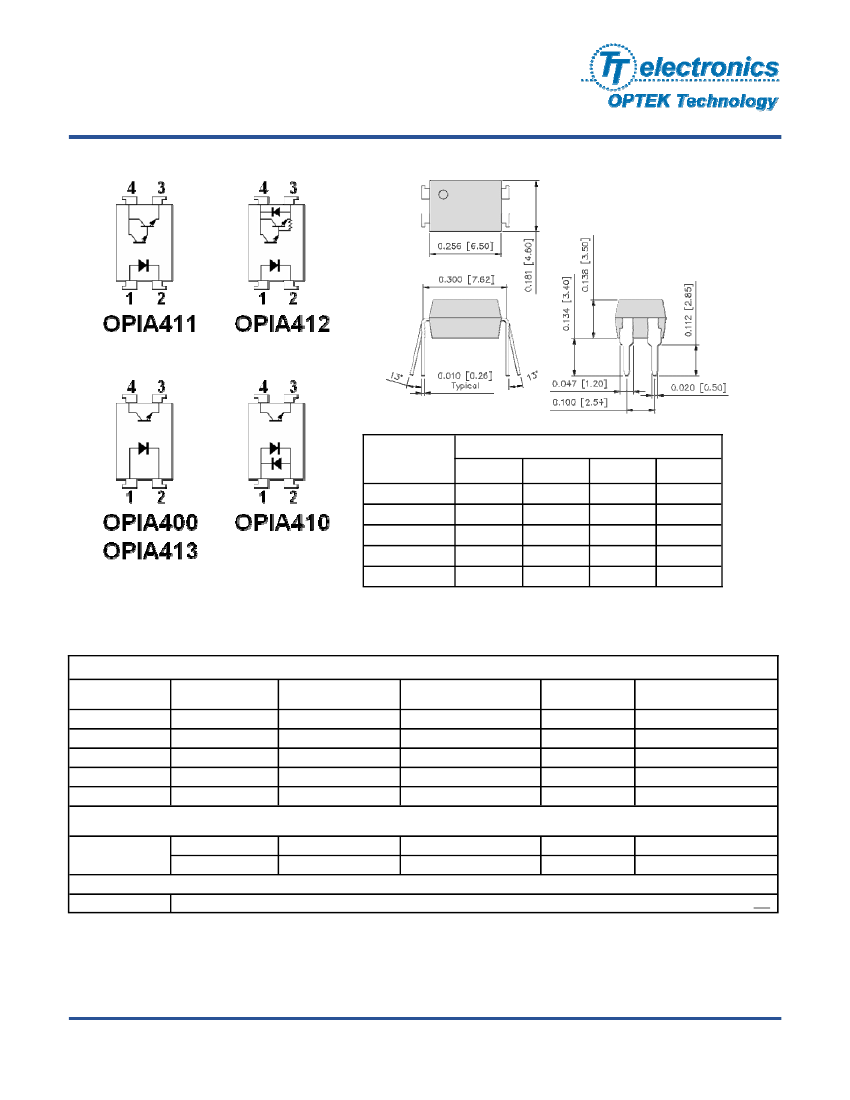

Package Outline Dimensions and Schematics:
Top-View
Pin #
Part Number
1
OPIA400
OPIA410
OPIA411
OPIA412
OPIA413
A
A-K
A
A
A
2
K
K-A
K
K
K
3
E
E
E
E
E
4
C
C
C
C
C
Analog Output Devices Ordering Information
Part Number
OPIA400D
OPIA410D
OPIA411D
OPIA412D
OPIA413D
Isolation Voltage
Max. (Vrms)
5,000
5,000
5,000
5,000
5,000
CTR
Min/Typ/Max
50 / - / 600
60 / - / 600
70 / - / -
600 / - / 9,000
50 / - / 600
Typ. Tr / Tf (µs)
R
L
= 100 ohms
4/3
5/4
80 / 72
60 / 50
2/3
Package
4-Pin DIP
4-Pin DIP
4-Pin DIP
4-Pin DIP
4-Pin DIP
Configuration
A K—C E
A K, K A—C E
A K—C E (Dar)
A K—C E (Dar)
A K—C E
Configuration
Information
LED
Sensor
Configuration: Definition of Terms
LED Identification—Sensor Identification
A = Anode
K = Cathode
B = Base
C = Collector
E = Emitter
(Dar) = Photodarlington
Example:
OPIA400DTU
Packaging
Part Number Suffix:
TU
= Shipped in Tubes
OPTEK reserves the right to make changes at any time in order to improve design and to supply the best product possible.
Issue A.4
11/08
Page 2 of 17
OPTEK Technology Inc. —
1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747
FAX: (972) 323-2396 sensors@optekinc.com www.optekinc.com
Optocoupler—DIP Package
OPIA400, OPIA410 through OPIA413
Absolute Maximum Ratings
(T
A
= 25
o
C unless otherwise noted)
Storage Temperature
Operating Temperature
Isolation voltage (1 minute)
Total Package Power Dissipation
Lead Soldering Temperature (1/16” (1.6 mm) from case for 5 seconds with soldering iron)
Input Diode
Continuous Forward Current
Peak Forward current (1 µs pulse width, 300 pps)
Reverse Voltage
OPIA400, OPIA411, OPIA412, OPIA413
OPIA410, OPIA412
Power Dissipation
Output Phototransistor
Collector-Emitter Voltage
OPIA400, OPIA410
OPIA412
OPIA411
OPIA413
Emitter-Collector Voltage
OPIA400, OPIA410, OPIA411
OPIA412
OPIA413
Collector Current
OPIA400, OPIA410, OPIA413
OPIA412
OPIA411
Power Dissipation
All except the part numbers noted below
OPIA412
60 V
300 V
35 V
350 V
6V
0.1 V
7V
50 mA
150 mA
80 mA
150 mW
200 mW
-55° C to +125° C
-30° C to +100° C
5,000 Vrms
200 mW
260° C
50 mA
1A
6V
-
70 mW
OPTEK reserves the right to make changes at any time in order to improve design and to supply the best product possible.
OPTEK Technology Inc. —
1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747
FAX: (972) 323-2396 sensors@optekinc.com www.optekinc.com
Issue A.4
11/08
Page 3 of 17
Optocoupler—DIP Package
OPIA400, OPIA410 through OPIA413
Electrical Characteristics
SYMBOL
Input Diode
Forward Voltage
All except those noted below
OPIA413
Peek Forward Voltage
OPIA410, OPIA412
OPIA413
Reverse Current
All except those noted below
OPIA410
OPIA413
Terminal Capacitance
All except those noted below
OPIA411
PARAMETER
MIN
TYP
MAX
UNITS
TEST CONDITIONS
V
F
-
1.0
1.2
1.2
1.4
1.3
V
I
F
= 20 mA
I
F
= 10 mA
V
FM
-
-
-
-
3.5
3.0
V
I
FM
= 500 mA
I
R
-
-
-
-
-
-
-
-
30
30
10
-
10
-
250
µA
V
R
= 4 V
-
V
R
= 5 V
V = 0.0 V, f = 1K Hz
V = 0.0 V, f = 1K Hz
C
t
pf
Output Phototransistor
Collector Dark Current
OPIA400, OPIA410
OPIA413
Collector-Emitter Saturation Voltage
OPIA400
OPIA410
OPIA413
Cutt-Off Frequency
All except those noted below
OPIA400, OPIA410, OPIA413
Rise Time
OPIA400
OPIA410
OPIA413
Fall Time
OPIA400
OPIA410
OPIA413
I
CEO
-
-
-
10
100
200
nA
I
F
= 0 mA, V
CE
= 20 V
I
F
= 0 mA, V
CE
= 300 V
V
CE(SAT)
-
-
-
-
-
0.1
0.1
-
-
80
0.2
0.3
0.4
-
-
V
I
F
= 20 mA, I
C
= 1 mA
I
F
= 20 mA, I
C
= 1 mA
I
F
= 8 mA, I
C
= 2.4 mA
f
C
K Hz
V
CC
= 5 V, I
C
= 2 mA, R
L
= 100
Ω
t
r
-
-
-
4
5
2
18
20
-
µs
V
CC
= 2 V, I
C
= 2 mA, R
L
= 100
Ω
V
CC
= 2 V, I
C
= 2 mA, R
L
= 100
Ω
V
CC
= 10 V, I
C
= 2 mA, R
L
= 100
Ω
V
CC
= 2 V, I
C
= 2 mA, R
L
= 100
Ω
V
CC
= 2 V, I
C
= 2 mA, R
L
= 100
Ω
V
CC
= 10 V, I
C
= 2 mA, R
L
= 100
Ω
t
f
-
-
-
3
4
3
18
20
-
µs
Continued on Next Page
OPTEK reserves the right to make changes at any time in order to improve design and to supply the best product possible.
Issue A.4
11/08
Page 4 of 17
OPTEK Technology Inc. —
1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747
FAX: (972) 323-2396 sensors@optekinc.com www.optekinc.com
Optocoupler—DIP Package
OPIA400, OPIA410 through OPIA413
Electrical Characteristics - Continued from Previous Page
SYMBOL
PARAMETER
MIN
TYP
MAX
UNITS
TEST CONDITIONS
Output PhotoDarlington
I
CEO
Collector Dark Current
OPIA412
OPIA411
Collector-Emitter Saturation Voltage
OPIA411
OPIA412
Cut-Off frequency
OPIA411
OPIA412
Rise Time
OPIA411
OPIA412
Fall Time
OPIA411
OPIA412
-
-
-
-
1.0
-
-
-
-
-
-
-
0.8
-
6.0
7.0
80
60
72
50
1.0
1.0
1.0
1.5
-
-
300
300
250
250
I
F
= 0 mA, V
CE
= 200 V
I
F
= 0 mA, V
CE
= 10 V
I
F
= 20 mA, I
C
= 5 mA
I
F
= 20 mA, I
C
= 5 mA
V
CC
= 2 V, I
C
= 20 mA, R
L
= 100
Ω
V
CC
= 5 V, I
C
= 2 mA, R
L
= 100
Ω
V
CC
= 2 V, I
C
= 20 mA, R
L
= 100
Ω
V
CC
= 2 V, I
C
= 20 mA, R
L
= 100
Ω
V
CC
= 2 V, I
C
= 20 mA, R
L
= 100
Ω
V
CC
= 2 V, I
C
= 20 mA, R
L
= 100
Ω
µA
V
CE(SAT)
V
f
C
K Hz
t
r
µs
t
f
µs
Coupled Characteristics
Current Transfer Ratio
OPIA400, OPIA413
OPIA410
OPIA411
OPIA412
Floating Capacitance
Isolation Resistance
50
60
70
600
-
5X10
10
-
-
-
-
0.6
10
11
600
600
-
9,000
1.0
-
I
F
= 5.00 mA, V
CE
= 5.0 V
I
F
= 1.00 mA, V
CE
= 2.0 V
I
F
= 0.05 mA, V
CE
= 3.3 V
I
F
= 1.00 mA, V
CE
= 2.0 V
V = 0.0 V, f = 1M Hz
C500V, 40% to 60%RH
CTR
%
C
f
R
ISO
pF
ohm
OPTEK reserves the right to make changes at any time in order to improve design and to supply the best product possible.
OPTEK Technology Inc. —
1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747
FAX: (972) 323-2396 sensors@optekinc.com www.optekinc.com
Issue A.4
11/08
Page 5 of 17
