RL-129
June 2010
PRODUCT: G4B Power Relays
TYPE:
Discontinuation Notice
G4B Panel Mount Power Relays will be Discontinued
Sept. 29, 2010; Replace with G7L-1A-TUB or LY1F
In support of factory efforts to consolidate relay products, the G4B AC Coil Panel Mount Relay
models will be discontinued September 29, 2010. Most G4B relay models were discontinued several
years ago and this last round completely discontinues the G4B family.
Final Order Date:
June 29, 2010
The G7L-1A-TUB and LY1F relays are recommended as conditional replacements. Migration should
be made carefully since there are notable differences.
Product
Discontinuation
Type G4B Series
Recommended
Replacement
Type G7L-1A-TUB
Type LY1F
Caution on recommended replacement
•
•
•
•
•
•
•
Terminals for LY1F and G7L will not match up exactly with G4B Relay Models.
The size of LY1F is smaller than type G4B.
The size of G7L-1A-TUB is larger than type G4B.
The Load Rating is not as Robust for LY1F versus G4B especially G4B-RP. Testing in
application is recommended.
The operating specification is different. Recommend testing either G7L-1A-TUB or LY1F in
application.
Latest possible order date is subject to factory capacity prior to June 29, 2010. Recommend
ordering before June 15, 2010.
MJN1Z-E-RP can serve as substitute for G4B-RP SPDT High Capacity Models.
Difference from discontinued product
Model
G7L-1A-TUB
LY1F
Body
Color
Dimensions
Wire
connection
Mounting
Dimensions
Characteristics
Operation
ratings
Operation
methods
--
--
--
--
*
*
--
--
*
--
--
--
**
**
**
: Fully compatible
*
: The change is a little／Almost compatible
--
: Not compatible
-
: No corresponding specification
Refer to the following pages for a specification comparison with the suggested replacement parts.
Product Discontinuation and Recommended Replacement
Specification Comparison
Specification
Form Type
Contact Material
Approved Standards
Nominal Power Consumption (AC)
Nominal Power Consumption (DC)
Coil Ratings (AC)
Coil Ratings (DC)
Pick-Up Voltage Max (AC & DC)
Drop Out Voltage Min. (AC)
Drop Out Voltage Min. (DC)
Res. Load Rating AC (High Cap.)
Res. Load Rating DC (High Cap.)
Inductive Load Rating cos
Φ
= 0.4
Inductive Load Rating L/R = 7ms
Mechanical Life Operations Min.
Electrical Life Operations Min.
Max. Carry Current (High Cap.)
Max. Switching Voltage (AC)
Min. Permissible Load (P Level)
Initial Contact Resistance max.
Operate Time max.
Release Time max.
Insulation Resistance min.
Dielectric Strength Coil to Contacts
Vibration Resistance Malfunction
Vibration Resistance Destruction
Shock Resistance Malfunction
Shock Resistance Destruction
Ambient Operating Temp
Max Dimensions (L x W x H mm)
G4B-112T(1)(-US)
1a
AgSnIn
UL, CSA
1.3VA
0.9W
12, 24, 100, 120, 240
NA
80% of coil voltage
30% of coil voltage
10% of coil voltage
15A (25A) @ 220VAC
15A (15A) @ 24VDC
10A @ 220VAC
7A @ 24VDC
10,000,000 (300 cpm)
200,000* (30 cpm)
20A (25A)
250VAC
100mA @ 5VDC
30 Milli Ohms
20ms
20ms
100 M Ohms
2000VAC 1 min.
1.5mm Double Ampl.
1.5mm Double Ampl.
Approx. 20 G
Approx. 100 G
-10°C to 55°C
50.5 x 32 x 29
G7L-1A-TUB(J)
1a
AgSnIn
UL, CSA, TUV
1.7 to 2.5VA
1.9W
12, 24, 50, 100/120,
200/240
6, 12, 24, 48, 100
75% of coil voltage
15% of coil voltage
15% of coil voltage
30A @ 220VAC
NA
25A @ 220VAC
NA
1,000,000 (300 cpm)
100,000 (30 cpm)
30A
250VAC
100mA @ 5VDC
50 Milli Ohms
30ms
30ms
100 M Ohms
4000VAC 1 min.
1.5mm Double Ampl.
1.5mm Double Ampl.
Approx. 10 G
Approx. 100 G
-25°C to 60°C
68.5 x 33.5 x 36
G4B-112T(1)(-US)
1c
AgSnIn
UL, CSA
1.3VA
0.9W
12, 24, 100, 120, 240
NA
80% of coil voltage
30% of coil voltage
10% of coil voltage
15A (25) @ 220VAC
15A (15A) @ 24VDC
10A @ 220VAC
7A @ 24VDC
10,000,000 (300 cpm)
200,000 (30 cpm)
20A (25A)
250VAC
100mA @ 5VDC
30 Milli Ohms
20ms
10ms
100 M Ohms
2000VAC 1 min.
1.5mm Double Ampl.
1.5mm Double Ampl.
Approx. 20 G
Approx. 100 G
-10°C to 55°C
50.5 x 32 x 29
LY1F
1c
AgSnIn
UL, CSA, TUV
1.0 to 1.2VA
0.9W
6, 12, 24, 110/120,
220/240
6, 12, 24, 48, 100/110
80% of coil voltage
30% of coil voltage
10% of coil voltage
15A @ 110VAC
15A @ 24VDC
10A @ 110VAC
7A @ 24VDC
50,000,000 (300 cpm)
200,000 (30 cpm)
15A
250VAC
100mA @ 5VDC
50 Milli Ohms
25ms
25ms
100 M Ohms
2000VAC 1 min.
1.0mm Double Ampl.
1.0mm Double Ampl.
Approx. 20 G
Approx. 100 G
-25°C to 55°C
44 x 22.6 x 35.6
*Electrical life for G4B-RP Models is 100K Cycles minimum @ 30cpm
Product Discontinuation and recommended replacement
Product discontinuation
Type G4B-112T(1)(-US)(-RP) SPST-NO
Type G4B-112T(1)-C(-US)(-RP) SPDT
Recommended replacement
Type G7L-1A-TUB SPST-NO
Type LY1F
SPDT
Body Color
Product discontinuation
Type G4B Series
Black
Recommended replacement
Type G7L-1A-TUB Ivory
Type LY1F
Clear
2
Resistive Load Rating
Product discontinuation
Type G4B-112T(1)-(C)-US
= 15A @ 220VAC
= 15A @ 24VDC
G4B-112T(1)-(FD)-(C)-US-RP
= 25A @ 220VAC
= 15A @ 24VDC
Recommended replacement
Type G7L-1A-TUB = 30A @ 220VAC
Type LY1F
= 15A @ 110VAC, 24VDC
MJN1Z-E-RP
= 30A @ 240VAC, 28VDC
Inductive Load Rating
Product discontinuation
Type G4B All = 10A @ 220VAC cos
Φ =
0.4
= 7A @ 24VDC L/R = 7ms
Recommended replacement
Type G7L-1A-TUB = 25A @ 220VAC cos
Φ =
0.4
Type LY1F
= 10A @ 110VAC cos
Φ =
0.4
= 7A @ 24VDC L/R = 7ms
UL Horsepower Rating
Product discontinuation
Type G4B-112T(1)-(C)-US
= 1 HP @ 120VAC
G4B-112T(1)-(FD)-(C)-US-RP = 1 HP @ 120VAC
Recommended replacement
Type G7L-1A-TUB = 1.5 HP @ 120VAC
Type LY1F
= 0.5 HP @ 120VAC
3

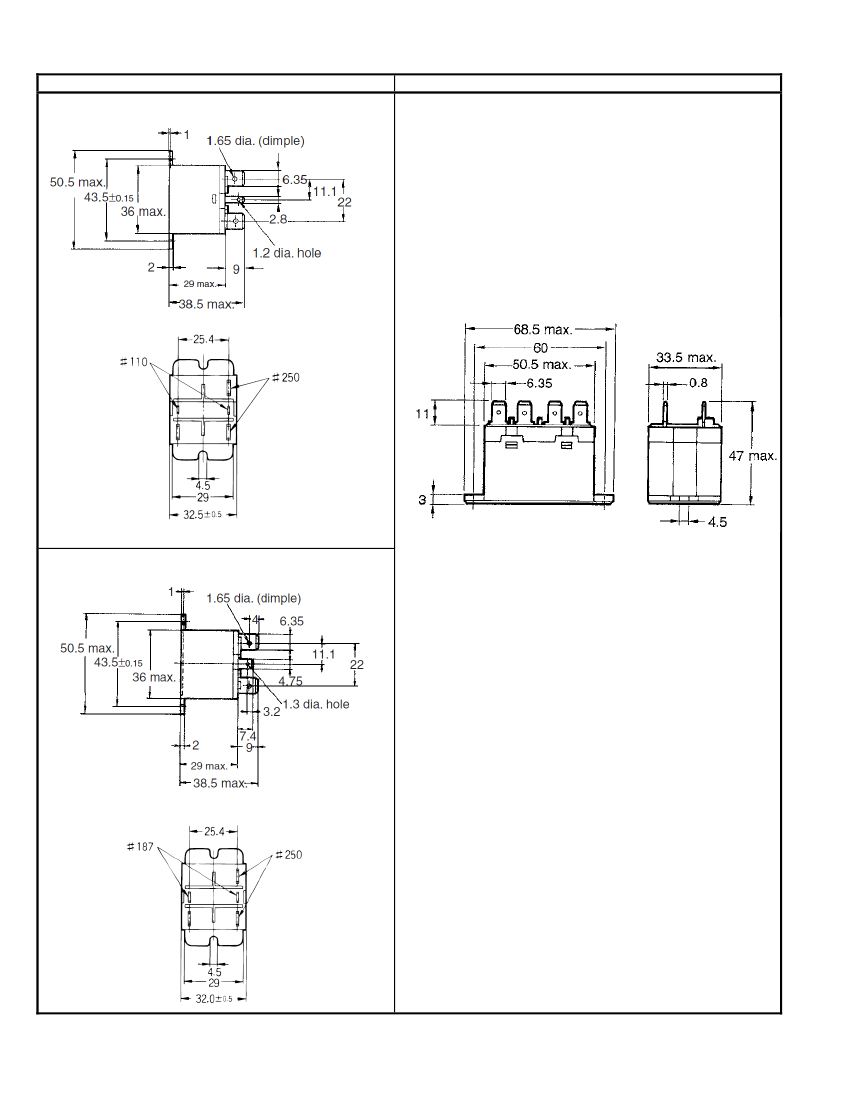

Dimensions
Product discontinuation
Recommended replacement
G4B-112T(-US)
G7L-1A-TUB
G4B-112T1(-US)
Size of tab terminal: All #250
4

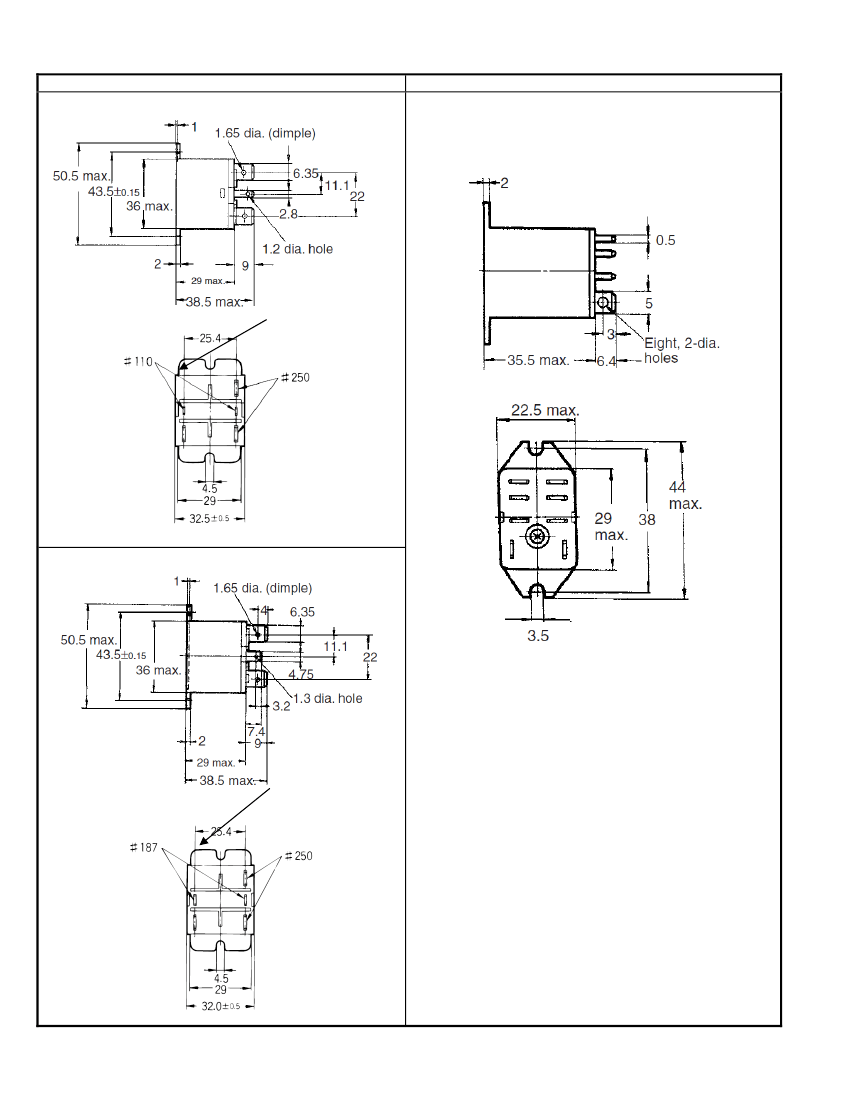

Dimensions
Product discontinuation
Recommended replacement
G4B-112T-C(-US)
LY1F
G4B-112T1-C(-US)
Size of tab terminal: All #187
5
