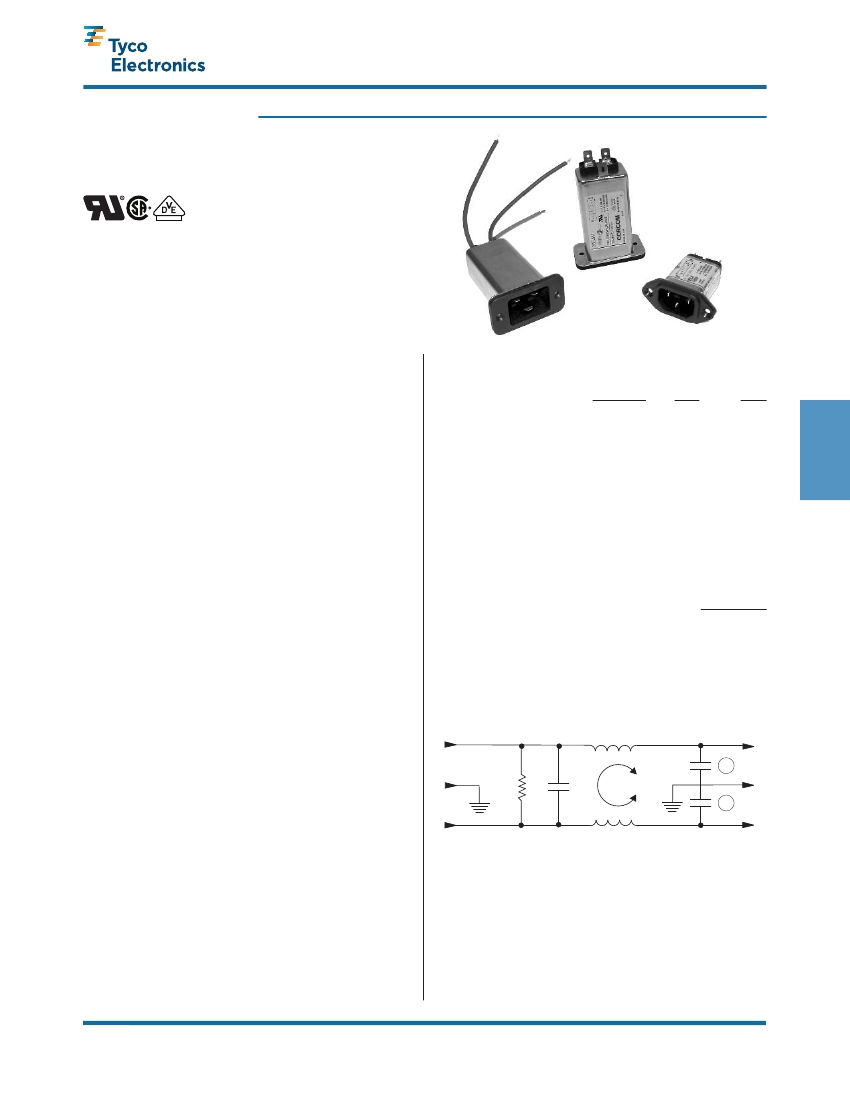

Corcom Product Guide
Cost-effective Medium Performance Power Inlet Filter
Catalog: 1654001
Issue Date: 08.2010
EEJ Series
Including the EJH/EJHS, EJM/EJMS and EJS Models
UL Recognized
CSA Certified
VDE Approved*
20EEJ8
20EJH1
3EEJ1
EEJ Series
• Compact EMI filter with IEC 60320-1 C14 Inlet
• Enhanced two element circuit provides medium
attenuation to 30MHz
• Compact and cost-effective design
• Supersedes most ED Series versions
• Includes 20A version with standard IEC 60320-1
C20 inlet
• Several termination styles
• Flanged mounting
Specifications
Maximum leakage current each Line to Ground:
EEJ/EJS
EJH
EJM
@ 120 VAC 60 Hz:
.22 mA
2
µA
.01 mA
@250 VAC 50 Hz:
.38 mA
5
µA
.017 mA
Hipot rating (one minute):
Line to Ground:
Line to Line:
Rated Voltage (max.):
Operating Frequency:
Rated Current:
2250 VDC
1450 VDC
250 VAC
50/60 Hz
1 to 20A*
3
Power Inlet Filters & Power Entry Modules
EJS Models
• Same performance as the EEJ Series
• Snap-in mounting
• Several termination styles
• Includes 20A version with standard IEC 60320-1
C20 inlet
Operating Ambient Temperature Range
(at rated current Ir):
-10°C to +40°C
In an ambient temperature (Ta) higher than +40°C
the maximum operating current (Io) is calculated as
follows: Io = Ir
√(85-Ta)/45
EJH & EJHS Models
• Minimal leakage current suitable for patient-
contact medical applications
• Flanged mounting the same as the EEJ Series
• Also available in snap-in versions (EJHS)
• Two element circuit provides modest EMI
attenuation above 1MHz
• Capacitive input (refer to the H Series for
capacitive output)
• EJHS models feature snap-in mounting
Electrical Schematic
LINE
LOAD
1
1
Note 1: Not present in EJH versions
EJM & EJMS Models
• Low leakage current, suitable for most medical
applications
• Improved EMI attenuation up to 200MHz
• Mechanically the same as the EEJ Series with
flange or snap-in mounting
• EJMS models feature snap-in mounting
153
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
For email, phone or live chat, please go to
tycoelectronics.com/help
corcom.com
*15A versions are tested by Underwriters Laboratories
to US and Canadian requirements and are
VDE approved at 10A, 250VAC
20A versions are tested by Underwriters Laboratories
to US and Canadian requirements and are
VDE approved at 16A, 250VAC
Corcom Product Guide
Cost-effective Medium Performance Power Inlet Filter
Catalog: 1654001
Issue Date: 08.2010
(continued)
EEJ Series
Including the EJH/EJHS, EJM/EJMS and EJS Models

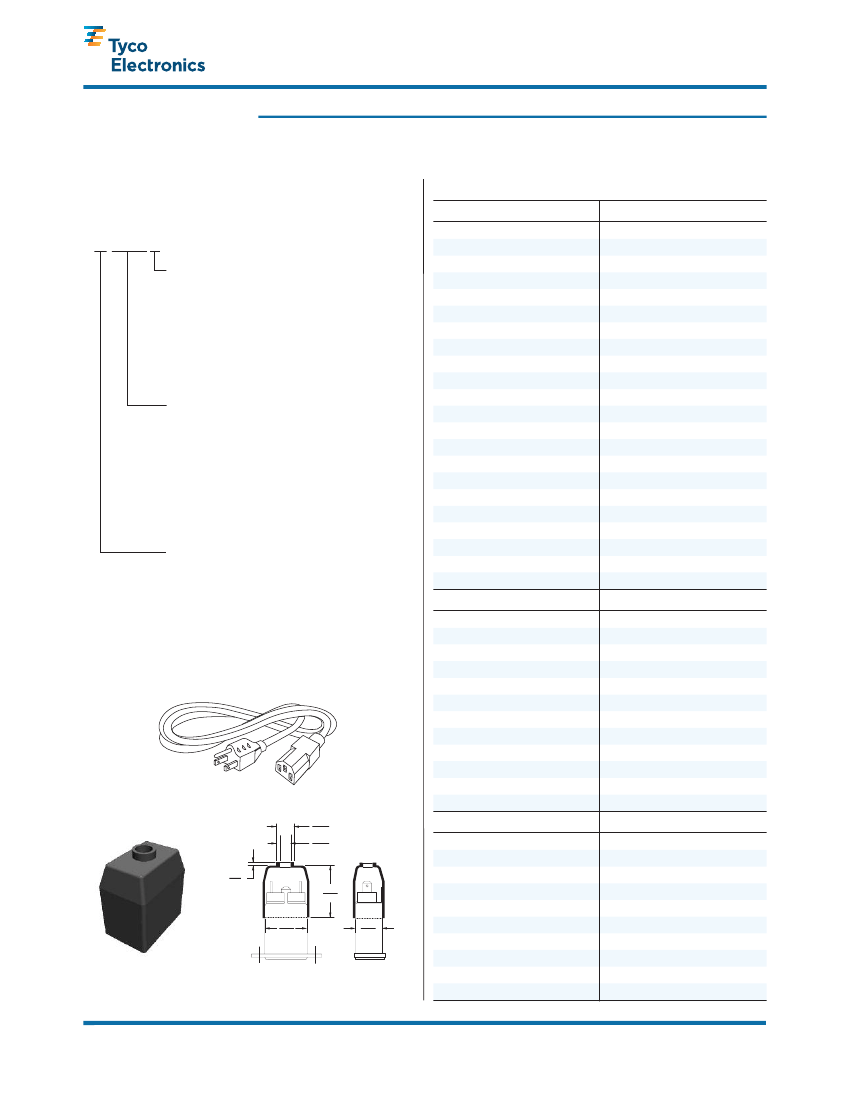

Ordering Information
3 EEJ 1
Output Styles
1 – .250 [6.3] spade terminals
(back)
Available Part Numbers
EEJ Models
1EEJ1
1EEJ2
1EEJP
1EEJ8
3EEJ1
3EEJ2
3EEJP
3EEJ8
6EEJ1
6EEJ2
6EEJP
6EEJ8
10EEJ1
10EEJ2
10EEJP
10EEJ8
15EEJ1
15EEJ2
15EEJP
15EEJ8
20EEJ1
20EEJ8
EJS Models
1EJS1
1EJS8
3EJS1
3EJS8
6EJS1
6EJS8
10EJS1
10EJS8
15EJS1
15EJS8
20EJS1
20EJS8
EJM Models
1EJM1
1EJM8
3EJM1
3EJM8
6EJM1
6EJM8
10EJM1
10EJM8
15EJM1
15EJM8
EJH Models
1EJH1
1EJH2
1EJHP
1EJH8
3EJH1
3EJH2
3EJHP
3EJH8
6EJH1
6EJH2
6EJHP
6EJH8
10EJH1
10EJH2
10EJHP
10EJH8
15EJH1
15EJH2
15EJHP
15EJH8
20EJH1
20EJH8
EJHS Models
1EJHS1
1EJHS8
3EJHS1
3EJHS8
6EJHS1
6EJHS8
10EJHS1
10EJHS8
15EJHS1
15EJHS8
2 – .250 [6.3] spade terminals
(bottom)
P – PC board pins
8 – Wire leads
Series
EEJ – Enhanced EMI Inlet Filter
EJS – EEJ in Snap-in Mounting
EJH – Enhanced Medical Inlet Filter
EJHS – EJH in Snap–in Mounting
EJM – Extended Performance
Medical Inlet Filter
EJMS – EJM in Snap-in Mounting
Current Rating
1, 3, 6, 10, 15 or 20A
Accessories
GA400: NEMA 5-15P to IEC 60320-1 C-13 line cord
FA601: Insulating Shroud
.413 Dia.
10.5
.271 Dia.
6.9
.118
3.0
1.39
35.4
1.17
29.7
.767
19.5
EJMS Models
1EJMS1
1EJMS8
3EJMS1
3EJMS8
6EJMS1
6EJMS8
10EJMS1
10EJMS8
15EJMS1
15EJMS8
For email, phone or live chat, please go to
tycoelectronics.com/help
corcom.com
154
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
Corcom Product Guide
Catalog: 1654001
Issue Date: 08.2010
Cost-effective Medium Performance Power Inlet Filter
(continued)
EEJ Series
Including the EJH/EJHS, EJM/EJMS and EJS Models

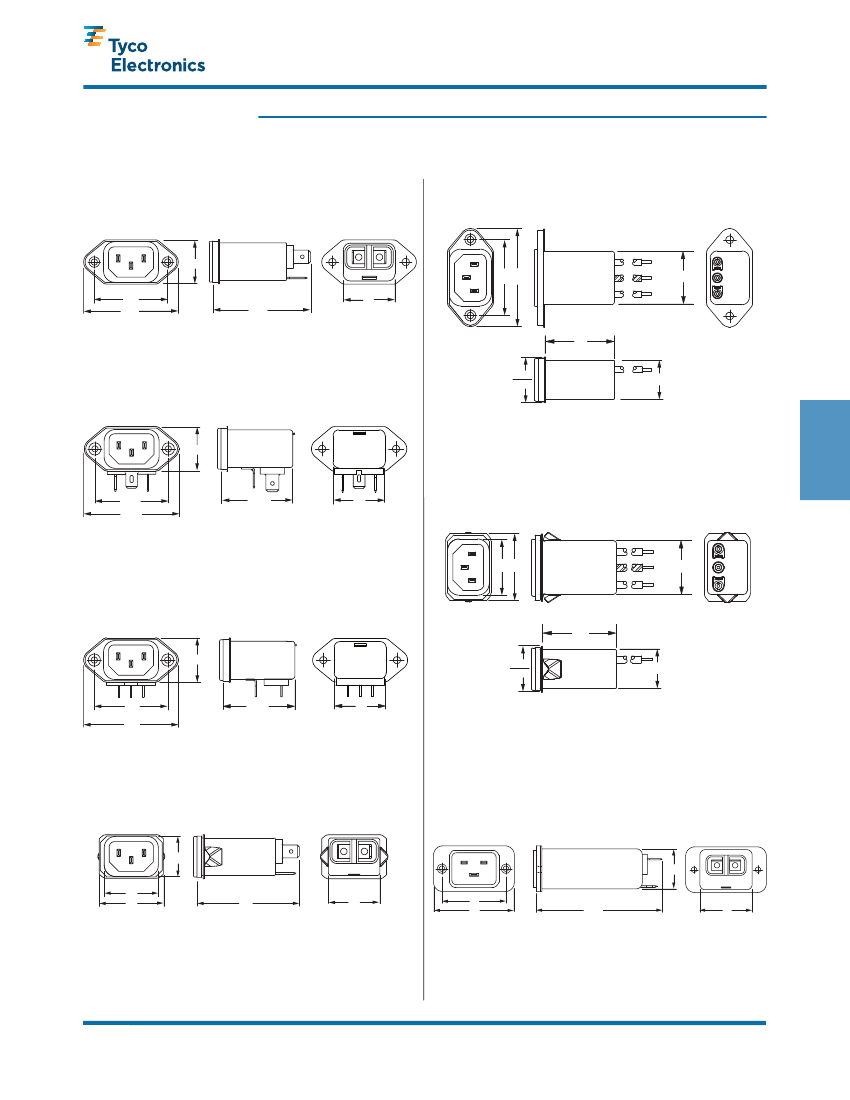

Case Styles
EEJ1, EJH1 & EJM1
(1-15A)
C
EEJ8, EJH8 & EJM8
(1-15A)
Blue
D E
D
E
B
A
Green/Yellow
Brown
B
Typical Dimensions:
Mounting holes (2):
Line Inlet (1):
Load Terminals (2):
Ground Terminal (1):
.132 [3.35] Dia. with .236 [5.99] Dia. x 90º
countersink for #4 flathead screw
IEC 60320-1 C14
.250 [6.3] with .07 [1.8] Dia. hole
.250 [6.3] with .07 x .16 [1.8
x 3.8]
slot
A
max.
0.96
24.39
C
EEJ2 & EJH2
(1-15A)
C
Typical Dimensions:
Mounting holes (2):
Line Inlet (1):
Wire Leads:
.132 [3.35] Dia. with .236 [5.99] Dia. x 90º
countersink for #4 flathead screw
IEC 60320-1 C14
4.0 [101.6] Min., 18AWG, UL1015
3
Power Inlet Filters & Power Entry Modules
D
E
A
B
EJS8, EJHS8 & EJMS8
(1-15A)
Blue
Green/Yellow
Typical Dimensions:
Mounting holes (2):
Line Inlet (1):
Load Terminals (2):
Ground Terminal (1):
.132 [3.35] Dia. with .236 [5.99] Dia. x 90º
countersink for #4 flathead screw
IEC 60320-1 C14
.250 [6.3] with .07 [1.8] Dia. hole
.250 [6.3] with .07 x .16 [1.8
x 3.8]
slot
D E
B
Brown
EEJP & EJHP
(1-15A)
C
max.
A
0.96
24.39
C
D
E
A
B
Typical Dimensions:
Line Inlet (1):
Wire Leads:
IEC 60320-1 C14
4.0 [101.6] Min., 18AWG, UL1015
Typical Dimensions:
Mounting holes (2):
Line Inlet (1):
PC board pins (3):
.132 [3.35] Dia. with .236 [5.99] Dia. x 90º
countersink for #4 flathead screw
IEC 60320-1 C14
.031 [.07] square, ± .003 [.07]
EJS1, EJHS1 & EJMS1
(1-15A)
C
20EEJ1 & 20EJH1
C
D
E
A
B
D
E
A
B
Typical Dimensions:
Line Inlet (1):
Load Terminals (2):
Ground Terminal (1):
IEC 60320-1 C14
.250 [6.3] with .07 [1.8] Dia. hole
.250 [6.3] with .07 x .16 [1.8
x 3.8]
slot
Typical Dimensions:
Mounting holes (2):
Line Inlet (1):
Load Terminals (2):
Ground Terminal (1):
.132 [3.35] Dia. with .236 [5.99] Dia. x 90º
countersink for #4 flathead screw
IEC 60320-1 C20
.250 [6.3] with .07 [1.8] Dia. hole
.250 [6.3] with .07 x .16 [1.8
x 3.8]
slot
155
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
For email, phone or live chat, please go to
tycoelectronics.com/help
corcom.com
Corcom Product Guide
Cost-effective Medium Performance Power Inlet Filter
Catalog: 1654001
Issue Date: 08.2010
(continued)
EEJ Series
Including the EJH/EJHS, EJM/EJMS and EJS Models

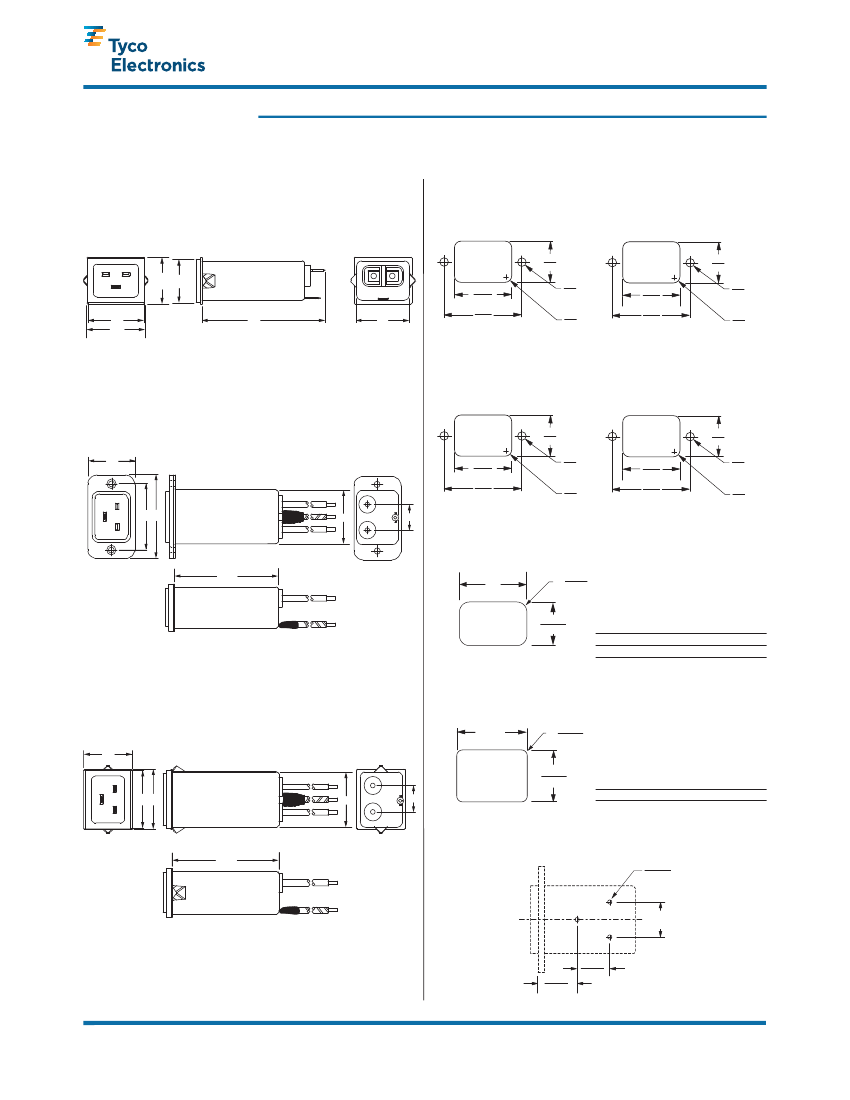

Case Styles
(continued)
20EJS1
C
F
1.200
30.48
1.575
40.01
Recommended Panel Cutouts
1 to 15A EEJ, EJH & EJM
Front Mount
.820
20.8
.140
∅
3.56
Back Mount
.900
22.9
.140
∅
3.56
1.200
30.48
1.575
40.01
D
E
A
B
.12
R.
3.05
Typ.
.234
R.
5.94
Typ.
Tolerances ± .005 [0.13] unless otherwise noted
Typical Dimensions:
Line Inlet (1):
Load Terminals (2):
Ground Terminal (1):
IEC 60320-1 C20
.250 [6.3] with .07 [1.8] Dia. hole
.250 [6.3] with .07 x .16 [1.8
x 3.8]
slot
Note 1:
Note 2:
EEJ/EJH/EJM1 and EEJ/EJH/EJM8 can be front or back mounted
EEJ/EJH2 and EEJ/EJHP can be back mounted only
20A EEJ & EJH
Front Mount
1.055
26.8
.138
∅
3.51
Back Mount
.985
25.02
.138
∅
3.51
20EEJ8 & 20EJH8
C
1.370
34.8
1.654
42.0
Blue
Green/Yellow
1.300
33.0
1.654
42.0
.118
R.
3.0
Typ.
.125
R.
3.18
Typ.
D E
B
Brown
F
Tolerances ± .005 [0.13] unless otherwise noted
Note 1:
20EEJ/EJH1 and 20EEJ/EJH8 can be front or back mounted
1 to 15A EJHS, EJMS & EJS
A
G
R
0.188
Max.
4.775
Front Mount only
Typical Dimensions:
Mounting holes (2):
Line Inlet (1):
Wire Leads:
0.815
20.70
.132 [3.35] Dia. with .236 [5.99] Dia. x 90º
countersink for #4 flathead screw
IEC 60320-1 C20
4.0 [101.6] Min., 14AWG, UL1015
Tolerance ±.002
[.050]
Panel Thickness
0.031 - 0.052 [0.79
- 1.32]
0.046 - 0.068 [1.17 - 1.73]
G Dim. ± .002 [.05]
1.260 [32.00]
1.350 [34.29]
Alternate snap configurations to fit other cut-out sizes also available.
Contact Tyco Electronics Corcom products engineering for more details.
20A EJS
20EJS8
C
Blue
1.450
36.83
R
0.125
Max.
3.175
Front Mount only
1.053
26.75
B
F
Tolerance ±.002
[.050]
D E
Green/Yellow
Brown
Panel Thickness
0.031 - 0.047 [0.79
- 1.19]
PC Board Layout
A
0.075
1.91
∅
Typical Dimensions:
Line Inlet (1):
Wire Leads:
0.520
13.21
IEC 60320-1 C20
4.0 [101.6] Min., 14AWG, UL1015
.685*
17.40*
0.551
13.99
*±.015 [0.38]
156
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
For email, phone or live chat, please go to
tycoelectronics.com/help
corcom.com
Corcom Product Guide
Catalog: 1654001
Issue Date: 08.2010
Cost-effective Medium Performance Power Inlet Filter
(continued)
EEJ Series
Including the EJH/EJHS, EJM/EJMS and EJS Models
Case Dimensions
Part No.
EEJ1, EJH1
A
(max.)
B
(max.)
C
(max.)
± .015
± .38
D
E
(max.)
F
(ref.)

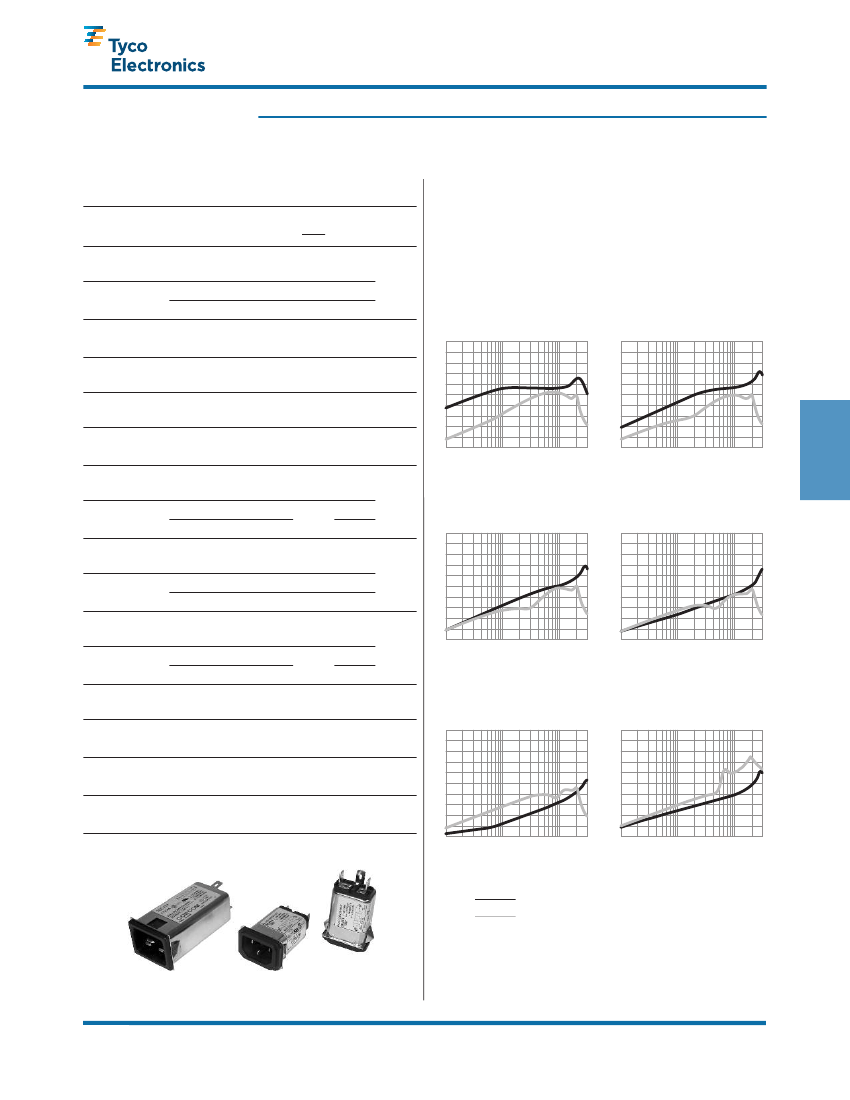

Performance Data
Typical Insertion Loss
Measured in closed 50 Ohm system
2.15
54.61
2.02
EJM1
51.3
1.54
1-10A
EEJ2, EJH2
39.12
1.79
15A
EEJ2, EJH2
45.47
1.54
1-10A
EEJP, EJHP
39.12
1.79
15A
EEJP, EJHP
45.47
2.20
EJS1, EJHS1
55.88
2.02
EJMS1
51.3
1.54
EEJ8, EJH8
39.12
1.50
EJM8
38.1
1.54
EJS8,
EJHS8
39.12
1.50
EJMS8
38.1
3.13
20EEJ1,
20EJH1
79.38
3.13
20EJS1
79.38
2.65
20EEJ8,
20EJH8
67.31
2.63
20EJS8
66.80
1.13
28.70
1.13
28.7
1.13
28.70
1.13
28.70
1.13
28.70
1.13
28.70
1.13
28.70
1.13
28.7
1.13
28.70
1.13
28.7
1.13
28.70
1.13
28.7
1.37
34.79
1.35
34.29
1.35
34.29
1.35
34.29
0.96
24.38
0.96
24.4
0.96
24.38
0.96
24.38
0.96
24.38
0.96
24.38
0.96
24.38
0.96
24.4
0.81
20.70
0.81
20.7
0.81
20.70
0.96
24.4
1.18
29.99
1.18
29.99
1.18
29.99
1.18
29.97
1.580
40.00
1.58
40.00
1.580
40.00
1.580
40.00
1.580
40.00
1.580
40.00
1.19
30.10
-
1.58
40.00
1.58
40.00
1.19
30.10
-
1.65
42.01
1.42
36.07
1.65
42.01
1.46
37.08
2.04
51.76
–
2.04
51.8
2.04
–
51.76
2.04
–
51.76
2.04
–
51.76
2.04
–
51.76
1.41
35.81
–
1.41
35.8
2.04
51.76
–
2.04
51.8
1.41
35.81
–
1.41
35.8
2.09
–
53.00
1.46
–
37.08
2.09
.62
53.00 15.75
1.42
.62
36.08 15.75
EEJ & EJS Models
1A
db
100
90
80
70
60
50
40
30
20
10
0
0.1
1
10
30
Frequency in MHz
3A
db
100
90
80
70
60
50
40
30
20
10
0
0.1
1
10
30
Frequency in MHz
3
Power Inlet Filters & Power Entry Modules
6A
db
100
90
80
70
60
50
40
30
20
10
0
0.1
1
10
30
Frequency in MHz
10A
db
100
90
80
70
60
50
40
30
20
10
0
0.1
1
10
30
Frequency in MHz
15A
db
100
90
80
70
60
50
40
30
20
10
0
0.1
1
10
30
Frequency in MHz
20A
db
100
90
80
70
60
50
40
30
20
10
0
0.1
1
10
30
Frequency in MHz
Common Mode / Asymmetrical (L-G)
Differential Mode / Symmetrical (L-L)
20EJS1
3EJS1
157
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
For email, phone or live chat, please go to
tycoelectronics.com/help
corcom.com
京公网安备 11010802033920号
EEWORLD
