BX2302WAT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> BX2302WAT

BX2302WAT: DescriptionAudio and signal converter adsl xfmr; CategoryPassive components; File Size110KB，2 Pages; ManufacturerPulse A Technitrol Company; Websitehttp://www.pulseeng.com

Download Datasheet Parametric Compare View All

BX2302WAT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BX2302WAT	-	-	View	Buy Now

BX2302WAT Overview

Audio and signal converter adsl xfmr

BX2302WAT Parametric

Parameter Name	Attribute value
Maker	Pulse A Technitrol Company
Product Category	Audio and signal converters
RoHS	no
Frequency Range	30 KHz
Insulation voltage	1500 Volts
range of working temperature	- 40 C to + 85 C
Termination type	SMD/SMT
size	12 mm L x 9.6 mm W x 11.5 mm H

Preview

Download Datasheet

View All

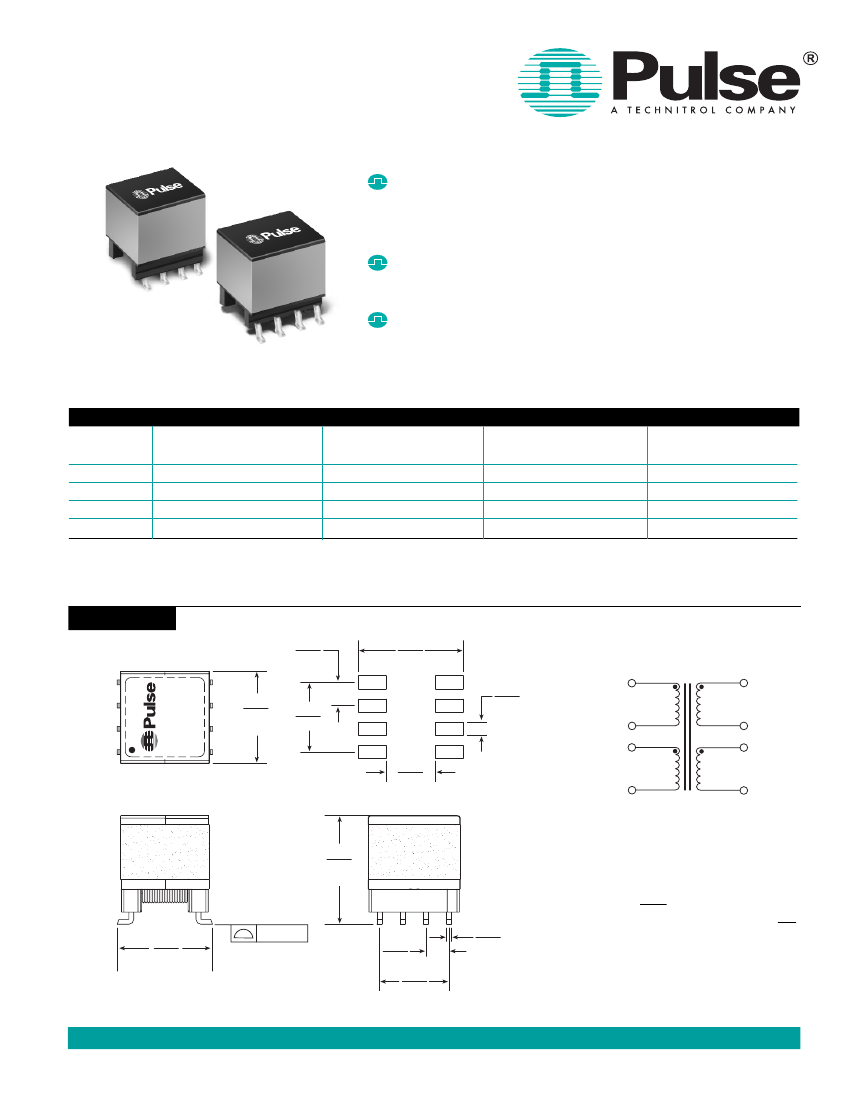

ADSL LINE TRANSFORMER

For Broadcom Bladerunner CO Chipset

Approved by Broadcom for use with

Bladerunner Central Office BCM6410 and

BCM6420 chipsets

ADSL/POTS and ADSL/ISDN options

available for Broadcom approved Line Drivers

Compact footprint for high density Central

Office board layouts

Electrical Specifications @ 25°C — Operating Temperature -40°C to 85°C

Part

Number

BX2303WA

BX2302WA

BX2619W

BX2644L

Turns

Ratio

(Line:Chip)

1.4:1

1.2:1

OCL

Line

(µH ±5%)

100

410

430

420

Isolation

Voltage

(Vrms)

1500

THD

(dB MIN)

-80

Transformers are shipped in trays, unless Tape & Reel packaging is specified by adding the suffix

“T”

to this part number (BX2303WAT)

Mechanical

BX2644L

.075

1,90

Date

Code

Country

of Origin

Schematic

.339

8,60

.043

1,10

LINE

BX2644L

.315

8,00

MAX

.224

5,70

.157

4,00

CHIP

SUGGESTED PAD LAYOUT

.366

9,30

MAX

.315

8,00

MAX

.005/0,13

SURFACES

.075

1,90

.224

5,70

.016

0,40

Weight

. . . . . . . . . . . . . .1.4 grams

Tape & Reel

. . . . . . . . . . . .350/reel

Tray

. . . . . . . . . . . . . . . . . .100/tray

Dimensions:

Inches

Unless otherwise specified, all tolerances are ± .004

0,10

USA 858 674 8100

•

Germany 49 7032 7806

•

Singapore 65 6287 8998

•

Shanghai

86 21 54643211 / 2

•

China 86 769 85538070

•

Taiwan 886 3 4641811

www.pulseeng.com

B811.C (10/06)

BX2302WAT Related Products

	BX2302WAT	BX2302WANL	BX2302WANLT
Description	Audio and signal converter adsl xfmr	Audio and signal converter adsl xfmr	Audio and signal converter adsl xfmr
Maker	Pulse A Technitrol Company	Pulse A Technitrol Company	-
Product Category	Audio and signal converters	Audio and signal converters	-
RoHS	no	yes	-
