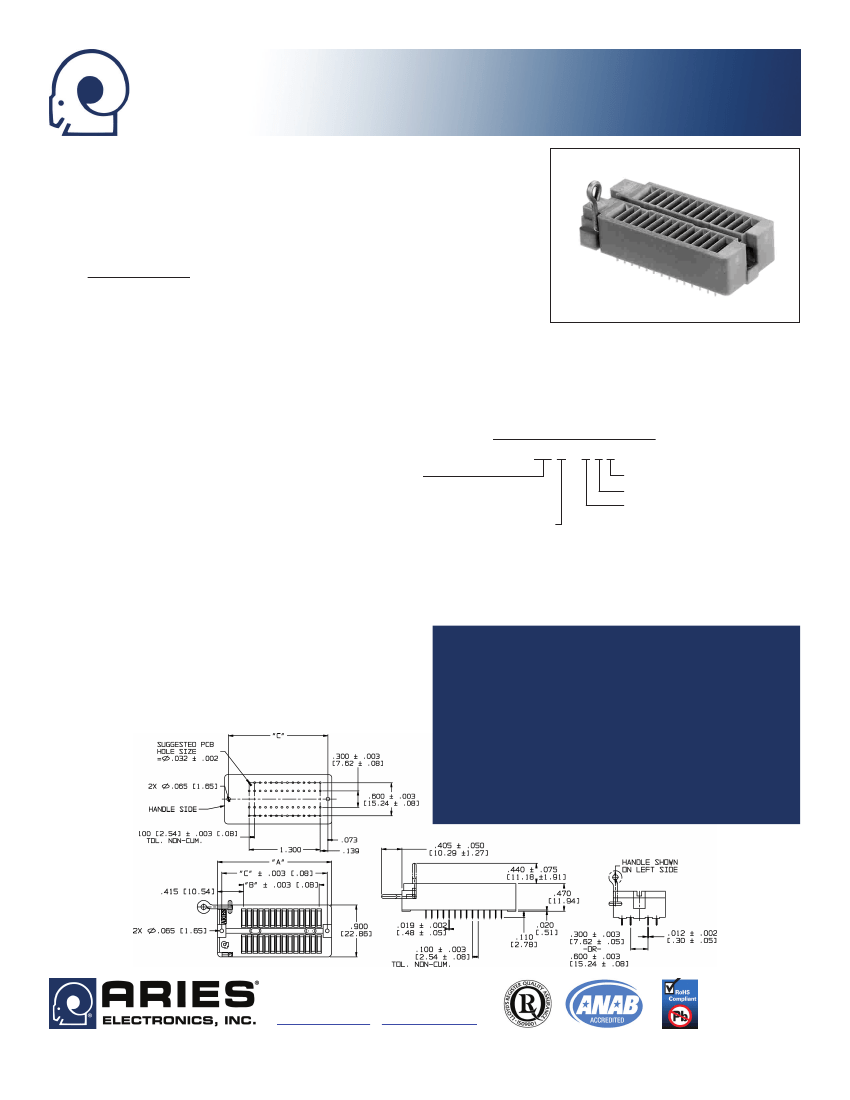

Series X55X High-Temperature Universal
Zero-Insertion-Force DIP Test Socket
FEATURES
• Universal Test Socket accepts devices on 0.300 to 0.600 [7.62 to 15.24] centers
• All pin count sockets go into PCB with either 0.300 or 0.600 [7.62 or 15.24] centers
• Contacts are normally closed to eliminate dependence on plastic to sustain contact
• Socket handle can be configured with closed contacts (on) when in the UP or DOWN
position, and can be mounted on either the right or left side
• Sockets can be soldered into PCBs. Socket fits into Aries Test Socket Receptacle on
Data Sheet 10003
GENERAL SPECIFICATIONS
• SOCKET BODY: natural UL 94V-0 glass-filled Polyetheretherketone (PEEK)
• HANDLE: Stainless Steel
CUSTOMIZATION:
In addition to the standard products shown
• CONTACTS: BeNi 360, 1/2-hard
on this page, Aries specializes in custom design and production.
• CONTACT PLATING: 50μ [1.27μ] NiB
Special materials, platings, sizes, and configurations can be
furnished, depending on the quantity.
NOTE:
Aries reserves the
• CONTACT CURRENT RATING: 1 amp
right to change product general specifications without notice.
• OPERATING TEMPERATURE: -67°F [-55°C] min.; 482°F [250°C] max.
• RETENTION FORCE (closed): 55g/pin based on a 0.020 [0.51] dia. test lead
• INSULATION RESISTANCE: 1000 mΩ min.
ORDERING INFORMATION
• DIELECTRIC WITHSTANDING VOLTAGE: 1000 VAC
XX-X55X-1 8
• LIFE CYCLE: 25,000 to 50,000 cycles
Pins
NiB Plating
• ACCEPTS LEADS: 0.015-0.045 [0.38-1.14] wide,
24, 28, 32, 36,
Solder Pin Tail
0.110-0.280 [2.79-7.11] long
40, 42, 44, 48
Handle Options
MOUNTING CONSIDERATIONS
Row-to-Row Spacing
(btm)
1 = Left, up is on
• See Socket Footprint below
3 = 0.300 [7.62]
2 = Right, up is on
6 = 0.600 [15.24] (std)
3 = Left, down is on
4 = Right, down is on (std)
NOTE: ‘on’ = closed contacts
ALL DIMENSIONS: INCHES [MILLIMETERS]
ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED
“A” = (NO. OF PINS PER ROW x 0.100 [2.54]) + 0.590 [14.99]
“B” = (NO. OF PINS PER ROW -1) x 0.100 [2.54]
“C” = (NO. OF PINS PER ROW x 0.100 [2.54] + 0.415 [10.54]
DO NOT USE THESE SOCKETS IN A BURN-IN OVEN WITH THE
SOCKET CONTACTS IN THE OPEN POSITION, AS IT WILL DAMAGE
THE SOCKET.
CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS
Bristol, PA 19007-6810 USA
TEL (215) 781-9956 • FAX (215) 781-9845
WWW.ARIESELEC.COM • INFO@ARIESELEC.COM
PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED
10002
Rev. AB
