QTS-075-01-FTL-D-RA datasheet, PDF

Datasheet> All Categories > The connector> The connector> QTS-075-01-FTL-D-RA

QTS-075-01-FTL-D-RA: DescriptionBoard Connector, 150 Contact(s), 2 Row(s), Male, Right Angle, Surface Mount Terminal; CategoryThe connector The connector; File Size485KB，4 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric View All

QTS-075-01-FTL-D-RA Overview

Board Connector, 150 Contact(s), 2 Row(s), Male, Right Angle, Surface Mount Terminal

QTS-075-01-FTL-D-RA Parametric

Parameter Name	Attribute value
Objectid	1032426537
Reach Compliance Code	compliant
YTEOL	8.25
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH
Contact completed and terminated	TIN LEAD
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	QTS
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	0.635 mm
Termination type	SURFACE MOUNT
Total number of contacts	150

Preview

Download Datasheet

View All

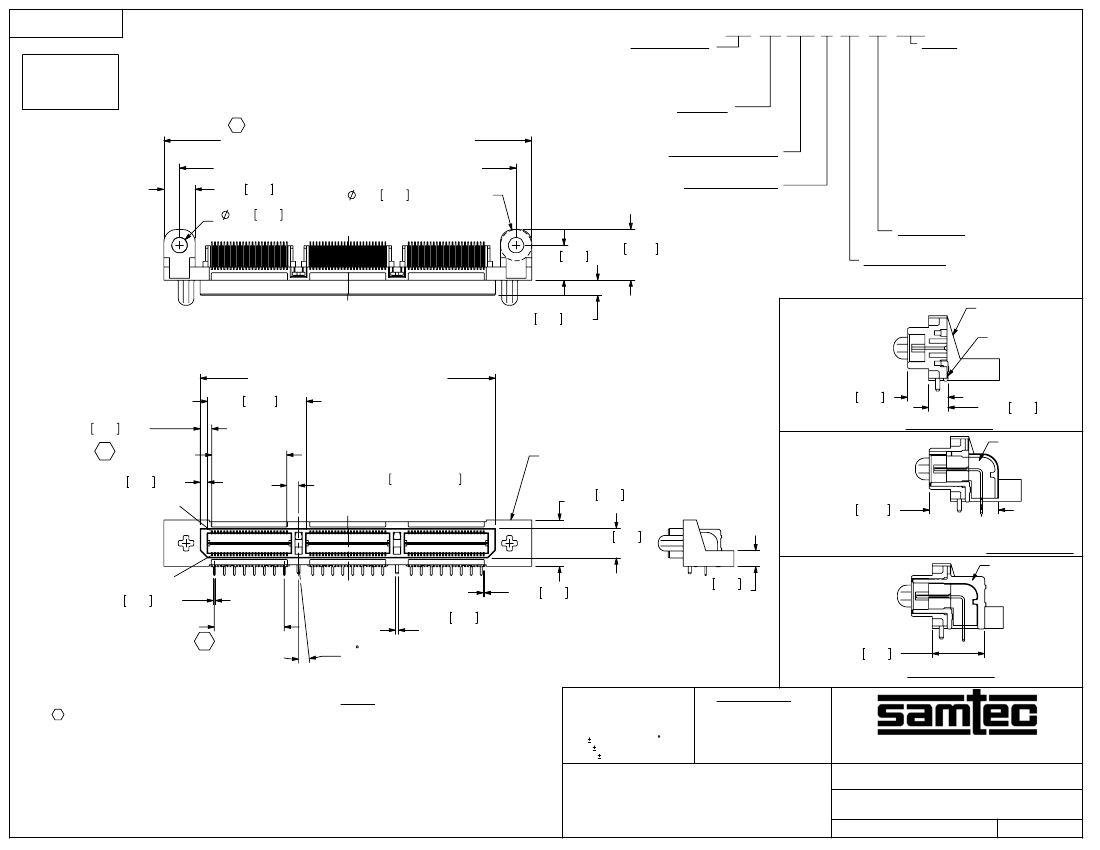

REVISION AN

DO NOT

SCALE FROM

THIS PRINT

No OF POSITIONS

-025, -050, -075, -100

[PER ROW]

(SEE NOTE 5)

QTS-XXX-XX-XXX-D-RA-WT-XXX

OPTION

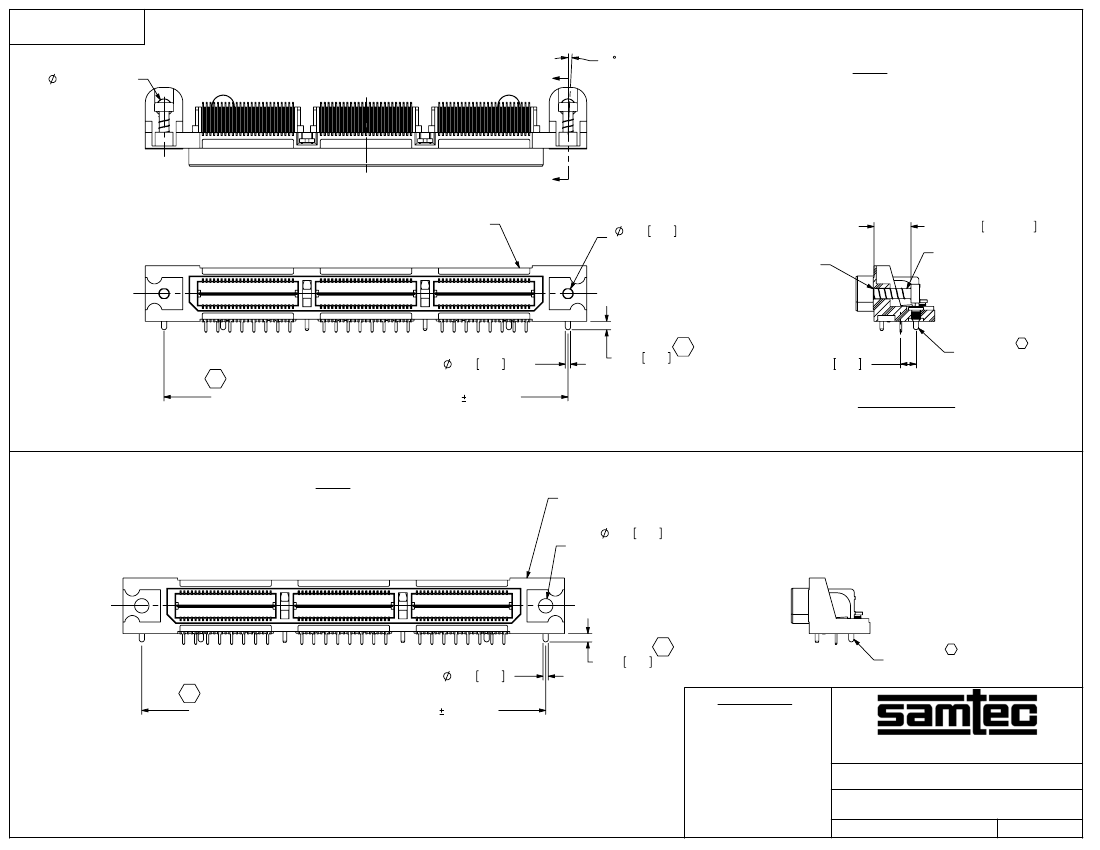

-LS1: LOCKING SCREW

(FOR MATING WITH QSS...-RA...-LS1)

(USE WITH SP-18-01-TM SOLDER PIN)

(SEE FIG. 2, SHT 3)(SEE NOTE 11)

-LS2: LOCKING SCREW

(FOR MATING WITH QSS...-LS2)

(USE WITH SP-18-01-TM SOLDER PIN)

(SEE FIG. 3, SHT 3)(SEE NOTE 11)

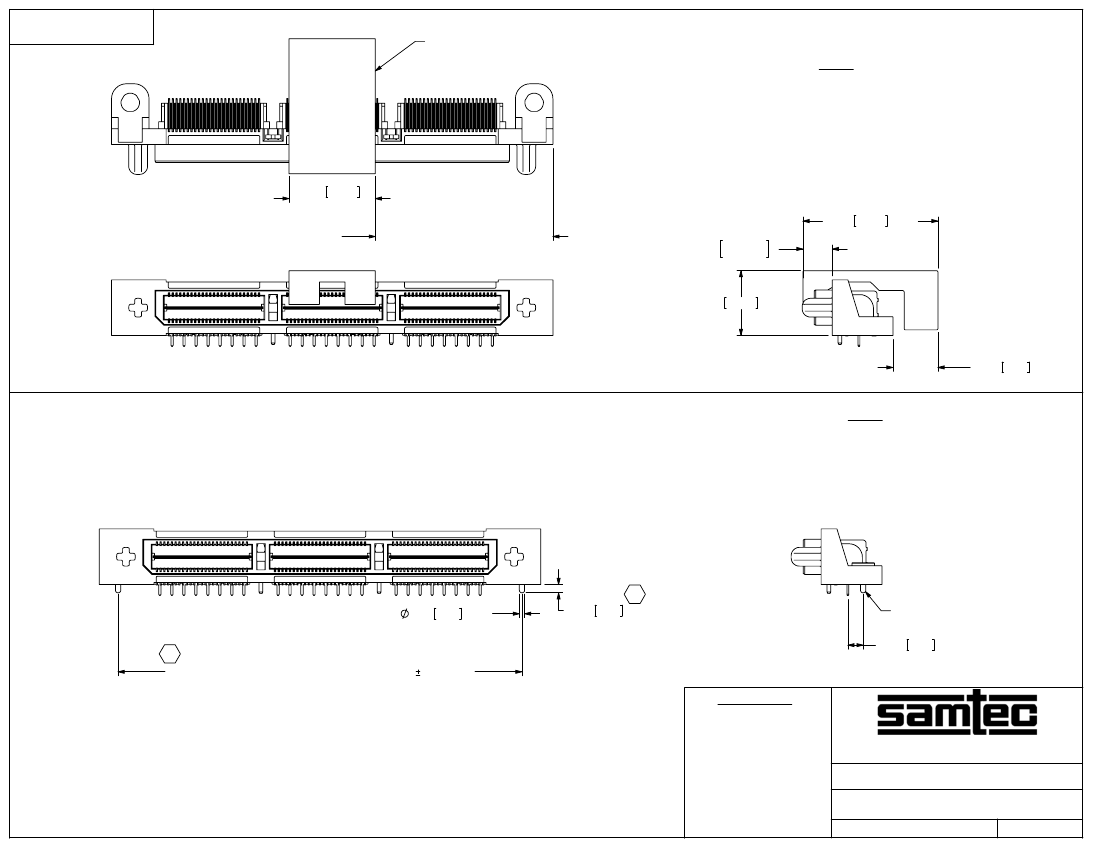

-P: PICK AND PLACE PAD

(USE PPP-63) (SEE FIG. 4, SHT 4)

-SP: SOLDER PIN

(NOT AVAILABLE W/ LSX OPTIONS)

(USE SP-19-T) (SEE FIG. 5, SHT 4)

((No OF POS / 25) x .7875[20.003]) + .580[14.73]

((No OF POS / 25) x .7875[20.003]) + .330[8.38] REF

.250 6.35 REF (TYP)

.124 3.15 INSCRIBED

REF (TYP) (SEE NOTE 10)

.280 7.11

REF

.405 10.29

REF

.250 6.35 MAX REF (TYP)

LEAD STYLE

-01: .062 BOARD

-02: .093 BOARD

PLATING SPECIFICATION

(SEE TABLE 3)

ROW SPECIFICATION

-D: DOUBLE (USE QTS-25-01-D-XX-RA)

-WT: WELD TAB

(SEE NOTE 5)(USE WT-16-XX-T)

-RA: RIGHT ANGLE

.120 3.05 REF

QTS-25-01-D-XX-RA

T-1S52-XXX

(No OF POS / 25) x .7875[20.003] REF

.7875 20.00 REF

.094 2.38 REF

C2 24 EQ SPACES

@ .0250[.635]

.061 1.56 REF

.230 5.84

IN-PROCESS 1

QTS-25-01-D-XX-RA

.110 2.79

IM-IG14-XXX-1-X

.09375±.0030 2.3813±0.076

(TYP) (SEE NOTE 5)

.371 9.42

REF

.235 5.97

REF

.395 10.03

IN-PROCESS 2

T-1S53-XX-XXX

.125 3.18

REF

.015 0.38 REF

7 EQ SPACES

@ .080[2.03]

2 MAX SWAY

(TYP)

.025 0.64 SQ

REF (TYP)

(SEE NOTE 5)

.008 0.20 REF

.299 7.59

IN-PROCESS 3

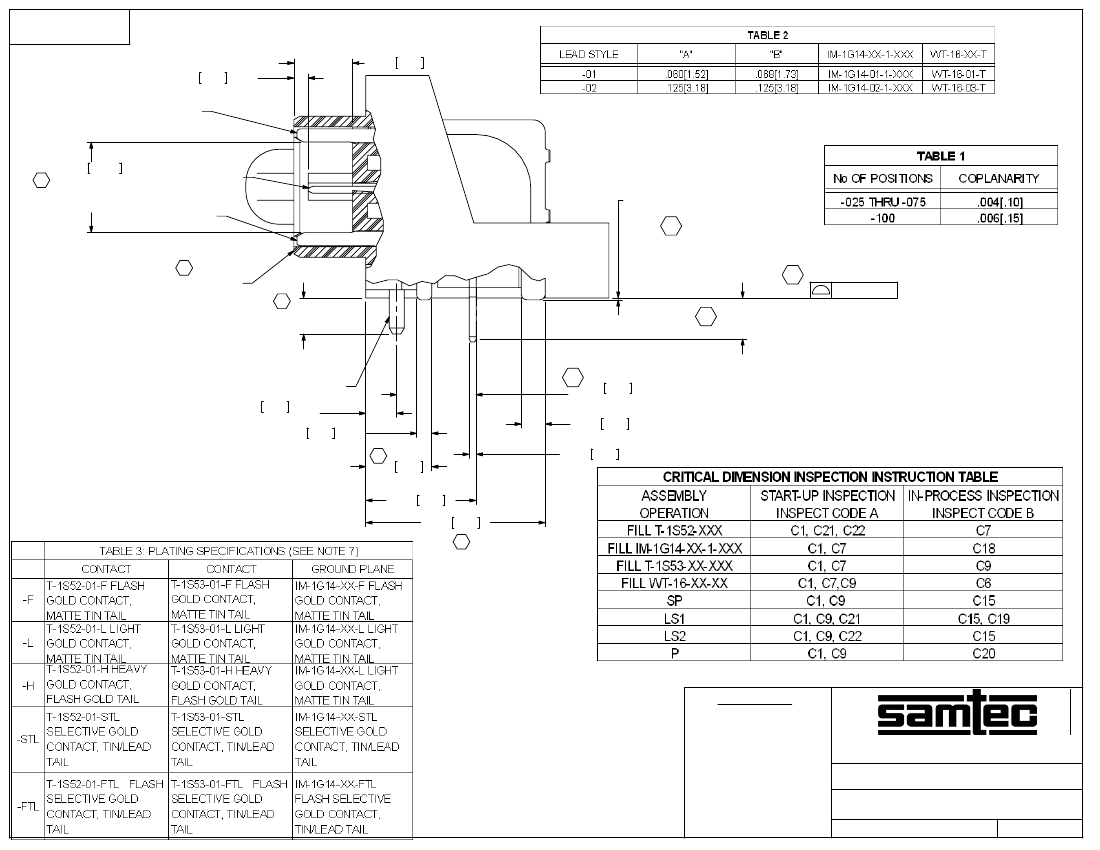

NOTES:

FIG. 1

QTS-075-01-XXX-D-RA-WT SHOWN

REPRESENTS A CRITICAL DIMENSION.

2. BURR ALLOWANCE: .0010 MAX.

3. MINIMUM PUSHOUT FORCE: 5 OZ.

4. NOTE DELETED.

5. WELD TABS NOT AVAILABLE ON -025 POSITION.

6. TIPS OF TERMINALS MAY NOT EXTEND BEYOND THIS SURFACE.

7. IF NEEDED, -L PLATING CAN BE SUBSTITUTED FOR -F PLATING.

8. DESIGNED FOR USE WITH A .062 OR .093 THICK PCB.

9. PACKAGE IN TRAYS AS STANDARD.

10.DELETE

11. MAX TORQUE ON STS-02 TO BE 20 IN-OZ.

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN INCHES.

TOLERANCES ARE:

DECIMALS

PROPRIETARY NOTE

THIS DOCUMENT CONTAINS INFORMATION

CONFIDENTIAL AND PROPRIETARY TO

SAMTEC, INC. AND SHALL NOT BE REPRODUCED

OR TRANSFERRED TO OTHER DOCUMENTS OR

DISCLOSED TO OTHERS OR USED FOR ANY

PURPOSE OTHER THAN THAT WHICH IT WAS

OBTAINED WITHOUT THE EXPRESSED WRITTEN

CONSENT OF SAMTEC, INC.

.XX: .01 [.3]

.XXX: .005 [.13]

.XXXX: .0020 [.051]

ANGLES

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail info@SAMTEC.com

code 55322

DESCRIPTION:

MATERIAL:

DO NOT SCALE DRAWING

SHEET SCALE: 1:0.8

INSULATOR: LCP, COLOR: BLACK

TERMINAL, WELD TAB & GROUND PLANE:

PHOS BRONZE

SCREW: STEEL

F:\DWG\MISC\MKTG\QTS-XXX-XX-XXX-D-RA-WT-XXX-MKT.SLDDRW

.635mm DOUBLE ROW RIGHT ANGLE TERMINAL STRIP

DWG. NO.

BY:

KEVIN B

QTS-XXX-XX-XXX-D-RA-WT-XXX

08/03/01

SHEET
