TFSDT-25-28-H-04.00-S datasheet, PDF

Datasheet> All Categories > The connector> The connector> TFSDT-25-28-H-04.00-S

TFSDT-25-28-H-04.00-S: DescriptionBoard Connector, 50 Contact(s), 2 Row(s), Male, 0.05 inch Pitch, Crimp Terminal, Locking, Black Insulator; CategoryThe connector The connector; File Size970KB，5 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

TFSDT-25-28-H-04.00-S Overview

Board Connector, 50 Contact(s), 2 Row(s), Male, 0.05 inch Pitch, Crimp Terminal, Locking, Black Insulator

TFSDT-25-28-H-04.00-S Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	312036385
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	6 weeks
YTEOL	8
body width	0.24 inch
subject depth	0.562 inch
body length	1.35 inch
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	MALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact style	RND PIN-SKT
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER
Manufacturer's serial number	TFSD
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	50
Maximum wire diameter	28 AWG
Minimum wire diameter	28 AWG

Preview

Download Datasheet

View All

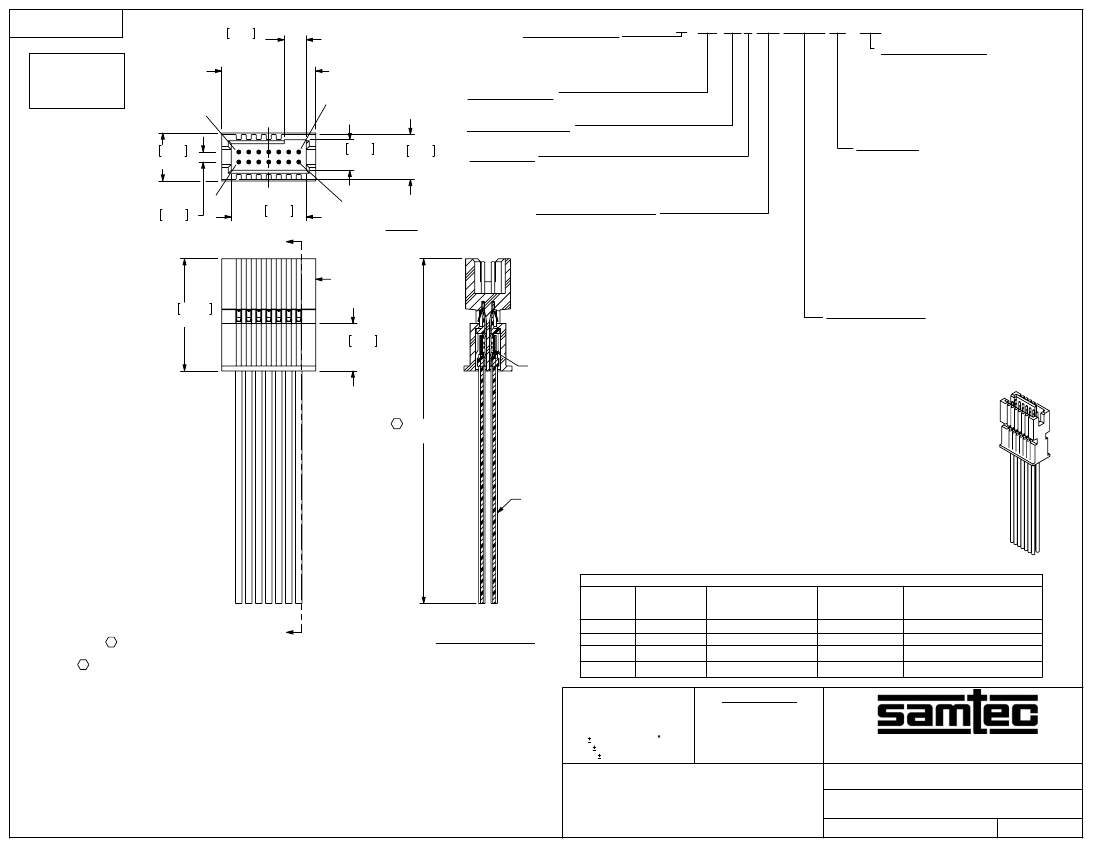

REVISION AB

.110 2.79

REF

(No OF POS x .050[1.27])

+ .120[2.54] REF

DO NOT

SCALE FROM

THIS PRINT

FEP CABLE OPTION

-T: FEP

(LEAVE BLANK FOR STANDARD

PVC INSULATION)

(SEE NOTE 9)

No OF POSITIONS

-02 THRU -50 (PER ROW)

WIRE GAUGE (AWG)

-28, -30

COLOR CODE

LEAVE BLANK FOR ALL BLACK WIRE,

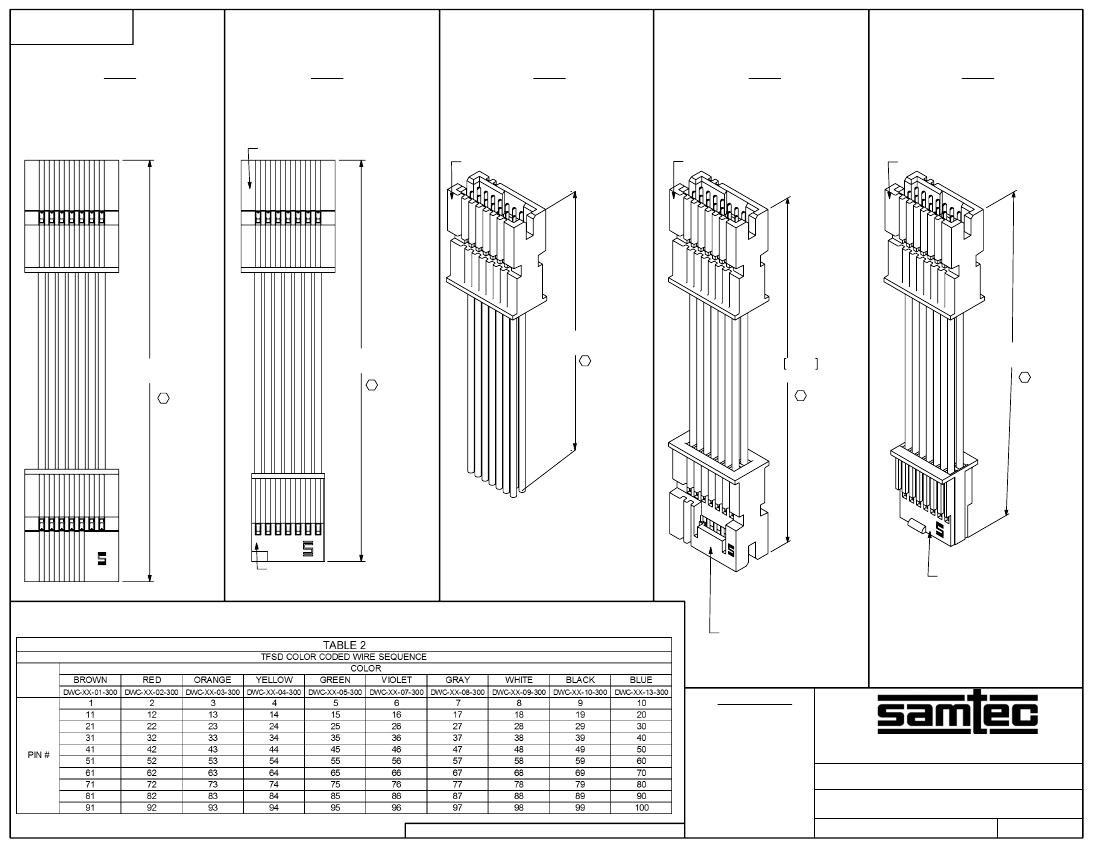

C: COLOR CODED WIRE, SEE TABLE 2, SHEET 2

(NOT AVAILABLE WITH FEP OPTION)

TFSDX-XX-XXX-XX-XX.XX-XX-XXX

-NXX OPTION (END 2)

(ONLY AVAILABLE WITH -D,-DL,-T,-TF,TR)

(SEE SHT 3 FOR -D PINOUT)

(SEE SHT 4 FOR -T PINOUT)

-NUS: NOTCH UP, STRAIGHT

-NDS: NOTCH DOWN, STRAIGHT

-NUX: NOTCH UP, CROSSED

-NDX: NOTCH DOWN, CROSSED

END OPTION

-S: SINGLE END

*** -SL: SINGLE END WITH FRICTION LOCK

(SEE SHEET 2, FIG 4)

** -D: DOUBLE END

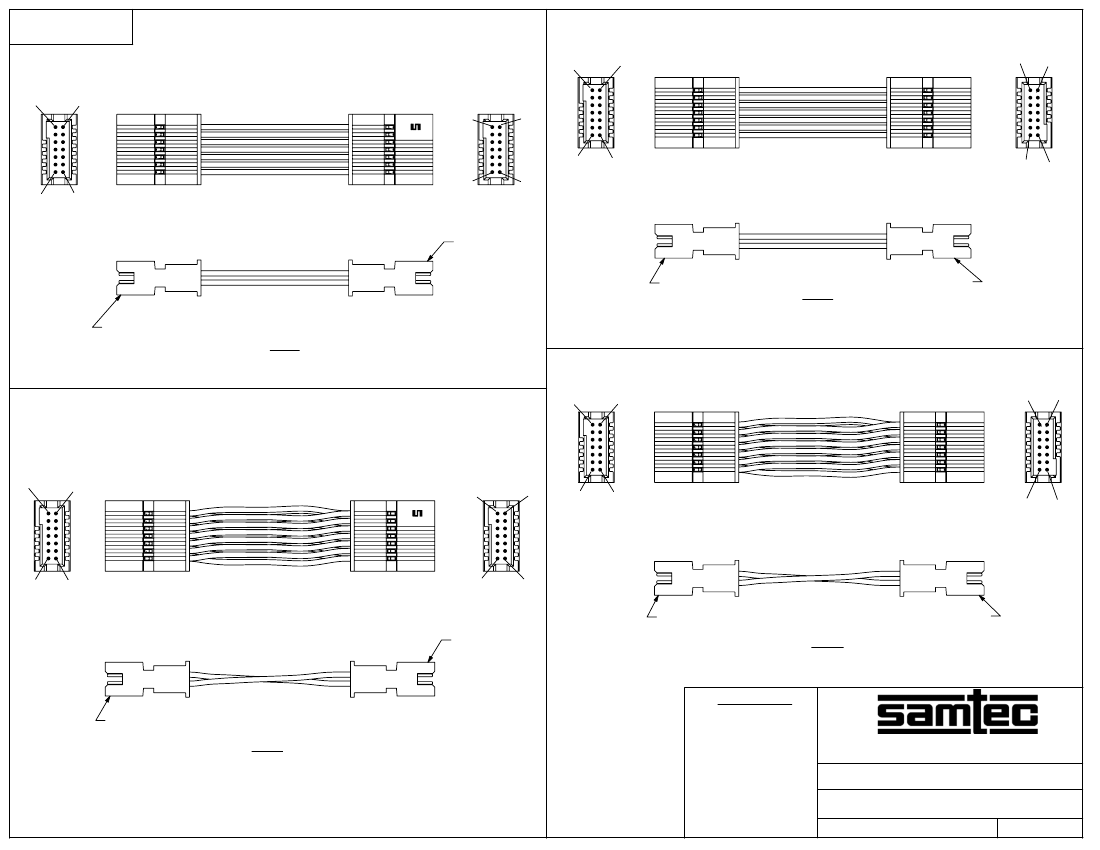

(SEE SHEET 2, FIG 2)

** -T: TRANSFER END

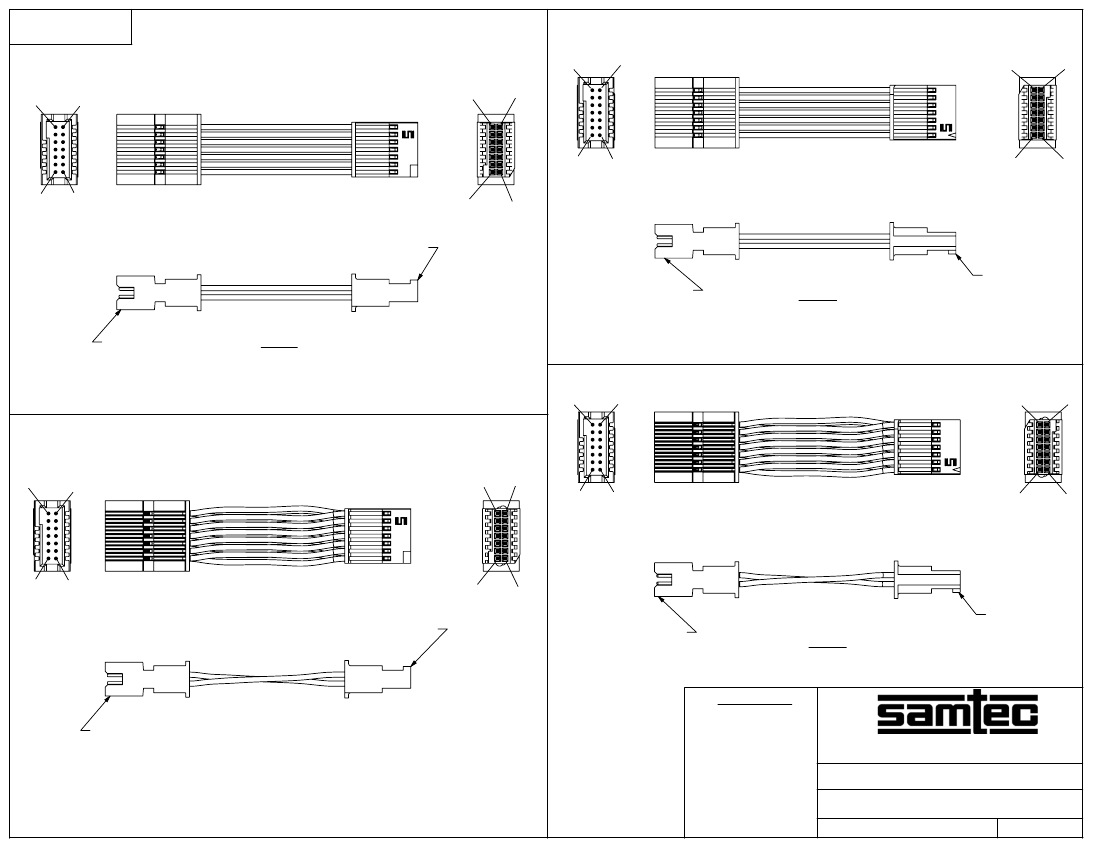

(SEE SHEET 2, FIG 3 AND SHEET 4)

** -DL: DOUBLE END WITH FRICTION LOCK

***

(SEE SHEET 2, FIG 5)

*** -TF: TRANSFER END WITH FRICTION LOCK

(SEE SHEET 2, FIG 6)

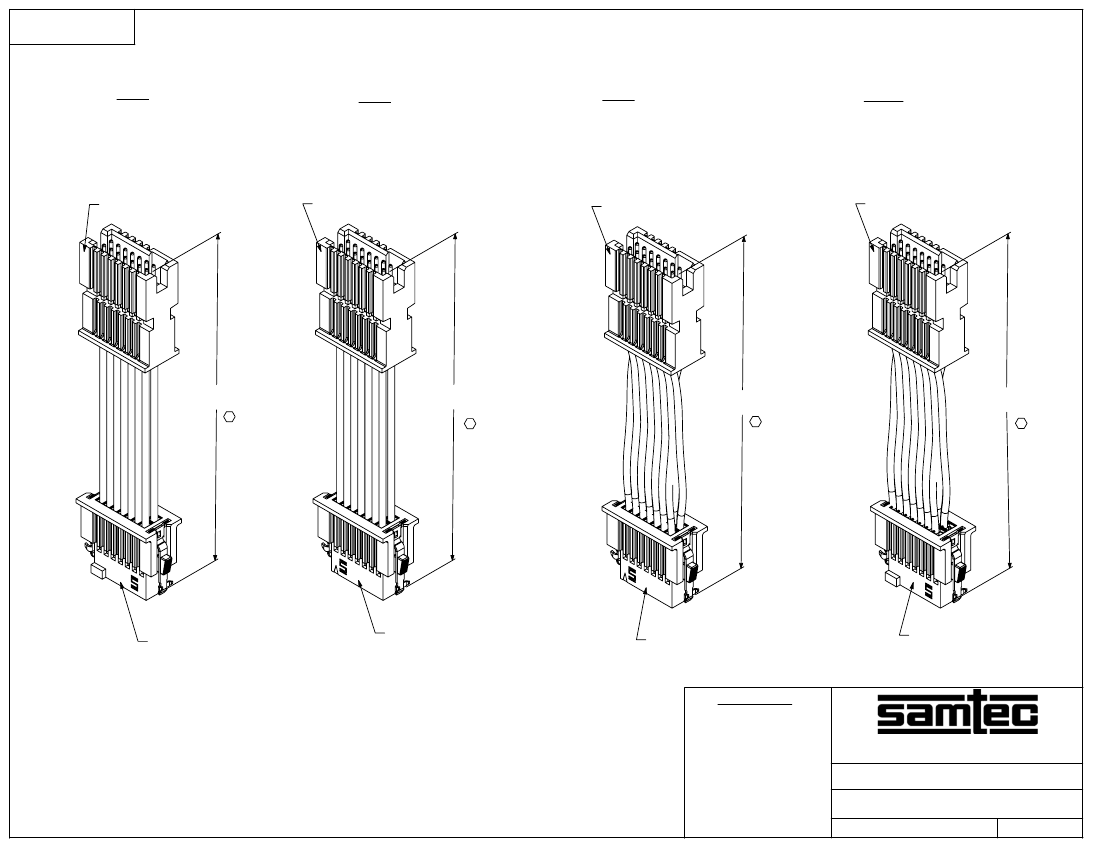

** -TR: TRANSFER END W/RETENTION LATCH(SEE

SHEET 5)(MUST CHOOSE FROM -NXX OPTIONS)

(ONLY AVAILABLE IN -05 THRU -50 POS)

ASSEMBLED LENGTH

SPECIFY IN INCHES

(SINGLE END: 03.00 INCH [76.2mm] MINIMUM,

DOUBLE OR TRANSFER END: 03.25 INCH [82.6mm]

MINIMUM)

.240 6.10

REF

.153 3.89

REF

.225 5.72

REF

.050 1.27

REF

.375 9.53

REF

N-1

"A"

-S: SINGLE END

(TFSDX-07-28-XX-XX.XX-S SHOWN)

TFSD-XX-D-S

FIG 1

.562 14.26

REF

.238 6.05

REF

PLATING SPECIFICATION

-H: 30µ" HEAVY GOLD IN CONTACT AREA,

3µ" GOLD ON TAIL

-G: 10µ" LIGHT GOLD IN CONTACT AREA,

10µ" GOLD ON TAIL ON TAIL

-F: 3µ" FLASH GOLD IN CONTACT AREA,

3µ" GOLD ON TAIL

(SEE NOTE 13)

-GF: 3µ" FLASH GOLD IN CONTACT AREA,

3µ" GOLD ON TAIL

(-GF ONLY AVAILABLE TO EXISTING CUSTOMERS,

SEE –F PLATING)

T-1M44-2830-XX

***

MUST CHOOSE FROM -NXX OPTIONS

ONLY AVAILABLE ON POS 5, 7, & 10 - 50

XX.XX

(SEE NOTE 12)

DWCX-28-XX-300

TABLE 1

SERIES

NOTES:

WIRE

GAUGE

28 AWG

30 AWG

28 AWG

30 AWG

WIRE

DWC-28-XX-300

DWC-30-XX-300

DWCT-28-XX-TC

DWCT-30-XX-TC

PROPRIETARY NOTE

T-1M44-2830-XX

REPRESENTS A CRITICAL DIMENSION.

2. MINIMUM PULLOUT FORCE: 3 LBS [13.3 N].

3. CONTACT MUST BE INSERTED UNTIL

RETENTION FEATURE LOCKS INTO PLACE.

4. ALL FINISHED GOODS ARE TO BE ELECTRICAL TESTED INCLUDING HI-POT TEST AT 300 V.

AFTER FINAL ELECTRICAL TEST, LABEL EACH ASSEMBLY WITH (1) ET STAMP ON THE BODY.

5. TINNED COPPER WIRE IS RoHS COMPLIANT.

6. PARTS TO BE LAYER PACKAGED.

7. END OF DISCRETE WIRE MUST BE IN THE RANGE AFTER CRIMP.

8. REFER TO CRIMP SPECIFICATIONS PRINT FOR CRIMP AND STRIP DIMENSIONS,

TOLERANCES, TOOLING AND ITS REQUIREMENTS.

9. SINGLE ENDED ASSEMBLIES USING THE FEP OPTION ARE FOR CRIMP APPLICATIONS ONLY.

10. NOTE DELETED.

11. NOTE DELETED.

12. FOR LENGTHS LESS THAN 12 IN, TOLERANCE SHALL

BE ±.125[3.18]. FOR OTHER LENGTHS, TOLERANCES SHALL BE ±2%.

13. USE C-203-XXXX-GF.

"A"

SECTION "A"-"A"

TFSD

TFSDT

CONTACT

(ONLY USED WITH -T, -TF &

-TR END OPTIONS)

C-203-2830-XX

F:\DWG\MISC\MKTG\TFSDX-XX-XXX-XX-XX.XX-XX-XXX-MKT.SLDDRW

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN INCHES.

TOLERANCES ARE:

DECIMALS

.XX: .01 [.3]

.XXX: .005 [.13]

.XXXX: .0020 [.051]

ANGLES

THIS DOCUMENT CONTAINS INFORMATION

CONFIDENTIAL AND PROPRIETARY TO

SAMTEC, INC. AND SHALL NOT BE REPRODUCED

OR TRANSFERRED TO OTHER DOCUMENTS OR

DISCLOSED TO OTHERS OR USED FOR ANY

PURPOSE OTHER THAN THAT WHICH IT WAS

OBTAINED WITHOUT THE EXPRESSED WRITTEN

CONSENT OF SAMTEC, INC.

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail info@SAMTEC.com

code 55322

DESCRIPTION:

DWG. NO.

MATERIAL:

DO NOT SCALE DRAWING

SHEET SCALE: 2:1

INSULATOR: LCP, COLOR: BLACK

CONTACT: BeCu

CABLE INSULATION: SEE CALLOUT

WIRE: DWC: TINNED COPPER.

DWCT: TIN PLATED COPPER

(SEE TABLE 1)

.050[1.27] SOCKET DISCRETE CABLE ASSEMBLY

TFSDX-XX-XXX-XX-XX.XX-XX-XXX

BY:

LENNY K

7/18/06

SHEET
