POE13W2X12-R: DescriptionTransformer 13w 100uh 1.7A 0.25ohms; CategoryPower/power management; File Size355KB，3 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric View All

POE13W2X12-R Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	POE13W2X12-R	-	-	View	Buy Now

POE13W2X12-R Overview

Transformer 13w 100uh 1.7A 0.25ohms

POE13W2X12-R Parametric

Parameter Name	Attribute value
Maker	All Sensors
Product Category	transformer
RoHS	yes
Power rating	13 VA
Primary voltage rating	29.5 V to 60 V
Secondary voltage rating	2 x 12 V
Installation style	SMD/SMT
size	18 mm L x 18 mm W x 10 mm H
product	Power Over Ethernet Configurable Transformers
high	10 mm
length	18 mm
Number of outputs	2
range of working temperature	- 40 C to + 85 C
Encapsulation	Reel
Termination type	SMD/SMT
width	18 mm

Preview

Download Datasheet

View All

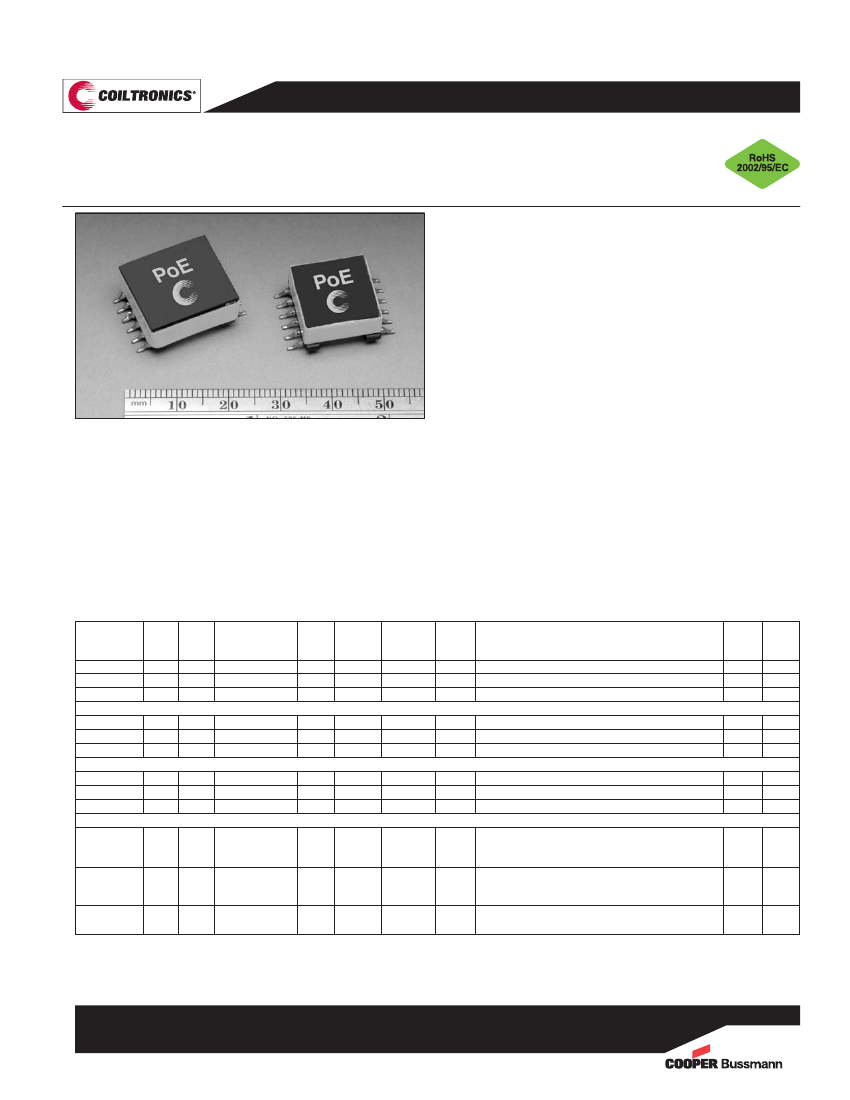

Power-over-Ethernet (PoE)/PD

Configurable Transformer

Applications

• For IEEE 802.3af-compliant Power-over-Ethernet applications

• UPS, VoiP Phone, wireless LAN access point, Bluetooth access point,

network camera, building access systems

• Retail point-of-information systems

• Vending/gaming machines

Environmental Data

• Storage temperature range: -40°C to +125°C

• Operating ambient temperature range: -40°C to +85°C

(range is application specific)

• Solder reflow temperature: +260°C max. for 10 seconds max.

Description

•

Versatile design allows multiple output variations

Flyback topology, 250kHz switching frequency

Input range from 29.5-60V

1500Vac isolation between primary and secondary

Three power levels: 4, 7 and 13watts

Low leakage inductance

11.0 Volt @ 0.10 amp feedback winding

Ferrite core material

Induct-

ance

Watts (µH)

200

100

DCR/

PRI

(Ω)

0.500

0.275

0.250

DCR/

PRI

(Ω)

0.250

DCR/

SEC

(Ω)

0.07

0.27

0.740

0.03

0.095

0.250

0.032

0.075

0.280

DCR/

SEC (Ω)

V1/V2/V3

0.085

0.042

0.025

0.038/

0.027/na

Packaging

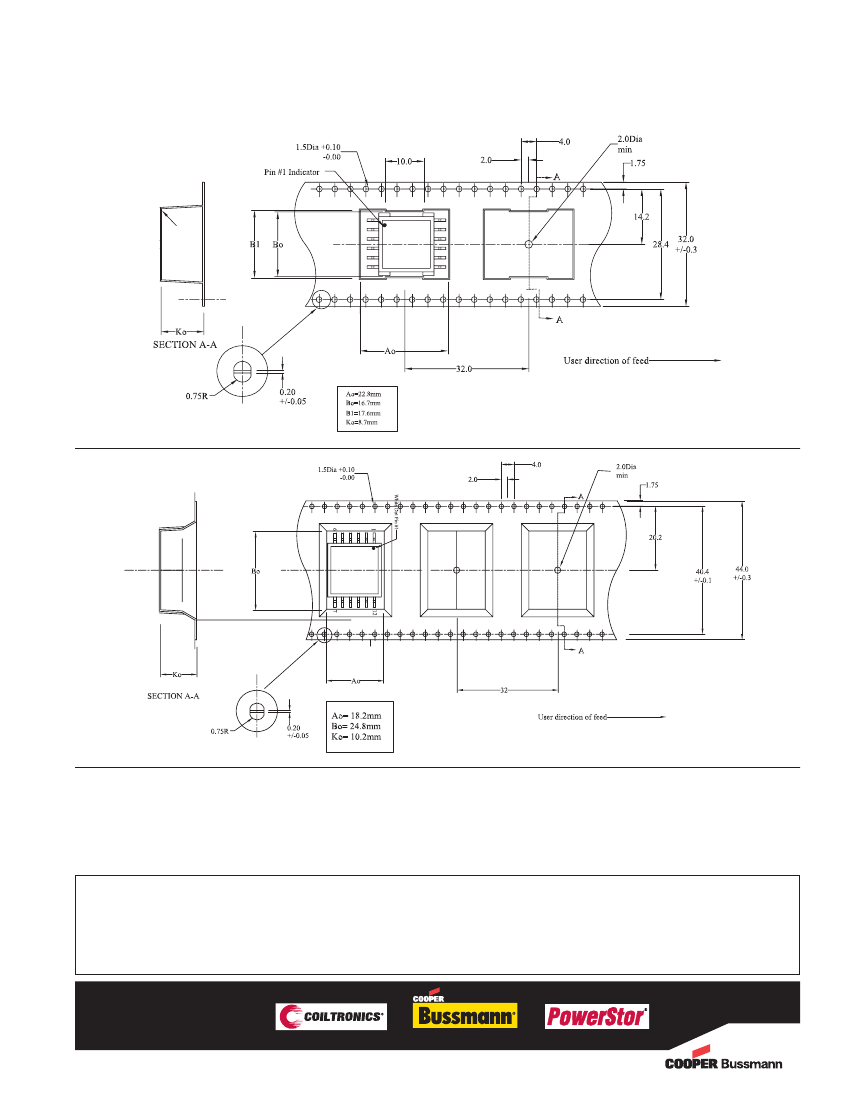

• Packaging Information: 4 and 7 Watts - 200 parts per 13" reel,

13 Watts - 140 parts per 13" diameter reel

Output

(3)x3.3V@0.45A

(3)x5.0V@0.30A

(2)x12.0V@0.20A

(3)x3.3V@0.75A

(3)x5.0V@0.50A

(2)x12.0V@0.30A

(3)x3.3V@1.35A

(3)x5.0V@0.90A

(2)x12.0V@0.60A

Part Number

PoE4W3x3.3-R

PoE4W3x5.0-R

PoE4W2x12-R

PoE7W3x3.3-R

PoE7W3x5.0-R

PoE7W2x12-R

PoE13W3x3.3-R

PoE13W3x5.0-R

PoE13W2x12-R

Leakage

Pri

Turn Ratio

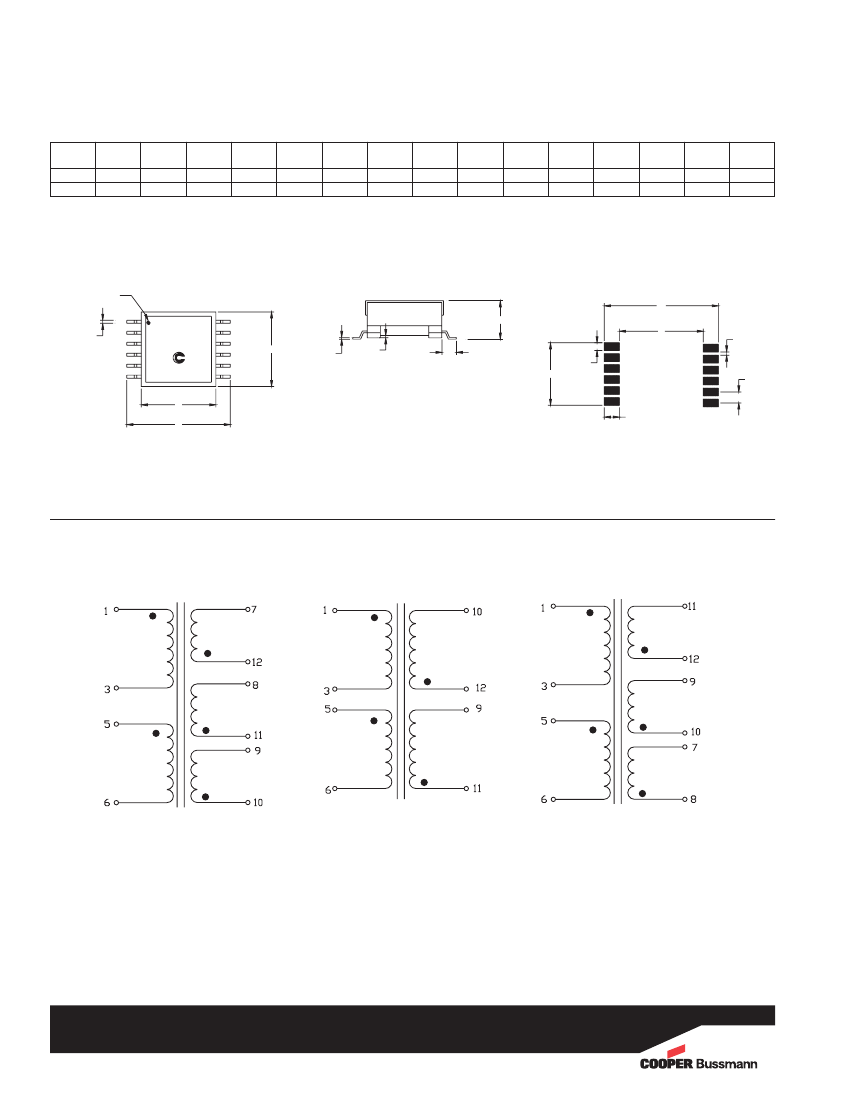

Inductance Current Schematic 1: Pins pri(1-3):fb(5-6):v1(12-7):v2(11-8):v3(10-9)

(µH) typ. Pk (Adc)

Schematic 2: Pins pri(1-3):fb(5-6):v1(12-10):v2(11-9)

2.75

0.65

1 : 0.52 : 0.16 : 0.16 : 0.16 ±1%

2.50

0.65

1 : 0.52 : 0.26 : 0.26 : 0.26 ±1%

1.40

0.65

1 : 0.52 : 0.60 : 0.60 ±1%

1.00

1.50

1.20

1.00

1.60

1.70

1 : 0.529 : 0.176 : 0.176 : 0.176 ±1%

1 : 0.529 : 0.265 : 0.265 : 0.265 ±1%

1 : 0.529 : 0.588 : 0.588 ±1%

1 : 0.529 : 0.176 : 0.176 : 0.176 ±3%

1 : 0.529 : 0.265 : 0.265 : 0.265 ±3%

1 : 0.529 : 0.647 : 0.647 ±3%

Sche-

matic

Dimen-

sions

Size 1

Size 2

Part Number

PoE13W3VERS-R

PoE13W2VERS-R

Induct-

ance

Watts (µH)

100

Output

V1:7.0V@1.1A,

V2:(1)x3.3V@1.1A,

V3:1.8V@1.1A

V1:5.0V@1.6A,

V2:3.3V@1.6A

Leakage

Pri

Turn Ratio

Inductance Current

Schematic 2: Pins pri(1-3):fb(5-6):v1(12-10):v2(11-9)

(µH) typ. Pk (Adc) Schematic 3: Pins pri(1-3):fb(5-6):v1(12-11):v2(10-9):v3(8-7)

1.00

1.20

1.70

1 : 0.529 : 0.350 : 0.176 : 0.088 ±3%

1 : 0.529 : 0.265 : 0.176 ±3%

Sche-

matic

Dimen-

sions

Size 2

1) Test Parameters: 100kHz, 0.100 Vrms, 0.0Adc

2) DCR limits maximum @ 20°C

3) Leakage Inductance 200kHz, 0.01Vrms, 0.0Adc

4) Feedback DCR 1.0Ω maximum @20°C

0909

BU-SB09865

Page 1 of 3

Data Sheet 4316

Recommended Resources

Humidity detection box control circuit in greenhouse

Constant current source circuit

Multi-purpose stepping self-coupling voltage regulator circuit diagram

High-efficiency regulated power supply schematic diagram

Current feedback amplifier circuit

Air conditioning main control board, low cost, PIC16C54

C6000 embedded assembly C and assembly comparison and function description: 1. Absolute value function(1) _abs()C code: int _abs(int src)Assembly: ABSfunction: Calculate the absolute value of 32-bit data(2) _labs()C code: int _labs(long src)Assembly: ABSfunction: Calculate th...; 灞波儿奔 DSP and ARM Processors

Please help me analyze the role of the three amplifiers and the role of the capacitor.: Please help me understand the functions of these three amplifiers. The first one on the left receives the voltage signal from the pt transformer....; jiqiaoen Analog electronics

EEWorld Datasheet is with you! Come and get 200 core points!: Since the launch of EEWorld Datasheet, we have continuously optimized and improved it. Currently, this site has included nearly 60 million device data sheets. At the same time, we have also launched t...; arui1999 Integrated technical exchanges

Summary of DSP28335 using FIFO serial port interrupt: When implementing a function, first check the relevant information, such as data sheets, forums, Baidu, books, etc., collect various relevant information, and then see how others implement it, analyze...; fish001 DSP and ARM Processors

Small things I made when I was studying 51 (I) -- Electronic timer: I made a lot of things when I was learning 51, but many of them did not leave complete data. Here I post one of the things I made with complete data, and I will post the things I have sorted out later...; kandy2059 51mcu

Why is there no lm3s9b96 in the stellarisWare dirvers folder?: I just downloaded StellarisWare from TI's official website, but why is there no lm3s9b96 in the dirvers folder?...; dreambutterfly Microcontroller MCU
