Date:
10-03-08
Ref.#:
TW-700160

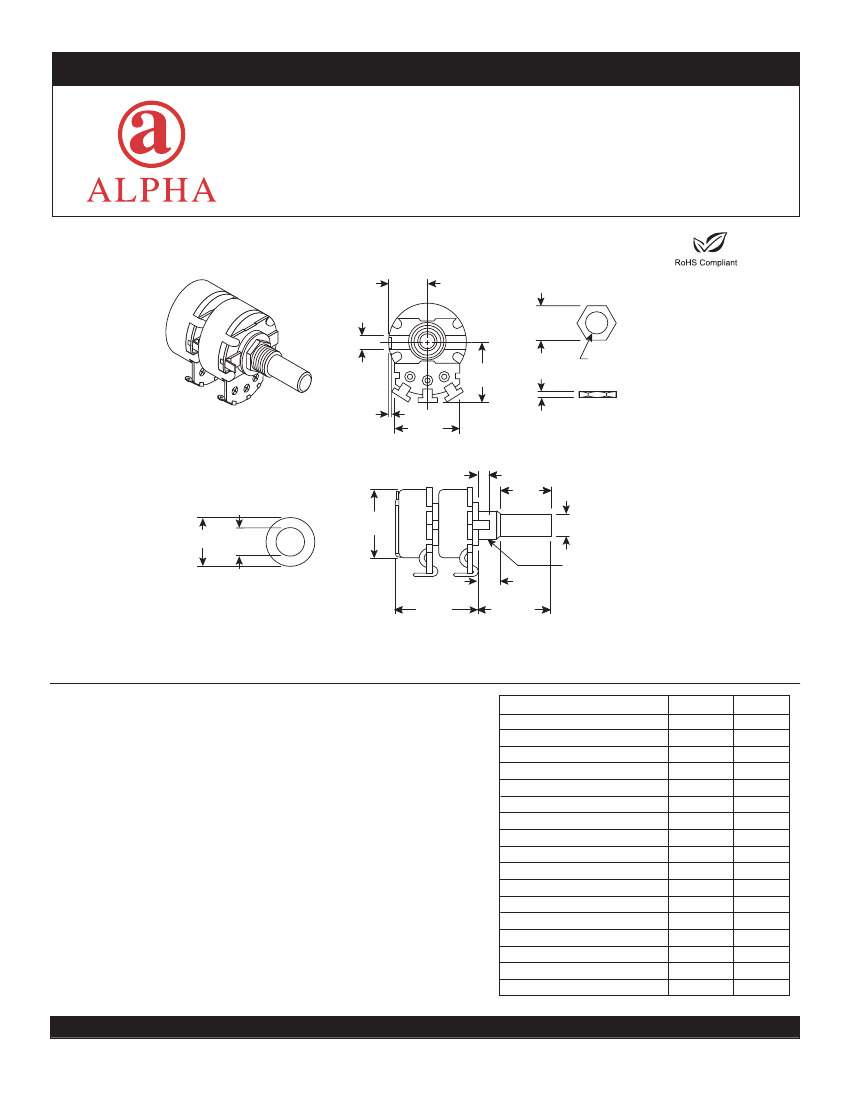

Potentiometers
313-2420-Value
31VW Series
.472
±.003
.433
.110
M8 x .75
.740
.047
.787
.070
.098
.355
ø.945
ø.551 ø.318
ø.250
±.003
M8 x .75
.250
.894
.605
±.019
Dimensions (in.)
(except where noted)
Alpha Part Number
313-2420F-1K
313-2420F-5K
313-2420F-10K
313-2420F-50K
313-2420F-100K
313-2420F-250K
313-2420F-500K
313-2420F-1M
31VW205-F
31VW301-F
31VW305-F
31VW401-F
31VW405-F
31VW501-F
31VW503-F
31VW505-F
31VW601-F
Value(Ω)
1K
5K
10K
50K
100K
250K
500K
1M
500
1K
5K
10K
50K
100K
250K
500K
1M
Taper
Audio
Audio
Audio
Audio
Audio
Audio
Audio
Audio
Linear
Linear
Linear
Linear
Linear
Linear
Linear
Linear
Linear
Specifications:
•
Type: dual ganged
•
Resistance Tolerance: ± 20%
•
Working Voltage: 350V max.
•
Overload Voltage: 100VAC for 1 minute
•
Power Dissipation: 0.5W (31VW Series) .25W (313-2420-Value)
•
Insulation Resistance: >100MΩ @ 500VDC
•
Rotational noise: with 20VDC between terminals 1 and 3, noise
should be < 47mV with shaft rotation of 30 cycles per minute
•
Rotation Angle: 300º ± 5º
•
Rotation Torque: 50-450 gcm
•
Rotational Life: 9Kgcm
•
Tracking Tolerance: 0~40 ± 3dB
•
RoHS Compliant
Available from Mouser Electronics
www.mouser.com
(800) 346-6873
Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
