GBPC2506W datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Discrete semiconductor> GBPC2506W

GBPC2506W: DescriptionBridge Rectifier 25 amp 600 volt; Categorysemiconductor Discrete semiconductor; File Size105KB，2 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric View All

GBPC2506W Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	GBPC2506W	-	-	View	Buy Now

GBPC2506W Overview

Bridge Rectifier 25 amp 600 volt

GBPC2506W Parametric

Parameter Name	Attribute value
Maker	All Sensors
Product Category	bridge rectifier
RoHS	yes
product	Single Phase Bridge
Peak reverse voltage	600 V
Maximum RMS reverse voltage	420 V
Maximum surge current	300 A
forward voltage drop	1.1 V @ 12.5 A
Maximum reverse leakage current	5 uA
Maximum operating temperature	+ 150 C
Package/box	Case GBPC-W
Encapsulation	Bulk
Minimum operating temperature	- 50 C
Installation style	SMD/SMT

Preview

Download Datasheet

View All

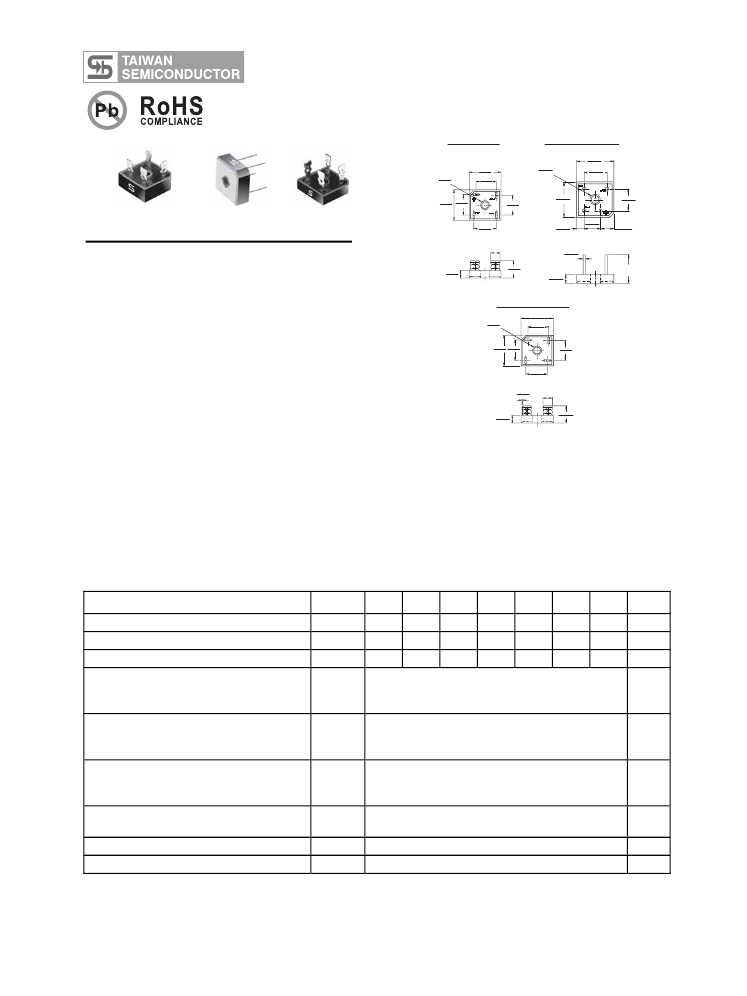

GBPC 15, 25, 35 SERIES

High Current 15, 25, 35 AMPS. Single Phase

Glass Passivated Bridge Rectifiers

GBPC

GBPC-W

HOLE FOR #10 SCREW

1.14(29.0)

1.12(28.5)

.692(17.6)

.612(15.5)

1.14(29.0)

1.12(28.5)

.752(19.1)

.672(17.1)

.22(5.59)

DIA

.20(5.08)

HOLE FOR #10 SCREW

.22(5.59)

DIA

.20(5.08)

1.14(29.0)

1.12(28.5)

.692(17.6)

.612(15.5)

1.14(29.0)

1.12(28.5)

.602(15.3)

.522(13.3)

.752(19.1)

.672(17.1)

Features

UL Recognized file # E-96005

The plastic material used carries Underwriters

Laboratory Flammability Recognition 94V-0

Integrally molded heatsink provide very low

thermal resistance for maximum heat

dissipation

Surge overload ratings from 300 amperes to

400 amperes

Terminals solderable per MIL-STD-202,

Method 208 (For wire type)

Typical I

less than 0.2 uA

High temperature soldering guaranteed:

260

C / 10 seconds / .375”, (9.5mm) lead

lengths(For wire type)

Isolated voltage from case to lead over 2500

volts

.442(11.23)

.432(10.97)

.752(19.1)

.672(17.1)

.23(5.825)

.19(4.825)

.490(12.4)

.410(10.4)

.493(12.525)

.454(11.525)

.25(6.35)

.042(1.07)

.038(0.97)

.96(24.5)

.85(21.5)

1.2(30.5)

MIN.

.442(11.23)

.432(10.97)

GBPC-M

HOLE FOR #10 SCREW

.22(5.59)

DIA

.20(5.08)

1.14(29.0)

1.12(28.5)

.692(17.6)

.612(15.5)

1.14(29.0) .692(17.6)

1.12(28.5) .612(15.5)

.692(17.6)

.612(15.5)

.692(17.6)

.612(15.5)

.034(0.86)

.030(0.76)

.26(6.60)

0.442(11.23)

0.432(10.97)

0.967(24.57)

0.837(21.26)

Dimensions in inches and (millimeters)

Maximum Ratings and Electrical Characteristics

Rating at 25

C ambient temperature unless otherwise specified.

Single phase, half wave, 60 Hz, resistive or inductive load.

For capacitive load, derate current by 20%

Type Number

Maximum Recurrent Peak Reverse Voltage

Maximum RMS Voltage

Maximum DC Blocking Voltage

Maximum Average Forward

Rectified Current

= 55 C

Peak Forward Surge Current,

Single Sine-wave Superimposed

on Rated Load (JEDEC method )

Maximum Instantaneous

Forward Voltage Drop Per

Element at Specified Current

Maximum DC Reverse Current

at Rated DC Blocking Voltage Per Element

Typical Thermal Resistance (Note 1)

Operating and Storage Temperature Range

Symbol

-005

RRM

RMS

(AV)

-01

100

-02

200

140

200

-04

400

280

400

15.0

25.0

35.0

300

400

-06

600

420

600

-08

800

560

800

-10

1000

700

1000

Units

GBPC15

GBPC25

GBPC35

GBPC15

GBPC25

GBPC35

GBPC15 7.5A

GBPC25 12.5A

GBPC35 17.5A

FSM

θJC

STG

1.1

1.5

-50 to +150

C/W

Notes: 1. Thermal Resistance from Junction to Case.

2. Suffix “W” - Wire Lead Structure/”M” - Terminal Location Face to Face.

- 712 -

Version: B08
