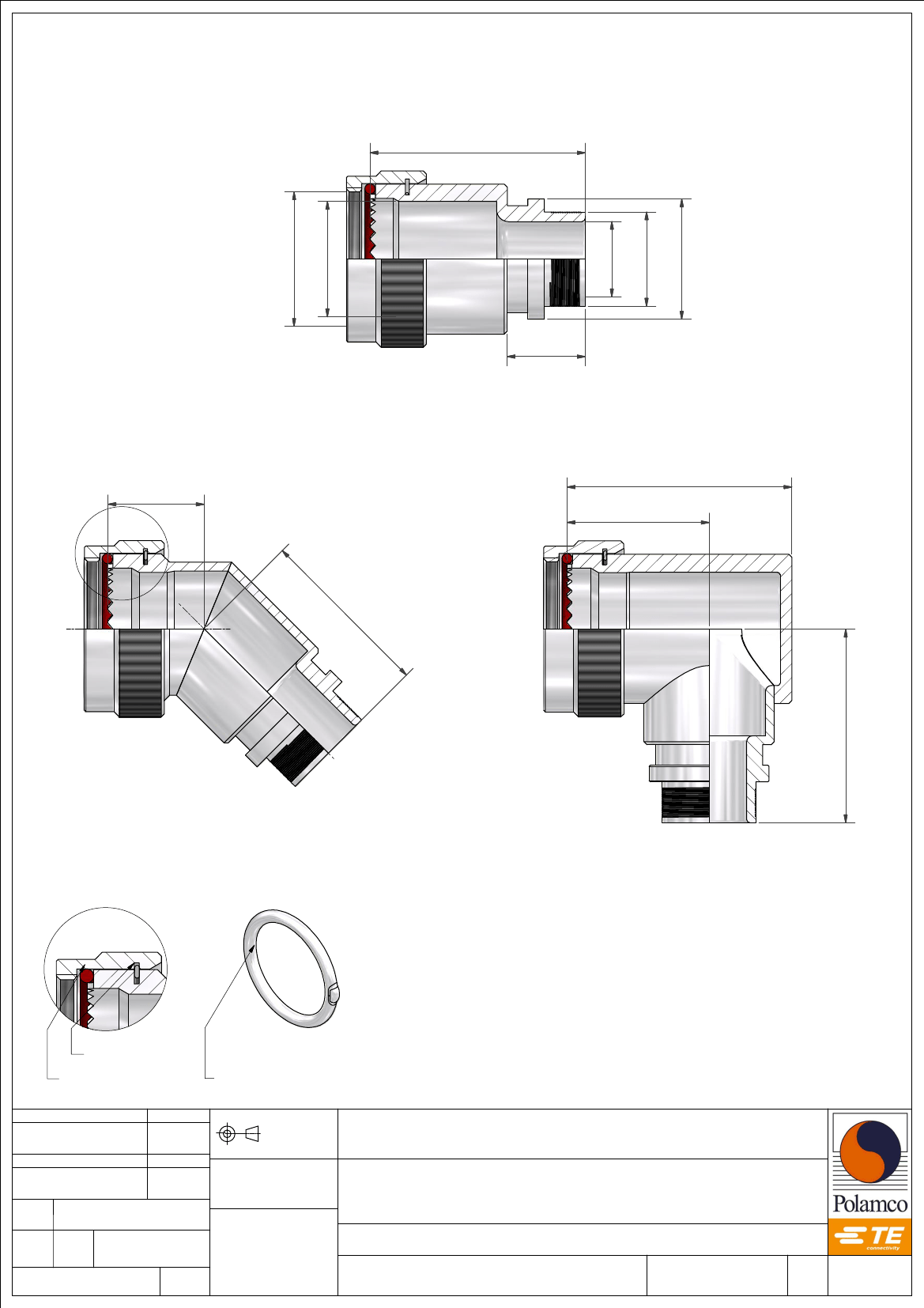

36,40 0,25
A THREAD
M
K
G
13,00 MIN
A
C
H
E
T
D
A
CIRCLIP
SILICONE O RING
DRAWN
J.CLARK
MEMORY METAL RING
DATE
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1
PART NUMBER:
TITLE:
27/03/2008
60D SERIES
DESIGN APPROVAL
M.PAUL
DATE
28/09/2018
DOC
TYPE
ISSUE
MEMORY METAL RING ADAPTOR
ASSY USED ON:
MIL-DTL-26482 SERIES I, PATT 105, PATT 603
THIS DRAWING IS COPYRIGHT AND THE PROPERTY OF POLAMCO LTD POLAMCO LTD, WESTON LOCK,
IT MUST NOT BE COPIED, USED FOR MANUFACTURE OR OTHERWISE
LOWER BRISTOL ROAD
DISCLOSED WITHOUT PRIOR WRITTEN CONSENT OF THE COMPANY.
BATH BA2 1EP
Customer Drawing
REV.
DCR
2
1
4049
WEIGHT
N/A
MATERIAL
SEE PART NUMBER
BREAKDOWN
FINISH
SEE PART NUMBER
BREAKDOWN
SHT DRAWING NO:
NCAGE CODE U5792
1 P11003
F
60D1-16-08-1-C
SERIES
CONNECTOR INTERFACE
ANGLE
SHELL SIZE (TABLE 1)
ENTRY SIZE (TABLE 2)
MATERIAL (TABLE 3)
FINISH (TABLE 3
RING OPTION
A - RING TO SUIT SINGLE BRAID
B - RING TO SUIT DOUBLE BRAID
OMIT IF NO RING REQUIRED
TABLE 1
SHELL
SIZE
08
10
12
14
16
18
20
22
24
A THREAD
7/16-28 UNEF
9/16-24 UNEF
11/16-24 UNEF
13/16-20 UNEF
15/16-20 UNEF
1 1/16-18 UNEF
1 3/16-18 UNEF
1 5/16-18 UNEF
1 7/16-18 UNEF
B MAX
17.3
20.3
23.8
26.8
29.8
33.3
36.3
39.8
42.8
T MIN
7.2
9.8
13.5
15.9
19,0
21.4
24.6
27.8
31,0
C MAX
14.1
14.9
15.3
16.2
16.5
17.3
18.2
18.5
19.4
D MAX
26,8
27,6
28,0
29,0
29,8
30,6
30,9
31,2
32,1
E MAX
25.2
28.2
31.7
35.2
38.2
41.7
45.2
48.2
51.2
F MAX
26,4
28,2
29,7
31,2
32,9
34,5
36,1
37,6
39,1
K +/- 0,5
17.5
18.6
20.5
22.5
24,0
26,0
28,0
29.5
31,0
TABLE 2
ENTRY
SIZE
04
05
06
07
08
10
12
14
16
18
20
22
24
G MIN
6,3
7,9
9,5
11,1
12,7
15,8
19,0
22,2
25,4
28,5
31,7
34,9
38,1
H MAX
14,3
15,8
17,4
19,0
20,6
23,8
27,0
30,1
33,3
36,5
39,7
42,8
46,0
M MAX
9,5
11,1
12,7
14,3
15,9
19,0
22,2
25,4
28,6
31,8
34,9
38,1
41,3
TABLE 3
CODE
1-C
1-B
1-ZB
1-ZK
1-ZN
MATERIAL / FINISH
ALUMINIUM / ELECTROLESS NICKEL
ALUMINIUM / CADMIUM OLIVE DRAB OVER ELECTROLESS NICKEL
ALUMINIUM / ZINC COBALT OLIVE DRAB OVER ELECTROLESS NICKEL
ALUMINIUM / ZINC COBALT BLACK OVER ELECTROLESS NICKEL
ALUMINIUM / ZINC NICKEL BLACK PASSIVATE OVER ELECTROLESS NICKEL
SEE SS0076 FOR FULL RANGE OF FINSIH OPIONS
DRAWN
J.CLARK
DATE
27/03/2008
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1
PART NUMBER:
TITLE:
60D SERIES
DESIGN APPROVAL
M.PAUL
DATE
28/09/2018
DOC
TYPE
ISSUE
MEMORY METAL RING ADAPTOR
ASSY USED ON:
MIL-DTL-26482 SERIES I, PATT 105, PATT 603
THIS DRAWING IS COPYRIGHT AND THE PROPERTY OF POLAMCO LTD POLAMCO LTD, WESTON LOCK,
IT MUST NOT BE COPIED, USED FOR MANUFACTURE OR OTHERWISE
LOWER BRISTOL ROAD
DISCLOSED WITHOUT PRIOR WRITTEN CONSENT OF THE COMPANY.
BATH BA2 1EP
Customer Drawing
REV.
DCR
2
1
4049
WEIGHT
N/A
MATERIAL
SEE PART NUMBER
BREAKDOWN
FINISH
SEE PART NUMBER
BREAKDOWN
SHT DRAWING NO:
NCAGE CODE U5792
2 P11003
