Corcom Product Guide
Slim Power Entry Module Family with Multiple Options
Catalog: 1654001
Issue Date: 08.2010
M Series
UL Recognized
CSA Certified
VDE Approved
XM / ZM
VM

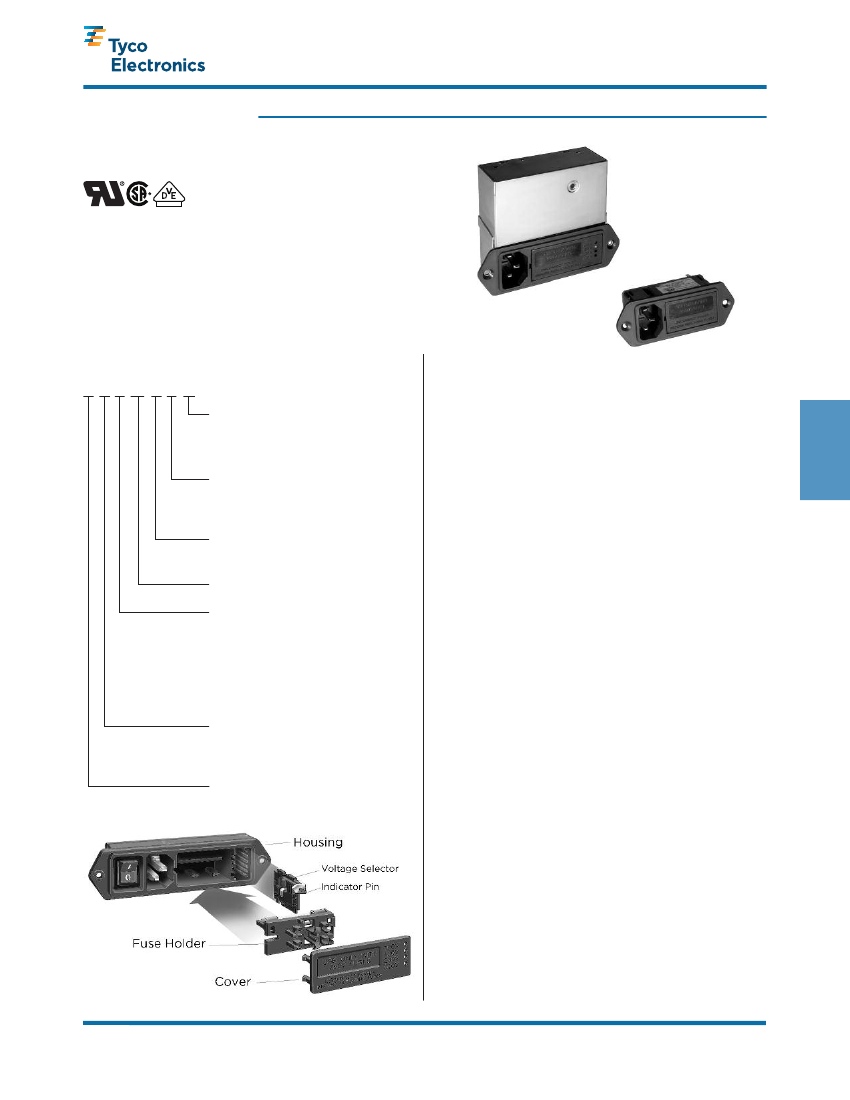

Ordering Information
5EFM4SC
Mounting Type
C– Snap-In
Omit for flange mount
Switch Option
S – DPST on/off switch
Omit for none
Voltage Selection Positions
1 or 4
M Series
Filter Type
F – General purpose
H – Medical
X – High performance
Z – Premium performance
V – Non-filtered
Leakage current designation
E – Low leakage
(<0.5 mA)
(Filtered models only)
M Series
• Family of slim power entry modules that consume
minimal depth behind panel
• Four compact modules each provide a different
option combination
• Available non-filtered or with one of four filter
circuits designed to meet a wide variety of
applications
• Optional voltage selector configured for either
2 or 4 voltage selection
• Optional DPST on/off switch
• Included fuseholder accepts either single 3AG fuse
or dual metric fuses
• Snap-in or flange mounting styles
3
Power Inlet Filters & Power Entry Modules
Filter Types
H Models
provide a basic performance dual
element circuit EMI filter with minimal leakage
current, suitable for medical applications, with
attenuation similar to the EAH Series power inIet
filter.
F Models
provide a basic performance dual
element circuit EMI filter, with attenuation similar
to the EEA Series Power Inlet Filter.
X Models
provide a high performance three
element differential circuit filter, with extended
EMI attenuation similar to the X Series chassis
filter, suitable for bringing most digital equipment
(including switching power supplies) into compli-
ance with FCC Part 15J, Class B conducted
emissions limits.
Z Models
provide a premium performance three
element differential circuit filter, with enhanced
EMI low frequency attenuation similar to the P
Series Z models, suitable for bringing most digital
equipment (including switching power supplies)
into compliance with EN55022 Level B as well as
FCC Part 15J. For minimum panel footprint, see
the P series on page 192.
183
Current Rating @120 VAC
3, 5 or 6A
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
For email, phone or live chat, please go to
tycoelectronics.com/help
corcom.com

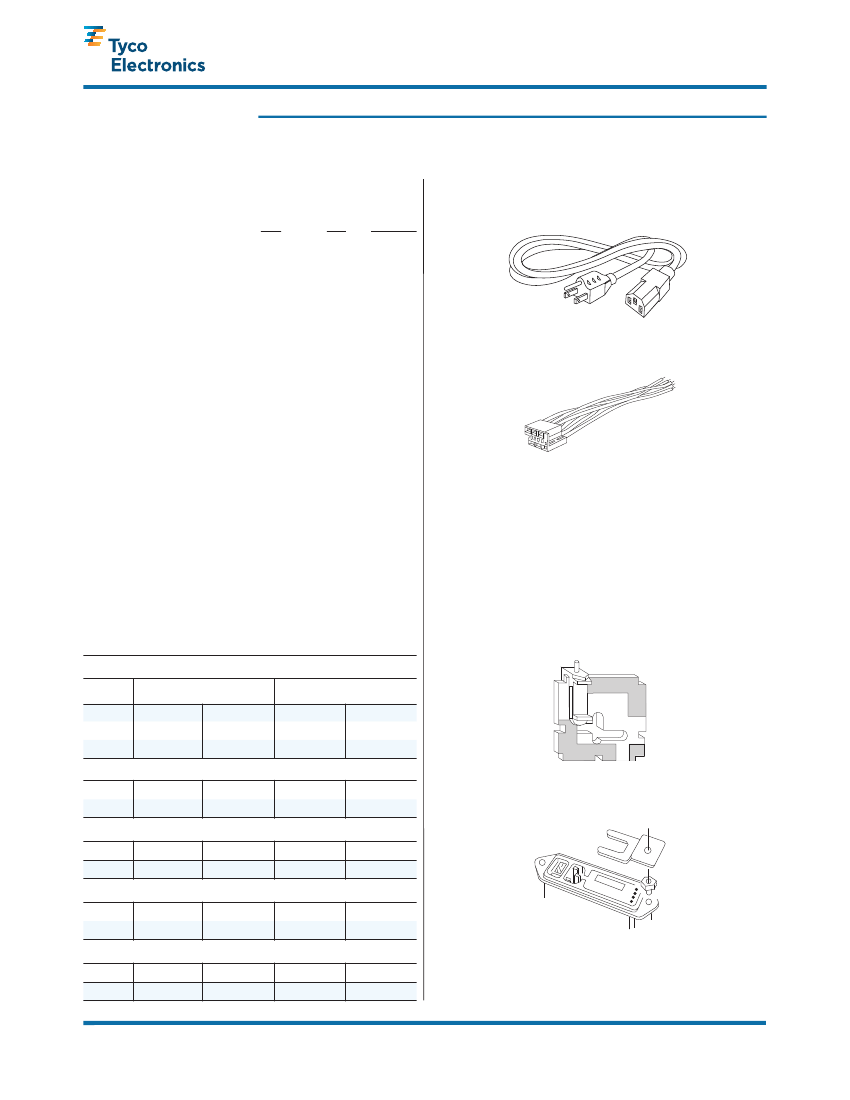

Corcom Product Guide
Catalog: 1654001
Issue Date: 08.2010
Slim Power Entry Module Family with Multiple Options
(continued)
M Series
Specifications
Maximum leakage current each Line to Ground:
HM
FM
XM/ZM
@ 120 VAC 60 Hz:
2µA
.25 mA
.30 mA
@250 VAC 50 Hz:
5
µA
.50 mA
.50 mA
Hipot rating (one minute):
Line to Ground:
Line to Line:
Line to Load (switch off) non-filtered:
Rated Voltage (max.):
Operating Frequency:
Rated Current @ 120 VAC:
Rated Current @ 250 VAC:
3A models:
5A models:
6A Switched models:
6A non-switched models:
Required Fuse(s):
2250 VDC
1450 VDC
2500 VAC
250VAC
50/60 Hz
3 to 6A
2A
4A
5A
6A
MA101: Plug only
MA102: Strip of 100 pins for use with MA101
MA104: Individual pins for use with MA101
MA302: Two Voltage Selection Card
Marked 120V/240V. One card comes standard with
every 2 voltage M series module
MA304: Four Voltage Selection Card
MA100: Power interconnect assembly
For voltage select models. 8.5” wire leads
Accessories
GA400: NEMA 5-15P to IEC 60320-1 C-13 line cord
Switch:
Reversible fuseholder accepts
one .25 x 1.25”(not included)
or two 5 x 20mm(not included)
DPST
100,000 operations at 70A max. inrush
Available Part Numbers
Non-Filtered Models
Voltage
Selections
Marked 100V/120V/230V/240V. One card comes
standard with every 4 voltage M series module
1
2
4
1
4
1
4
1
4
1
4
184
6VM1
6VM1S
6VM1C
6VM2
6VM2S
6VM4
6VM4S
6VM4C
General Purpose Filters
5EFM1
5EFM4
5EHM1
5EHM4
0
6VM4SC
1
0
0
5EFM1S 5EFM1C 5EFM1SC
5EFM4S 5EFM4C 5EFM4SC
Medical Filters
5EHM1S
5EHM4S
3EXM1S
3EXM4S
3EZM1S
3EZM4S
MA400: Medical safety bracket assembly
Prevents inadvertent removal of fuse(s)
High Performance - FCC-B
3EXM4
MA401: Bracket only
MA402: Standoff only
Premium Performance - EN55022-B
3EZM4
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
For email, phone or live chat, please go to
tycoelectronics.com/help
corcom.com
1
2
6VM1SC
0
Flange Mount
Snap-In
2
2
3
3
2
4
Corcom Product Guide
Catalog: 1654001
Issue Date: 08.2010
Slim Power Entry Module Family with Multiple Options
(continued)
M Series
Accessories
(continued)
MA601 - 604: Insulating Boot
Plastic shroud for back of M series to prevent
inadvertent access to connections
1. Remove power cord

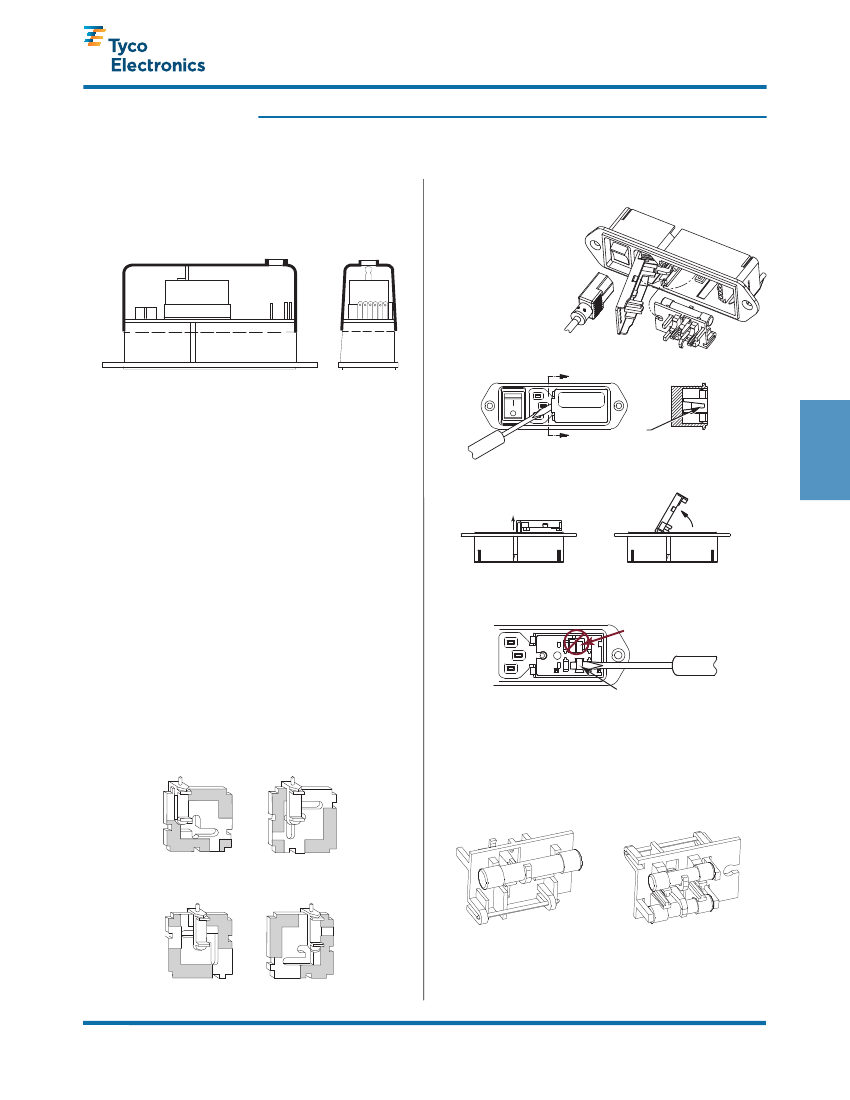

Fuse Installation Instructions
2. Insert a pocket screwdriver at point “X” as shown
MA601: Fits M4S versions
MA602: Fits M1S versions
MA603: Fits M4 versions
MA604: First M1 versions
A
USE ONLY WITH
250V FUSES
DISCONNECT POWER
BEFORE REPLACING FUSES
A
“X”
Section A-A
3.
Gently lift the entire door UP approximately 1/4"
(minimum)
3
Power Inlet Filters & Power Entry Modules
Voltage Selection
1. Open cover, using small blade screwdriver or
similar tool
(see illustration on right)
2. Set aside cover/fuse block assembly
3. Pull voltage selector card straight out of housing,
using indicator pin
4. Orient selector card so that desired voltage is
readable at the bottom
5. Orient indicator pin to point up when desired
voltage is readable at bottom
(note that when indi-
cator pin is fixed, successive voltages are selected by
rotating the card 90° clockwise)
Once lifted, the door will pivot on it’s hinges to expose
the fuse holder
Lift Up
4. When the fuse holder is installed in the single fuse position,
apply the screwdriver as shown and gently lift up
Use screwdriver as shown, do not use fingers
NOT here
6. Insert voltage selector card into housing, printed
side of card facing forward toward IEC connector
and edge containing the desired voltage first
7. Replace cover, and verify that indicator pin shows
the desired voltage
2
4
Insert Here
When the fuse holder is installed in the dual fuse position,
it will normally release as soon as the door is opened
5. Install one (1) AG fuse or two (2) metric fuses (see below)
6. Replace fuse holder into housing
7. Swing and push to snap door back in place
0
2
0
0
1
0
0
0
1
2
0
100V
120V
0
1
0
0
0
2
1 0
2
3
1
0
2
4
0
2
3
0
0
230V
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
1
2
1
1
3
3
2
4
Fuse Options
North American
single fuse installation
Metric
dual fuse installation
2
2
2
4
0
240V
Install fuses on one side only, do not install
both AG and metric fuses at the same time
185
For email, phone or live chat, please go to
tycoelectronics.com/help
corcom.com
Corcom Product Guide
Catalog: 1654001
Issue Date: 08.2010
Slim Power Entry Module Family with Multiple Options
(continued)
M Series

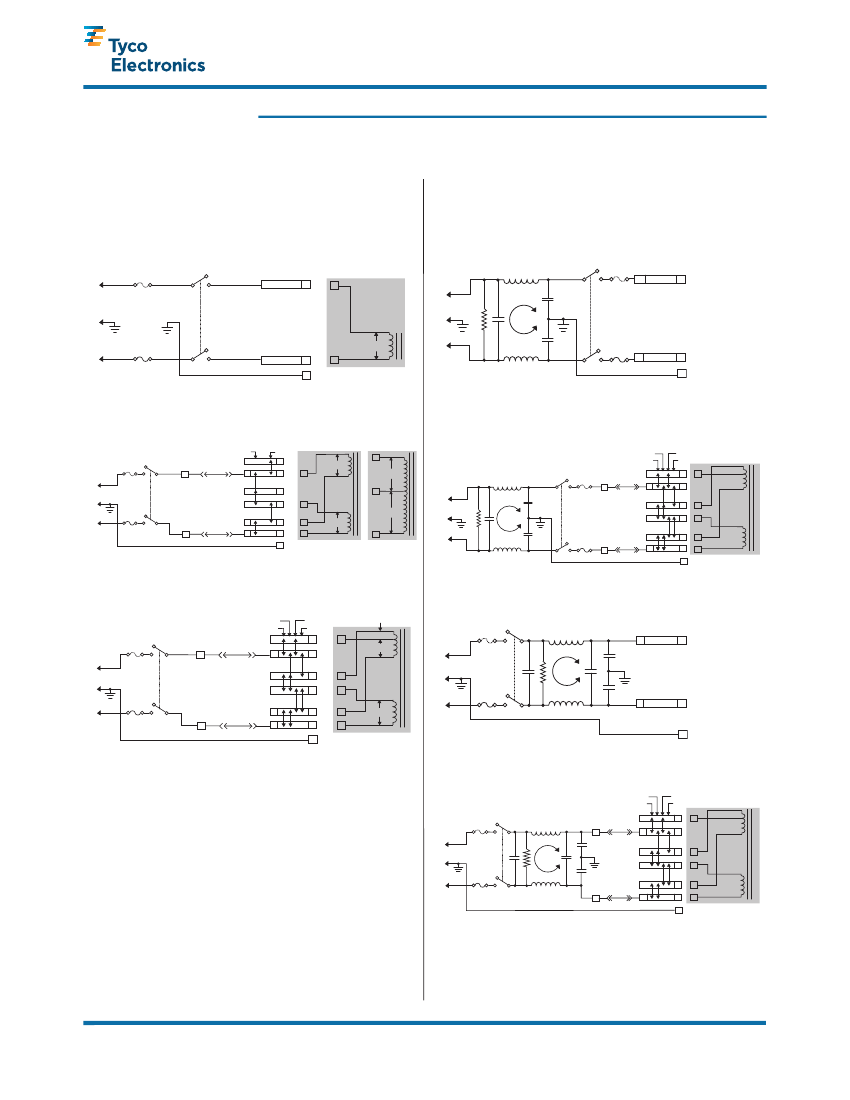

Electrical Schematics
Non-Filtered Models
VM1
Neutral
Note 2
Note 3
Filtered Models
FM1 & HM1
Power On/Off
Note 2
K
K
Power On/Off
Note 3
Neutral
H
Note 1
B
120V
L
L
Phase
J
F
G
Hot
G
Customer
Transformer Primaries
VM2
Power On/Off
Note 3
Neutral
K
120V
240V
A
H
B
C
D
E
D
B
C
A
FM4 & HM4
120V
120V
120V
100V
230V
240V
A
A
20V
100V
C
D
E
F
120V
Note 2
Note 1
Neutral
Power On/Off
Note 2
Note 1
Note 3
K
H
B
C
Note 4
120V
E
F
120V
F
D
E
Hot
L
J
F
G
Note 1
Customer
Note 4
Transformer Primaries
Phase
L
J
F
G
Note 4
Customer
Transformer Primaries
VM4
Power On/Off
Note 3
Neutral
K
XM1 & ZM1
120V
100V
230V
240V
A
H
B
C
D
E
C
D
A
Power On/Off
20V
100V
Neutral
Note 1
Note 2
H
B
Note 2
Note 1
J
E
F
F
120V
Phase
Hot
L
J
F
G
Note 1
Customer
Transformer Primaries
G
XM4 & ZM4
Note 1:
Note 2:
Note 3:
Note 4:
Jumper required if no input filter is used
Provision for dual Metric style fusing
On/off switch present only in “S” suffix models
When using a center-tapped transformer, the C-F winding should be the
low voltage (high current) winding and must be capable of handling the full
primary current in the 120V position
120V
100V
230V
240V
A
A
20V
100V
C
D
E
F
120V
Power On/Off
Note 2
Neutral
Note 1
Note 4
K
H
B
C
D
E
Phase
L
J
F
G
Note 4
Customer
Transformer Primaries
Note 1:
Note 2:
Note 3:
Note 4:
Provision for dual Metric style fusing
On/off switch present only in “S” suffix models
Line to ground capacitor not present on HM models
Models HM4, FM4, XM4 and ZM4 have added terminals K and L.
External switch or jumper must be placed from K to H and L to J
186
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
For email, phone or live chat, please go to
tycoelectronics.com/help
corcom.com
Corcom Product Guide
Catalog: 1654001
Issue Date: 08.2010
Slim Power Entry Module Family with Multiple Options
(continued)
M Series

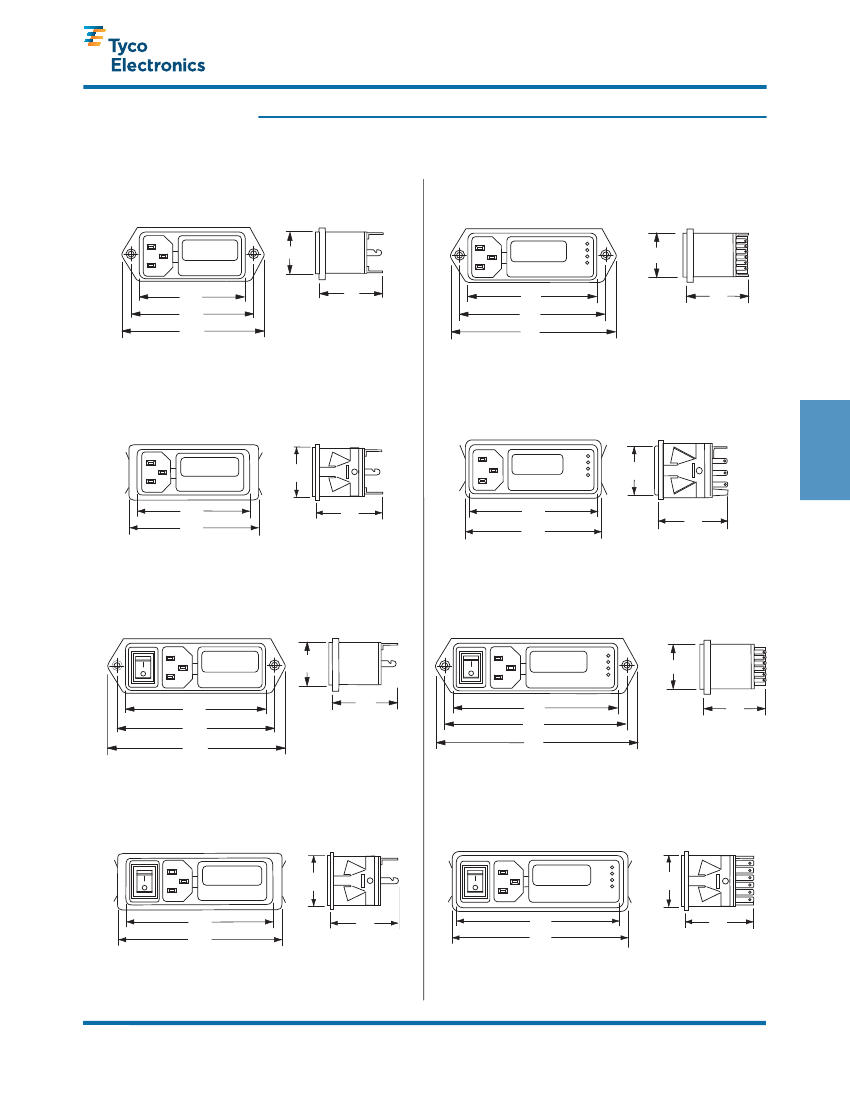

Case Styles - Non-filtered Models
6VM1
USE ONLY WITH
250V FUSES
DISCONNECT POWER
BEFORE REPLACING FUSES
6VM2 & 6VM4
USE ONLY WITH
250V FUSES
DISCONNECT POWER
BEFORE REPLACING FUSES
C
100V
120V
230V
240V
C
D
B
A
Typical Dimensions:
Line Inlet (1):
Backplate Terminals:
Mounting holes (2):
E
D
B
A
Typical Dimensions:
Line Inlet (1):
Backplate Terminals:
Mounting holes (2):
E
IEC 60320-1 C14
.110 [2.79]
.155 [3.94] Dia. with .279 [7.08] Dia. x 82º
countersink for #6 flathead screw
IEC 60320-1 C14
.110 [2.79]
.155 [3.94] Dia. with .279 [7.08] Dia. x 82º
countersink for #6 flathead screw
6VM1C
USE ONLY WITH
250V FUSES
DISCONNECT POWER
BEFORE REPLACING FUSES
6VM4C
C
USE ONLY WITH
250V FUSES
DISCONNECT POWER
BEFORE REPLACING FUSES
100V
120V
230V
240V
C
3
Power Inlet Filters & Power Entry Modules
E
D
A
Typical Dimensions:
Line Inlet (1):
Backplate Terminals:
E
D
A
IEC 60320-1 C14
.110 [2.79]
Typical Dimensions:
Line Inlet (1):
Backplate Terminals:
IEC 60320-1 C14
.110 [2.79]
6VM1S
USE ONLY WITH
250V FUSES
DISCONNECT POWER
BEFORE REPLACING FUSES
6VM2S & 6VM4S
C
USE ONLY WITH
250V FUSES
DISCONNECT POWER
BEFORE REPLACING FUSES
100V
120V
230V
240V
C
D
B
A
Typical Dimensions:
Line Inlet (1):
Backplate Terminals:
Mounting holes (2):
E
D
B
A
E
IEC 60320-1 C14
.110 [2.79]
.155 [3.94] Dia. with .279 [7.08] Dia. x 82º
countersink for #6 flathead screw
Typical Dimensions:
Line Inlet (1):
Backplate Terminals:
Mounting holes (2):
IEC 60320-1 C14
.110 [2.79]
.155 [3.94] Dia. with .279 [7.08] Dia. x 82º
countersink for #6 flathead screw
6VM1SC
USE ONLY WITH
250V FUSES
DISCONNECT POWER
BEFORE REPLACING FUSES
6VM4SC
C
USE ONLY WITH
250V FUSES
DISCONNECT POWER
BEFORE REPLACING FUSES
100V
120V
230V
240V
C
D
A
Typical Dimensions:
Line Inlet (1):
Backplate Terminals:
E
B
A
Typical Dimensions:
Line Inlet (1):
Backplate Terminals:
E
IEC 60320-1 C14
.110 [2.79]
IEC 60320-1 C14
.110 [2.79]
187
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
For email, phone or live chat, please go to
tycoelectronics.com/help
corcom.com
京公网安备 11010802033920号
EEWORLD
