Part Number

Search

9641147249

Description
D Subminiature Connector, 9 Contact(s), Female, Solder Terminal
CategoryThe connector    The connector
File Size70KB,2 Pages
ManufacturerHARTING
Download Datasheet Parametric View All

9641147249 Overview

D Subminiature Connector, 9 Contact(s), Female, Solder Terminal

9641147249 Parametric

Parameter NameAttribute value
MakerHARTING
Reach Compliance Codeunknow
ECCN codeEAR99
Connector typeD SUBMINIATURE CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
DIN complianceNO
empty shellNO
Filter functionYES
IEC complianceNO
insulator materialGLASS FILLED PCT
MIL complianceNO
Manufacturer's serial number9641147249
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation typeBOARD AND PANEL
OptionsGENERAL PURPOSE
Shell materialSTEEL
Housing size1/E
Termination typeSOLDER
Total number of contacts9
UL Flammability Code94V-0
Base Number Matches1

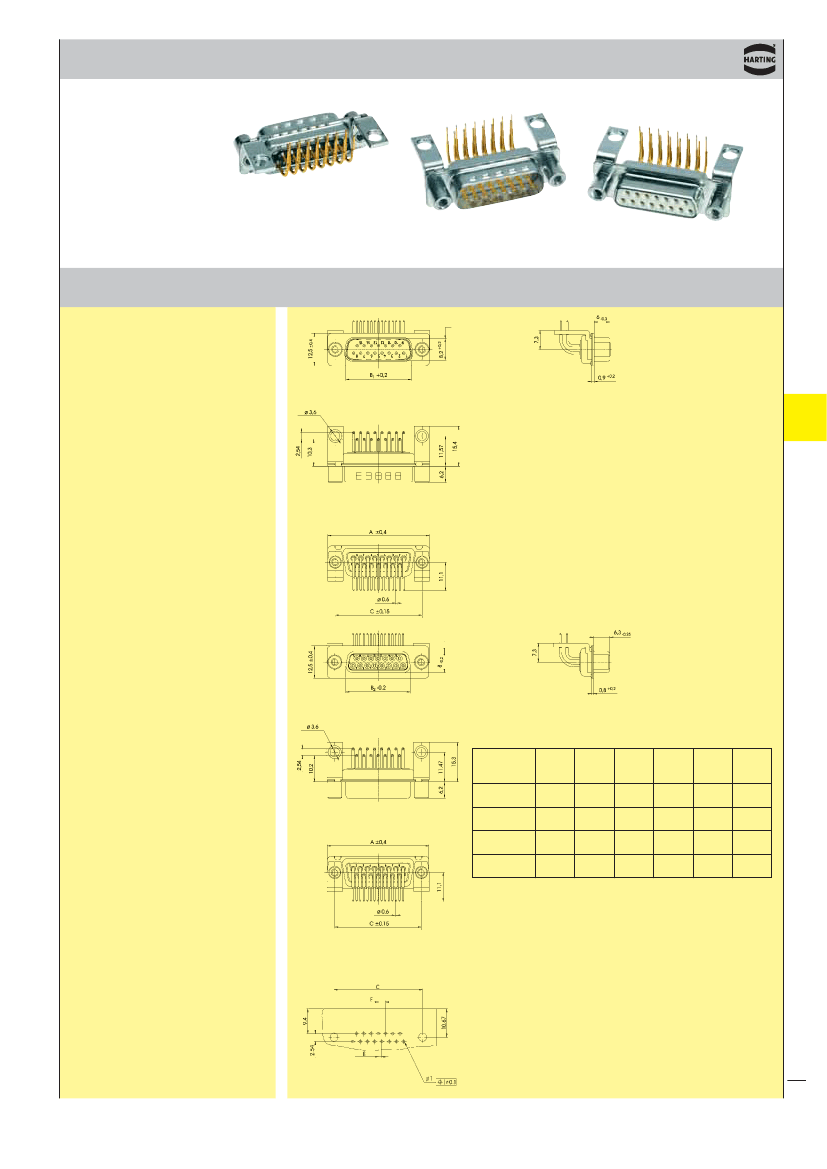

D-Sub
Number of contacts
9--37
Turned solder pins, right angled, bracket and female screw
Identification
No. of
contacts
Part No.
male connectors
female connectors
Connectors with
47 pF
C filter
9
15
25
37
09 64 124 721
09 64 224 721
09 64 324 721
09 64 424 721
.
.
.
.
09 64 114 721
09 64 214 721
09 64 314 721
09 64 414 721
.
.
.
.
D-Sub
Connectors with
470 pF
C filter
9
15
25
37
09 64 124 722
09 64 224 722
09 64 324 722
09 64 424 722
.
.
.
.
09 64 114 722
09 64 214 722
09 64 314 722
09 64 414 722
.
.
.
.
Connectors with
1000 pF
C filter
9
15
25
37
09 64 124 723
09 64 224 723
09 64 324 723
09 64 424 723
.
.
.
.
09 64 114 723
09 64 214 723
09 64 314 723
09 64 414 723
.
.
.
.
Connectors with
3900 pF
C filter
9
15
25
37
09 64 124 724
09 64 224 724
09 64 324 724
09 64 424 724
.
.
.
.
09 64 114 724
09 64 214 724
09 64 314 724
09 64 414 724
.
.
.
.
Please insert digit
for flange thread
05
110
4-40 UNC
M3
þ
þ
8
9
