TN5325N3-P013 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Discrete semiconductor> TN5325N3-P013

TN5325N3-P013: Descriptionmosfet small signal 250v 7ohm; Categorysemiconductor Discrete semiconductor; File Size517KB，6 Pages; ManufacturerSupertex

Download Datasheet Parametric Compare View All

TN5325N3-P013 Overview

mosfet small signal 250v 7ohm

TN5325N3-P013 Parametric

Parameter Name	Attribute value
Maker	Supertex
Product Category	MOSFET small signal
RoHS	no
Configuration	Single
Transistor polarity	N-Channel
Resistor drain/source RDS (on)	7 Ohms
Drain/source breakdown voltage	250 V
Gate/source breakdown voltage	+/- 20 V
Drain continuous current	215 mA
Power dissipation	0.74 W
Maximum operating temperature	+ 150 C
Installation style	Through Hole
Package/box	TO-92
Minimum operating temperature	- 55 C

Preview

Download Datasheet

View All

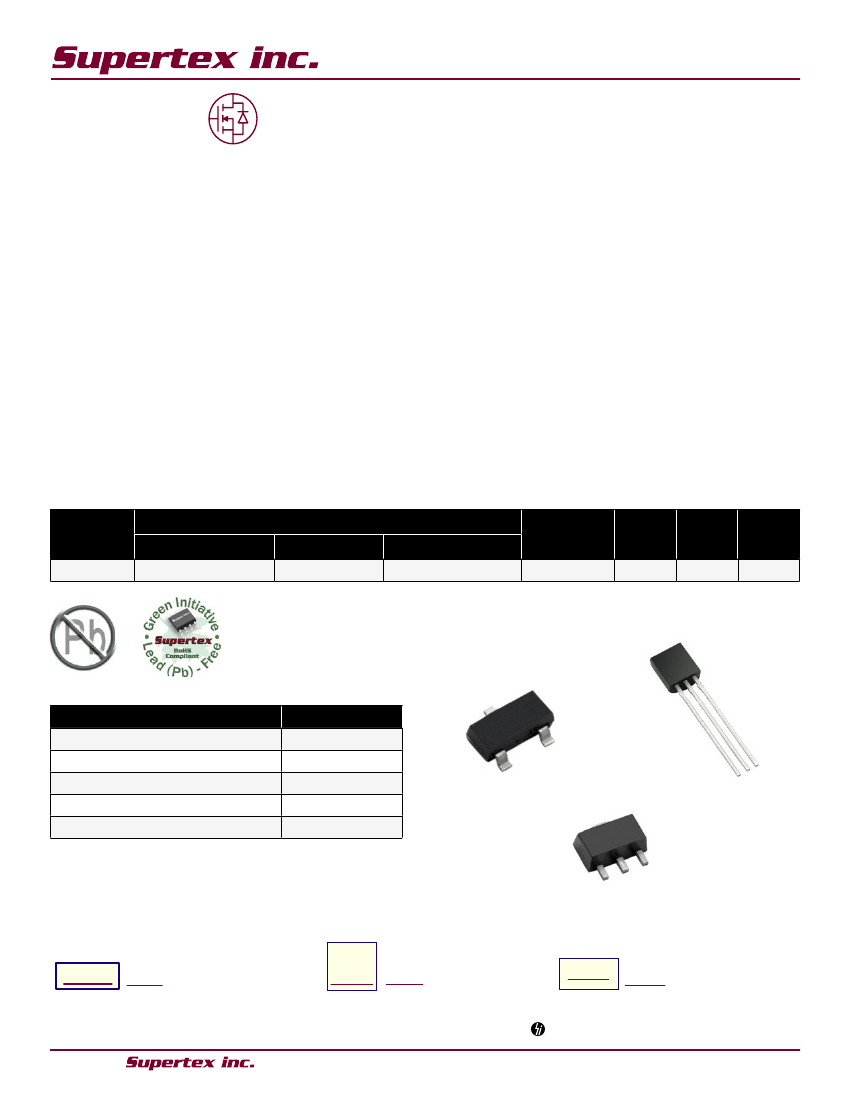

TN5325

N-Channel Enhancement-Mode

Vertical DMOS FET

Features

►

Low threshold (2.0V max.)

►

High input impedance and high gain

►

Free from secondary breakdown

►

Low C

ISS

and fast switching speeds

General Description

This low threshold, enhancement-mode (normally-off)

transistor utilizes a vertical DMOS structure and Supertex’s

well-proven, silicon-gate manufacturing process. This

combination produces a device with the power handling

capabilities of bipolar transistors and the high input impedance

and positive temperature coefﬁcient inherent in MOS devices.

Characteristic of all MOS structures, this device is free

from thermal runaway and thermally-induced secondary

breakdown.

Supertex’s vertical DMOS FETs are ideally suited to a wide

range of switching and amplifying applications where very

low threshold voltage, high breakdown voltage, high input

impedance, low input capacitance, and fast switching speeds

are desired.

Applications

►

Logic level interfaces - ideal for TTL and CMOS

►

Solid state relays

►

Battery operated systems

Photo voltaic drives

Analog switches

General purpose line drivers

►

Telecom switches

Ordering Information

Device

TN5325

Package Options

TO-236AB (SOT-23)

TN5325K1-G

TO-92

TN5325N3-G

TO-243AA (SOT-89)

TN5325N8-G

DSS

/BV

DGS

(V)

DS(ON)

(max)

(Ω)

D(ON)

(min)

(A)

GS(th)

(max)

(V)

250

7.0

1.2

2.0

-G indicates package is RoHS compliant (‘Green’)

Pin Conﬁgurations

Absolute Maximum Ratings

Parameter

Drain-to-source voltage

Drain-to-gate voltage

Gate-to-source voltage

Operating and storage temperature

Soldering temperature*

DRAIN

Value

DSS

DGS

±20V

-55 C to +150 C

GATE

DRAIN

SOURCE

TO-236AB (SOT-23) (K1)

DRAIN

TO-92 (N3)

GATE

300

Absolute Maximum Ratings are those values beyond which damage to the device

may occur. Functional operation under these conditions is not implied. Continuous

operation of the device at the absolute rating level may affect device reliability. All

voltages are referenced to device ground.

Distance of 1.6mm from case for 10 seconds.

GATE

SOURCE

DRAIN

TO-243AA (SOT-89) (N8)

SiTN

5325

YYWW

YY = Year Sealed

WW = Week Sealed

= “Green” Packaging

Product Marking

N3CW

W = Code for week sealed

= “Green” Packaging

TN3CW

W = Code for week sealed

= “Green” Packaging

TO-236AB (SOT-23) (K1)

TO-92 (N3)

TO-243AA (SOT-89) (N8)

Packages may or may not include the following marks: Si or

●

1235 Bordeaux Drive, Sunnyvale, CA 94089

●

Tel: 408-222-8888

●

www.supertex.com

TN5325N3-P013 Related Products

	TN5325N3-P013	TN5325N3-P002-G	TN5325N3-P013-G	TN5325N3-P003-G	TN5325N3-P003	TN5325N3-P002	TN5325N3-P014-G	TN5325N3-P014
Description	mosfet small signal 250v 7ohm	mosfet small signal 250v 7ohm	mosfet small signal 250v 7ohm	mosfet small signal 250v 7ohm	mosfet small signal 250v 7ohm	mosfet small signal 250v 7ohm	mosfet small signal 250v 7ohm	mosfet small signal 250v 7ohm
Maker	Supertex	Supertex	Supertex	Supertex	Supertex	Supertex	Supertex	Supertex
Product Category	MOSFET small signal	MOSFET small signal	MOSFET small signal	MOSFET small signal	MOSFET small signal	MOSFET small signal	MOSFET small signal	MOSFET small signal
RoHS	no	yes	yes	yes	no	no	yes	no
Configuration	Single	Single	Single	Single	Single	Single	Single	Single
Transistor polarity	N-Channel	N-Channel	N-Channel	N-Channel	N-Channel	N-Channel	N-Channel	N-Channel
Resistor drain/source RDS (on)	7 Ohms	7 Ohms	7 Ohms	7 Ohms	7 Ohms	7 Ohms	7 Ohms	7 Ohms
Drain/source breakdown voltage	250 V	250 V	250 V	250 V	250 V	250 V	250 V	250 V
Gate/source breakdown voltage	+/- 20 V	+/- 20 V	+/- 20 V	+/- 20 V	+/- 20 V	+/- 20 V	+/- 20 V	+/- 20 V
Drain continuous current	215 mA	215 mA	215 mA	215 mA	215 mA	215 mA	215 mA	215 mA
Power dissipation	0.74 W	0.74 W	0.74 W	0.74 W	0.74 W	0.74 W	0.74 W	0.74 W
Maximum operating temperature	+ 150 C	+ 150 C	+ 150 C	+ 150 C	+ 150 C	+ 150 C	+ 150 C	+ 150 C
Installation style	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Package/box	TO-92	TO-92	TO-92	TO-92	TO-92	TO-92	TO-92	TO-92
Minimum operating temperature	- 55 C	- 55 C	- 55 C	- 55 C	- 55 C	- 55 C	- 55 C	- 55 C
