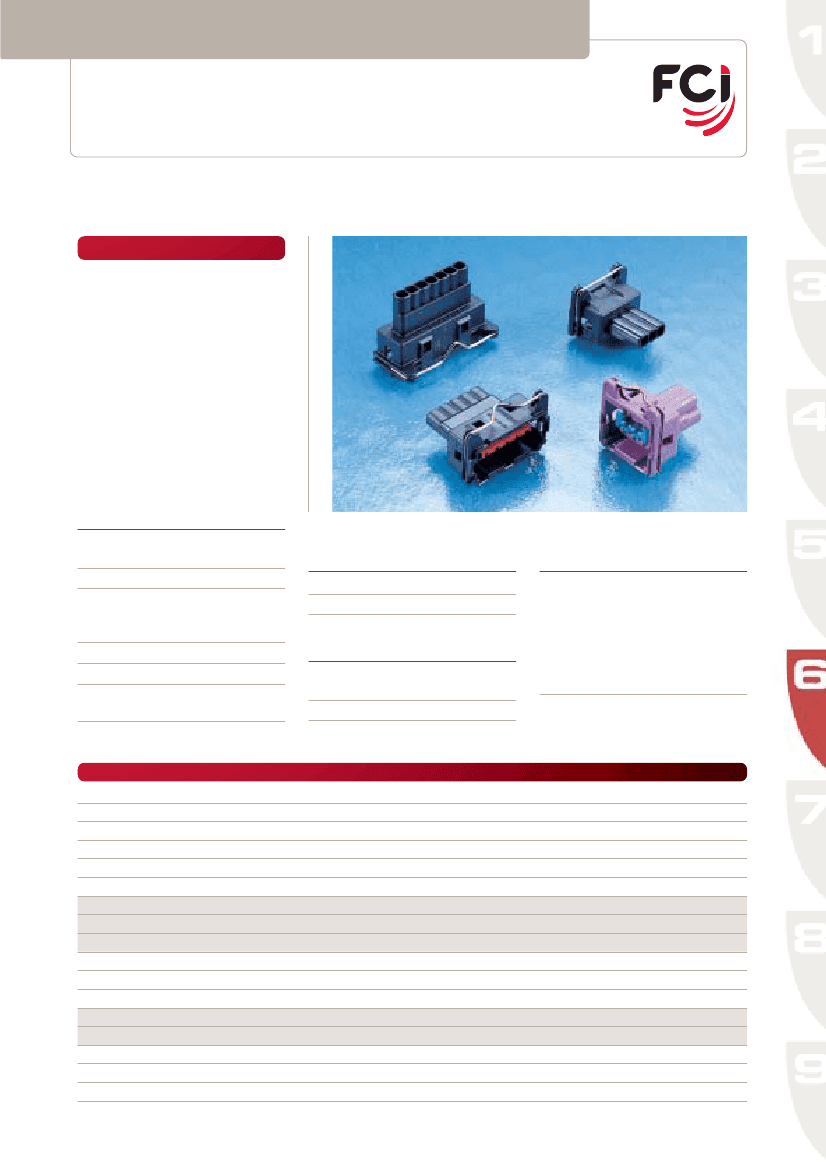

Engine Compartment Connectors
Component-to-wire connectors
DCS-1
3/5/7 way sealed female housings for 2.8 mm terminals
Features
•
3-5-7 position housings available
•
5 mm pitch
•
Waterproof application with single
•
•
wire seal
Flat interface seal
Additional terminal locking device
pre-assembled on front part of the
housing
Metal locking feature
Mechanical polarization
Several key codes available
Several colours available
•
•
•
•
Performance characteristics
•
Temperature range:
from -40°C to +120°C
Construction
> 80 N
Connector compatibility
PBT
Silicone
•
Contact retention force:
•
Contact insertion force:
•
Housing material:
•
Flat interface seal:
•
Usable terminals:
- DCS-1 2.8 mm female terminals
(standard version)
- DCS-1 2.8 mm female terminals
(power version)
- DCS-1 2.8 mm female terminals
(box version)
< 20 N for DCS-1 standard version
< 15 N for DCS-1 box version
•
Connector mating force:
•
Sealing protection:
•
Acceptable wire range:
from 0.35 to 1.5 mm
2
< 90 N
IP 67
Consult us
Tooling
•
Front device removal tool:
•
Terminal removal tool:
Consult us
Part Numbers
6 020 05 01
6 040 03 01
6 040 03 11
6 040 03 06
6 040 03 09
6 040 23 01
6 020 27 01
6 040 38 01
6 040 38 11
6 020 06 01
6 020 06 07
6 040 04 01
6 020 31 01
6 040 50 01
6 020 03 01
6 040 05 01
6 040 05 11
No. of Position
3
3
3
3
3
3
3
3
3
5
5
5
5
5
7
7
7
Terminal size & type
2.8 mm DCS-1 Standard/Power
2.8 mm DCS-1 Standard/Power
2.8 mm DCS-1 Standard/Power
2.8 mm DCS-1 Standard/Power
2.8 mm DCS-1 Standard/Power
2.8 mm DCS-1 Standard/Power
2.8 mm DCS-1 Box
2.8 mm DCS-1 Box
2.8 mm DCS-1 Box
2.8 mm DCS-1 Standard/Power
2.8 mm DCS-1 Standard/Power
2.8 mm DCS-1 Standard/Power
2.8 mm DCS-1 Box
2.8 mm DCS-1 Box
2.8 mm DCS-1 Standard/Power
2.8 mm DCS-1 Standard/Power
2.8 mm DCS-1 Standard/Power
Waterproof
No
Yes
Yes
Yes
Yes
Yes
No
Yes
Yes
No
No
Yes
No
Yes
No
Yes
Yes
Code
1
1
2
1
1
None
1
1
3
None
None
None
None
None
None
1
2
Colour
Black
Black
Black
White
Violet
Black
Black
Black
Black
Black
Green
Black
Black
Black
Black
Black
Black
6.48
Engine Compartment Connectors
Component-to-wire connectors
DCS-1
3/5/7 way sealed female housings for 2.8 mm terminals

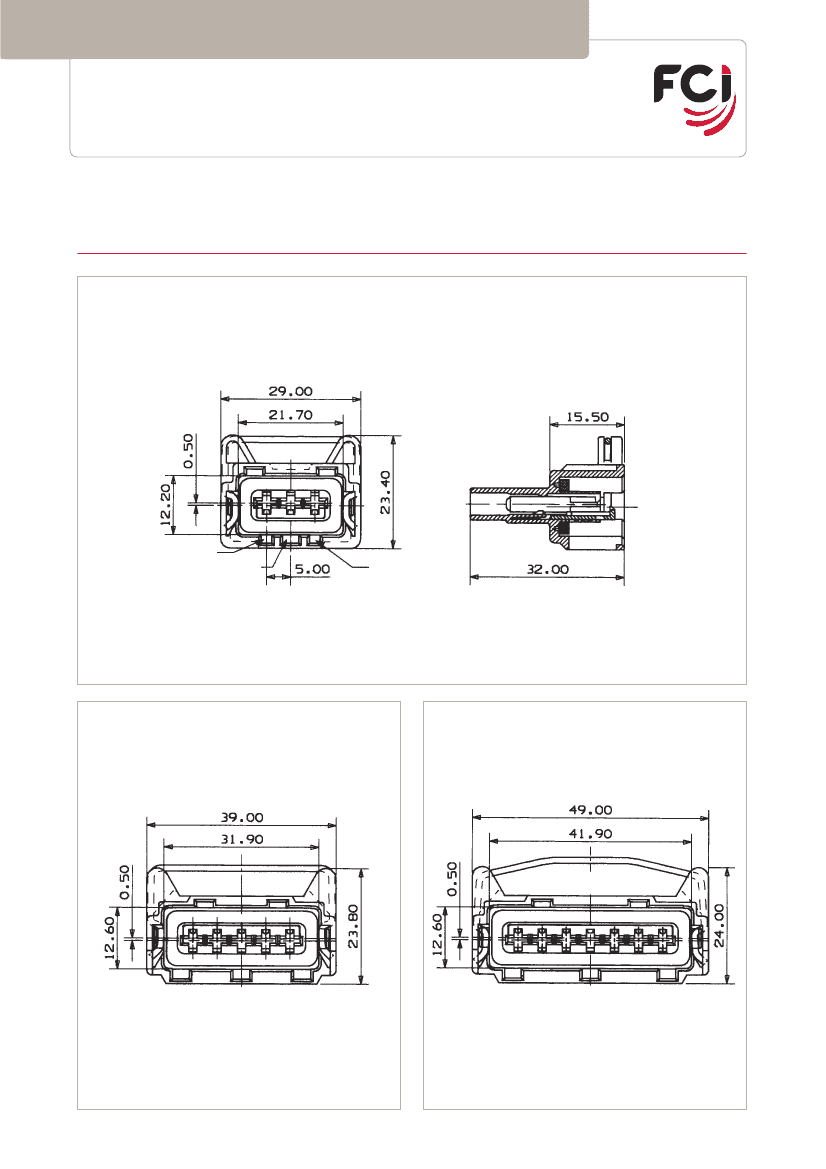

Dimensional characteristics
3 way housing
Code III
Code I
Code II
5 way housing
7 way housing
Code III
Code I
Code II
Code III
Code I
Code II
6.49
