15TT100
Vishay High Power Products
High Performance
Schottky Generation 5.0, 15 A
FEATURES
Base
cathode
2
•
•
•
•
•
•
•
•
•
•
175 °C high performance Schottky diode
Very low forward voltage drop
Extremely low reverse leakage
Optimized V
F
vs. I
R
trade off for high efficiency
RoHS
COMPLIANT
TO-220AC
1
Cathode
3
Anode
Increased ruggedness for reverse avalanche capability
RBSOA available
Negligible switching losses
Submicron trench technology
Full lead (Pb)-free and RoHS compliant devices
Designed and qualified for industrial level
APPLICATIONS
PRODUCT SUMMARY
I
F(AV)
V
R
V
F
at 15 A at 125 °C
15 A
100 V
0.67 V
•
•
•
•
•
•
•
•
High efficiency SMPS
Automotive
High frequency switching
Output rectification
Reverse battery protection
Freewheeling
Dc-to-dc systems
Increased power density systems
MAJOR RATINGS AND CHARACTERISTICS
SYMBOL
V
RRM
V
F
T
J
15 Apk, T
J
= 125 °C
Range
CHARACTERISTICS
VALUES
100
0.67
- 55 to 175
UNITS
V
°C
VOLTAGE RATINGS
PARAMETER
Maximum DC reverse voltage
SYMBOL
V
R
TEST CONDITIONS
T
J
= 25 °C
15TT100
100
UNITS
V
ABSOLUTE MAXIMUM RATINGS
PARAMETER
Maximum average forward current
Maximum peak one cycle
non-repetitive surge current
Non-repetitive avalanche energy
Repetitive avalanche current
SYMBOL
I
F(AV)
I
FSM
10 ms sine or 6 ms rect. pulse
E
AS
I
AR
T
J
= 25 °C, I
AS
= 1.1 A, L = 60 mH
Limited by frequency of operation and time pulse duration so
that T
J
< T
J
max. I
AS
at T
J
max. as a function of time pulse
See fig. 8
TEST CONDITIONS
50 % duty cycle at T
C
= 144 °C, rectangular waveform
5 µs sine or 3 µs rect. pulse
Following any rated load
condition and with rated
V
RRM
applied
VALUES
15
920
240
36
I
AS
at
T
J
max.
mJ
A
A
UNITS
Document Number: 94560
Revision: 24-Jul-08
For technical questions, contact: diodes-tech@vishay.com
www.vishay.com
1
15TT100
Vishay High Power Products
ELECTRICAL SPECIFICATIONS
PARAMETER
SYMBOL
15 A
Forward voltage drop
V
FM (1)
30 A
15 A
30 A
Reverse leakage current
Junction capacitance
Series inductance
Maximum voltage rate of change
Note
(1)
Pulse width < 300 µs, duty cycle < 2 %
I
RM (1)
C
T
L
S
dV/dt
T
J
= 25 °C
T
J
= 125 °C
TEST CONDITIONS
T
J
= 25 °C
T
J
= 125 °C
TYP.
-
-
-
-
-
-
550
8.0
-
MAX.
0.81
0.92
0.67
0.79
120
5
-
-
10 000
µA
mA
pF
nH
V/µs
V
UNITS
High Performance
Schottky Generation 5.0, 15 A
V
R
= Rated V
R
V
R
= 5 V
DC
(test signal range 100 kHz to 1 MHz) 25 °C
Measured lead to lead 5 mm from package body
Rated V
R
THERMAL - MECHANICAL SPECIFICATIONS
PARAMETER
Maximum junction and
storage temperature range
Maximum thermal resistance,
junction to case
Typical thermal resistance,
case to heatsink
Approximate weight
minimum
maximum
Case style TO-220AC
SYMBOL
T
J
, T
Stg
R
thJC
R
thCS
DC operation
Mounting surface, smooth and greased
TEST CONDITIONS
VALUES
- 55 to 175
2.5
°C/W
0.5
2
0.07
6 (5)
12 (10)
15TT100
g
oz.
kgf · cm
(lbf · in)
UNITS
°C
Mounting torque
Marking device
www.vishay.com
2
For technical questions, contact: diodes-tech@vishay.com
Document Number: 94560
Revision: 24-Jul-08
15TT100
High Performance
Vishay High Power Products
Schottky Generation 5.0, 15 A
100
Reverse Current - I
R
(mA)
100
175°C
10
1
0.1
0.01
0.001
0.0001
0
20
40
60
80
100
120
150°C
125°C
100°C
75°C
50°C
25°C
Tj = 175°C
Instantaneous Forward Current - I
F
(A)
Reverse Voltage - V
R
(V)
10

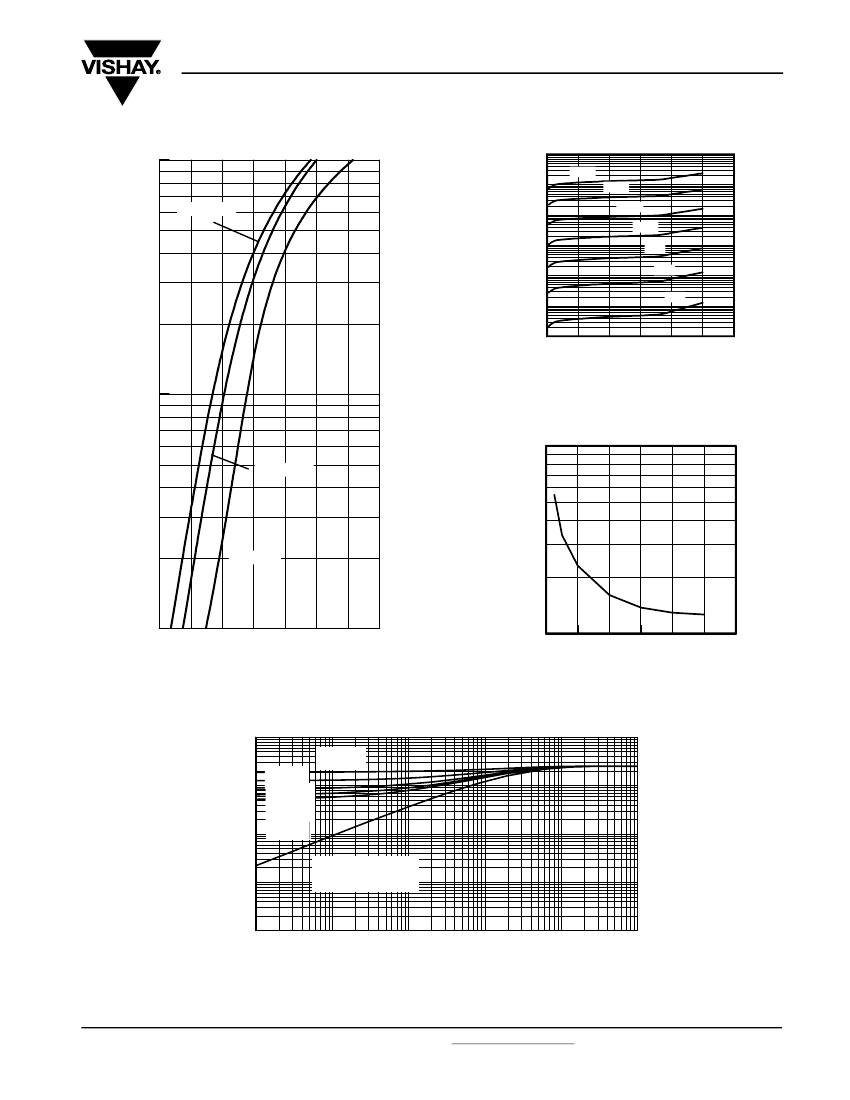

Fig. 2 - Typical Values of Reverse Current vs.
Reverse Voltage
1000
Tj = 25°C
1
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
Forward Voltage Drop - V
FM
(V)
Fig. 1 - Maximum Forward Voltage Drop Characteristics
Junction Capacitance - C
T
(pF)
100
0
20
40
60
80
100
120
Tj = 125°C
Reverse Voltage - V
R
(V)
Fig. 3 - Typical Junction Capacitance vs. Reverse Voltage
10
Thermal Impedance Z
thJC
(°C/W)
D = 0.75
1
D = 0.5
D = 0.33
D = 0.25
D = 0.2
0.1
0.01
Single Pulse
(Thermal Resistance)
0.001
1E-05
1E-04
1E-03
1E-02
1E-01
1E+00
t
1
, Rectangular Pulse Duration (Seconds)
Fig. 4 - Maximum Thermal Impedance Z
thJC
Characteristics
Document Number: 94560
Revision: 24-Jul-08
For technical questions, contact: diodes-tech@vishay.com
www.vishay.com
3
15TT100
Vishay High Power Products
High Performance
Schottky Generation 5.0, 15 A
15
180
Allowable Case Temperature (°C)
Average Power Loss - (Watts)
160
12
DC
180°
120°
90°
60°
30°
9
RMS Limit
DC
6
140
120
Square wave (D=0.50)
80% rated Vr applied
see note (1)
3
100
0
5
10
15
20
25
Average Forward Current - I
F
(AV)
(A)
Fig. 5 - Maximum Allowable Case Temperature vs.
Average Forward Current
0
0
5
10
15
20
25
Average Forward Current - I
F
(AV)
(A)
Fig. 6 - Forward Power Loss Characteristics
Non-Repetitive Surge Current - I
FSM
(A)
1000
100
10
100
1000
10000
Square Wave Pulse Duration - t
p
(microsec)
Fig. 7 - Maximum Non-Repetitive Surge Current
Note
Formula used: T
C
= T
J
- (Pd + Pd
REV
) x R
thJC
;
Pd = Forward power loss = I
F(AV)
x V
FM
at (I
F(AV)
/D) (see fig. 6);
Pd
REV
= Inverse power loss = V
R1
x I
R
(1 - D); I
R
at V
R1
= 80 % rated V
R
(1)
www.vishay.com
4
For technical questions, contact: diodes-tech@vishay.com
Document Number: 94560
Revision: 24-Jul-08
15TT100
High Performance
Vishay High Power Products
Schottky Generation 5.0, 15 A
100
Avalanche Current (A)
Tj = 25°C
10
Tj = 125°C
1
Tj = 175°C
0.1
1
10
100
Rectangular Pulse Duration ( μsec)
Fig. 8 - Reverse Bias Safe Operating Area (Avalanche Current vs. Rectangular Pulse Duration)
100
Avalanche Energy (mJ)
10
Tj = 25°C
Tj = 125°C
Tj = 175°C
1
1
10
100
Rectangular Pulse Duration ( μsec)
Fig. 9 - Reverse Bias Safe Operating Area (Avalanche Energy vs. Rectangular Pulse Duration)
Document Number: 94560
Revision: 24-Jul-08
For technical questions, contact: diodes-tech@vishay.com
www.vishay.com
5
