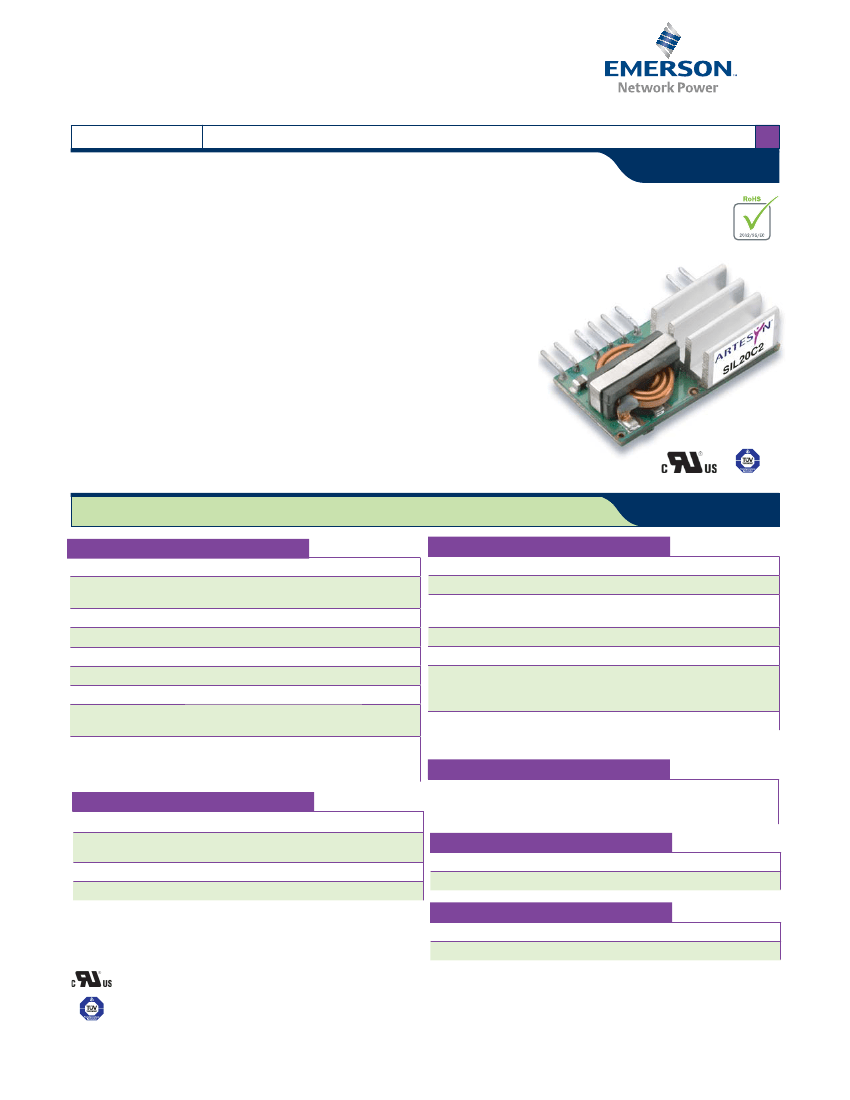

SIL/SMT20C2 Series
DC-DC CONVERTERS
•
•
•
•
•
•
•
C Class Non-isolated
20 A current rating
Input voltage range: 4.5-13.8 V
Output voltage: 0.59-5.1 V
Industry leading value
•
Cost optimized design
Excellent transient response
Output enable
Output voltage adjustability
•
Pathway for future upgrades
•
Supports silicon voltage migration
•
Resulting in reduced design-in and qual time
Current sink capability
RoHS compliant
4.5 Vin to 13.8 V Single Output
August 27, 2008
1
NEW Product
•
•
The SIL/SMT20C2 series is a new high density, open frame, non-isolated
converter for space sensitive applications. This model has a wide input range
(4.5-13.8 Vdc) and offers a wide 0.59-5.1 V output voltage range with 20 A
load capability. An external resistor adjusts the output voltage from its pre-set
value of 0.59 V to any value up to the 5 V maximum. Typical efficiencies for
the models are 93% for the 12 V input version. The series offers remote ON/
OFF and over-current protection as standard.
All specifications are typical at nominal input, full load at 25 °C, unless otherwise stated
OUTPUT SPECIFICATIONS
Output voltage
Output setpoint
accuracy
Line regulation
Load regulation
Min/max load
Overshoot
Undershoot
Ripple and noise
5 Hz to 20 MHz
Transient response
At turn-on
At turn-off
(See Note 1)
(See Notes 1, 2)
(See Note 5)
0.1% trim resistors
Low line to high line
Full load to min. load
0.59-5.1 V
±1.0%
±0.2%
±0.5%
0 A/20 A
0.5% max.
100 mV max.
30 mV
Vin = 5 V, Vout = 2.5 V
130 mV max. deviation
50
μs
recovery within
regulation band
Coplanarity
GENERAL SPECIFICATIONS
Efficiency
Switching frequency
Approvals and
standards (pending)
Material flammability
Weight
MTBF
12 V @ 40 °C
100% load
Bellcore 332
2 YEAR WARRANTY
SPECIFICATIONS
Vin=5 V, Vo=2.5 V, lo=20 A
Fixed
90%
750 kHz
EN60950
UL/cUL6950
UL94V-0
8.50 g/0.3 oz.
6,721,853 hours
150
μm
ENVIRONMENTAL SPECIFICATIONS
Thermal performance
(See Note 5)
Operating ambient,
temperature
Non-operating
0 °C to +70 °C
-40 °C to +125 °C
INPUT SPECIFICATIONS
Input voltage range
Input current
Input current (max.)
Start-up time
Minimum load
Remote OFF
(See Note 3)
Remote ON/OFF
4.5-13.8 Vdc
50 mA
5 mA
18 A @ Io max.
3 ms
PROTECTION
Short-circuit
Overvoltage protection
RECOMMENDED SYSTEM CAPACITANCE
Input capacitance
(See Note 6)
(See Note 7)
0
μF
0
μF
Output capacitance
Hiccup, non-latching
Hiccup, non-latching
International Safety Standard Approvals
UL/cUL CAN/CSA 22.2
TÜV Product Service (EN60950)
CB report and certificate to IEC60950
File Name: sil/smt20c2.pdf Rev: 27 Aug 2008
SIL/SMT20C2 Series
DC-DC CONVERTERS
C Class Non-isolated
OUTPUT
POWER
(MAX.)
100 W
100 W
100 W
INPUT
VOLTAGE
MOUNT
OUTPUT
VOLTAGE
OUTPUT
CURRENT
(MIN.)
0A
0A
0A
OUTPUT
CURRENT
(MAX.)
20 A
20 A
20 A
4.5 Vin to 13.8 V Single Output
August 27, 2008
2
NEW Product
For the most current data and application support visit www.powerconversion.com/products/
EFFICIENCY
(TYP.)
93%
93%
93%
REGULATION
LINE
±0.2%
±0.2%
±0.2%
LOAD
±0.5%
±0.5%
±0.5%
MODEL
NUMBER
(8, 9)
SIL20C2-00SADJ-HJ
SIL20C2-00SADJ-VJ
SMT20C2-00SADJJ
4.5-13.8 Vdc Horizontal 0.59-5.1 V
4.5-13.8 Vdc
Vertical
0.59-5.1 V
4.5-13.8 Vdc Horizontal 0.59-5.1 V
Surface
Part Number System with Options
SXX20C2-00SADJ-VJ
RoHS Compliance
(8)
J = Pb-free (RoHS 6/6 compliant)
Mounting Option
-V = Vertical
-H = Horizontal
Blank = Horizontal Surface
Output Voltage
Single Adjustable Output
Input Voltage
00 = 4.5-13.8 V
Product Family
SMT = Surface Mount
SIL = Single In Line
Rated Output Current
06 = 6 A
15 = 15 A
20 = 20 A
30 = 30 A
40 = 40 A
Performance
C = Cost Optimized
Generation
Blank = Standard Part
2 = Increased Current Density
Output Voltage Adjustment of the SIL/SMT20C2 Ser
ies
The ultra-wide output voltage trim range offers major advantages to users
who select the SIL/SMT20C2. It is no longer necessary to purchase a variety
of modules in order to cover different output voltages. The output voltage
can be trimmed in a range of 0.59-5.1 V. When the SIL/SMT20C2 converter
leaves the factory, the ouput has been adjusted to the default voltage of 0.59 V.
Notes
1
2
3
4
5
6
7
8
9
Measured as per recommended system capacitance.
di/dt = 10 A/μs, Vin = Nom, Tc = 25 °C, load change = 0.75 lo to
full lo and full lo to 0.75.
External input fusing is recommended.
Additional part numbers may be available with different output
voltages.
Airflow dependent, 100 LFM minimum required.
No capacitor needed for ripple current capability.
No capacitor needed for stability.
TSE RoHS 5/6 (non Pb-free) compliant versions may be available
on special request, please contact your local sales representative
for details.
NOTICE: Some models may not support all options. Please
contact your local Emerson Network Power representative or use
the on-line model number search tool at
http://www.powerconversion.com to find a suitable alternative.
Power Good
4
Enable
5
SIL20C2
V
in
1
7
V
out
+R
sense
6
C
in
C
out
3
2
8
R
L
O
A
D
R
trim
(for trim
down)
-R
sense
GND
Figure 1: Standard Application Drawing
File Name: sil/smt20c2.pdf Rev: 27 Aug 2008
SIL/SMT20C2 Series
DC-DC CONVERTERS
C Class Non-isolated
PIN CONNECTIONS
PIN NO.
1
2
3
4
5
6
7
8
FUNCTION
Vout
Trim
Ground
Power good
Enable
Vin
Remote Sense (+)
Remote Sense (-)
0.050 (1.27) REF
0.025 (0.64) ±.001
SQ PIN TYP
8 PLACES
0.150 (3.81) TYP
0.462 (11.73)
0.295 (7.49)
0.062 (1.57) PCB REF
0.105 (2.67)
4.5 Vin to 13.8 V Single Output
August 27, 2008
3
NEW Product
For the most current data and application support visit www.powerconversion.com/products/
1.200 (30.48)
0.610 (15.49)
PIN 8
0 (0)
0.100 (2.54)
0.200 (5.08)
0.600 (15.24)
0.700 (17.78)
0.800 (20.32)
0.900 (22.86)
1.050 (26.67)
1.150 (29.21)
PIN 1
Dimensions in Inches (mm)
Tolerances (unless otherwise specified)
2 Places ±0.030 (±0.76)
3 Places ±0.010 (±0.25)

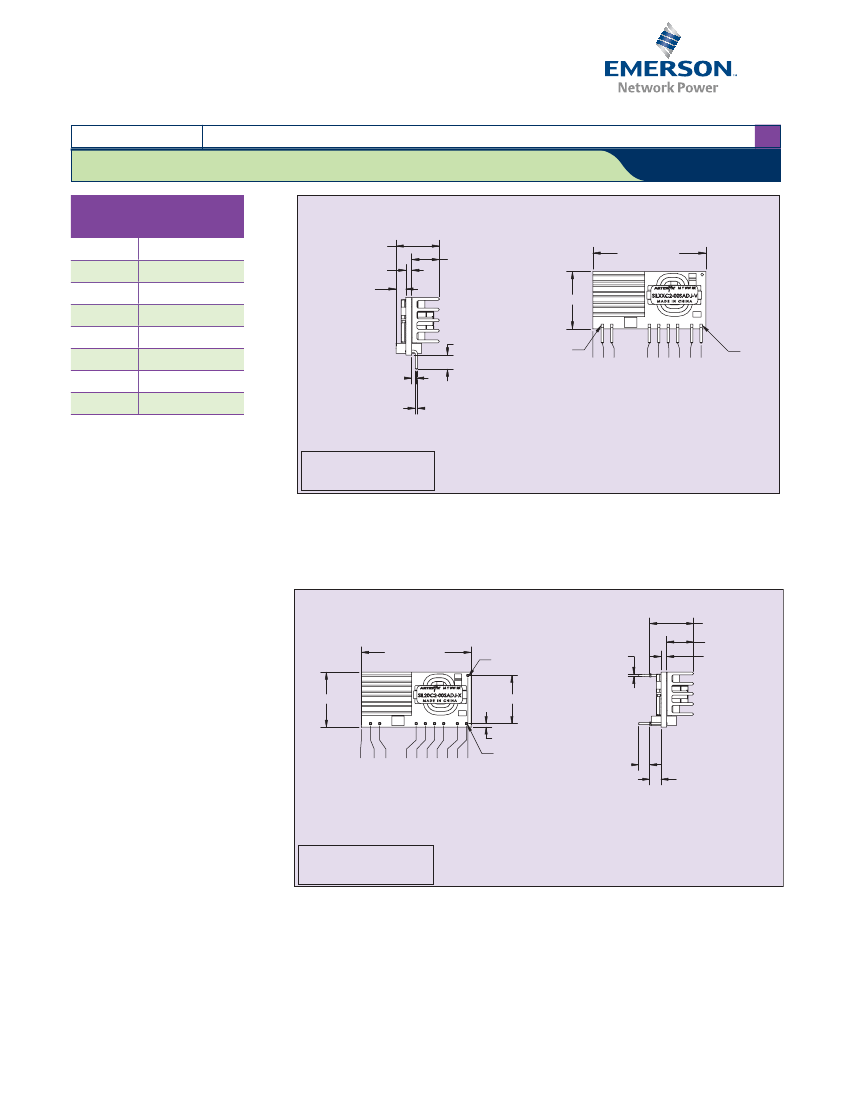

Figure 2: Vertical Mount Mechanical Drawing
0.482 (12.24)
1.200 (30.48)
0.025 (0.64) ±.001
SQ PINS TYP
9 PLACES
0.295 (7.49)
0.062 (1.57) REF
PIN 9
0.610 (15.49)
0.535 (13.59)
0.040 (1.02) REF
PIN 1
0.600 (15.24)
0.700 (17.78)
0.800 (20.32)
0.900 (22.86)
1.050 (26.67)
1.150 (29.21)
1.165 (29.59)
0.000 (0)
0.100 (2.54)
0.200 (5.08)
0.120 (3.05) TYP
0.125 (3.18) TYP
Dimensions in Inches (mm)
Tolerances (unless otherwise specified)
2 Places ±0.030 (±0.76)
3 Places ±0.010 (±0.25)
Figure 3: Horizontal Mount Mechanical Drawing
File Name: sil/smt20c2.pdf Rev: 27 Aug 2008
SIL/SMT20C2 Series
DC-DC CONVERTERS
C Class Non-isolated
PIN CONNECTIONS
PIN NO.
1
2
3
4
5
6
7
8
9
10
FUNCTION
Vout
Trim
Ground
0.065 (1.65)
PIN 8
PIN 1
0.535 (13.59)
0.015 (0.38)
4.5 Vin to 13.8 V Single Output
August 27, 2008
4
NEW Product
For the most current data and application support visit www.powerconversion.com/products/
1.200 (30.48)
0.610 (15.49)
0 (0)
0.100 (2.54)
0.200 (5.08)
Enable
Vin
Remote Sense (+)
Remote Sense (-)
*Mech Support
*Mech Support
Dimensions in Inches (mm)
Tolerances (unless otherwise specified)
2 Places ±0.030 (±0.76)
3 Places ±0.010 (±0.25)
0.025 (0.64) ±.002
PIN WIDTH TYP
0.482 (12.24)
0.295 (7.49)
0.062 (1.57) PCB REF
0.040 (1.02)
* Horizontal version only
0.125 (3.18) TYP
Figure 4: Surface Mount Mechanical Drawing
Datasheet © Emerson™ 2008
The information and specifications contained in this datasheet are believed to be correct at time of publication. However, Emerson Network Power accepts no responsibility for consequences arising from printing errors or inaccuracies.
Specifications are subject to change without notice. No rights under any patent accompany the sale of any such product(s) or information contained herein.
Please consult our website for the following items:
Application Note
Longform Datasheet
powerconversion.com
File Name: sil/smt20c2.pdf Rev: 27 Aug 2008
0.600 (15.24)
0.700 (17.48)
0.800 (20.32)
0.900 (22.86)
1.050 (26.67)
1.150 (29.21)
Power good
PIN 10
PIN 9
