The WM8593 is a high performance multi-channel audio
CODEC with flexible input/output selection and digital and
analogue volume control. Features include a 24-bit stereo
ADC with digital gain control, two 24-bit DACs with
independent volume control and clocking, and a range of
input/output channel selection options with analogue volume
control for flexible routing within current and future audio
systems.
The WM8593 has an eight stereo input selector which
accepts input levels up to 2Vrms. One stereo input can be
routed to the ADC. All inputs can be routed to an output
selector.
The WM8593 outputs three stereo audio channels at line
levels up to 2Vrms, which can be selected from any of the
analogue inputs and DAC outputs. Additionally, one stereo
output is available with a headphone driver. The DAC
channels include independent digital volume control, and all
three stereo output channels include analogue volume
control with soft ramp.
The WM8593 supports up to 2Vrms analogue inputs, 2Vrms
outputs, with sample rates from 32kHz to 192kHz on the
DACs, and 32kHz to 96kHz on the ADC.
The WM8593 is controlled via a serial interface with support
for 2-wire and 3-wire control with full readback. Control of
mute, powerdown and reset can also be achieved by pin
selection.
The WM8593 is ideal for audio applications requiring high
performance and flexible routing options, including flat panel
digital TV and DVD recorder.
The WM8593 is available in a 64-lead TQFP package.
WM8593
24-bit 192kHz 2Vrms Multi-Channel CODEC
FEATURES
•
•
•
•
•
•
Multi-channel CODEC with 8 stereo input selector and 3
stereo output selector
4-channel DAC, 2-channel ADC
8x2Vrms stereo input selector with 3x2 channel analogue
bypass to output selector
3x2Vrms stereo output selector
Stereo headphone driver
Audio performance
-
DAC: 100dB SNR typical (‘A’ weighted @ 48kHz)
-
DAC: -87dB THD typical
-
ADC: 96dB SNR typical (‘A’ weighted @ 48kHz)
-
ADC: -80dB THD typical
Independent sampling rate for ADC and DACs
Independent sampling rate for DAC1 and DAC2
DACs sampling frequency 32kHz – 192kHz
ADC sampling frequency 32kHz – 96kHz
DAC digital volume control +12dB to -100dB in 0.5dB
steps
ADC digital volume control from +30dB to -97dB in 0.5dB
steps
ADC input analogue boost control, selectable from 0dB,
+3dB, +6dB and +12dB
Output analogue volume control +6dB to -73.5dB in 0.5dB
steps with zero cross or soft ramp to prevent pops and
clicks
Headphone drive capability on one stereo output with jack
detect
Digital multiplexer to interface to multiple digital sources –
DSP, HDMI, memory card
2-wire and 3-wire serial control interface with readback and
hardware reset, mute and powerdown pins
Independent master or slave clocking modes
Programmable format audio data interface modes
-
I2S, LJ, RJ, DSP
3.3V / 9V analogue, 3.3V digital supply operation
64-lead TQFP package
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
APPLICATIONS
•
•
•
Digital Flat Panel TV
DVD-RW
Set Top Boxes
WOLFSON MICROELECTRONICS plc
To
receive regular email updates, sign up
at
http://www.wolfsonmicro.com/enews/
Production Data, April 2008, Rev 4.0
Copyright
©2008
Wolfson Microelectronics plc
WM8593

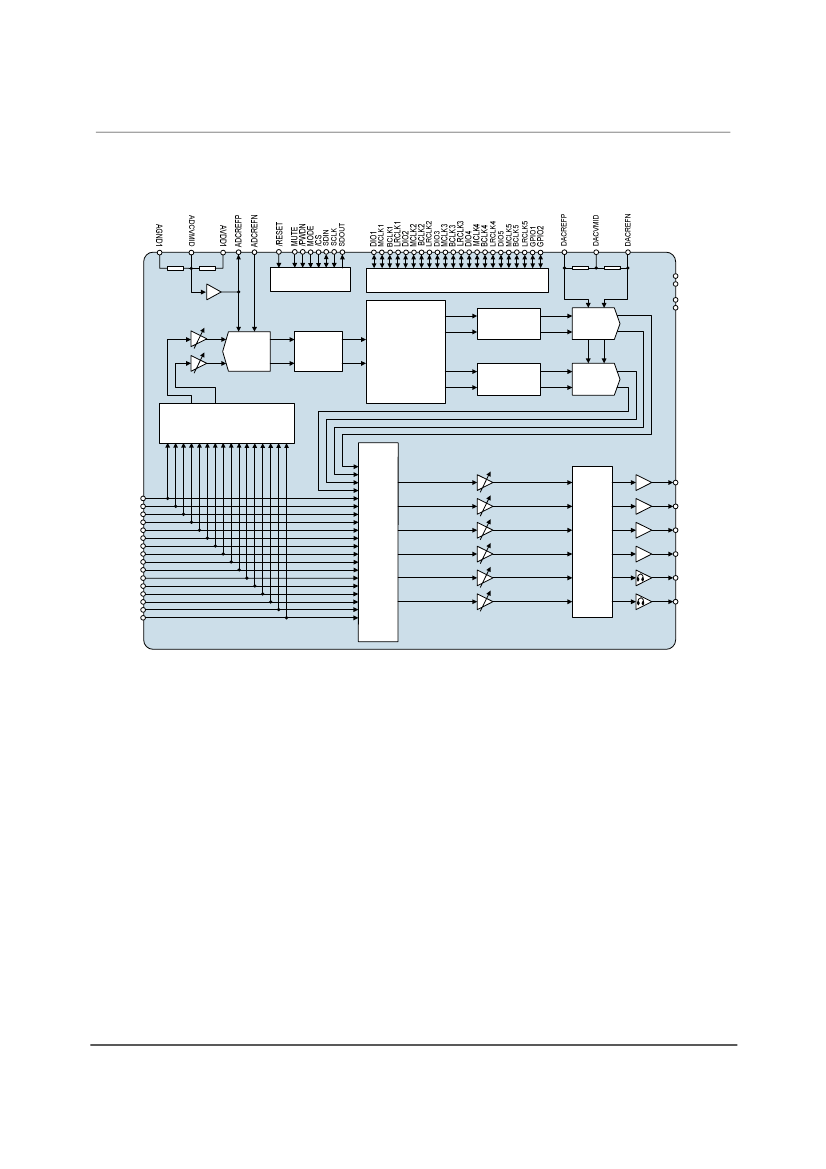

BLOCK DIAGRAM
Production Data
Control Interface
Audio Interface Mux
DVDD
DGND
AVDD2
AGND2
Volume Control
Matrix Channel
Selection
Stereo
DAC1
Stereo
ADC
Volume
Control
Digital
Filters
Volume Control
Matrix Channel
Selection
Stereo
DAC2
ADC Input Mux
VOUT1L
PGA1L
VIN1L
VIN1R
VIN2L
VIN2R
VIN3L
VIN3R
VIN4L
VIN4R
VIN5L
VIN5R
VIN6L
VIN6R
VIN7L
VIN7R
VIN8L
VIN8R
VOUT1R
PGA1R
PGA
Input
Mux
PGA2L
PGA2R
Output
Mux
VOUT2L
VOUT2R
VOUT3L
PGA3L
VOUT3R
PGA3R
W
WM8593
w
PD Rev 4.0 April 2008
2
Production Data
WM8593
TABLE OF CONTENTS
DESCRIPTION .......................................................................................................1
FEATURES.............................................................................................................1
APPLICATIONS .....................................................................................................1
BLOCK DIAGRAM .................................................................................................2
PIN CONFIGURATION...........................................................................................4
PIN DESCRIPTION ................................................................................................5
ABSOLUTE MAXIMUM RATINGS.........................................................................7
RECOMMENDED OPERATING CONDITIONS .....................................................8
SUPPLY CURRENT CONSUMPTION ...................................................................8
ELECTRICAL CHARACTERISTICS ......................................................................9
TERMINOLOGY .......................................................................................................... 11
MASTER CLOCK TIMING ........................................................................................... 12
/RESET TIMING .......................................................................................................... 12
DIGITAL AUDIO INTERFACE TIMING – SLAVE MODE............................................. 13
DIGITAL AUDIO INTERFACE TIMING – MASTER MODE.......................................... 14
CONTROL INTERFACE TIMING – 2-WIRE MODE .................................................... 15
CONTROL INTERFACE TIMING – 3-WIRE MODE .................................................... 16
POWER ON RESET (POR) ........................................................................................ 17
DEVICE DESCRIPTION.......................................................................................18
INTRODUCTION ......................................................................................................... 18
CONTROL INTERFACE.............................................................................................. 19
2-WIRE (SM-BUS COMPATIBLE) SERIAL CONTROL INTERFACE MODE .............. 19
3-WIRE (SPI COMPATIBLE) SERIAL CONTROL INTERFACE MODE ...................... 21
DIGITAL AUDIO DATA FORMATS ............................................................................. 22
DIGITAL AUDIO INTERFACE ..................................................................................... 27
DIGITAL AUDIO DATA SAMPLING RATES................................................................ 30
DAC FEATURES......................................................................................................... 31
ADC FEATURES......................................................................................................... 34
ANALOGUE ROUTING CONTROL............................................................................. 36
DIGITAL ROUTING CONTROL................................................................................... 46
JACK DETECT ............................................................................................................ 57
POP AND CLICK PERFORMANCE ............................................................................ 58
GLOBAL ENABLE CONTROL..................................................................................... 60
EMERGENCY POWER DOWN................................................................................... 61
REGISTER MAP...................................................................................................62
DIGITAL FILTER CHARACTERISTICS ...............................................................95
APPLICATIONS INFORMATION .........................................................................99
RECOMMENDED EXTERNAL COMPONENTS .......................................................... 99
RECOMMENDED ANALOGUE LOW PASS FILTER ................................................ 100
EXTENDED INPUT IMPEDANCE CONFIGURATION............................................... 100
EXAMPLE CONFIGURATION FOR JACK DETECT ................................................. 101
RELEVANT APPLICATION NOTES .......................................................................... 101
PACKAGE DIMENSIONS ..................................................................................102
IMPORTANT NOTICE ........................................................................................103
ADDRESS ................................................................................................................. 103
w
PD Rev 4.0 April 2008
3
WM8593

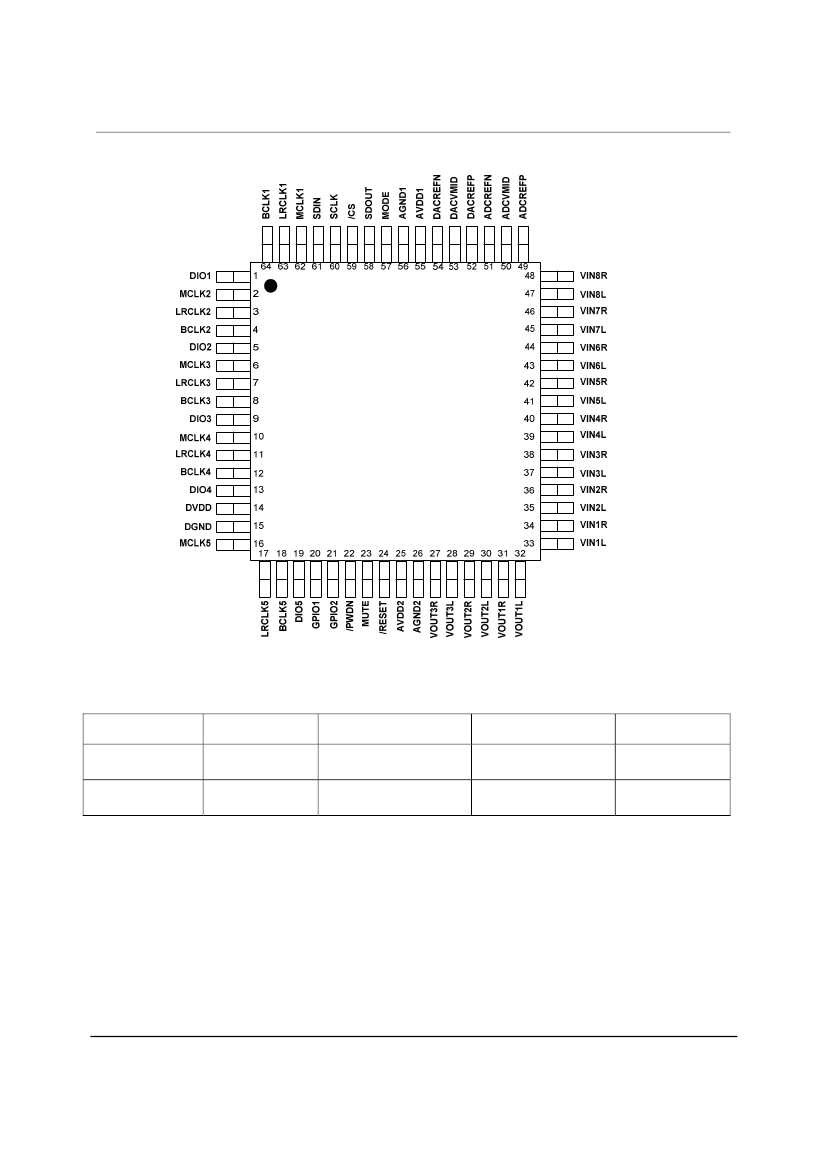

PIN CONFIGURATION
Pre-Production
ORDERING INFORMATION
ORDER CODE
WM8593SEFT/V
WM8593SEFT/RV
Note:
Reel quantity = 750
TEMPERATURE
RANGE
-40°C to +85°C
-40°C to +85°C
PACKAGE
64-lead TQFP
(Pb-free)
64-lead TQFP
(Pb-free, tape and reel)
MOISTURE SENSITIVITY
LEVEL
MSL3
MSL3
PACKAGE BODY
TEMPERATURE
260
o
C
260
o
C
w
PD Rev 4.0 April 2008
4
Production Data
WM8593
PIN DESCRIPTION
PIN
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
NAME
DIO1
MCLK2
LRCLK2
BCLK2
DIO2
MCLK3
LRCLK3
BCLK3
DIO3
MCLK4
LRCLK4
BCLK4
DIO4
DVDD
DGND
MCLK5
LRCLK5
BCLK5
DIO5
GPIO1
GPIO2
/PWDN
MUTE
/RESET
AVDD2
AGND2
VOUT3R
VOUT3L
VOUT2R
VOUT2L
VOUT1R
VOUT1L
VIN1L
VIN1R
VIN2L
VIN2R
VIN3L
VIN3R
VIN4L
VIN4R
VIN5L
VIN5R
VIN6L
VIN6R
VIN7L
VIN7R
VIN8L
VIN8R
TYPE
Digital Input/Output
Digital Input/Output
Digital Input/Output
Digital Input/Output
Digital Input/Output
Digital Input/Output
Digital Input/Output
Digital Input/Output
Digital Input/Output
Digital Input/Output
Digital Input/Output
Digital Input/Output
Digital Input/Output
Supply
Supply
Digital Input/Output
Digital Input/Output
Digital Input/Output
Digital Input/Output
Digital Input/Output
Digital Input/Output
Digital Input
Digital Input
Digital Input
Supply
Supply
Analogue Output
Analogue Output
Analogue Output
Analogue Output
Analogue Output
Analogue Output
Analogue Input
Analogue Input
Analogue Input
Analogue Input
Analogue Input
Analogue Input
Analogue Input
Analogue Input
Analogue Input
Analogue Input
Analogue Input
Analogue Input
Analogue Input
Analogue Input
Analogue Input
Analogue Input
DESCRIPTION
Audio interface port 1 data input/output
Audio interface port 2 master clock input/output
Audio interface port 2 left/right clock input/output
Audio interface port 2 bit clock input/output
Audio interface port 2 data input/output
Audio interface port 3 master clock input/output
Audio interface port 3 left/right clock input/output
Audio interface port 3 bit clock input/output
Audio interface port 3 data input/output
Audio interface port 4 master clock input/output
Audio interface port 4 left/right clock input/output
Audio interface port 4 bit clock input/output
Audio interface port 4 data input/output
Digital supply
Digital ground
Audio interface port 5 master clock input/output
Audio interface port 5 left/right clock input/output
Audio interface port 5 bit clock input/output
Audio interface port 5 data input/output
General purpose input/output 1
General purpose input/output 2
Hardware standby mode
Hardware DAC mute
Hardware reset
Analogue 9V supply
Analogue ground
Output selector channel 3 right output
Output selector channel 3 left output
Output selector channel 2 right output
Output selector channel 2 left output
Output selector channel 1 right output
Output selector channel 1 left output
Input selector channel 1 left input
Input selector channel 1 right input
Input selector channel 2 left input
Input selector channel 2 right input
Input selector channel 3 left input
Input selector channel 3 right input
Input selector channel 4 left input
Input selector channel 4 right input
Input selector channel 5 left input
Input selector channel 5 right input
Input selector channel 6 left input
Input selector channel 6 right input
Input selector channel 7 left input
Input selector channel 7 right input
Input selector channel 8 left input
Input selector channel 8 right input
PD Rev 4.0 April 2008
