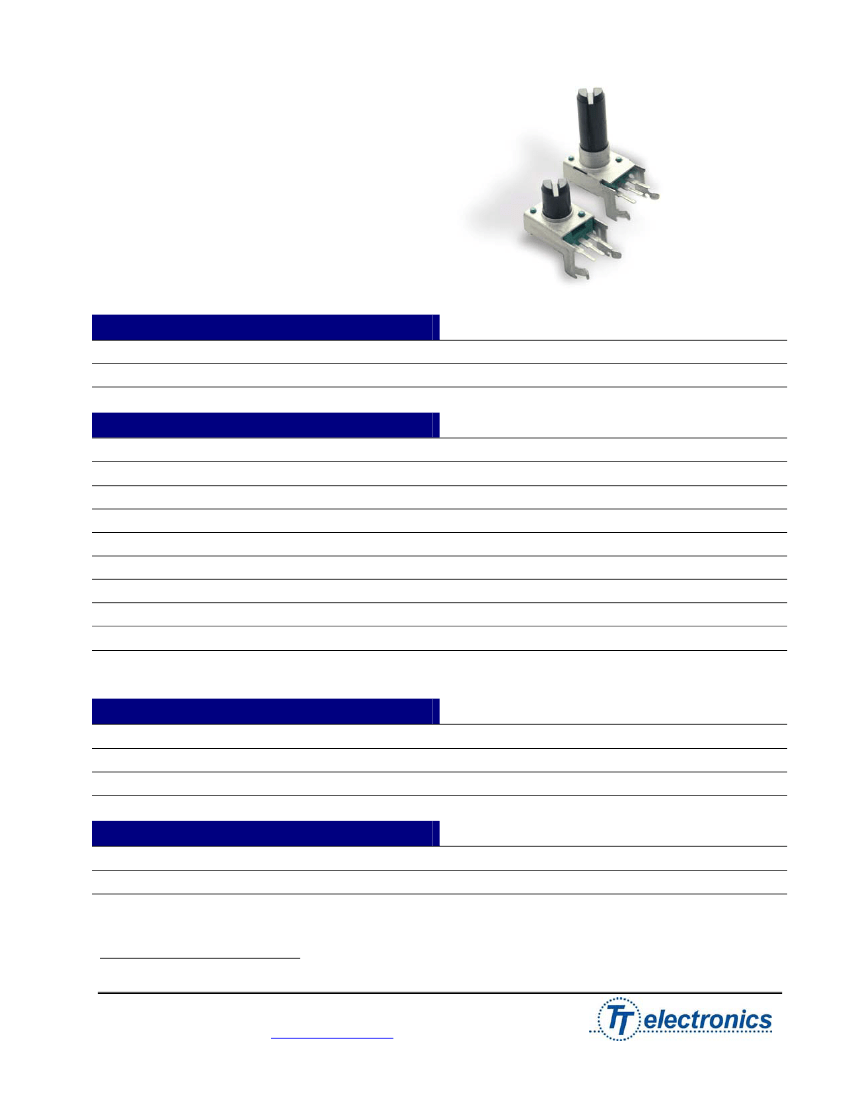

Model P090
9mm Rotary Potentiometer
Insulated Shaft
Conductive Plastic Element
100,000 Cycle Life
Snap-in Clip
RoHS Compliant
MODEL STYLES
Side Adjust
Top Adjust
P090L
P090S
ELECTRICAL
1
Resistance Range, Ohms
Standard Resistance Tolerance
Residual Resistance
Input Voltage, maximum
Power rating, Watts
Dielectric Strength
Insulation Resistance, Minimum
Sliding Noise
Actual Electrical Travel, Nominal
500 – 1M
±
20%
20 ohms max.
50 Vac max.
0.03W
250Vac, I minute
100M ohms at 250Vdc
100mV max.
240°
MECHANICAL
Total Mechanical Travel
Static Stop Strength
Rotational Torque
280°± 10°
40 oz-in
0.5 to 1.25 oz-in
ENVIRONMENTAL
Operating Temperature Range
Rotational Life
-20°C to +70°C
100,000 cycles
1
Specifications subject to change without notice.
BI Technologies Corporation
4200 Bonita Place, Fullerton, CA 92835 USA
Phone: 714 447 2345
July 18, 2008
Website:
www.bitechnologies.com
page 1 of 3
BI technologies
Model P090
ORDERING INFORMATION
2
P090 L – 0 2 F 20 B R100K
Model Series
Style
Detent : 0= None
1= Center
Height – H
1 = 6.5mm (Style L only)
2 = 10mm (Style L only)
3 = 12.5mm (Style L only)
4 = 6.8mm (Style S only)
Total Resistance
Tapers
A = Audio
B = Linear
C = Reverse Audio
Shaft Length “L” see below
Shaft Type
Shaft Type
STANDARD RESISTANCE VALUES, OHMS
500
1K
2K
5K
10K
20K
50K
100K
200K
500K
1MEG

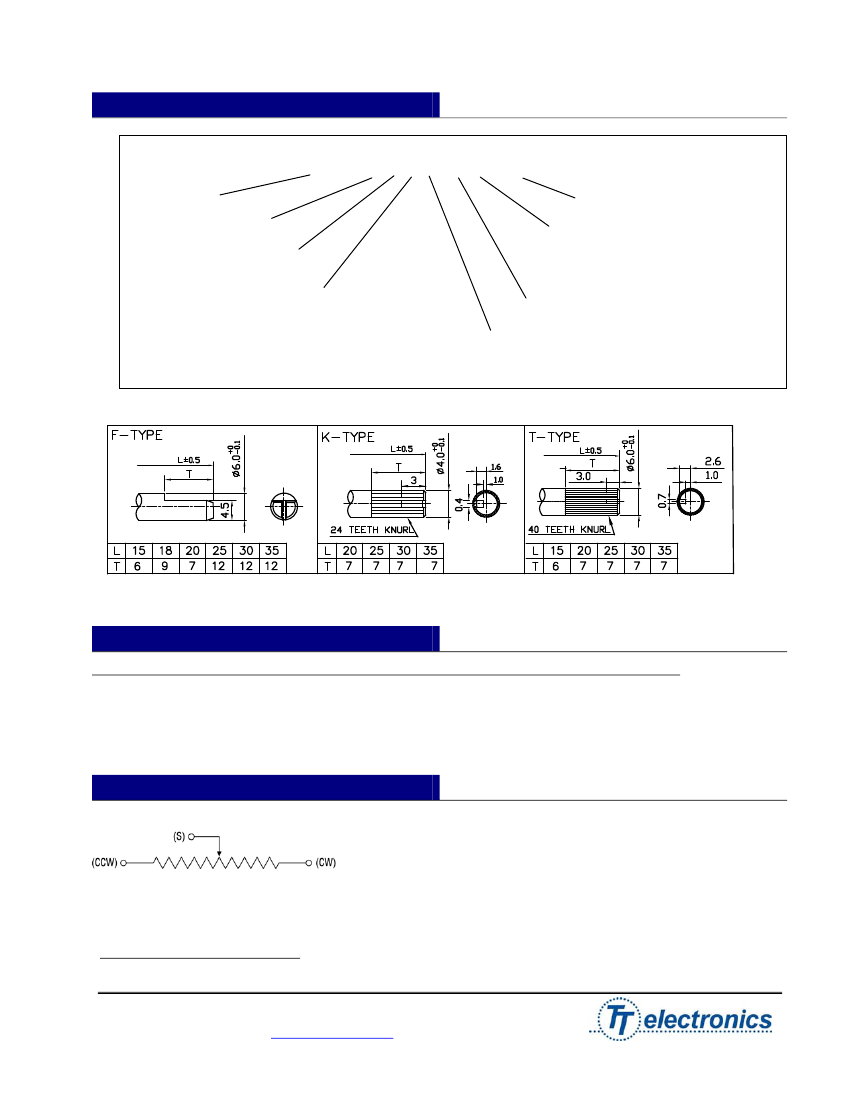

CIRCUIT DIAGRAM
2
Contact our customer service for custom designs and features.
BI Technologies Corporation
4200 Bonita Place, Fullerton, CA 92835 USA
Phone: 714 447 2345
July 18, 2008
Website:
www.bitechnologies.com
page 2 of 3
BI technologies
Model P090

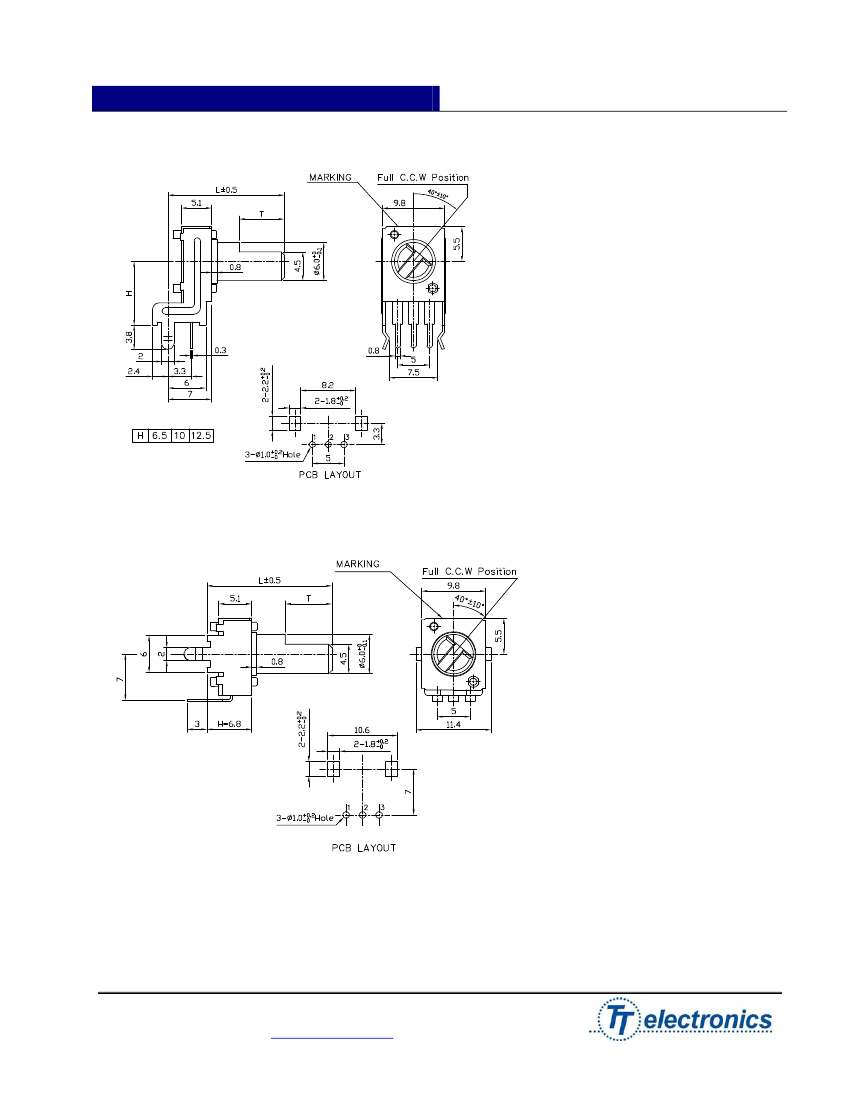

OUTLINE DRAWING
Model P090L (Side Adjust)
Model P090S (Top Adjust)
BI Technologies Corporation
4200 Bonita Place, Fullerton, CA 92835 USA
Phone: 714 447 2345
July 18, 2008
Website:
www.bitechnologies.com
page 3 of 3
BI technologies
