SA33B2480 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> SA33B2480

SA33B2480: Descriptionemi/rfi suppressor and ferrite flat cable clamp ferrite w/adhesive; CategoryPassive components; File Size51KB，1 Pages; ManufacturerFerriShield; Environmental Compliance

Download Datasheet Parametric Compare View All

SA33B2480 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SA33B2480	-	-	View	Buy Now

SA33B2480 Overview

emi/rfi suppressor and ferrite flat cable clamp ferrite w/adhesive

SA33B2480 Parametric

Parameter Name	Attribute value
Maker	FerriShield
Product Category	EMI/RFI Suppressors and Ferrites
RoHS	yes
product	Data Line EMI/RFI Filters
impedance	31 Ohms
Termination type	Axial
shield	Unshielded
Test frequency	30 MHz

Preview

Download Datasheet

View All

PDF Technical File

Visitors to this web site are authorized to download this information

for reprints or electronic transfer to their technical reference files.

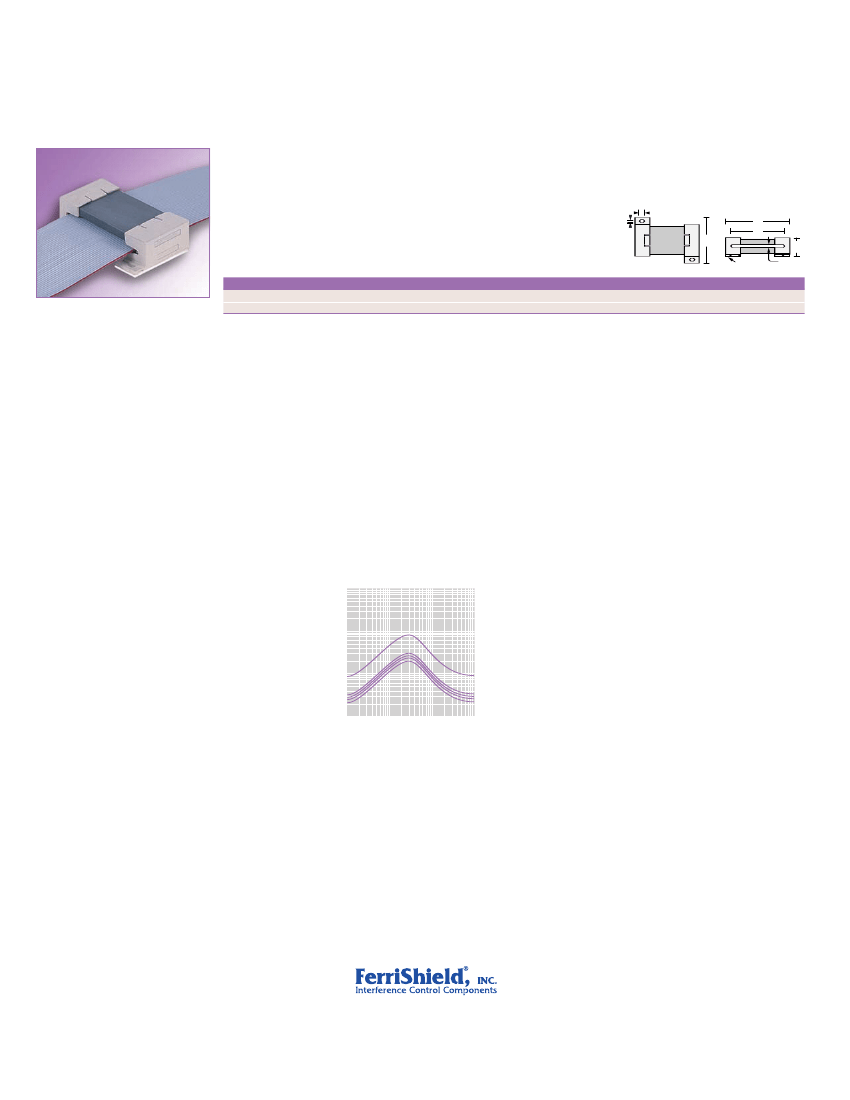

flat cable clamp

WITH SPLIT END CAPS, ADHESIVE MOUNT.

Ferrite assembly press-fitted

into a pair of nylon end caps with adhesive foam mounting pads. Two sizes

accommodate flat cables up to 64-conductor width.

Very effective from 1 MHz to 60 MHz with a peak attenuation at 30 MHz.

For typical impedance curve comparisons to other material formulations, see

page 37; and for specific impedance curves see page 36, bottom.

PART No.

SA33B2480

SA33B4340

w/o Adhesive

SE33B2480

SE33B4340

.655

16,6

.655

16,6

2.570

65,3

1.829

46,5

4.460

113,3

1.829

46,5

.060

1,5

.104

2,6

.125"

(3,2mm)

Adhesive pad

.245

5,7

.245

5,7

IMPEDANCE IN OHMS

2.047

52,0

31 @ 30 MHz

3.240

82,3

79 @ 30 MHz

For specific performance by part number, find the alpha-numeric designation on the charts below according to the last

seven digits of each catalog part number; i.e., for part number “CS28B1937” see “28B1937” on the chart.

TYPICAL PERFORMANCE

1000

IMPEDANCE (Ω)

100

10M

100M

FREQUENCY (Hz)

33B4340

33B2480

33B2032/2036/2040

33B2035

33B0984/1984

For further technical information, please contact us at:

Mulberry Professional Plaza • 426 Mulberry Street * Suite 300 • Scranton, PA 18503

Tel: 570.961.5617 • Fax: 570.969.6274 • e-mail: info@ferrishield.com

www.ferrishield.com

ISO 9001:2000 registered

SA33B2480 Related Products

	SA33B2480	SE33B4340	SE33B2480	SA33B4340
Description	emi/rfi suppressor and ferrite flat cable clamp ferrite w/adhesive	emi/rfi suppressor and ferrite flat cable clamp ferrite	emi/rfi suppressor and ferrite flat cable clamp ferrite	emi/rfi suppressor and ferrite flat cable clamp ferrite w/adhesive
Maker	FerriShield	FerriShield	FerriShield	-
Product Category	EMI/RFI Suppressors and Ferrites	EMI/RFI Suppressors and Ferrites	EMI/RFI Suppressors and Ferrites	-
RoHS	yes	yes	yes	-
product	Data Line EMI/RFI Filters	Data Line EMI/RFI Filters	Data Line EMI/RFI Filters	-
impedance	31 Ohms	79 Ohms	31 Ohms	-
Termination type	Axial	Axial	Axial	-
shield	Unshielded	Unshielded	Unshielded	-
Test frequency	30 MHz	30 MHz	30 MHz	-
