5438-5-64-3 Overview

Board Connector, 64 Contact(s), 2 Row(s), Male, 0.1 inch Pitch, IDC Terminal, Latch & Eject, Receptacle

5438-5-64-3 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknown
body width	0.335 inch
body length	4.557 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Durability	50 Cycles
Insulation resistance	1000000000 Ω
Manufacturer's serial number	5438
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LATCH & EJECT
Installation option 2	LOCKING
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Plating thickness	15u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	64
Base Number Matches	1

Preview

Download Datasheet

View All

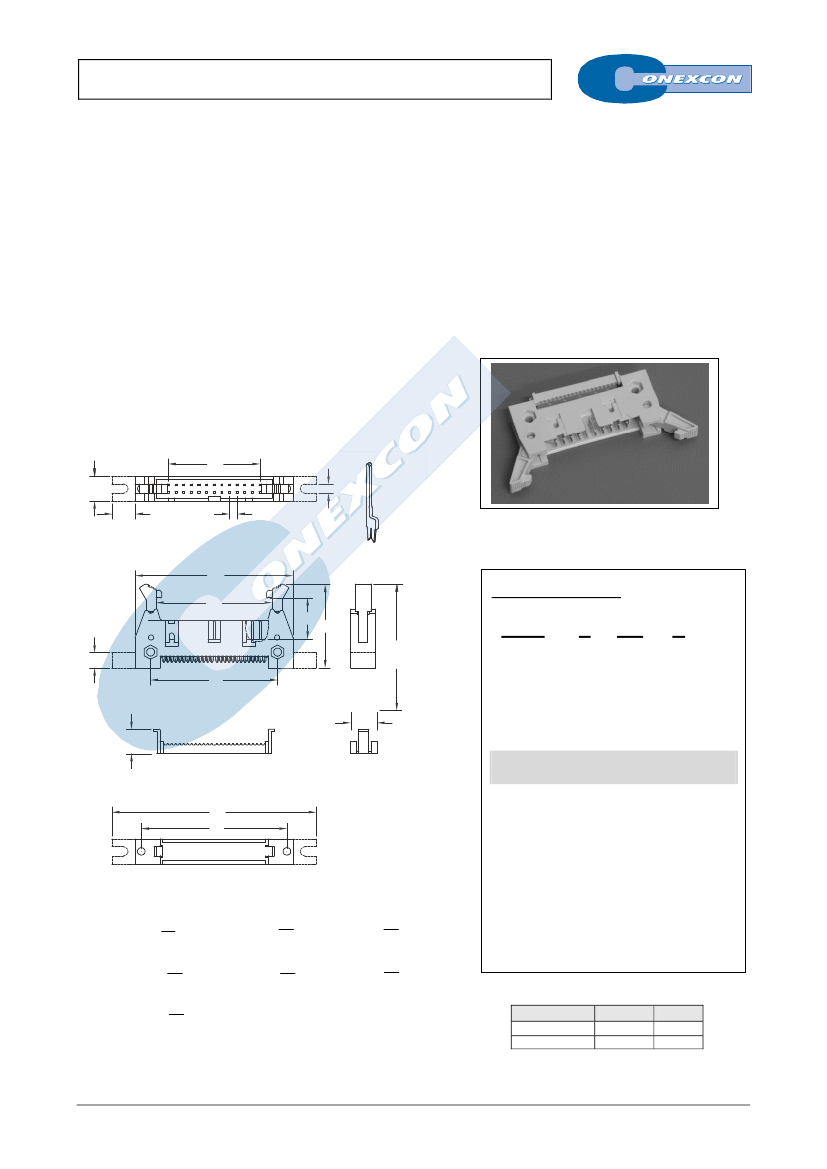

F/ CABLE IDC SHROUED PLUG LATCH EJECT

5438 SERIES.

2.54 x 2.54 mm. (0.100 x 0.100”) pitch.

General Features

Electrical Features



Available in 10, 14, 16, 20, 24, 26, 30, 34, 40, 50, 60

and 64 circuits

Mates with 2.54 mm. IDC connectors 5435 series

Gold plated 0.64 mm square pin

Fully shrouded with polarized slot.

Long and short latch levers. With/without ears



Voltage rating: < 250V

Current rating: < 1 A

Contact resistance: < 30 mΩ

Dielectric withstanding Voltage: 500 V AC/minute

Insulation resistance: >1000 MΩ

Materials

Insulator: PBT, glass reinforced, rated UL 94V-0

Terminal: Phosphor bronze

Operating temperature. -25ºC to +85ºC

RoHS compliant

Mechanical Features



Durability: 50 Cycles

Dimension Information

8.5

7.5

2.54

3.0

Terminated

height

Ordering Information:

5438 -

T-

XX-

5.0

1. Connector Series

8.0

6.3

2. (T) Contact Plating



T =

Tin plated

T =

Gold flash over nickel

Recommended Finish

T =

15µ” gold over nickel

T =

30µ” gold over nickel

3. (XX) Number of circuits

Available in 10 through 64 circuits

4. (S) Latch Type

Dimensions:

(In mm.)

2.54















2.54











5.24





2.54











19.28







2.54









9.13







2.54











34.48







2.54









9.13







2.54









15.22







S =

Short latch without ear

S =

Long latch without ear

S =

Short latch with ear

S =

Long latch witht ear

DIMENSIONS

Short latch

Long latch

10.60

14.60

29.20

25.60

(XX) = Number of circuits

A-XX
