52271-1190 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 52271-1190

52271-1190: Descriptionffc/fpc connector 1 smt RA zif recp 11; CategoryThe connector The connector; File Size36KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

52271-1190 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	52271-1190	-	-	View	Buy Now

52271-1190 Overview

ffc/fpc connector 1 smt RA zif recp 11

52271-1190 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compli
Other features	ZIF, BOTTOM CONTACT STYLE
body width	0.118 inch
subject depth	0.213 inch
body length	0.681 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Filter function	NO
IEC compliance	NO
maximum insertion force	ZIF N
Insulation resistance	100000000 Ω
insulator material	GLASS FILLED NYLON
MIL compliance	NO
Plug contact pitch	0.039 inch
Mixed contacts	NO
Installation option 1	FCC RETNN DVC
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	11
UL Flammability Code	94V-0
Evacuation force-minimum value	ZIF N

Preview

Download Datasheet

View All

This document was generated on 11/17/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

Replacement Part

Number:

Documents:

3D Model

Drawing (PDF)

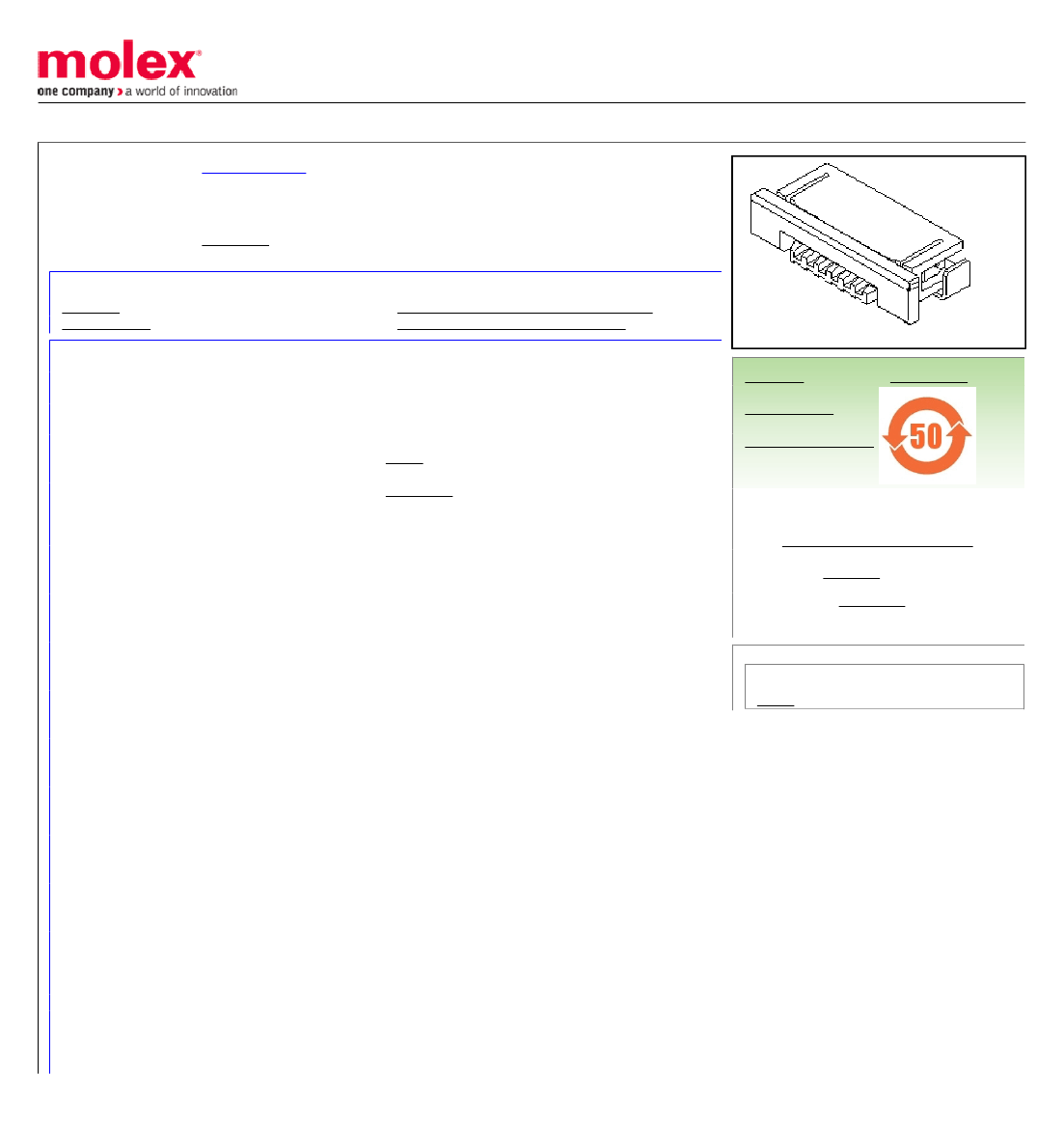

0522711190

Contact Molex

1.00mm (.039") Pitch FFC/FPC Connector, Right Angle, SMT, ZIF, Bottom Contact

Style, 11 Circuits

522711179

Product Specification PS-52271-006 (PDF)

RoHS Certificate of Compliance (PDF)

image - Reference only

Series

Agency Certification

CSA

LR19980

E29179

EU RoHS

Not RoHS Compliant

REACH SVHC

Not Reviewed

Low-Halogen Status

Not Low-Halogen

China RoHS

General

Product Family

Series

Product Name

Replacement Part Number

FFC/FPC Connectors

52271

N/A

522711179

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Contact Position

Durability (mating cycles max)

Entry Angle

Flammability

Mated Height

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Plating min - Termination

Polarized to PCB

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Wire/Cable Type

Natural

Bottom

90° Angle

94V-0

3.00mm (.118")

Phosphor Bronze

Tin-Lead

High Temperature Thermoplastic

Right Angle

None

Embossed Tape on Reel

1.00mm (.039")

3.048µm (120µ")

Yes

-40°C to +85°C

Surface Mount

FFC/FPC

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

52271Series

Electrical

Current - Maximum per Contact

Voltage - Maximum

0.5A

50V AC (RMS)/DC

Solder Process Data

Replacement RoHS Compliant Part Number

0522711179
