SM28R1260: Descriptionemi/rfi suppressor and ferrite solid flat ferrite shock mount adhesive; CategoryPassive components; File Size476KB，1 Pages; ManufacturerFerriShield; Environmental Compliance

Download Datasheet Parametric Compare View All

SM28R1260 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SM28R1260	-	-	View	Buy Now

SM28R1260 Overview

emi/rfi suppressor and ferrite solid flat ferrite shock mount adhesive

SM28R1260 Parametric

Parameter Name	Attribute value
Maker	FerriShield
Product Category	EMI/RFI Suppressors and Ferrites
RoHS	yes
product	Data Line EMI/RFI Filters
impedance	237 Ohms
Termination type	Axial
shield	Unshielded
Test frequency	100 MHz

Preview

Download Datasheet

View All

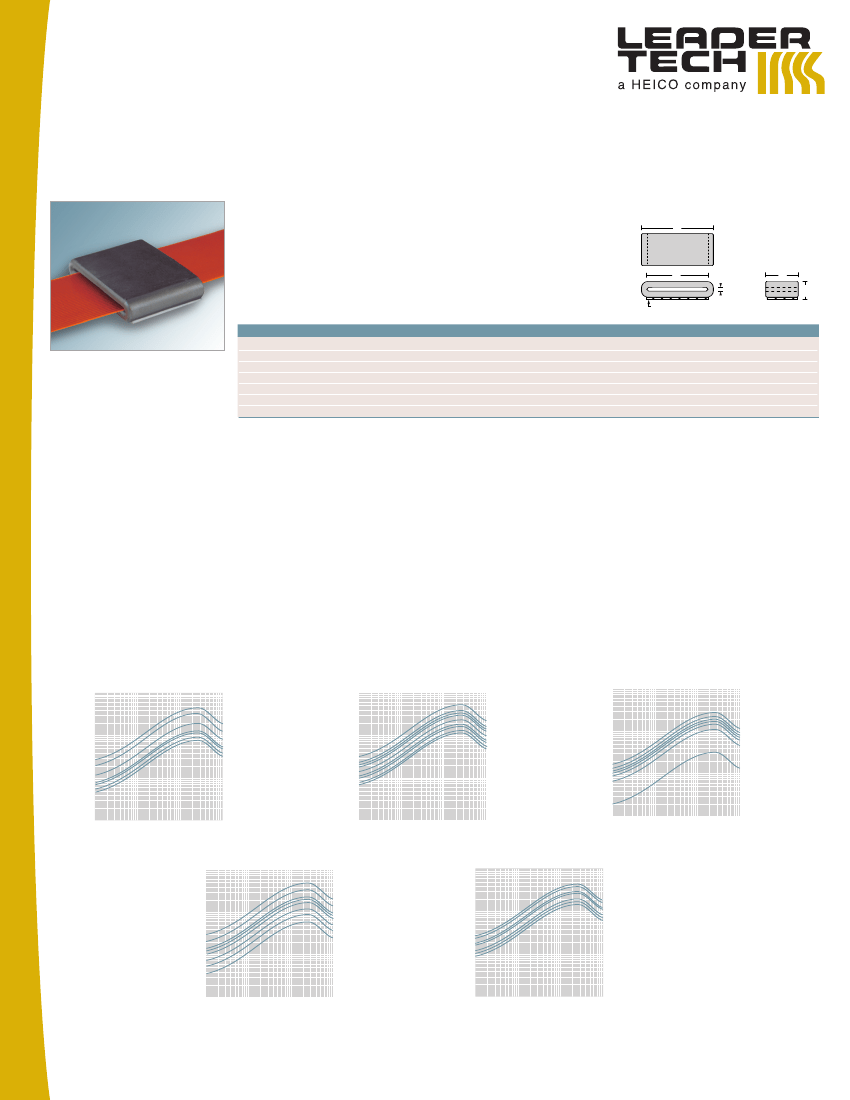

The Leading Source for EMI Shielding

Reliable Board, Enclosure and Cable Solutions

low profile solids

- for cable widths up to 2.00”

(50,8 mm)

ULTRA-THIN WITH SHOCK MOUNTADHESIVE FOAM BASE.

Excellent for thin

flex circuits and SCSI 2 flat cables on .025” (0,64mm) centers. Six sizes

accommodate cable widths up to 2.00” (50,8mm). High tack adhesive

mounting pad secures to almost any surface. Can be stacked one on top

of another.

A

C

E

Adhesive foam

shock mount base

B

D

PART No.

SM28R0760

SM28R1127

SM28R1127-2

SM28R1260

SM28R1575

SM28R1953

SM28R2300

.760

1.125

1.260

1.575

1.953

2.300

A

19,3

28,6

32,0

40,0

49,6

58,4

B

.510

13,0

.925

23,5

.925

23,5

1.010

25,7

1.325

33,7

1.732

44,0

2.050

52,1

C

1.125

28,6

1.220

31,0

.980

24,9

1.125

28,6

1.125

28,6

.472

12,0

1.125

28,6

D

.330

8,4

.333

8,5

.303

8,5

.330

8,4

.330

8,4

.318

8,1

.330

8,4

E

.051

1,3

.066

1,7

.066

1,7

.051

1,3

.051

1,3

.059

1,5

.051

1,3

IMPEDANCE IN OHMS

150 @ 100MHz

188 @ 100MHz

151 @ 100MHz

237 @ 100MHz

160 @ 100MHz

109 @ 100MHz

245 @ 100MHz

optional material formulations available upon request:

• microwave bluetooth™ 2.45 GHz peak

performance by part number:

TYPICAL PERFORMANCE

1000

28B2000

28B2043/2044

28R1260

28B0937/1937

28B0642/1642/0350-0

28B0805/1805

28B0984/1984

TYPICAL PERFORMANCE

1000

28B0385-2

28B4340

28B3012/3500/0550

28B2480/1240

28B1729

28R1127

28B0010/2940

28R1953

28B0300-0

TYPICAL PERFORMANCE

1000

28B1625-1/28R0984-2

28B0686/0736-0

28R1575/2300

28B3375/1251/0765

28B0625-0/0146/0563

28B1417-0/2400-0

28B0870-0

IMPEDANCE (Ω)

100

10

1

1M

10M

100M

FREQUENCY (Hz)

1G

1

1M

10M

100M

FREQUENCY (Hz)

1G

1

1M

10M

100M

FREQUENCY (Hz)

1G

TYPICAL PERFORMANCE

1000

28B2038/2039

28B1775/4000

28B1531/0735/2375

28R1127/1501/0672-0

28R0760/2265

28B0121/1225-0

28B1101

28B0071

1000

TYPICAL PERFORMANCE

28B3000

28B2500

28B1020

28B0736/2170-1/0221

28B1785

28B1387

28B1102-1/1127-2

IMPEDANCE (Ω)

100

10

1

1M

10M

100M

FREQUENCY (Hz)

1G

1

1M

10M

100M

FREQUENCY (Hz)

1G

14100 McCormick Drive

Tampa, FL 33626

866.TECH.EMI (866.832.4364)

www.leadertechinc.com

T: 813.855.6921

F: 813.855.3291

SM28R1260 Related Products

	SM28R1260	SM28R1575	SM28R1953	SM28R0760	SM28R1127	SM28R2300
Description	emi/rfi suppressor and ferrite solid flat ferrite shock mount adhesive	emi/rfi suppressor and ferrite solid flat ferrite shock mount adhesive	emi/rfi suppressor and ferrite solid flat ferrite shock mount adhesive	emi/rfi suppressor and ferrite solid flat ferrite shock mount adhesive	emi/rfi suppressor and ferrite solid flat ferrite shock mount adhesive	emi/rfi suppressor and ferrite solid flat ferrite shock mount adhesive
Maker	FerriShield	FerriShield	FerriShield	FerriShield	FerriShield	FerriShield
Product Category	EMI/RFI Suppressors and Ferrites	EMI/RFI Suppressors and Ferrites	EMI/RFI Suppressors and Ferrites	EMI/RFI Suppressors and Ferrites	EMI/RFI Suppressors and Ferrites	EMI/RFI Suppressors and Ferrites
RoHS	yes	yes	yes	yes	yes	yes
product	Data Line EMI/RFI Filters	Data Line EMI/RFI Filters	Data Line EMI/RFI Filters	Data Line EMI/RFI Filters	Data Line EMI/RFI Filters	Data Line EMI/RFI Filters
impedance	237 Ohms	160 Ohms	109 Ohms	150 Ohms	188 Ohms	245 Ohms
Termination type	Axial	Axial	Axial	Axial	Axial	Axial
shield	Unshielded	Unshielded	Unshielded	Unshielded	Unshielded	Unshielded
Test frequency	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz
