CDR31BP200BJZMAR datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> CDR31BP200BJZMAR

CDR31BP200BJZMAR: DescriptionCAPACITOR, CERAMIC, MULTILAYER, 100 V, BP, 0.00002 uF, SURFACE MOUNT, 0805, CHIP; CategoryPassive components capacitor; File Size136KB，17 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric View All

CDR31BP200BJZMAR Overview

CAPACITOR, CERAMIC, MULTILAYER, 100 V, BP, 0.00002 uF, SURFACE MOUNT, 0805, CHIP

CDR31BP200BJZMAR Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Objectid	2143327627
package instruction	, 0805
Reach Compliance Code	compliant
Country Of Origin	Israel
ECCN code	EAR99
YTEOL	5.25
capacitance	0.00002 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	1.3 mm
JESD-609 code	e0
length	2 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, EMBOSSED PLASTIC, 11.25/13 INCH
positive tolerance	5%
Rated (DC) voltage (URdc)	100 V
Guideline	MIL-PRF-55681/7
size code	0805
surface mount	YES
Temperature characteristic code	BP
Temperature Coefficient	30ppm/Cel ppm/°C
Terminal surface	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
width	1.25 mm

Preview

Download Datasheet

View All

CDR-MIL-PRF-55681

www.vishay.com

Vishay Vitramon

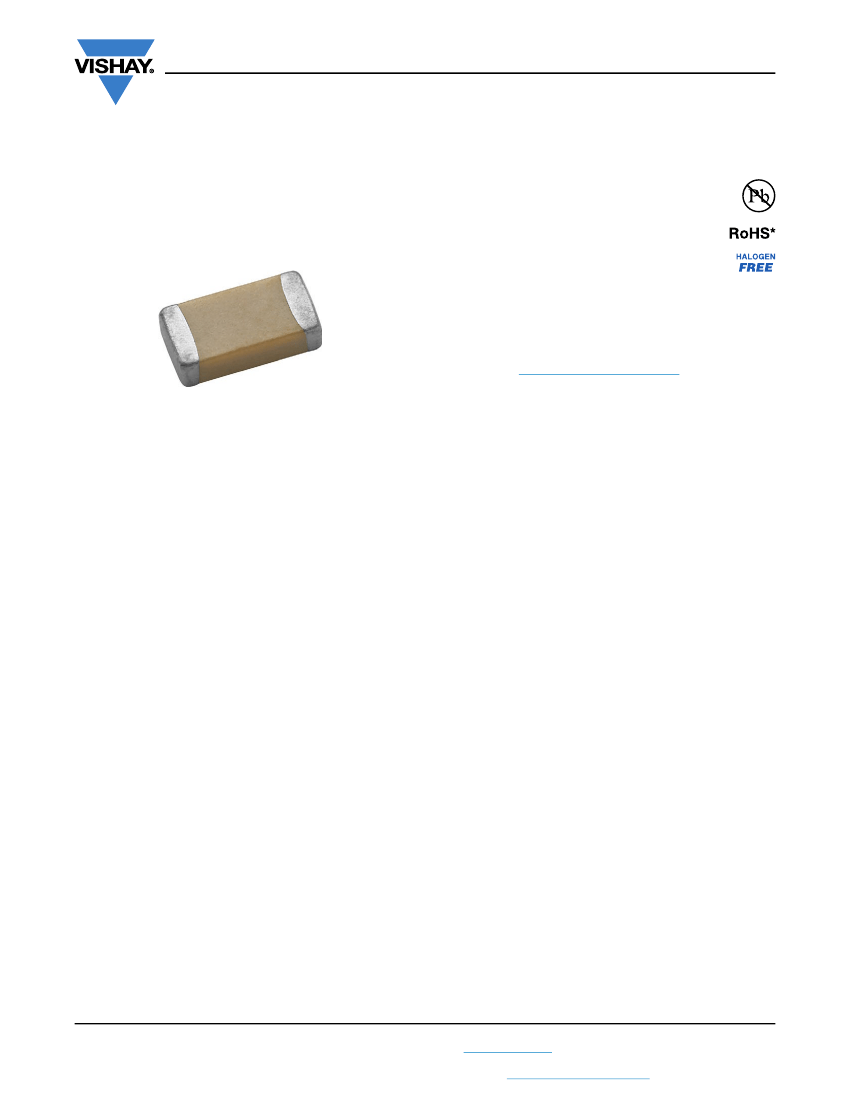

Surface Mount Multilayer Ceramic Chip Capacitors

MIL Qualified, Type CDR

FEATURES

• Military qualified products

• Federal stock control number,

CAGE CODE 2770A

• High reliability tested per MIL-PRF-55681

• Tin / lead termination codes “W”, “Z”, and “U”

• Lead (Pb)-free termination codes “Y” and “M”

• Wet build process

• Reliable Noble Metal Electrode (NME) system

• Material categorization: for definitions of compliance

please see

www.vishay.com/doc?99912

Note

This datasheet provides information about parts that are

RoHS-compliant and / or parts that are non RoHS-compliant. For

example, parts with lead (Pb) terminations are not RoHS-compliant.

Please see the information / tables in this datasheet for details

Available

APPLICATIONS

• Avionic systems

• Sonar systems

• Satellite systems

• Missiles applications

• Geographical information systems

• Global positioning systems

ELECTRICAL SPECIFICATIONS

Note

•

Electrical characteristics at +25 °C unless otherwise specified

Operating Temperature:

-55 °C to +125 °C

Capacitance Range:

1.0 pF to 470 nF

Voltage Range:

6.3 V

to 100 V

Temperature Coefficient of Capacitance (TCC):

BP: 0 ppm/°C ± 30 ppm/°C from -55 °C to +125 °C,

with 0 V

applied

0 ppm/°C ± 30 ppm/°C from -55 °C to +125 °C,

with 100 % rated V

applied

BX: ± 15 % from -55 °C to +125 °C, with 0 V

applied

BX: +15 %, -25 % from -55 °C to +125 °C,

with 100 % rated V

applied

BR: ± 15 % from -55 °C to +125 °C,

with 0 V

applied

+15 %, -40 % -55 °C to +125 °C,

with 100 % rated V

applied

Dissipation Factor (DF):

BP: 0.15 % maximum

BX: 2.50 % maximum

BR:

≤

25 V: 3.5 % maximum

> 25 V: 2.5 % maximum

Test frequency:

1 MHz ± 50 kHz for BP capacitors

≤

1000 pF

and for BX capacitors

≤

100 pF

All other BP, BX, and BR at 1 kHz ± 50 Hz

Aging Rate:

BP: 0 % maximum per decade

BX, BR: 1 % maximum per decade

Insulation Resistance (IR):

at +25 °C and rated voltage 100 000 MΩ minimum or

1000

ΩF,

whichever is less

Dielectric Strength Test:

performed per method 103 of EIA-198-2-E.

Applied test voltages:

≤

100 V

-rated: 250 % of rated voltage

Revision: 10-Aug-2020

Document Number: 45026

For technical questions, contact:

mlcc@vishay.com
