WP7113PBC/H datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> WP7113PBC/H

WP7113PBC/H: DescriptionStandard LED - through hole blue water clear; CategoryLED optoelectronic/LED; File Size98KB，4 Pages; ManufacturerKingbright; Websitehttp://www.us.kingbright.com; Environmental Compliance

Download Datasheet Parametric View All

WP7113PBC/H Overview

Standard LED - through hole blue water clear

WP7113PBC/H Parametric

Parameter Name	Attribute value
Maker	Kingbright
Product Category	Standard LED - Through Hole
RoHS	yes
LED size	5 mm
lighting color	Blue
Operating Voltage	3.7 V
Package/box	T-1 3/4
wavelength	470 nm
brightness	3200 mcd
Working current	20 mA
display angle	16 deg
Encapsulation	Bulk
Lens color/type	Water Cle
lens shape	Dome
Installation style	Through Hole

Preview

Download Datasheet

View All

T-1 3/4 (5mm) SOLID STATE LAMP

ATTENTION

OBSERVE PRECAUTIONS

FOR HANDLING

ELECTROSTATIC

DISCHARGE

SENSITIVE

DEVICES

WP7113PBC/H

BLUE

Features

LOW POWER CONSUMPTION.

POPULAR T-1 3/4 DIAMETER PACKAGE.

GENERAL PURPOSE LEADS.

RELIABLE AND RUGGED.

LONG LIFE - SOLID STATE RELIABILITY.

AVAILABLE ON TAPE AND REEL.

RoHS COMPLIANT.

Description

The Blue source color devices are made with InGaN on SiC

Light Emitting Diode.

Static electricity and surge damage the LEDS.

It is recommended to use a wrist band or

anti-electrostatic glove when handling the LEDs.

All devices, equipment and machinery must be electrically

grounded.

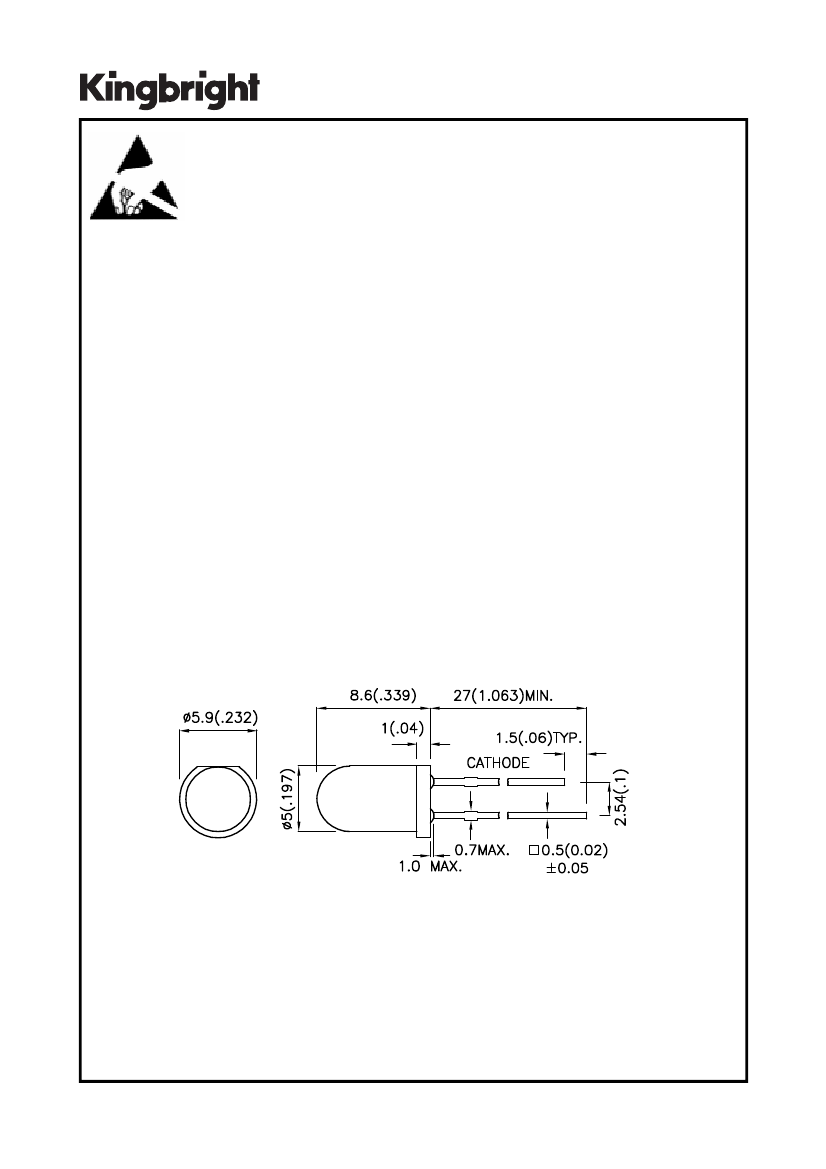

Package Dimensions

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is ±0.25(0.01") unless otherwise noted.

3. Lead spacing is measured where the leads emerge from the package.

4. Specifications are subject to change without notice.

SPEC NO: DSAF2416

APPROVED: J. Lu

REV NO: V.1

CHECKED: Allen Liu

DATE: APR/19/2005

DRAWN: Y.W.WANG

PAGE: 1 OF 4

ERP: 1101005158
