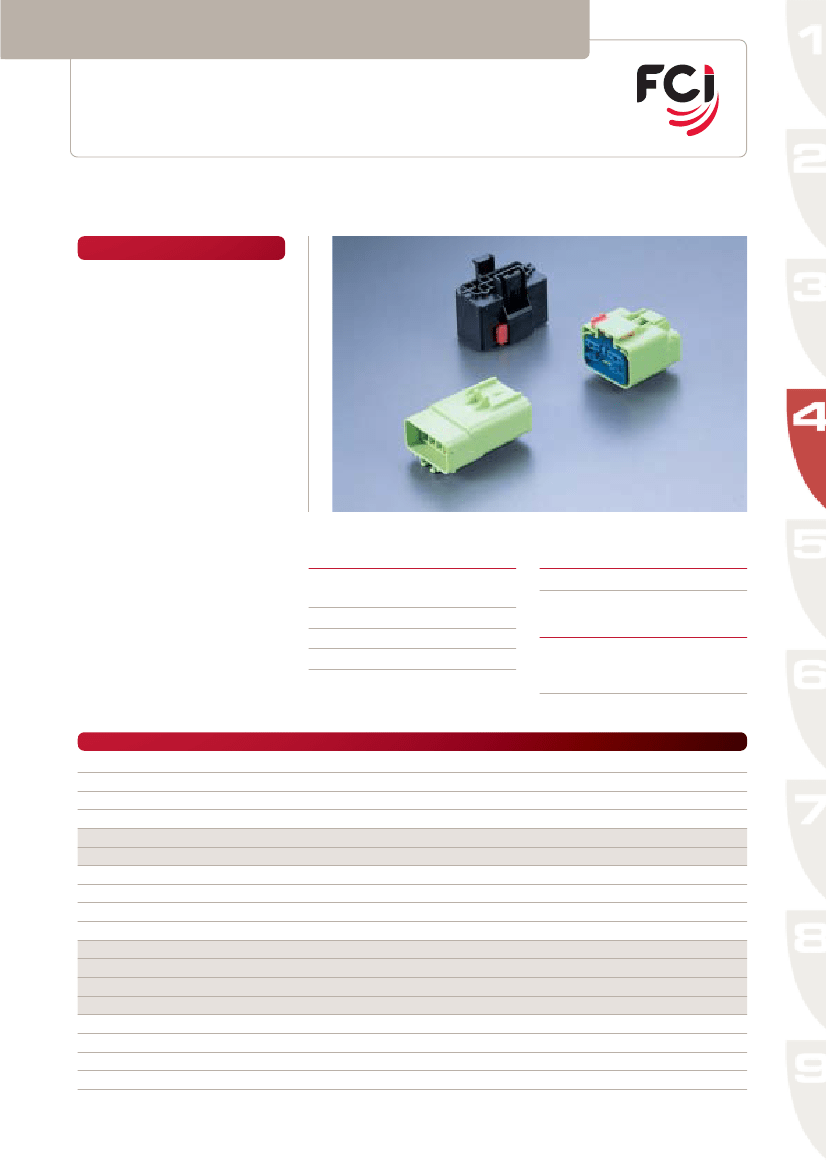

Instrument panel and cockpit connectors
Coupling connectors
Apex
2/3/4/6/10/14 way coupling housings for 2.8 mm terminals
Features
•
2-3-4-6-10 and 14 position
•
•
•
•
•
•
•
housings available
Single row 5.25 mm pitch for
2-3-4 position housings
Double row 5.25 x 6.40 mm pitch
for 6-10 and 14 position housings
Terminal position assurance (T.P.A.)
Connector position assurance
(C.P.A.)
Fixing clip available
Mechanical polarization
Several colour codings available
Performance characteristics
•
Temperature range:
from -40°C to +125°C
Construction
•
Housing material:
PA
•
Contact retention force:
•
Contact insertion force:
•
Connector mating force:
> 90 N
< 15 N
< 90 N
Connector compatibility
•
Usable terminals:
- Apex 2.8 mm female terminals
- Apex 2.8 mm male terminals
Part Numbers
54200200
54200201
54200202
54200203
54200204
54200205
54200300
54200301
54200302
54200303
54200304
54200305
54200306
54200307
54200400
54200402
54200403
54200404
No. of position
2
2
2
2
2
2
3
3
3
3
3
3
3
3
4
4
4
4
Terminal size
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
Type
Female housing
Female housing
Female housing
Female housing
Male housing
Male housing
Female housing
Female housing
Female housing
Female housing
Male housing
Male housing
Male housing
Male housing
Female housing
Female housing
Female housing
Female housing
Colour
Black
Light grey
Dark grey
Natural
Black
Light grey
Black
Light grey
Dark grey
Natural
Black
Light grey
Dark grey
Natural
Black
Light grey
Dark grey
Natural
4.50
Instrument panel and cockpit connectors
Coupling connectors
Apex
2/3/4/6/10/14 way coupling housings for 2.8 mm terminals
Part Numbers
54200405
54200406
54200407
54200408
54200600
54200601
54200602
54200603
54200604
54200605
54200606
54200607
54201000
54201001
54201002
54201003
54201004
54201005
54201006
54201007
54201008
54201400
54201401
54201402
54201403
54201404
54201405
No. of position
4
4
4
4
6
6
6
6
6
6
6
6
10
10
10
10
10
10
10
10
10
14
14
14
14
14
14
Terminal size
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
2.8 mm
Type
Male housing
Male housing
Male housing
Male housing
Female housing
Female housing
Female housing
Female housing
Male housing
Male housing
Male housing
Male housing
Female housing
Female housing
Female housing
Female housing
Female housing
Female housing
Male housing
Male housing
Male housing
Female housing
Female housing
Female housing
Female housing
Male housing
Male housing
Colour
Black
Light grey
Dark Grey
Natural
Black
Light grey
Dark grey
Natural
Black
Light grey
Dark grey
Natural
Black
Light grey
Light green
Dark green
Orange
Aqua
Black
Light grey
Light green
Black
Light grey
Dark grey
Natural
Black
Light grey

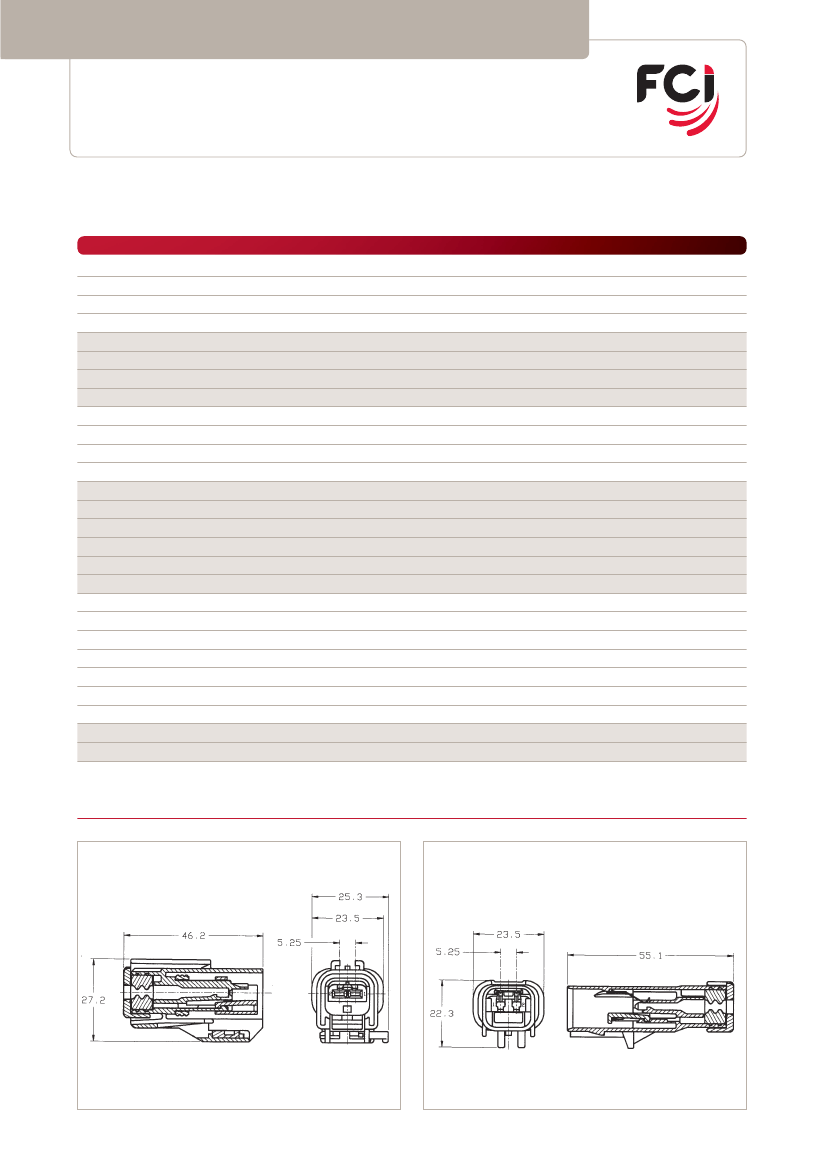

Dimensional characteristics
2 way female housing
2 way male housing
4.51
Instrument panel and cockpit connectors
Coupling connectors
Apex
2/3/4/6/10/14 way coupling housings for 2.8 mm terminals

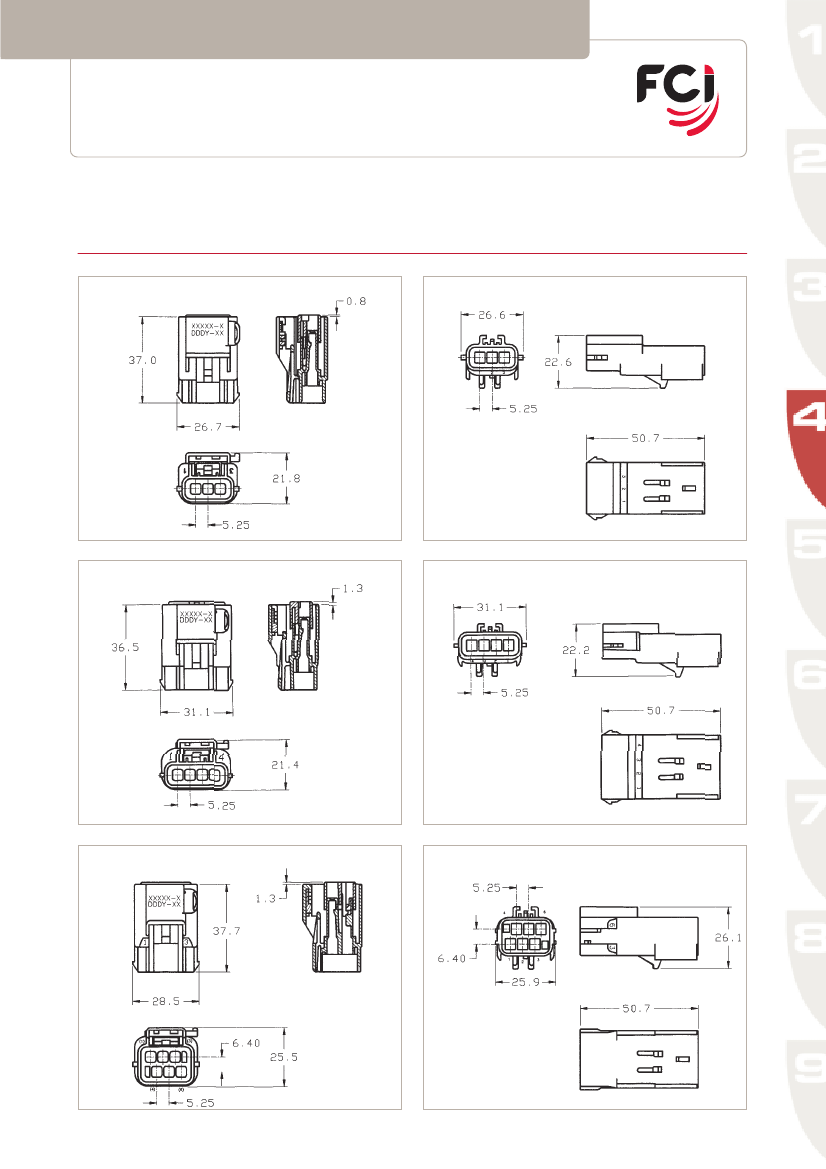

Dimensional characteristics
3 way female housing
3 way male housing
4 way female housing
4 way male housing
6 way female housing
6 way male housing
4.52
Instrument panel and cockpit connectors
Coupling connectors
Apex
2/3/4/6/10/14 way coupling housings for 2.8 mm terminals

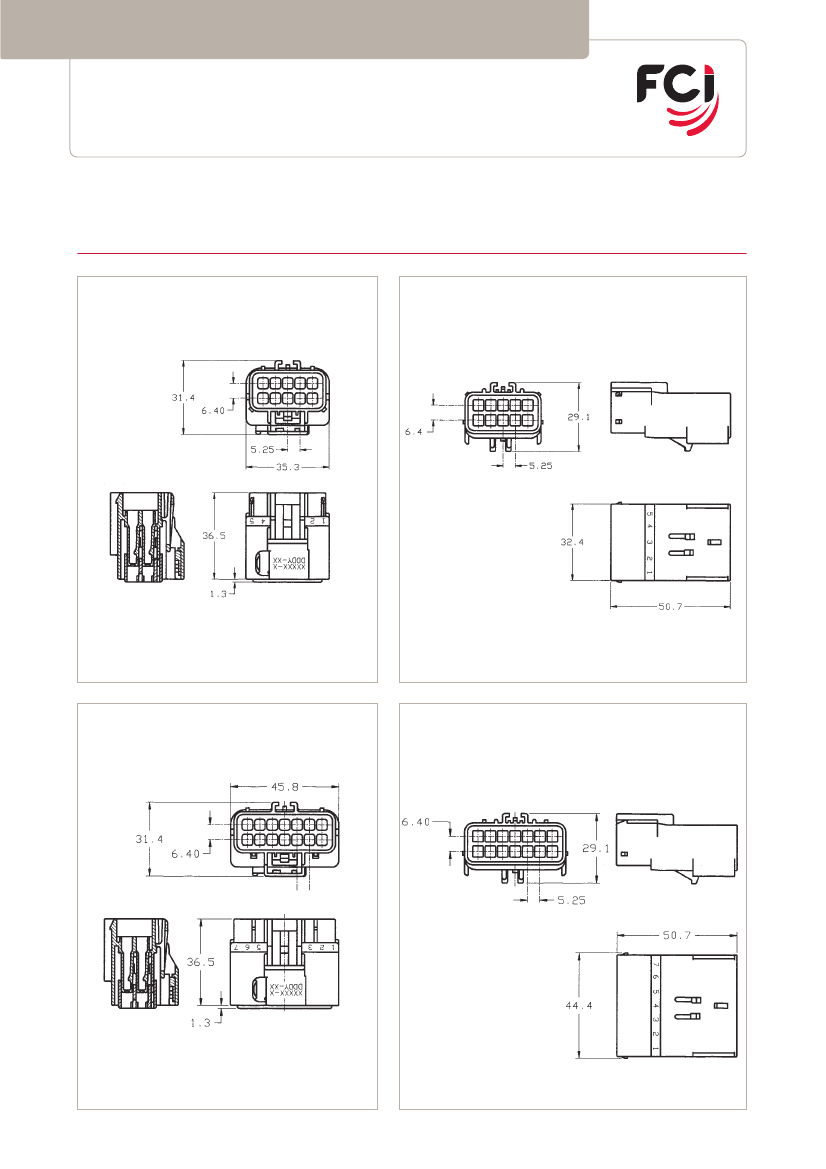

Dimensional characteristics
10 way female housing
10 way male housing
14 way female housing
14 way male housing
4.53
