Designed for Short-Range Wireless Data Communications
Supports RF Data Transmission Rates Up to 115.2 kbps
3 V, Low Current Operation plus Sleep Mode
Up to 10 mW Transmitter Power under FCC 15.247 Regulations
Digital Spread Spectrum Output

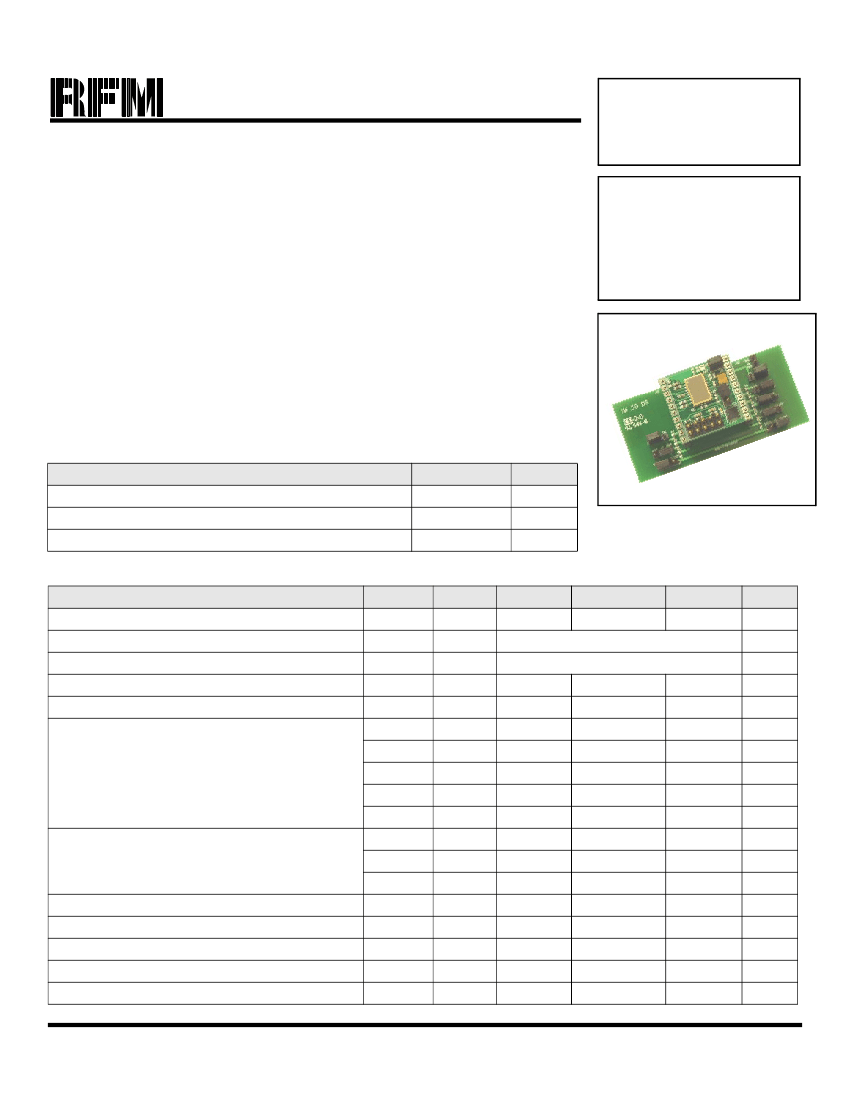

DR8100-EV
916.50 MHz
Transceiver
Evaluation
Module
The DR8100-EV hybrid transceiver module is ideal for short-range wireless data applications
where robust operation, small size, low power consumption and low cost are required. The
DR8100-EV utilizes RFM’s TR8100 amplifier-sequenced hybrid (ASH) architecture to achieve this
unique blend of characteristics. All critical RF functions are contained in the hybrid, simplifying
and speeding design-in. The receiver section of the DR8100-EV is sensitive and stable. A wide
dynamic range log detector, in combination with digital AGC and a compound data slicer, provide
robust performance in the presence of on-channel interference or noise. Two stages of SAW
filtering provide excellent receiver out-of-band rejection. The transmitter uses an internal “digital
modulation” BPSK spreading code, with data carried by either OOK or ASK modulation. The
transmitter employs SAW filtering to suppress output harmonics, facilitating compliance with FCC
15.247 regulations.
Absolute Maximum Ratings
Rating
Power Supply and All Input/Output Pins
Non-Operating Case Temperature
Soldering Temperature (10 seconds, 5 cycles maximum)
Value
-0.3 to +4.0
-50 to +100
260
Units
V
°C
°C
Electrical Characteristics
Characteristic
Operating Frequency
Digital Modulation Spreading Code
Data Modulation Type
OOK Data Rate
ASK Data Rate
Receiver Performance (OOK @ 4.8kbps)
Sensitivity, 4.8 kbps, 10-3 BER, AM Test Method
Input Current, 4.8 kbps, 3.0V Supply
Sensitivity, 19.2 kbps, 10-3 BER, AM Test Method
Input Current, 19.2 kbps, 3.0V Supply
Transmitter Performance (OOK @ 4.8kbps)
Peak RF Output Power, 315 µA TXMOD Current
Peak Current, 315 µA TXMOD Current
OOK Turn On/Turn Off Times
ASK Output Rise/Fall Times
Power Supply Voltage Range (including I/O)
Operating Ambient Temperature
Power Supply Voltage Ripple
P
OL
I
TPL
t
ON
/t
OFF
t
TR
/t
TF
Vcc
T
A
2.5
-40
10
32
12/6
1.1/1.1
3.6
+85
10
dBm
mA
µs
µs
Vdc
°C
mVp-p
-108
4.2
-104
4.25
dBm
mA
dBm
mA
Sym
f
o
Notes
Minimum
916.30
BPSK
OOK/ASK
30
115.2
kb/s
kb/s
Typical
Maximum
916.70
Units
MHz
RF Monolithics, Inc.
Phone: (972) 233-2903
Fax: (972) 387-8148
RFM Europe
Phone: 44 1963 251383
Fax: 44 1963 251510
©1999 by RF Monolithics, Inc. The stylized RFM logo are registered trademarks of RF Monolithics, Inc.
E-mail: info@rfm.com
http://www.rfm.com
DR8100-041107
Page 1 of 8
916.50 MHz
Spread Spectrum Transceiver Module

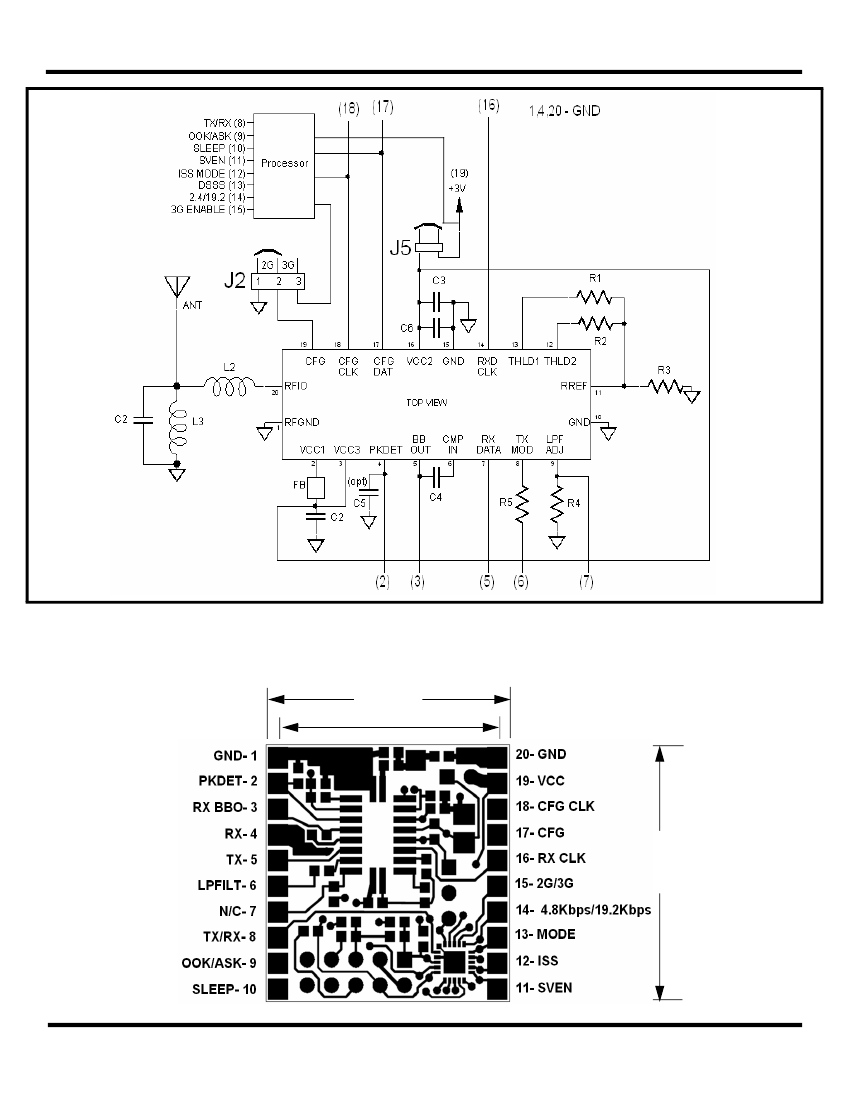

DR8100-EV Pinout and
1000 mils
900 mils
1000 mils
RF Monolithics, Inc.
Phone: (972) 233-2903
Fax: (972) 387-8148
RFM Europe
Phone: 44 1963 251383
Fax: 44 1963 251510
©1999 by RF Monolithics, Inc. The stylized RFM logo are registered trademarks of RF Monolithics, Inc.
E-mail: info@rfm.com
http://www.rfm.com
DR8100-041107
Page 2 of 8
1000 mils
916.50 MHz
Pin
1,4,20
19
Name
GND
VCC
In/Out
-
-
Spread Spectrum Transceiver Module
Description
GND is the ground pin.
VCC is a positive supply voltage pin.
This pin is the peak detector output. A 0.022uF capacitor to ground (C5) sets the peak detector attack and
decay times, which have a fixed 1:1000 ratio. For most applications, these time constants should be coordi-
nated with the base-band time constant. For a given base-band capacitor C
BBO
, the capacitor value C
PKD
is:
C
PKD
= 2.0* C
BBO
, where C
BBO
and C
PKD
are in pF
2
PKDET
Out
A ±10% ceramic capacitor should be used at this pin. This time constant will vary between t
PKA
and 1.5* t
PKA
with variations in supply voltage, temperature, etc. The capacitor is driven from a 200 ohm “attack” source,
and decays through a 200 K load. The peak detector is used to drive the “dB-below-peak” data slicer and the
AGC release function. The peak detector capacitor is discharged in the receiver power-down (sleep) mode
and in the transmit modes. See the description of Pin 3 below for further information.
A 0.022uF capacitor is
installed for operation at 4.8kbps.
This pin is connected directly to the transceiver BBOUT pin. This pin drives the CMPIN pin through a coupling
capacitor, C
BBO
= 0.01uF (C4), for internal data slicer operation at 4.8kbps.
C
BBO
= 11.2*SP
MAX
, where SP
MAX
is the maximum signal pulse width in µs and C
BBO
is in pF
The nominal output impedance of this pin is 1 K.The BBOUT signal changes about 10 mV/dB, with a peak-to-
peak signal level of up to 450 mV. The signal at BBOUT is riding on a 1.5 Vdc value that varies somewhat with
supply voltage and temperature, so it should be coupled through a capacitor to an external load. When an
external data recovery process is used with AGC, BBOUT must be coupled to the external data recovery pro-
cess and CMPIN by separate series coupling capacitors. The output impedance of this pin becomes very
high in sleep mode, preserving the charge on the coupling capacitor.
The value of C3 on the circuit board has been chosen to match typical data encoding schemes at 4.8 kbps. If
C4 is modified to support higher data rates and/or different data encoding schemes and PK DET is being
used, make the value of the peak detector capacitor C5 about 2x the value of C
BBO
.
RXDATA is the receiver data output pin. It is a CMOS output. The signal on this pin can come from one of two
sources. The default source is directly from the output of the data slicer circuit. The alternate source is from
the radio’s internal data and clock recovery circuit. When the internal data and clock recovery circuit is used,
the signal on RXDATA is switched from the output of the data slicer to the output of the data and clock recov-
ery circuit when a packet start symbol is detected. Each recovered data bit is then output on the rising edge of
a RXDCLK pulse (Pin 16), and is stable for reading on the falling edge of the RXDCLK pulse.
The transmitter RF output voltage is proportional to the input current to this pin. A resistor in series with the
TXMOD input is normally used to adjust the peak transmitter output. Full transmitter power (10 mW) requires
about 315 µA of drive current. The transmitter output power P
O
for a 3 Vdc supply voltage is approximately:
3
BBOUT
Out
5
RXDATA
Out
6
TXMOD
In
PO = 101*(I
TXM
)
2
, where PO is in mW and the modulation current I
TXM
is in mA
The practical power control range is 10 to -50 dBm. A ±5% TXMOD resistor value is recommended. Internally,
this pin is connected to the base of a bipolar transistor with a small emitter resistor. The voltage at the TXMOD
input pin is about 0.87 volt with 315 uA of drive current. This pin accepts analog modulation and can be driven
with either logic level data pulses (unshaped) or shaped data pulses.
A series 6.2 kilohm resistor is installed to provide +10dBm average output power with a +3Vdc input.
This pin is the receiver low-pass filter bandwidth adjust. The filter bandwidth is set by a resistor R
LPF
(R4)
between this pin and ground. The resistor value can range from 510 K to 3 K, providing a filter 3 dB bandwidth
f
LPF
from 5 to 600 kHz. The resistor value is determined by:
7
LPFADJ
In
R
LPF
= (0.0006*f
LPF
)
-1.069
where R
LPF
is in kilohms, and f
LPF
is in kHz
A ±5% resistor should be used to set the filter bandwidth. This will provide a 3 dB filter bandwidth between
f
LPF
and 1.3* f
LPF
with variations in supply voltage, temperature, etc. The filter provides a three-pole, 0.05
degree equiripple phase response.
A 470 kilohm resistor to GND is installed to provide a 3dB filter band-
width of 5.275kHz. Connect an external ±1%, 243kilohm resistor to GND for 19.2kbps operation.
RF Monolithics, Inc.
Phone: (972) 233-2903
Fax: (972) 387-8148
RFM Europe
Phone: 44 1963 251383
Fax: 44 1963 251510
©1999 by RF Monolithics, Inc. The stylized RFM logo are registered trademarks of RF Monolithics, Inc.
E-mail: info@rfm.com
http://www.rfm.com
DR8100-041107
Page 3 of 8
916.50 MHz
Pin
8
Name
TX/RX
In/Out
In
Spread Spectrum Transceiver Module
Description
Logic Input (CMOS compatible). This pin, in 3G mode, selects the operation of the TR8100 . Pull this pin
‘High’ for Transmit Mode. Pull this pin ‘Low’ for Receive mode.
Do not allow this pin to float.
Logic Input (CMOS compatible). This pin, in 3G mode, selects the operation of the TR8100. Pull this pin
‘High’ for OOK Transmit/Receive mode. Pull this pin ‘Low’ for ASK Transmit/Receive mode.
Do not allow this
pin to float.
Logic Input (CMOS compatible). This pin, in 3G mode, puts the TR8100 into Sleep mode. Pull this pin ‘High’
for Sleep Mode. Pull this pin ‘Low’ for operation mode.
Do not allow this pin to float.
Logic Input (CMOS compatible). This pin, in 3G mode, enables the Start Vector Recognition circuit. The
TR8100 will not output a recovered clock on RXDCLK (pin 16) until the start vector, 0xE2E2, has been recog-
nized. Pull this pin ‘High’ to enable Start Vector Recognition. Pull this pin ‘Low’ then ‘High’ to reset the Start
Vector Recognition circuit.
Do not allow this pin to float.
Logic Input (CMOS compatible). This pin, in 3G mode, selects Internal Spread Spectrum (ISS) operation of
the TR8100. This selects a simple 460800 chip/s 1-0-1-0…DSSS “spreading code” designed to meet FCC
15.247 transmitter spectral density criteria. This bit should always be set to ‘1’ when operating the TR8100 in
3G mode. Pull this pin ‘High’ to enable ISS. Pull this pin ‘Low’ to disable ISS.
Do not allow this pin to float.
Logic Input (CMOS compatible). This pin, in 3G mode, selects DSSS operation for transmit mode of the
TR8100. The states of this bit sets the basic operating transmit mode of the radio. The target transmit mode
for the TR8100 is “digital modulation” (DSSS), so this bit should be set to ‘1’
each time a transmission is
made.
Pull this pin ‘High’ to transmit DSSS code. Pull this pin ‘Low’ to disable DSSS mode.
Do not allow this
pin to float.
Logic Input (CMOS compatible). This pin, in 3G mode, selects the receive data rate of the DR8100-EV. Pull
this pin ‘High’ to select 4.8kbps. Pull this pin ‘Low’ to select 19.2kbps.
Do not allow this pin to float.
NOTE: Operating at 19.2kbps will require the value of C4, C5 and R4 to change to accommodate the
higher data rate. See the TR8100 datasheet for recommended component values.
Logic Input (CMOS compatible). This pin sets the processor to operate in 3G mode. The power-up operating
configuration of the TR8100 device is controlled by the J2 jumper setting. When DC power is applied to the
DR8100-EV with J2 installed across 2-3, this pin should be pulled ‘High’ immediately after power-up to initiate
3G mode. Failure to pull pin 15 ‘High’ after power-up will cause the processor to remain inactive. Pulling this
pin ‘High’ wakes the processor for 3G mode operation. When DC power is applied to the DR8100-EV with J2
installed across 1-2, this pin should be held ‘Low’ to operate in 2G mode.
Do not allow this pin to float.
RXDCLK is the clock output from the data and clock recovery circuit. RXDCLK is a CMOS output. When the
radio’s internal data and clock recovery circuit is not used, RXDCLK is a steady low value. When the internal
data and clock recovery is used, RXDCLK is low until a packet start symbol is detected at the output of the
data slicer. Each bit following the start symbol is output at RXDATA on the rising edge of a RXDCLK pulse,
and is stable for reading on the falling edge of the RXDCLK pulse. Once RXDCLK is activated by the detec-
tion of a start symbol, it remains active until SVEN (pin 11) is reset. See Pin 11 description.
In 3G control mode, CFGDAT is a bi-directional CMOS logic pin. When CFG (Pin 19) is set to a logic 1, con-
figuration data can be clocked into or out of the radio’s configuration registers through CFGDAT using CFG-
CLK (Pin 18). Data clocked into CFGDAT is transferred to a control register each time a group of 8 bits is
received. Pulses on CFGCLK are used to clock configuration data into and out of the radio through CFGDAT.
When writing through CFGDAT, a data bit is clocked into the radio on the rising edge of a CFGCLK pulse.
When reading through CFGDAT, data is output on the rising edge of the CFGCLK pulse and is stable for read-
ing on the falling edge of the CFGCLK. Refer to the TR8100 datasheet for detailed timing. This pin is a high
impedance input (CMOS compatible) in 2G mode. This pin must be held at a logic level.
Do not allow this pin
to float.
In 3G control mode, pulses on CFGCLK are used to clock configuration data into and out of the radio through
CFGDAT (Pin 17). When writing to CFGDAT, a data bit is clocked into the radio on the rising edge of a CFG-
CLK pulse. When reading through CFGDAT, data is stable for reading on the falling edge of the CFGCLK.
Refer to the TR8100 datasheet for detailed timing. This pin is a high impedance input (CMOS compatible) in
2G mode.
Do not allow this pin to float.
9
OOK/ASK
In
10
SLEEP
In
11
SVEN
In
12
ISS
In
13
DSSS
In
14
4.8KBPS/
19.2KBPS
In
15
3G SEL
In
16
RXDCLK
Out
17
CFGDAT
In/Out
18
CFGCLK
In/Out
RF Monolithics, Inc.
Phone: (972) 233-2903
Fax: (972) 387-8148
RFM Europe
Phone: 44 1963 251383
Fax: 44 1963 251510
©1999 by RF Monolithics, Inc. The stylized RFM logo are registered trademarks of RF Monolithics, Inc.
E-mail: info@rfm.com
http://www.rfm.com
DR8100-041107
Page 4 of 8
916.50 MHz
Theory of Operation
Spread Spectrum Transceiver Module
The DR8100-EV evaluation module is centered around the TR8100 Spread Spectrum ASH Transceiver. The DR8100-EV may
operate in backward compatible 2G mode, or in the enhanced 3G mode. Since 3G mode requires the use of a serial I/O port
to configure internal registers, the module includes an on-board Silicon Labs C8051F330 microcontroller to control access to
the serial port. When 2G mode is enabled the microcontroller serves no function. When 3G mode is enabled the
microcontroller constantly scans pins 8-15 for a change of logic state. When a state change is detected on one or more of
these pins, the microcontroller automatically updates the internal configuration registers via the serial port of the TR8100. The
microcontroller assumes full control of the CFG pin, CFGCLK pin, and CFGDAT pin in 3G mode to continuously update the
internal registers.
The DR8100-EV module is designed to demonstrate the performance of the TR8100 Spread Spectrum ASH Transceiver at
4.8kbps, although other data rates are possible with changes in on-board component values. See pin descriptions and refer
to the TR8100 datasheet.
The DR8100-EV module may be mounted on a prototype assembly using standard 0.1” spacing, 10-pin headers spaced 0.9”
apart.
2G Mode Operation
The DR8100-EV may operate in 2G mode. See pin 15 description and Power-up Mode Select (J2) section for mode select
details. In 2G mode, the CFGCLK pin (18) and CFGDAT pin (17) operate as CTRL0 and CTRL1, respectively, just as for
second-generation devices. The CFGCLK and CFGDAT pins are a high impedance input allowing external control for 2G
configuration. The logic levels on CFGCLK (CTRL0) and CFGDAT (CTRL1) control the default 2G operation as shown
below:
CFGCLK (CNTRL0)
0
1
0
1
CFGDAT (CNTRL1)
0
0
1
1
MODE
SLEEP
TX OOK
TX ASK
RX

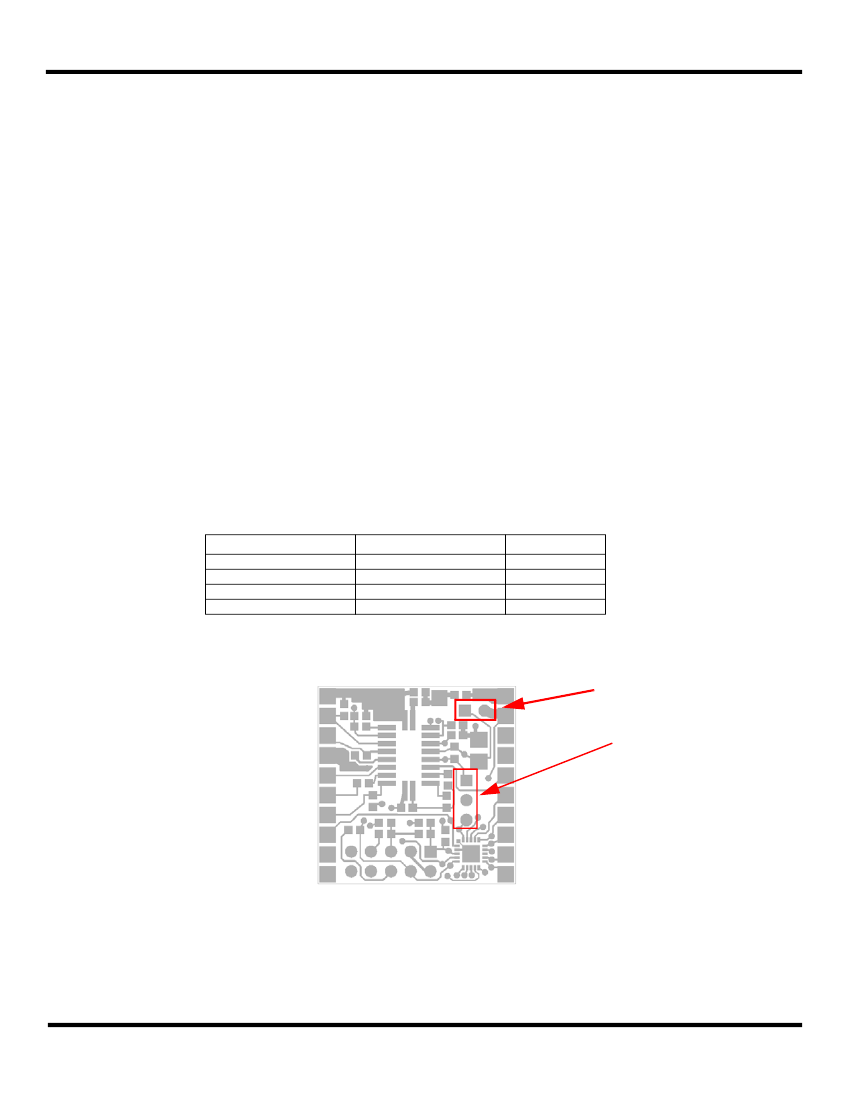

J5 Header
J2 Header
Current Consumption Monitor (J5)
The current consumption of the TR8100 device may be monitored by removing J5 and connecting an ammeter across the terminals. When
J5 is removed it isolates the TR8100 from VCC powering the on-board processor to give a true reading of the current consumption of only
the TR8100 without the additional current usage of the processor. J5 must be installed to power the TR8100 if not using the header for current
measurement.
RF Monolithics, Inc.
Phone: (972) 233-2903
Fax: (972) 387-8148
RFM Europe
Phone: 44 1963 251383
Fax: 44 1963 251510
©1999 by RF Monolithics, Inc. The stylized RFM logo are registered trademarks of RF Monolithics, Inc.
E-mail: info@rfm.com
http://www.rfm.com
DR8100-041107
Page 5 of 8
京公网安备 11010802033920号
EEWORLD
