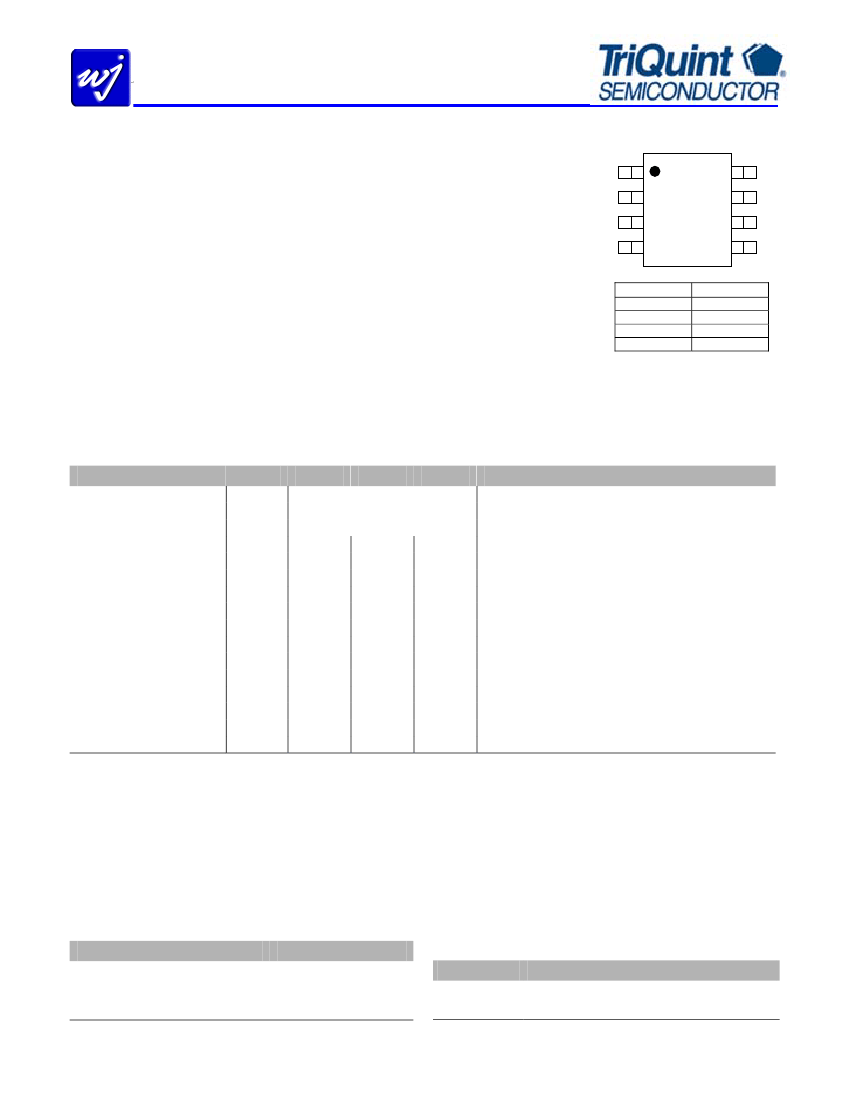

MH203A uses patented techniques to realize +34 dBm
Input IP3 at an LO drive level of +17 dBm and can be used
for upconverting or downconverting high-side LO
applications. This single monolithic integrated circuit does
not require any external baluns or bias elements.
Typical applications include frequency up/down
conversion, modulation and demodulation for receivers and
transmitters used in 2.5G and 3G GSM/CDMA/wCDMA
mobile infrastructure in the cellular frequency band.
Functional Diagram
MH203A
1
2
3
4
8
7
6
5
Applications
•
2.5G and 3G GSM/CDMA/
wCDMA Mobile Infrastructure
Function
LO
IF & RF
*
GND
N/C or GND
Pin No.
2
7
1, 3, 4, 6, 8
5
* External components (inductors & capacitors) are
required to diplex the signal
Specifications
Parameters
RF Frequency Range
LO Frequency Range
IF Frequency Range
SSB Conversion Loss
Noise Figure
Input IP3
Input IP3
Input P1dB
2*LO – RF Isolation
LO – RF Isolation
LO – IF Isolation
RF – IF Isolation
Return Loss: RF Port
Return Loss: IF Port
Return Loss: LO Port
LO Drive Level
Units
MHz
MHz
MHz
dB
dB
dBm
dBm
dBm
dB
dB
dB
dB
dB
dB
dB
dBm
Min
Typ
800 – 960
1000 – 1310
70 – 350
7.3
7.8
+31.5
+34
+17.5
35
30
60
25
20
23
15
+17
Max
Comments
8.5
9.0
+28
+30
See note 1
See note 2
RF=900-960MHz, IF>300MHz, See note 3
All other RF/IF combinations, See notes 1 and 3
Referenced to the LO level at the RF port
25
50
10
10
10
See note 4
See note 4
LO=1064-1089MHz, See note 5
1. Test conditions unless otherwise noted: RF / IF = 803 / 200, 963 / 200, and 963 / 350 MHz with a high-side LO at +17 dBm in a downconverting application at 25 °C.
The diplexer shown on the application circuit is used in the test fixture.
2. Assumes LO injection noise is filtered at the thermal noise floor, -174 dBm/Hz, at the RF, IF, and Image frequencies.
3. IIP3 is measured with
Δf
= 1 MHz with RFin = 0 dBm / tone.
4. The return loss is measured after the diplexer which splits the RF and IF signals from the mixer.
5. The minimum LO port return loss is 9 dB for LO=1000-1064MHz and LO=1089-1310MHz.
Absolute Maximum Rating
Parameter
Operating Case Temperature
Storage Temperature
LO Power
Input IF / RF Power
-40 to +85
°C
-65 to +100 °C
+21 dBm
+20 dBm
Rating
Ordering Information
Part No.
MH203A-G
MH203A-PCB
Description
High Dynamic Range Cellular-band MMIC Mixer
(lead-free/green/RoHS-compliant SOIC-8 package)
Fully-Assembled Mixer Application Board
Specifications and information are subject to change without notice
Operation of this device above any of these parameters may cause permanent damage.
WJ Communications, Inc
•
Phone 1-800-WJ1-4401
•
FAX: 408-577-6621
•
e-mail: sales@wj.com
•
Web site: www.wj.com, www.TriQuint.com
Page 1 of 4 April 2006
MH203A
MH203A
LO
PIN 2
PIN 7
High Linearity Cellular-Band MMIC Mixer
Product Information

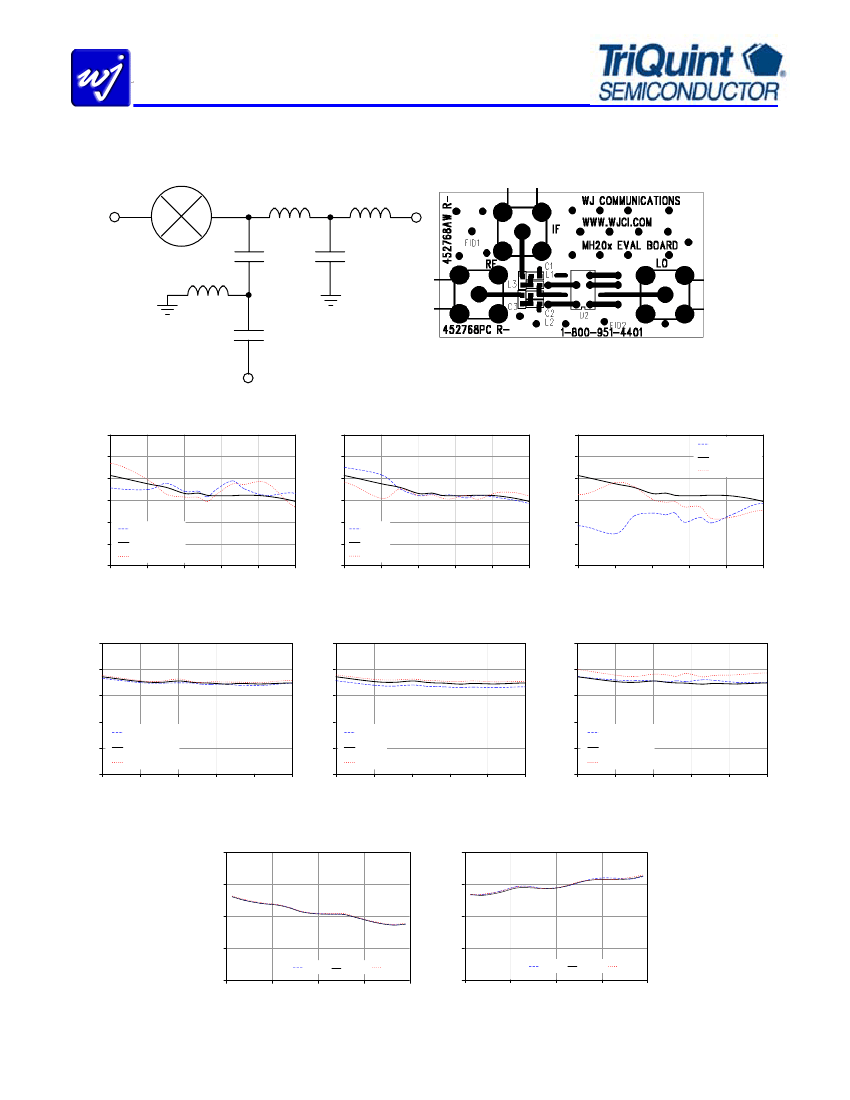

Typical Upconversion Performance Plots
Performance using the circuitry on the MH203A-PCB Evaluation Board
L1
23 nH
L3
7.5 nH
IF
C2
3.6 pF
C1
8.2 pF
L2
10 nH
C3
7.5 pF
RF
Circuit Board Material: .014” FR-4, 4 layers, .062” total thickness
All passive components are 0402 size.
All other pins on mixer are grounded.
Input IP3 vs RF Frequency vs IF Frequency
High-side Upconversion, LO = +17 dBm, 25 °C
Input IP3 vs RF Frequency vs Temperature
High-side Upconversion, LO = +17 dBm, IF = 326 MHz
Input IP3 vs RF Frequency vs LO Power
High-side Upconversion, IF = 326 MHz, 25 °C
38
Input IP3 (dBm)
Input IP3 (dBm)
38
Input IP3 (dBm)
38
36
34
32
30
28
26
850
900
950
1000
750
800
850
900
36
34
32
30
28
26
750
36
34
32
30
28
26
-20 °C
+25 °C
+85 °C
750
800
LO = 15 dBm
LO = 17 dBm
LO = 19 dBm
IF = 312 MHz
IF = 326 MHz
IF = 340 MHz
800
850
900
950
1000
950
1000
RF Frequency (MHz)
Conv. Loss vs RF Frequency vs IF Frequency
High-side Upconversion, LO = +17 dBm, 25 °C
RF Frequency (MHz)
Conv. Loss vs RF Frequency vs Temperature
High-side Upconversion, LO = +17 dBm, IF = 326 MHz
RF Frequency (MHz)
Conv. Loss vs RF Frequency vs LO Power
High-side Upconversion, IF = 326 MHz, 25 °C
9
Conversion Loss (dB)
Conversion Loss (dB)
9
8
7
6
5
4
750
800
850
900
950
1000
750
800
850
900
950
1000
Conversion Loss (dB)
9
8
7
6
5
4
750
800
850
900
950
1000
8
7
6
5
4
RF Frequency (MHz)
IF = 312 MHz
IF = 326 MHz
IF = 340 MHz
-20 °C
+25 °C
+85 °C
LO = 15 dBm
LO = 17 dBm
LO = 19 dBm
RF Frequency (MHz)
L-R Isolation vs Temperature
High-side Upconversion
RF Frequency (MHz)
L-I Isolation
High-side Upconversion
50
L-R Isolation (dB)
L-I Isolation (dB)
70
60
50
40
-20°C
30
1000
+25°C
+85°C
1400
40
30
20
-20°C
10
1000
+25°C
+85°C
1400
1100
1200
1300
LO Frequency (MHz)
1100
1200
1300
LO Frequency (MHz)
Specifications and information are subject to change without notice
WJ Communications, Inc
•
Phone 1-800-WJ1-4401
•
FAX: 408-577-6621
•
e-mail: sales@wj.com
•
Web site: www.wj.com, www.TriQuint.com
Page 2 of 4 April 2006
MH203A
Input IP3 vs RF Frequency
High-side Downconversion, LO = +17 dBm, 25 °C
High Linearity Cellular-Band MMIC Mixer
Product Information

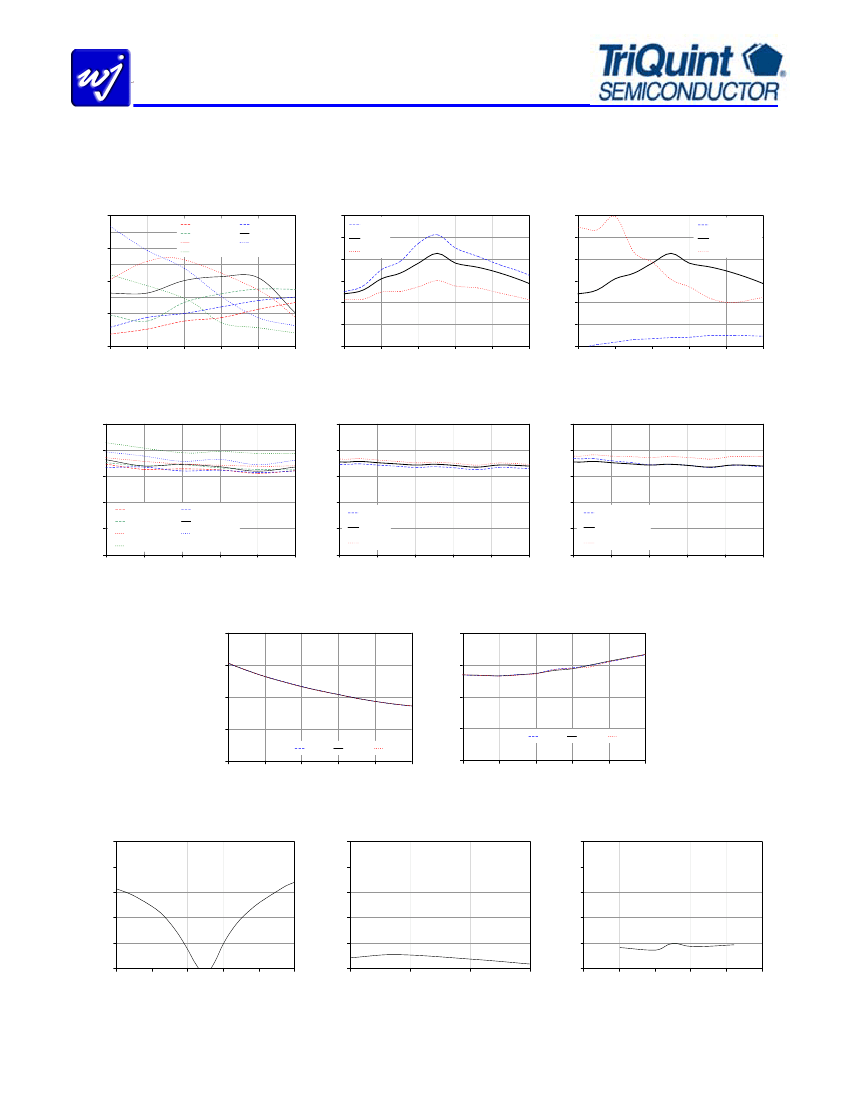

Typical Downconversion Performance Plots
Performance using the circuitry on the MH203A-PCB Evaluation Board
Input IP3 vs RF Frequency vs Temperature
High-side Downconversion, LO = +17 dBm, IF = 240 MHz
Input IP3 vs RF Frequency vs LO Power
High-side Downconversion, IF = 240 MHz, 25 °C
44
Input IP3 (dBm)
Input IP3 (dBm)
40
36
32
28
750
800
850
36
34
32
30
28
Input IP3 (dBm)
IF = 100 MHz
IF = 200 MHz
IF = 300 MHz
IF = 400 MHz
IF = 150 MHz
IF = 250 MHz
IF = 350 MHz
40
38
-20 °C
+25 °C
+85 °C
40
38
36
34
32
30
28
LO = 15 dBm
LO = 17 dBm
LO = 19 dBm
900
950
1000
750
800
850
900
950
1000
750
800
850
900
950
1000
RF Frequency (MHz)
Conversion Loss vs RF Frequency
High-side Downconversion, LO = +17 dBm, 25 °C
RF Frequency (MHz)
Conv. Loss vs RF Frequency vs Temperature
High-side Downconversion, LO = +17 dBm, IF = 240 MHz
RF Frequency (MHz)
Conv. Loss vs RF Frequency vs LO Power
High-side Downconversion, IF = 240 MHz, 25 °C
9
Conversion Loss (dB)
Conversion Loss (dB)
9
8
7
6
5
4
750
800
850
900
950
1000
750
800
850
900
950
1000
Conversion Loss (dB)
9
8
7
6
5
4
750
800
850
900
950
1000
8
7
6
5
4
RF Frequency (MHz)
IF = 100 MHz
IF = 200 MHz
IF = 300 MHz
IF = 400 MHz
IF = 150 MHz
IF = 250 MHz
IF = 350 MHz
-20 °C
+25 °C
+85 °C
LO = 15 dBm
LO = 17 dBm
LO = 19 dBm
RF Frequency (MHz)
L-R Isolation vs Temperature
High-side Downconversion
RF Frequency (MHz)
L-I Isolation
High-side Downconversion
50
L-R Isolation (dB)
L-I Isolation (dB)
70
60
50
40
30
900
40
30
20
-20°C
10
900
1000
+25°C
+85°C
1400
-20°C
+25°C
+85°C
1100
1200
1300
LO Frequency (MHz)
1000
1100
1200
1300
LO Frequency (MHz)
1400
LO Return Loss
LO = +17 dBm, 25 °C
IF Return Loss
LO = +17 dBm, 25 °C
RF Return Loss
LO = +17 dBm, 25 °C
0
LO Return Loss (dB)
0
-5
-10
-15
-20
-25
200
RF Return Loss (dB)
IF Return Loss (dB)
0
-5
-10
-15
-20
-25
750
-5
-10
-15
-20
-25
900
1000
1100
1200
1300
LO Frequency (MHz)
1400
250
300
IF Frequency (MHz)
350
800
850
900
950
RF Frequency (MHz)
1000
Specifications and information are subject to change without notice
WJ Communications, Inc
•
Phone 1-800-WJ1-4401
•
FAX: 408-577-6621
•
e-mail: sales@wj.com
•
Web site: www.wj.com, www.TriQuint.com
Page 3 of 4 April 2006
MH203A
High Linearity Cellular-Band MMIC Mixer
Product Information
This package is lead-free/green/RoHS-compliant. The plating material on the leads is NiPdAu. It is compatible with both lead-free (maximum 260
°C
reflow
temperature) and lead (maximum 245
°C
reflow temperature) soldering processes.

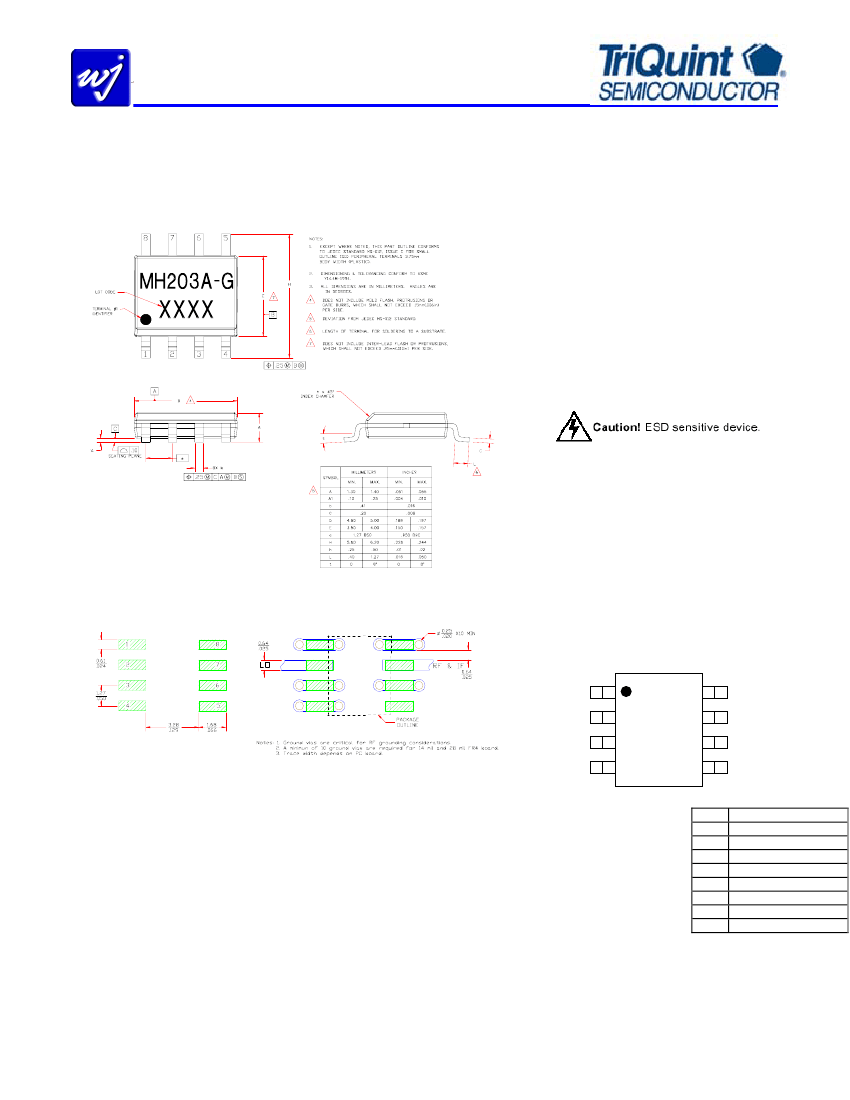

MH203A-G (Lead-Free/Green SOIC-8 Package) Mechanical Information
Outline Drawing
Product Marking
The component will be marked with an
“MH203A-G” designator with an alphanumeric
lot code on the top surface of the package. The
obsolete tin-lead package is marked with an
“M203A” designator with an alpha numeric lot
code.
Tape and reel specifications for this part are
located on the website in the “Application
Notes” section.
ESD / MSL Information
ESD Rating:
Value:
Test:
Standard:
ESD Rating:
Value:
Test:
Standard:
Class 1B
Passes
/500V
to <1000 V
Human Body Model (HBM)
JEDEC Standard JESD22-A114
Class III
Passes
/500
V to <1000 V
Charged Device Model (CDM)
JEDEC Standard JESD22-C101
Land Pattern / Mounting Configuration
MSL Rating: Level 2 at +260
°C
convection reflow
Standard:
JEDEC Standard J-STD-020
Functional Pin Layout
MH203A
1
2
3
4
8
7
6
5
Pin
Function
1
Ground
2
LO Port
3
Ground
4
Ground
5
No Connect / Ground
6
Ground
7
RF / IF Port*
8
Ground
* External components (inductors & capacitors) are
required to diplex the signal
Specifications and information are subject to change without notice
Many real-time DSP applications are likely to perform multiple seemingly unrelated tasks at the same time. For example, responding to external events when external data becomes valid or a control sign...
I am a new soho. Due to the recent surge in printing volume, I decided to buy a cheap printer. I looked at the products under 300 yuan on the market. It seems that only Canon's iP1180 and Lenovo's 341...
I want to write and read data continuously through I2C. I use a for loop to operate. The first data is written, and the following data is not written. The same is true for reading. However, if I do no...
The first time I remember seeing an oscilloscope was when the teacher demonstrated it in a high school physics class, using an oscilloscope (probably the J2459 "student oscilloscope") to observe alter...
With the promotion of the construction of intelligent communities in the country, anti-theft systems have become essential equipment for intelligent communities. Especially in recent years, the urg...[Details]
1. Overview
Will passive devices
produce nonlinear intermodulation distortion? The answer is yes! Although there is no systematic theoretical analysis, it has been found in engineerin...[Details]
System design is a complex process. It is not enough to just use ICs. There are many details to consider. This article uses a high-fidelity music playback system as an example to introduce how to s...[Details]
1 Introduction
PROFIBUS is an international, open, and manufacturer-independent fieldbus standard. It is widely used in manufacturing automation, process industry automation, and automatio...[Details]
As a simple and practical input device, buttons have been used in various microcontroller application systems and are ubiquitous. However, the buttons used in different practical occasions are also...[Details]
We know that the inverter consists of two parts: the main circuit and the control circuit. Due to the nonlinearity of the main circuit (switching action), the inverter itself is a source of harmoni...[Details]
0 Introduction
Under normal circumstances, the three-phase power in the power system is symmetrical, and they meet certain amplitude and phase conditions; but when the load changes, the syst...[Details]
In the "digital pressure measurement" experimental device of applied physics, the subject technical knowledge of analog circuits, digital circuits, sensors and single-chip microcomputers is used. In o...[Details]
People who often surf the Internet until late at night, their families always complain that turning on the big lights in the living room affects their rest, but some people don't have keyboard ligh...[Details]
Introduction
my country's rapid economic growth is mainly due to the development of manufacturing and the acceleration of urbanization. However, urbanization cannot be achieved at the expense ...[Details]
1 Introduction
CAN (Controller Area Network) bus is a kind of field bus. It is used in many industrial sectors due to its outstanding advantages such as high performance, high reliability, high...[Details]
As we all know, the manufacturing of modern automobiles is divided into four major processes: stamping, welding, painting and assembly, and the powertrain constitutes five inseparable production pr...[Details]
1 Introduction
Intelligent cars are the embodiment of the cross-integration of multiple disciplines such as automotive electronics, artificial intelligence, pattern recognition, automatic con...[Details]
1. Basic principles of organic/polymer solar cells
The basic principle of organic/polymer solar cells is to use the photovoltaic effect generated by light incident on the heterojunction of sem...[Details]
AD7708 is a multi-channel 16-bit Σ-Δ analog-to-digital converter ADC. It supports 4 or 5 channels of true differential input and 8 or 10 channels of pseudo differential input. This chip allows two ...[Details]
DSP and ARM Processors
京公网安备 11010802033920号
EEWORLD
