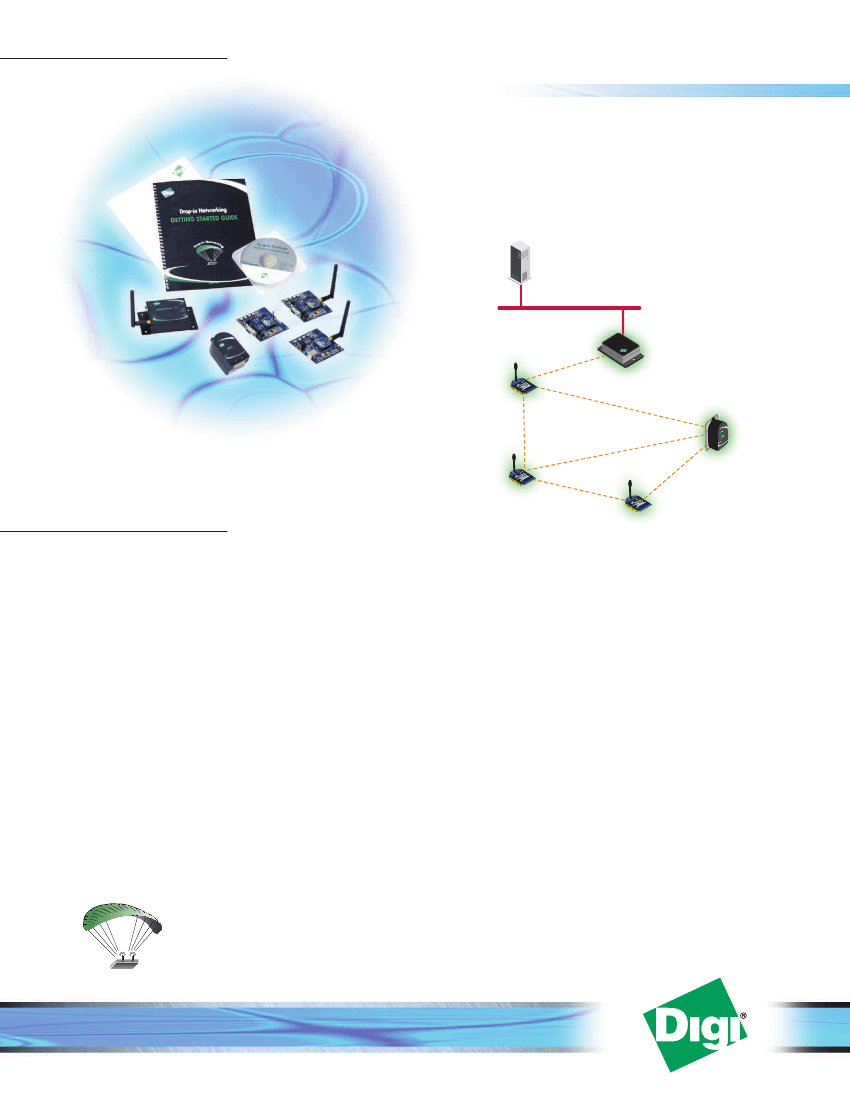

Product Datasheet
Drop-in Networking
Professional Development Kit
Proof-of-Concept Low-Power Wireless Connectivity Kit
Cost-effective, out-of-the-box kit for the evaluation
and development of wireless sensor/device networks.
Can be used as a mobile measurement tool to monitor
equipment health, sense environmental conditions or
take temporary measurements where short-term data
is needed to validate a process or conditions.
Server
Ethernet
Co
nn
ec
tP
o rt
X2
Conn
Co
ConnectPort™ X2
Gateway
G
XBee
®
Wall Router
Route
O
PR
XBee
®
Modules
dules
O
PR
Wireless Personal
Area Network
O
PR
Features/Benefits
• Easily configure a low-power
mesh or multipoint sensor/
device network
• Conduct a basic wireless
range test
• Provide IP connectivity to the
network using the ConnectPort X2
gateway
• Monitor light and temperature
readings from the XBee wall
router (mesh kit version)
• Laptop or PC access to the
WPAN via the XBee USB adapter
(multipoint kit version)
Overview
The Drop-in Networking Professional Development Kit provides the hardware and software
tools to rapidly deploy a real-world wireless sensor/device network and proof-of-concept
system. All hardware components are pre-configured to run either mesh or multipoint
networking software, which is optimized for low-power, battery-fueled operation.
The kit includes:
• 3 XBee modules (1 XBee and 2 XBee-PRO
®
) and 3 interface boards (1 USB and
2 RS-232) to simulate endpoints in the Wireless Personal Area Network (WPAN).
• 1 ConnectPort™ X2 gateway which concentrates data from the XBee modules
for connectivity to a PC or the IP network. The gateway provides a Python-based
programming engine for custom application development.
• 1 XBee wall router (mesh kit versions) OR 1 XBee USB adapter (multipoint kit
versions)
- The wall router provides network extension and plugs into a standard power
outlet. It also includes integrated light and temperature sensors that can be
monitored via the gateway.
- The XBee USB adapter provides easy local connectivity to the WPAN via a
laptop or PC.
• Power supplies, user documentation and configuration CD. The CD also provides a
set of Python
®
programming tools to assist with custom application development.
To see the full range of Digi’s Drop-in Networking solutions, including off-the-shelf XBee
adapters for connecting legacy devices to mesh and multipoint networks, as well as cellular
and Wi-Fi gateway models, visit
http://www.digi.com/products/wirelessdropinnetworking/.
-in
Network
op
in
Dr
www.digi.com
g
Product Type
Model
Performance
RF Data Rate
Indoor/Urban Range
Outdoor/Line-of-Sight Range
Transmit Power
Receiver Sensitivity (1% PER)
XBee® & XBee-PRO® ZNet 2.5 Modules
Regular
250 Kbps
Up to 133 ft (40 m)
Up to 400 ft (20 m)
1.25 mW (+1 dBm) / 2 mW
(+3 dBm) boost mode
-96 dBm in boost mode
XBee® & XBee-PRO® 802.15.4 Modules
Regular
250 Kbps
Up to 100 ft (30 m)
Up to 300 ft (90 m)
1 mW (0 dBm)
-92 dBm
PRO
250 Kbps
Up to 300 ft (90 m)
Up to 1 mile (1.6 km)
50 mW (+17 dBm) / Int’l
10 mW (+10 dBm)
-102 dBm
2.4 GHz
PRO
250 Kbps
Up to 300 ft (90 m)
Up to 1 mile (1.6 km)
60 mW (+18 dBm)* / Int’l
10 mW (+10 dBm)
-100 dBm
General
Frequency Band
Sleep Modes
Operating Temperature
Low-power sleep modes enable power-down currents less than 10 uA
-40° C to +85° C (Industrial)
Product Type
General
Network Protocols
Interfaces
LEDs
Router/Security Features
Management
ConnectPort™ X2 Gateway
UDP/TCP, DHCP
Physical: 1 RJ-45 Ethernet port; RF: 1 XBee-PRO module, 2.4 GHz
Ethernet status, power, XBee link/activity
NAT, port forwarding, access control lists (IP filtering)
HTTP web interface, password access control, IP service port control, optional secure enterprise
management via Digi Connectware® Manager, Python application customization tool for programmability
9-30VDC
12VDC power supply included
1.2 W (idle) / 3.4 W (max)
Power Requirements
Power Input
Power Supply
Power Consumption
Product Type
General
Antenna
Locking Mechanism
LEDs
XBee® Wall Router
Internal
Unit secures to power outlet using center oultet screw
(U.S. only)
Power: Solid when external power is supplied
Associate: Blinks when unit is associated to an RF
network
Device reset, configuration reset to factory defaults,
identification/commissioning mode
Range: -20° C to +70° C (-4° F to +158° F)
Accuracy: +/- 2° C
Range of spectral bandwidth: 360 to 970 nm (similar to
human eye) Wavelength of peak sensitivity: 570 nm
Universal AC input (85VAC to 265VAC)
N/A
XBee® USB Adapter
Integrated whip antenna
N/A
N/A
Push Button
N/A
Integrated Temperature & Light Sensor
Temperature Sensor
Ambient Light Sensor
N/A
N/A
Power Requirements
Power Input
Power Consumption
Bus-powered (+5V)
70 mA (normal
operation) / 200 uA
(suspend mode)
70 mA Rx and 250 mA
Tx (normal operation) /
200 uA (suspend mode)
Please visit www.digi.com for part numbers.
DIGI SERVICE AND SUPPORT -
You can purchase with confidence knowing that Digi is here
to support you with expert technical support and a strong five-year warranty. www.digi.com/support
W
HEN
M
ATTERS™
