TQP4M3018 K54

Description
Switch IC - various cdma sp3t switch
Categorysemiconductor    Other integrated circuit (IC)
File Size285KB,9 Pages
ManufacturerTriQuint Semiconductor Inc. (Qorvo)
Websitehttp://www.triquint.com
Environmental Compliance
Download Datasheet Parametric View All

TQP4M3018 K54 Overview

Switch IC - various cdma sp3t switch

TQP4M3018 K54 Parametric

Parameter NameAttribute value
MakerTriQuint Semiconductor Inc. (Qorvo)
RoHSyes
EncapsulationReel
TQP4M3018
Data Sheet

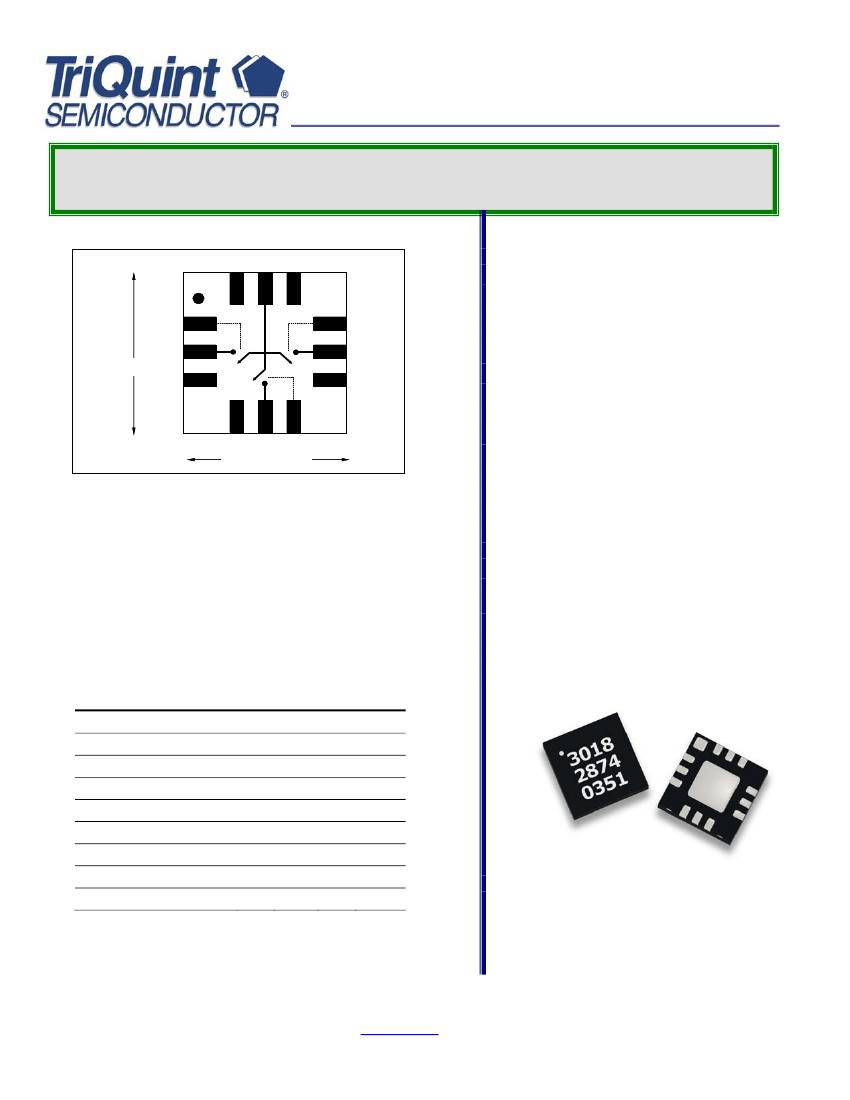

SP3T High Power 2.6V CDMA Antenna Switch

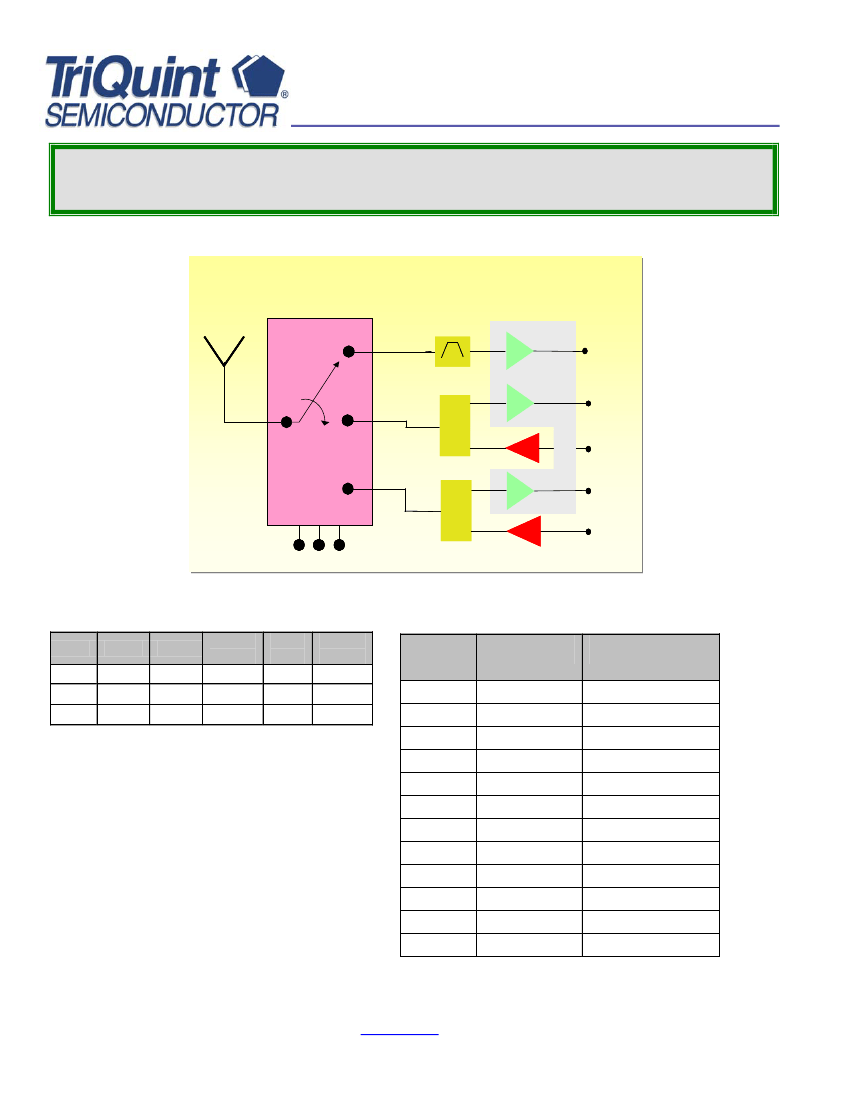

Functional Block Diagram
Top View
N/C
ANT
N/C
Features
9
8
7
V1
12
Pin 1
1
2
3
11
10
V3
RF3
RF1
3.0 +/- 0.05 mm
N/C
N/C
4
N/C
5
RF2
6
V2
3.0 +/- 0.05 mm
MLP-12 Packaged PHEMT GaAs MMIC Die
Excellent Cross-Modulation Performance
-120 dBm Typ @ Cellular
-120 dBm @ PCS
Excellent ESD Rating: 300V HBM, 2000V CDM
Low Control Voltage Operation to +2.4V
High Isolation: 22dB typ at PCS Band
Low Insertion Loss: 0.55 dB typ at PCS Band
Very Low Control Current: 10
μA
MLP-12 Package
Small Footprint 3.0 x 3.0 mm
Product Description
TriQuint’s TQP4M3018 is a high power antenna switch in a single pole three throw
(SP3T) configuration. The die utilizes TriQuint’s PHEMT MMIC switch process to
provide optimized cross-modulation performance for use in CDMA applications.
PHEMT Switches are a very low DC current replacement for classic PIN diode
based switches. This product is ideally suited to applications where the antenna of
a CDMA handset is to be routed to the Cellular duplexer, the PCS duplexer and
the GPS receiver input. The design is symmetric and broadband allowing the user
to assign cellular, PCS and GPS to ports RF1, RF2 or RF3 as desired.
Applications
CDMA Handset Antenna Switch for Cellular,
PCS and GPS operation.
Package Style
MLP-12 lead 3 x 3 mm Package:

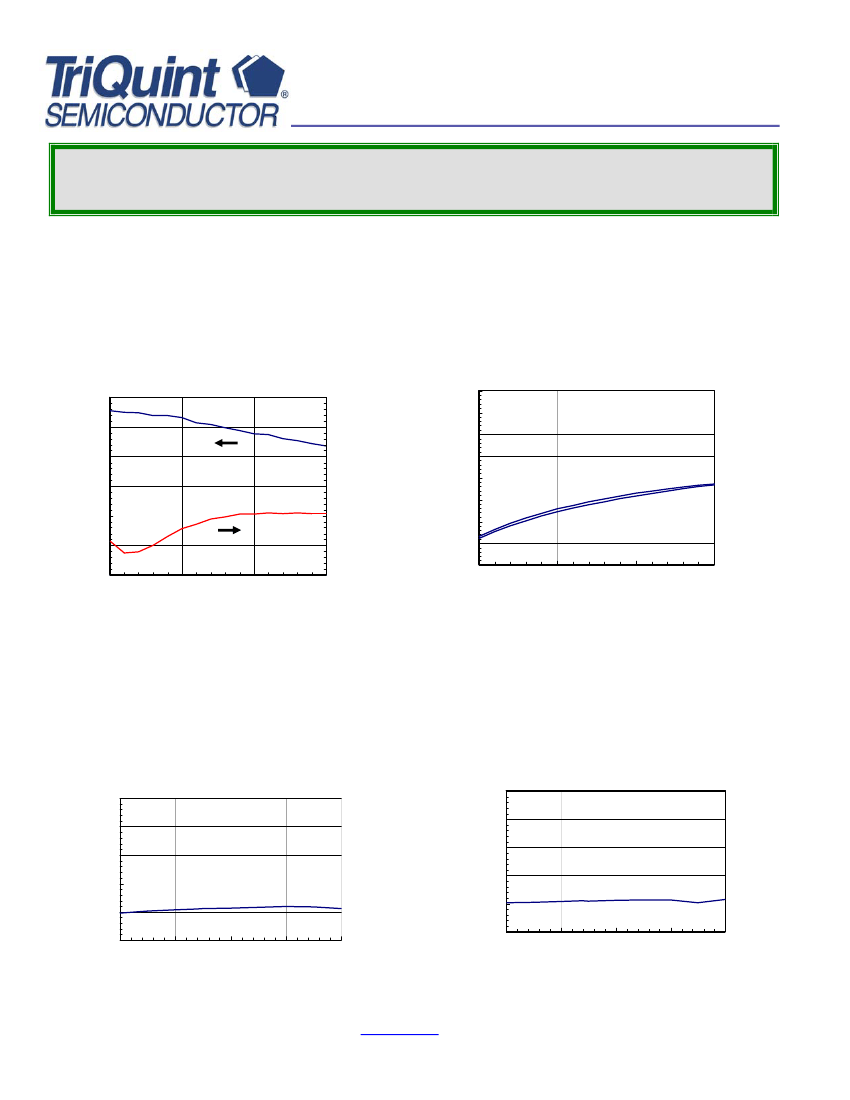

Electrical Specifications
1,2
Parameter
Cellular Insertion Loss
GPS Insertion Loss
PCS Insertion Loss
Cellular Isolation
GPS Isolation
PCS Isolation
Cellular Cross-Modulation
2
PCS Cross-Modulation
2
Note 2 : Cross-Modulation Test Conditions:
Cellular: PTx1 = 23 dBm @ 836 MHz, PTx2 = 23 dBm @ 837 MHz, P
int
= -23 dBm @ 881.5 MHz
PCS: PTx1 = 23 dBm @ 1879.5 MHz, PTx2 = 23 dBm @ 1880.5 MHz, P
int
= -23 dBm @ 1960 MHz
Min
Typ
0.45
0.52
0.55
Max
0.70
0.77
0.80
Units
dB
dB
dB
dB
dB
dB
25
20
20
28
23
22
-120
-120
-110
-110
dBm
dBm
Note 1 : Test Conditions Zo = 50 ohms: Vcontrol =0V/2.6V, Tc=25°C.
Data Sheet:
2
For additional information and latest specifications, see our website:
www.triquint.com
Revision E, May 27, 2008
