415-43-219-41-001000 datasheet, PDF

Datasheet> All Categories > The connector> socket> 415-43-219-41-001000

415-43-219-41-001000: DescriptionIC Socket; CategoryThe connector socket; File Size142KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

415-43-219-41-001000 Overview

IC Socket

415-43-219-41-001000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
Reach Compliance Code	compli
ECCN code	EAR99
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	MATTE TIN (200) OVER NICKEL (150)
Contact material	NOT SPECIFIED
Device slot type	IC SOCKET
JESD-609 code	e3
Manufacturer's serial number	415
Base Number Matches	1

Preview

Download Datasheet

View All

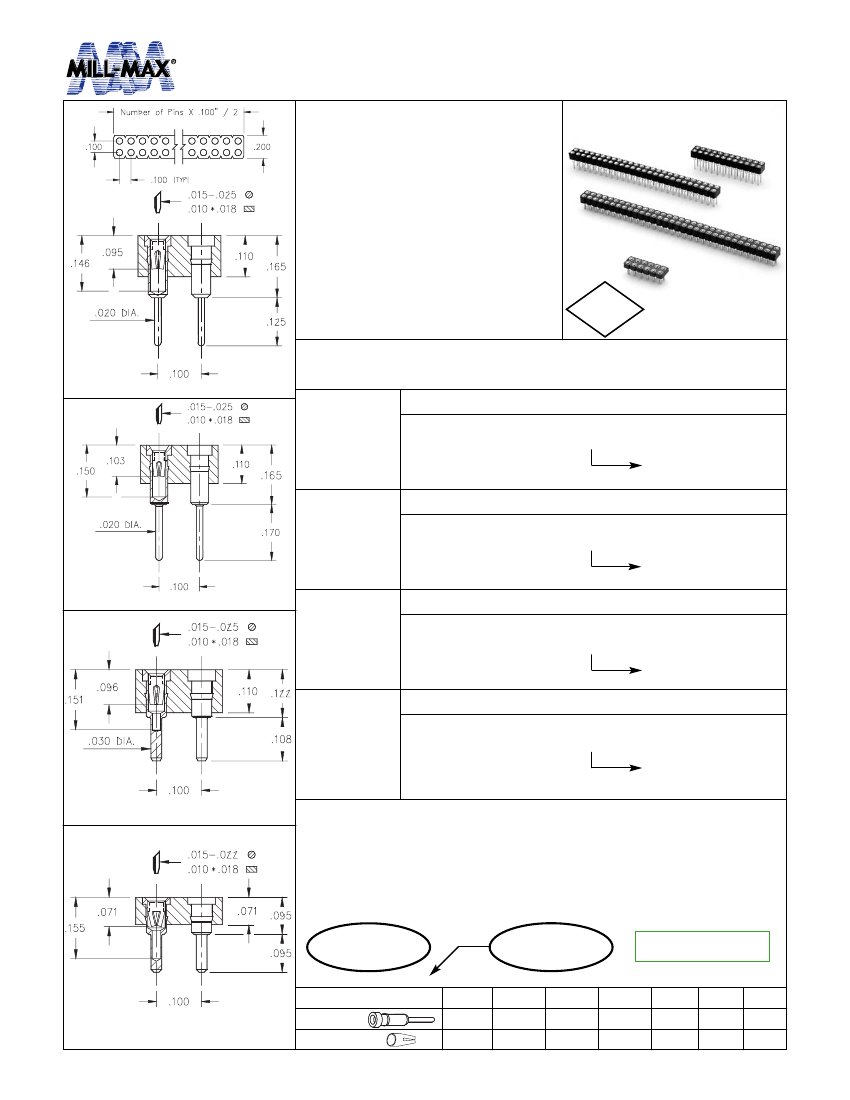

SINGLE-IN-LINE SOCKETS

.100” Grid Solder Tail

Double Row

•

Series 41X double row strip sockets

are on .100” grid.

•

Various solder tails available:

standard length, long for multi-layer

boards, very low and ultra low profile.

Using Mill-Max #1001, 0134, 0501 or

1534 pins (See pages 132, 133, 136)

for details.

•

Hi-Rel, 4-finger BeCu #12 & #30 contacts

are rated at 3 amps. See page 218 for

details.

•

Insulators are high temp. thermoplastic.

Series 410, 411, 415

2002/95/EC

RoHS

Ordering Information

Fig. 1

Series 410...001

Standard Solder Tail

Fig. 1

410-XX-2_ _-41-001000

Specify # of pins

Series 411...001

02-64

Long Solder Tail

Fig. 2

411-13-2_ _-41-001000

Specify # of pins

Series 415...001

02-64

Very Low Profile

Fig. 3

415-XX-2_ _-41-001000

Specify # of pins

Series 415...003

02-64

Ultra Low Profile

Fig. 4

415-XX-2_ _-41-003000

Specify # of pins

02-72

Fig. 3

For Electrical,

Mechanical & Enviromental

Data, See pg. 4

XX=Plating Code

See Below

For RoHS compliance

select

plating code.

SPECIFY PLATING CODE XX=

10µ” Au

30µ” Au

10µ” Au

30µ” Au

200µ”Sn/Pb

10µ” Au

Sleeve (Pin)

200µ” Sn/Pb

200µ”Sn/Pb 200µ”Sn

200µ”Sn

30µ” Au

200µ”Sn

Fig. 4

Contact (Clip)

w w w. m i l l - m a x . c o m

516-922-6000
