Last Update:
6-11-10
Dimensions: mm (in.)
Ref. #:
MS-101030
(.219)
5.56
(.30)
7.62
(.24)
6.10
(.409) 10.40
(.209)
5.30
(.03)
.76
6
5
3
2
1
(.50)
12.70
(ø.105)
ø2.67
(.45) 11.43
(.185)
4.70
4
(.05) 1.27
(.19)
4.83
Epoxy Seal
Pos. 1
Pos. 2
Pos. 3
(.19)
4.83
(.185)
4.70
(ø.073) ø1.85
ON
2-3, 5-6
1
2 Comm.
3
4
5 Comm.
6
OFF
(ON)
2-1, 5-4
1
2 Comm.
3
4
5 Comm.
6
P. C. MOUNTING
OPEN
SWITCH FUNCTION
Mechanical Specifications:
•
Mechanical Life: 30,000 make-and-break cycles
•
Operating Temperature: -30°C to 85°C
Electrical Specifications:
•
Contact Resistance: 10m Ω max. initial @ 2-4 VDC 100mA
•
Insulation Resistance: 1,000M Ω min.
•
Dielectric Strength: 1,000 V RMS @ sea level
•
Rating: 2A/250VAC
5A/120VAC or 28VDC
Note:
•
RoHS Compliant by exemption
Soldering Process:
•
Manual soldering: Use soldering iron of 30W, controlled at 350°C approx. 5 seconds while applying solder
•
Wave soldering: Recommended soldering temperature: 260±5°C Duration of solder immersion: 5±1 seconds
(PCB is 1.6mm in thickness)

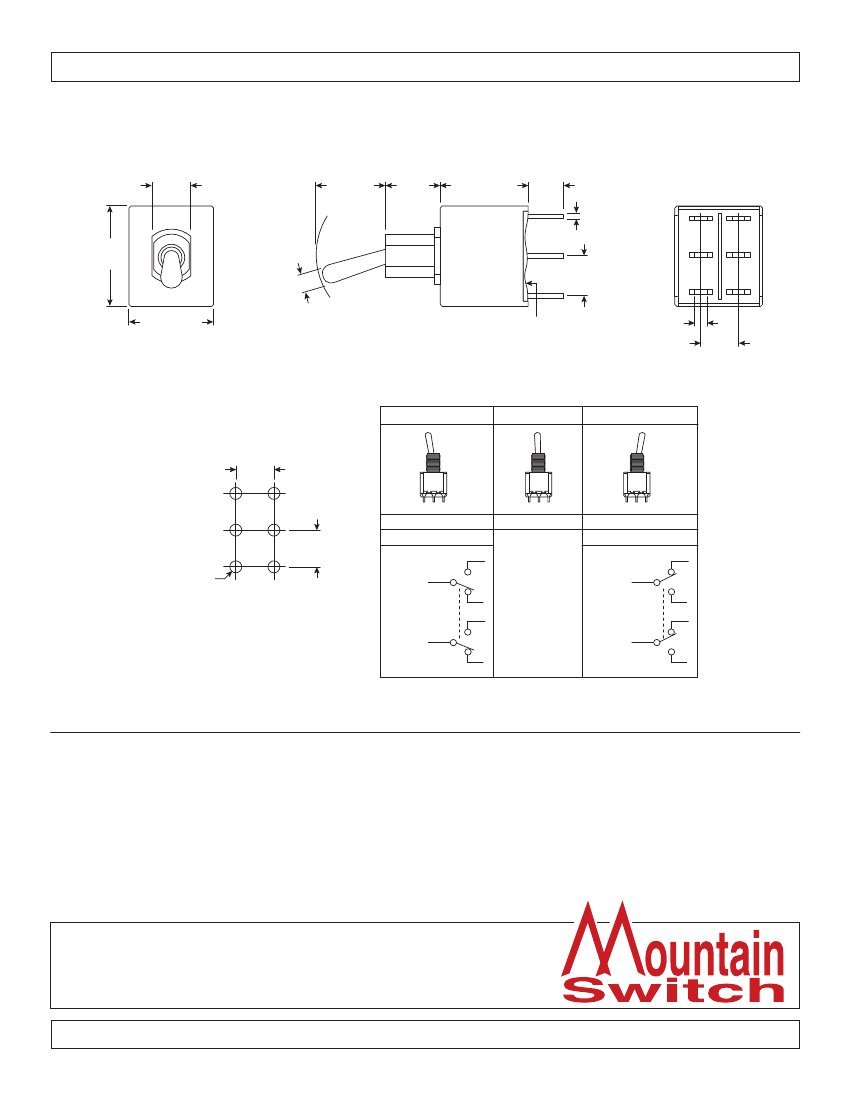

Sealed Miniature Toggle Switch
108-1AD5T2227-EVX
Available from Mouser Electronics
www.mouser.com
1-800-346-6873
Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
