BCP54
BCP54
C
E
C
B
SOT-223
NPN General Purpose Amplifier
This device is designed for general purpose medium power
amplifiers and switching circuits requiring collector currents
to 1.2 A. Sourced from Process 38.
Absolute Maximum Ratings*
Symbol
V
CEO
V
CBO
V
EBO
I
C
T
J
, T
stg
Collector-Emitter Voltage
Collector-Base Voltage
Emitter-Base Voltage
Collector Current - Continuous
TA = 25°C unless otherwise noted
Parameter
Value
45
45
5.0
1.5
-55 to +150
Units
V
V
V
A
°C
3
Operating and Storage Junction Temperature Range
*
These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.
NOTES:
1)
These ratings are based on a maximum junction temperature of 150 degrees C.
2)
These are steady state limits. The factory should be consulted on applications involving pulsed or low duty cycle operations.
Thermal Characteristics
Symbol
P
D
R
θJA
TA = 25°C unless otherwise noted
Characteristic
Total Device Dissipation
Derate above 25°C
Thermal Resistance, Junction to Ambient
Max
BCP54
1.5
12
83.3
Units
W
mW/°C
°C/W
1997
Fairchild Semiconductor Corporation
BCP54
NPN General Purpose Amplifier
(continued)
Electrical Characteristics
Symbol
Parameter
TA = 25°C unless otherwise noted
Test Conditions
Min
Max
Units
OFF CHARACTERISTICS
V
(BR)CEO
V
(BR)CBO
V
(BR)EBO
I
CBO
I
EBO
Collector-Emitter Breakdown Voltage
Collector-Base Breakdown Voltage
Emitter-Base Breakdown Voltage
Collector-Cutoff Current
Emitter-Cutoff Current
I
C
= 10 mA, I
B
= 0
I
C
= 100
µA,
I
E
= 0
I
E
= 10
µA,
I
C
= 0
V
CB
= 30 V, I
E
= 0
V
CB
= 30 V, I
E
= 0, T
A
= 125°C
V
EB
= 5.0 V, I
C
= 0
45
45
5.0
100
10
10
V
V
V
nA
µA
µA
ON CHARACTERISTICS
h
FE
DC Current Gain
I
C
= 5.0 mA, V
CE
= 2.0 V
I
C
= 150 mA, V
CE
= 2.0 V
I
C
= 500 mA, V
CE
= 2.0 V
I
C
= 500 mA, I
B
= 50 mA
I
C
= 500 mA, V
CE
= 2.0 V
25
40
25
250
0.5
1.0
V
V
V
CE(
sat
)
V
BE(
on
)
Collector-Emitter Saturation Voltage
Base-Emitter On Voltage
Typical Characteristics
500
400
300
25 °C
V
CESAT
- COLLE CTOR-EMITTER VOLTAGE (V)
h
FE
- TYP ICAL PULSED CURRE NT GAIN
Typical Pulsed Current Gain
vs Collector Current
V
CE
= 5V
Collector-Emitter Saturation
Voltage vs Collector Current
0.6
0.5
0.4
0.3
0.2
0.1
0
0.01
- 40 °C
25°C
125 °
C
β
= 10
125 °C
200
100
0
0.001
I
C
- 40 °C
0.01
0.1
- COLLECTOR CURRENT (A)
1
2
0.1
1
I
C
- COLLE CTOR CURRENT (A)
3
BCP54
NPN General Purpose Amplifier
(continued)
Typical Characteristics
(continued)
V
BE(O N)
- BASE-E MITTER ON VOLTAGE (V)
V
BESAT
- BASE-EMITTER VOLTAG E (V)
Base-Emitter Saturation
Voltage vs Collector Current
1.2
1
0.8
0.6
125 °
C
- 40 °C
25°C
Base-Emitter ON Voltage vs
Collector Current
1
β
= 10
0.8
- 40 °C
25°C
0.6
125 °
C
0.4
0.4
0.2
V
CE
= 5V
1
I
C
10
100
- COLLE CTOR CURRENT ( mA)
1000
0.2
0.001
0.01
0.1
I
C
- COLLE CTOR CURRENT (A)
1
COLLECTOR-BASE CAPACITANCE (pF)
Collector-Cutoff Current
vs Ambient Temperature
I
CBO
- COLLECTOR CURRENT (nA)
100
V
CB
= 40V
Collector-Base Capacitance
vs Collector-Base Voltage
40
10
30
3
20
10
1
0.1
25
50
75
100
125
T
A
- AMBIENT TE MPE RATURE (
°
C)
150
OBO
-
0
0
4
8
12
16
20
24
28
V
CB
- COLLECTOR-BASE VOLTAGE (V)
h
FE
- GAIN BANDWIDTH PRODUCT (MHz)
Gain Bandwidth Product
vs Collector Current
500
V
CE
= 10V
400
300
200
100
0
P
D
- POWER DISSIPATION (W)
1.5
1.25
Power Dissipation vs
Ambient Temperature
SOT-223
1
0.75
0.5
0.25
0
1
10
100
I
C
- COLLECTOR CURRENT (mA)
1000
0
25
50
75
100
TEMPERATURE (
o
C)
125
150

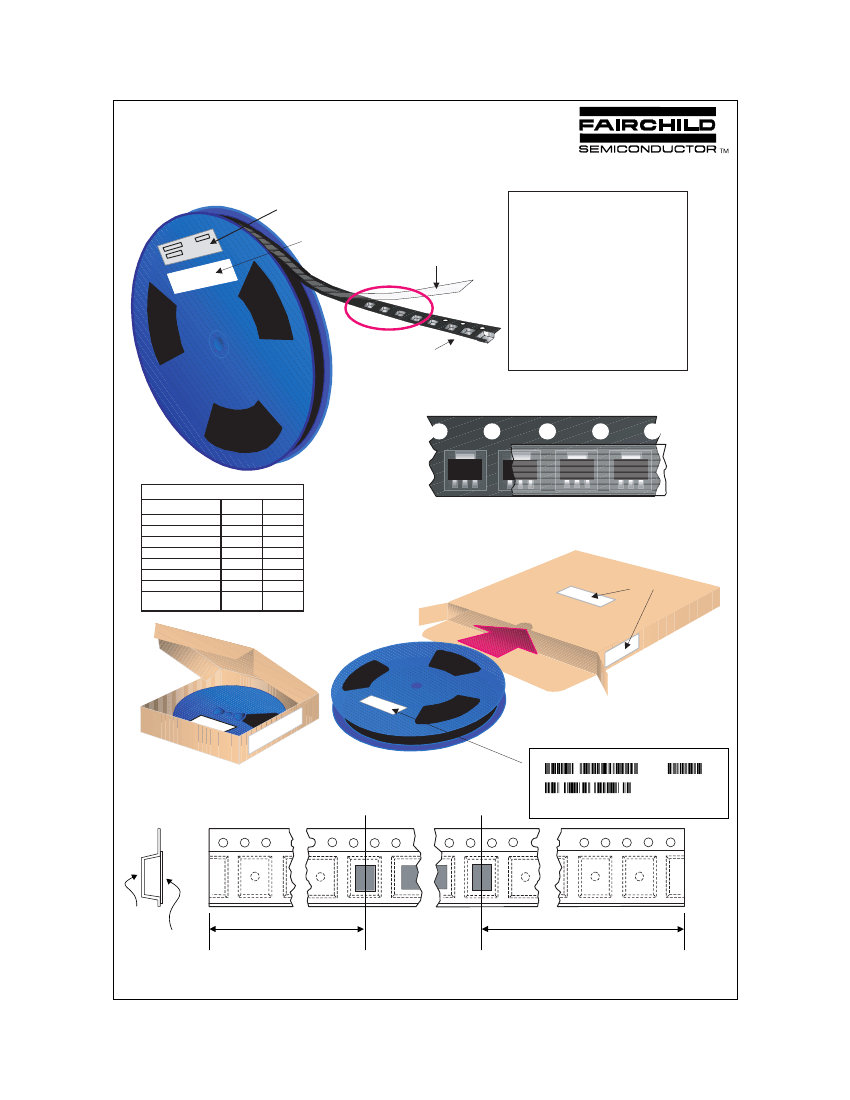

SOT-223 Tape and Reel Data
SOT-223 Packaging
Configuration:
Figure 1.0
Customized Label
Packaging Description:
SOT-223 parts are shipped in tape. The carrier tape is
made from a dissipative (carbon filled) polycarbonate
resin. The cover tape is a multilayer film (Heat Activated
Adhesive in nature) primarily composed of polyester film,
adhesive layer, sealant, and anti-static sprayed agent.
These reeled parts in standard option are shipped with
2,500 units per 13" or 330cm diameter reel. The reels are
dark blue in color and is made of polystyrene plastic (anti-
static coated). Other option comes in 500 units per 7" or
177cm diameter reel. This and some other options are
further described in the Packaging Information table.
These full reels are individually barcode labeled and
placed inside a standard intermediate box (illustrated in
figure 1.0) made of recyclable corrugated brown paper.
One box contains two reels maximum. And these boxes
are placed inside a barcode labeled shipping box which
comes in different sizes depending on the number of parts
shipped.
F63TNR Label
Antistatic Cover Tape
Static Dissipative
Embossed Carrier Tape
F852
014
SOT-223 Packaging Information
Packaging Option
Packaging type
Qty per Reel/Tube/Bag
Reel Size
Box Dimension (mm)
Max qty per Box
Weight per unit (gm)
Weight per Reel (kg)
Note/Comments
Standard
(no flow code)
TNR
2,500
13" Dia
343x64x343
5,000
0.1246
0.7250
D84Z
TNR
500
7" Dia
184x187x47
1,000
0.1246
0.1532
F852
014
F852
014
F852
014
SOT-223 Unit Orientation
343mm x 342mm x 64mm
Intermediate box for Standard
F63TNR Label
F63TNR Label
184mm x 184mm x 47mm
Pizza Box for D84Z Option
F63TNR Label sample
LOT: CBVK741B019
FSID: PN2222A
QTY: 3000
SPEC:
SOT-223 Tape Leader and Trailer
Configuration:
Figure 2.0
D/C1: D9842
D/C2:
QTY1:
QTY2:
SPEC REV:
CPN:
N/F: F
(F63TNR)3
Carrier Tape
Cover Tape
Components
Trailer Tape
300mm minimum or
38 empty pockets
Leader Tape
500mm minimum or
62 empty pockets
©2000 Fairchild Semiconductor International
September 1999, Rev. B
SOT-223 Tape and Reel Data, continued

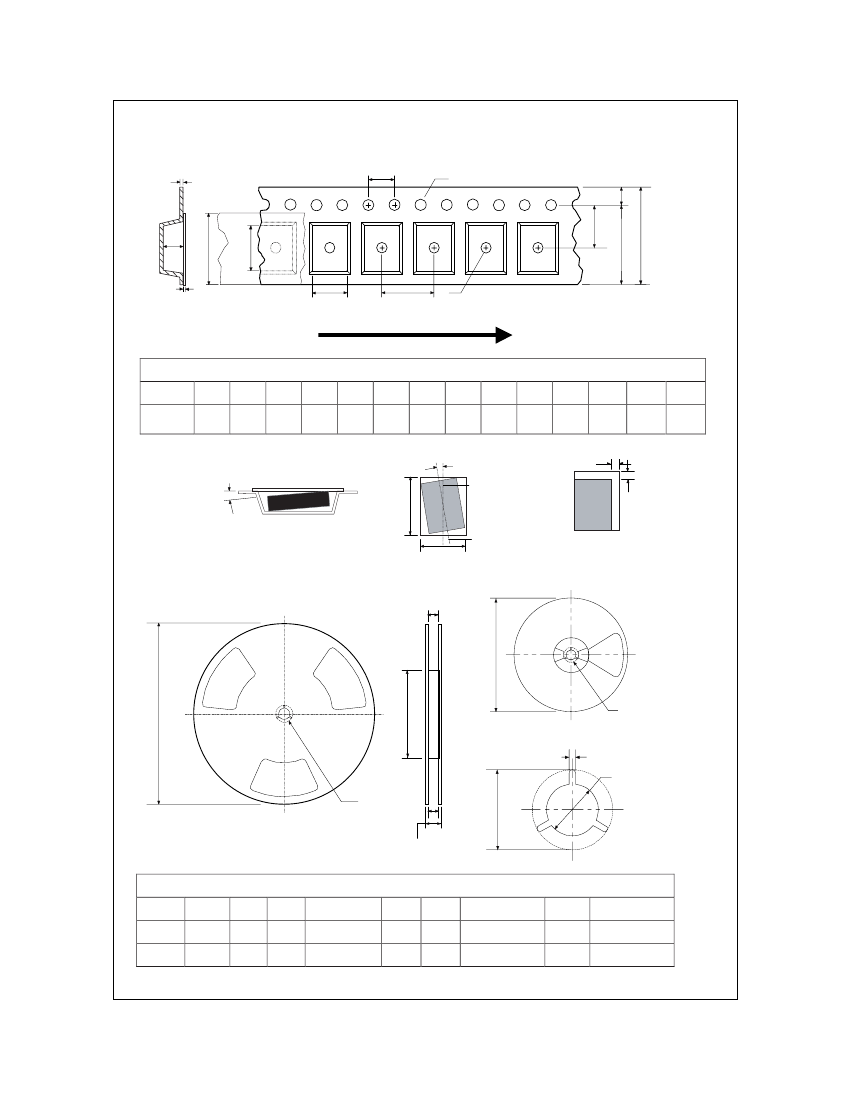

SOT-223 Embossed Carrier Tape
Configuration:
Figure 3.0
T
E1
P0
D0
F
K0
Wc
B0
E2
W
Tc
A0
P1
D1
User Direction of Feed
Dimensions are in millimeter
Pkg type
SOT-223
(12mm)
A0
6.83
+/-0.10
B0
7.42
+/-0.10
W
12.0
+/-0.3
D0
1.55
+/-0.05
D1
1.50
+/-0.10
E1
1.75
+/-0.10
E2
10.25
min
F
5.50
+/-0.05
P1
8.0
+/-0.1
P0
4.0
+/-0.1
K0
1.88
+/-0.10
T
0.292
+/-
0.0130
Wc
9.5
+/-0.025
Tc
0.06
+/-0.02
Notes: A0, B0, and K0 dimensions are determined with respect to the EIA/Jedec RS-481
rotational and lateral movement requirements (see sketches A, B, and C).
20 deg maximum
Typical
component
cavity
center line
0.5mm
maximum
B0
20 deg maximum component rotation
0.5mm
maximum
Sketch A (Side or Front Sectional View)
Component Rotation
A0
Sketch B (Top View)
Typical
component
center line
Sketch C (Top View)
Component lateral movement
SOT-223 Reel Configuration:
Figure 4.0
Component Rotation
W1 Measured at Hub
Dim A
Max
Dim A
max
Dim N
See detail AA
7" Diameter Option
B Min
Dim C
See detail AA
W3
Dim D
min
13" Diameter Option
W2 max Measured at Hub
DETAIL AA
Dimensions are in inches and millimeters
Tape Size
12mm
Reel
Option
7" Dia
Dim A
7.00
177.8
13.00
330
Dim B
0.059
1.5
0.059
1.5
Dim C
512 +0.020/-0.008
13 +0.5/-0.2
512 +0.020/-0.008
13 +0.5/-0.2
Dim D
0.795
20.2
0.795
20.2
Dim N
5.906
150
7.00
178
Dim W1
0.488 +0.078/-0.000
12.4 +2/0
0.488 +0.078/-0.000
12.4 +2/0
Dim W2
0.724
18.4
0.724
18.4
Dim W3 (LSL-USL)
0.469 – 0.606
11.9 – 15.4
0.469 – 0.606
11.9 – 15.4
12mm
13" Dia
July 1999, Rev. B
