XTC7010
• Temperature Compensated Crystal Oscillator
• Miniature Package
• Excellent Frequency Stability
• Low Phase Noise
• Complies with Directive 2002/95/EC (RoHS)
2 >
15.00000 MHz
TCXO
SM3225-4 Case
Electrical Characteristics
Characteristic
Nominal Frequency
Frequency Tolerance after Reflow
Storage Temperature Range in Tape and Reel
Operating Temperature Range
Power Supply Voltage
Out Voltage with 10 pF || 10 KΩ Load
Output Waveform
Power Supply Current
Frequency Stability versus:
Temperature, -40 to 85 °C
Load Variation, 10 pF || 10 KΩ ±10%
Supply Voltage, 2.80 V ±5%
Start Up Time, 90% of Final RF level in V
P-P
Harmonics
SSB Phase Noise @ 1 kHz Carrier Offset
Aging @ 25 °C

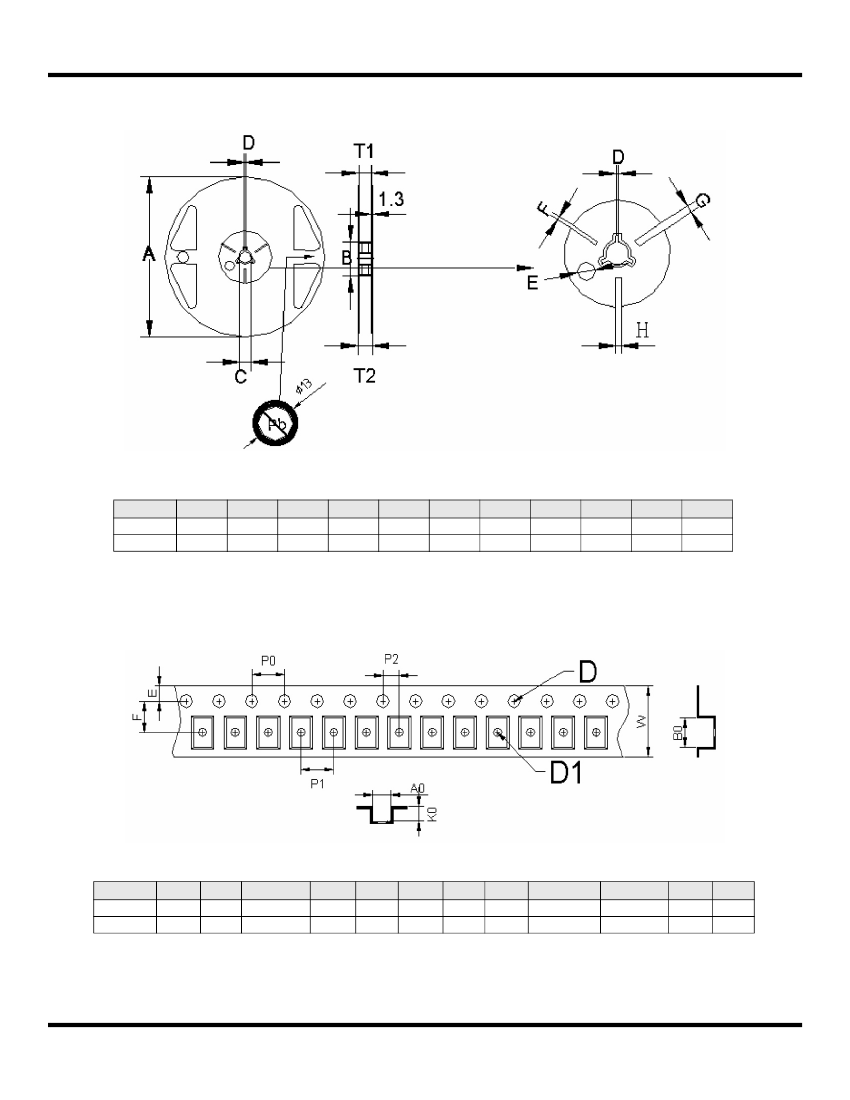

Stanard Shipping Quantity on 180 mm (7”) Reel
Lid Symbolization (in addition to Lot and/or Date Codes)
1000
Line1: 7010 Line2: YWWS
±2.5
±0.2
±0.2
2.0
-5.0
-130
±1.0
ppm
ppm
ppm
ms
dBc
dBc/Hz
ppm/yr
units
I
DD
V
DD
Sym
F
O
Notes
Minimum
Typical
15.00000
Maximum
Units
MHz
±2 ppm maximum @ 25 ±2 °C
-40
-40
2.66
0.5
Clipped Sinewave
2.0
mA
2.80
+85
+85
2.94
°C
°C
V
V
P-P
CAUTION: Electrostatic Sensitive Device. Observe precautions for handling.
Notes:
1. The design, manufacturing process, and specifications of this device are subject to change without notice.
www.RFM.com E-mail: info@rfm.com
©2009-2010 by RF Monolithics, Inc.
Page 1 of 3
XTC7010 - 2/8/10

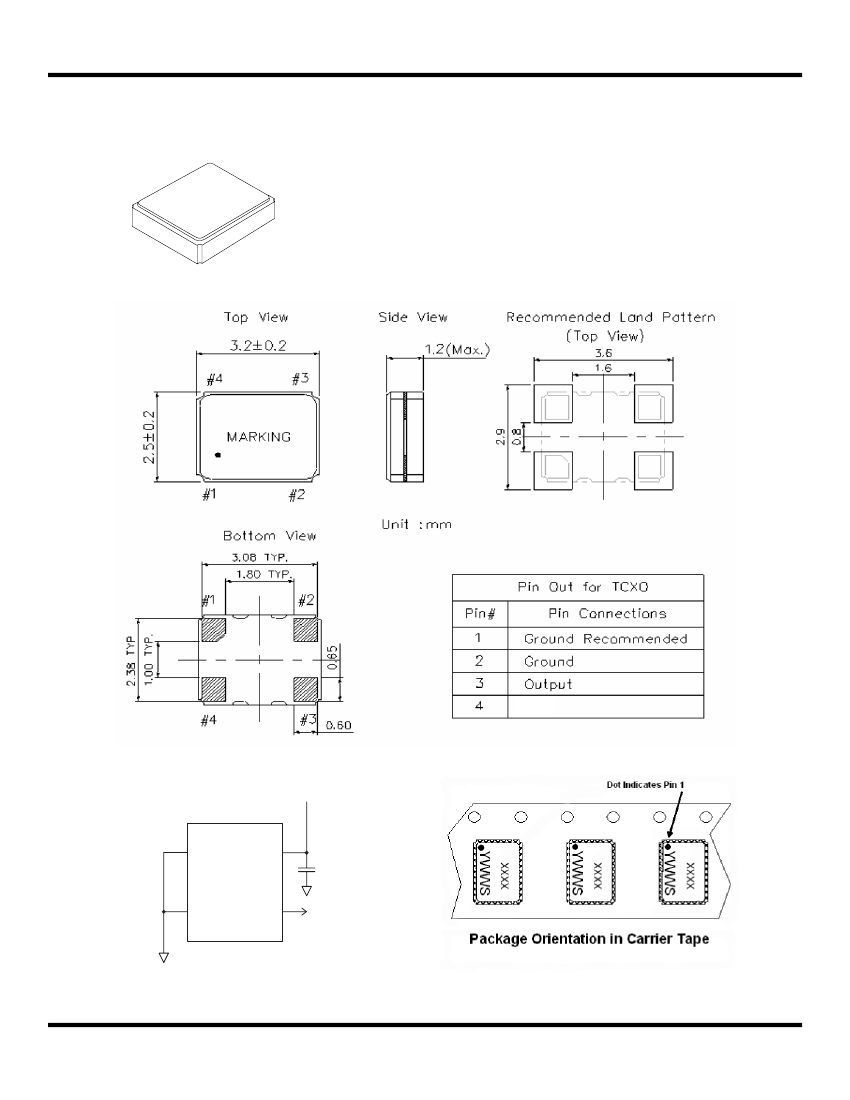

4-Terminal Surface-Mount Seam Weld Case
3.2 x 2.5 mm Nominal Footprint
V
DD
V
D D
1
2
T e m p
C o m p
C r
O s c
e ra tu re
e n s a te d
y s ta l
illa to r
3
4
1 0 n F
O u tp u t
www.RFM.com E-mail: info@rfm.com
©2009-2010 by RF Monolithics, Inc.
Page 2 of 3
XTC7010 - 2/8/10
