57-20360-9D35 datasheet, PDF - EEWORLD Datasheet

57-20360-9D35: DescriptionD Type Connector, 36 Contact(s), Female, 0.085 inch Pitch, Solder Terminal, Plug; CategoryThe connector The connector; File Size173KB，3 Pages; ManufacturerDDK; Websitehttp://www.ddknet.co.jp/English/index.html

Download Datasheet Parametric View All

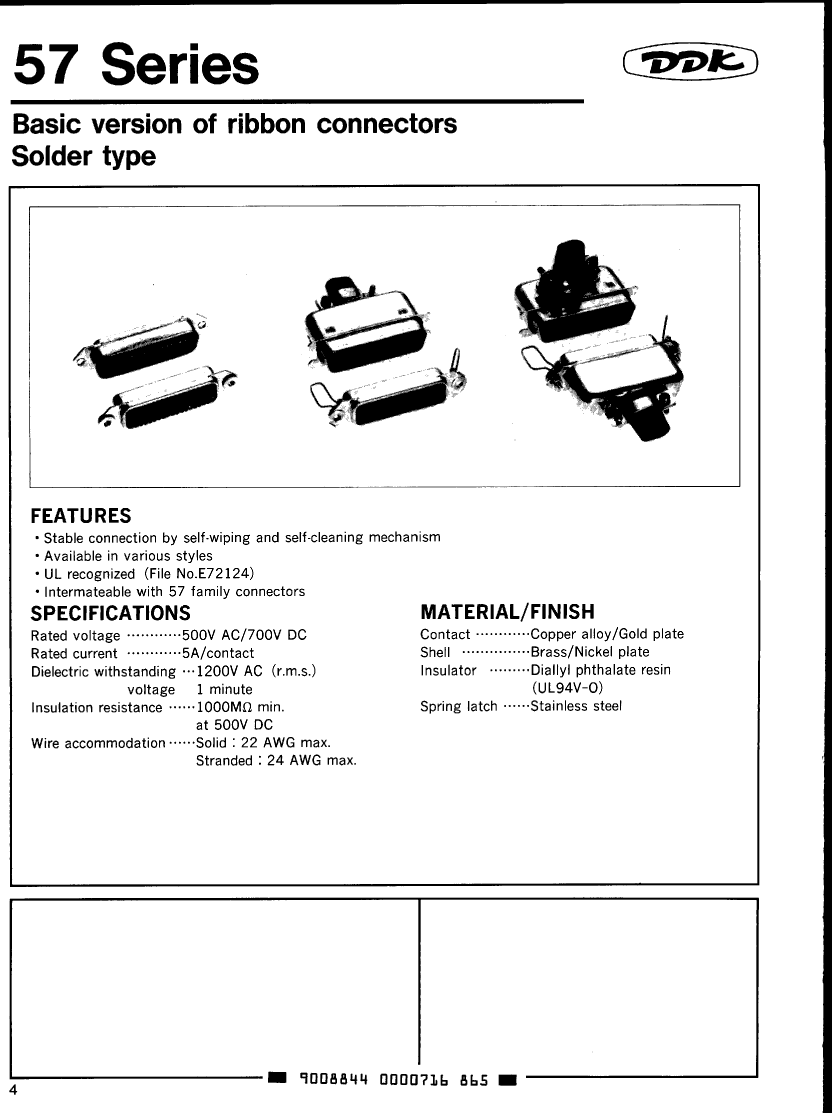

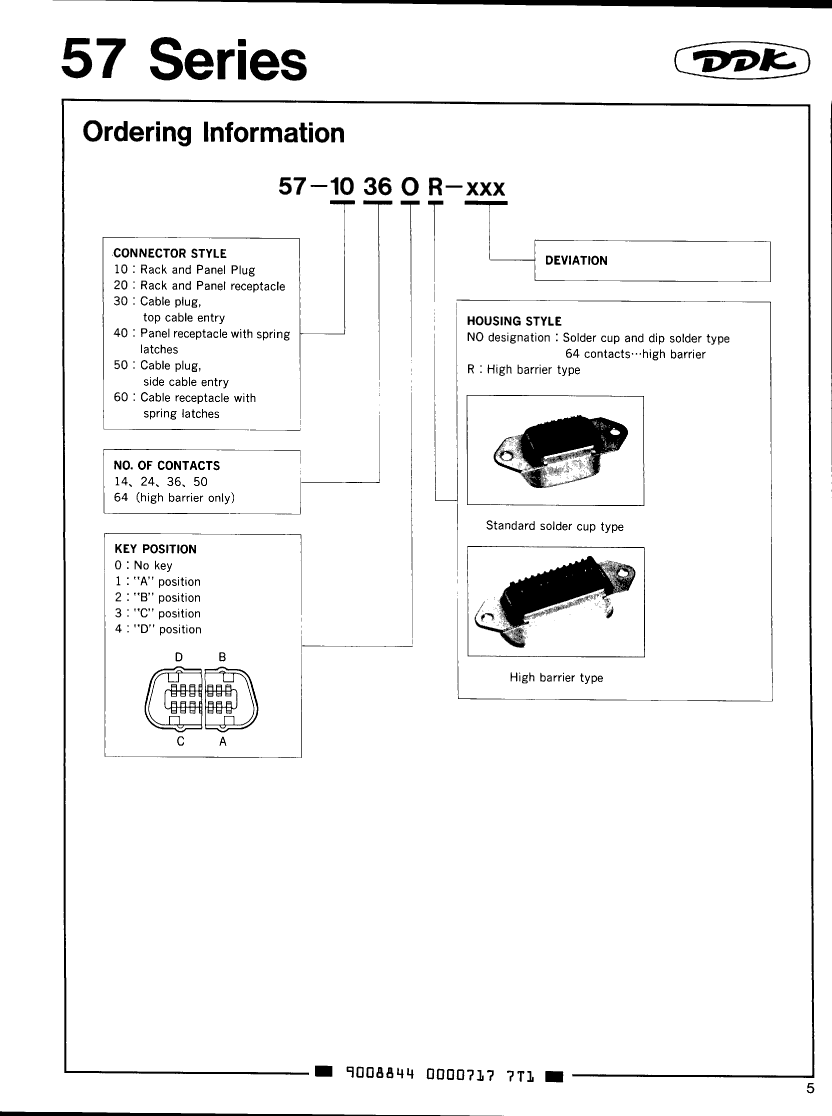

57-20360-9D35 Overview

D Type Connector, 36 Contact(s), Female, 0.085 inch Pitch, Solder Terminal, Plug

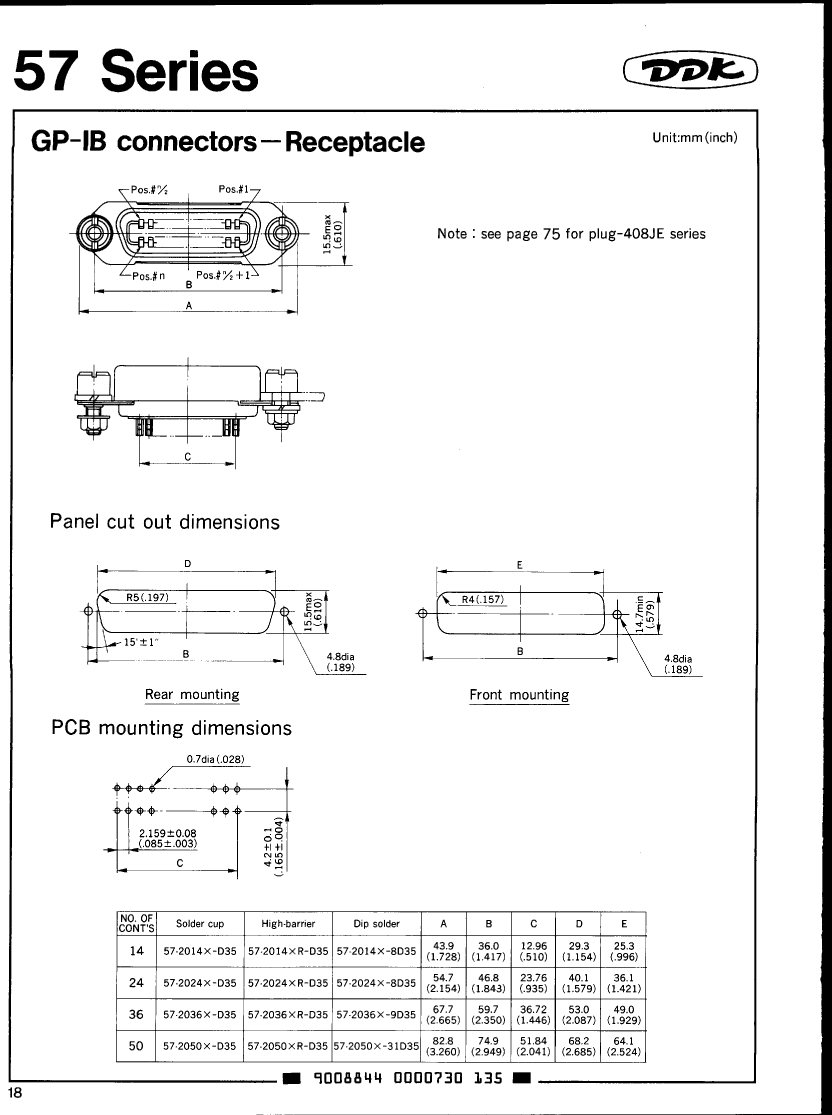

Parameter Name	Attribute value
Maker	DDK
Reach Compliance Code	unknown
body width	0.61 inch
body length	2.665 inch
Body/casing type	PLUG
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
Dielectric withstand voltage	1200VAC V
Insulation resistance	1000000000 Ω
insulator material	DIALLYL PHTHALATE
Manufacturer's serial number	57
Plug contact pitch	0.085 inch
Installation option 2	SCREW
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.191 mm
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	BRASS
Terminal pitch	2.159 mm
Termination type	SOLDER
Total number of contacts	36
Base Number Matches	1
