DTB5000ST

Description
car connector locking cam black for 50way housing
CategoryThe connector
File Size78KB,2 Pages
ManufacturerFCI [First Components International]
Download Datasheet Parametric Compare View All

DTB5000ST Online Shopping

Suppliers Part Number Price MOQ In stock
DTB5000ST - - View Buy Now

DTB5000ST Overview

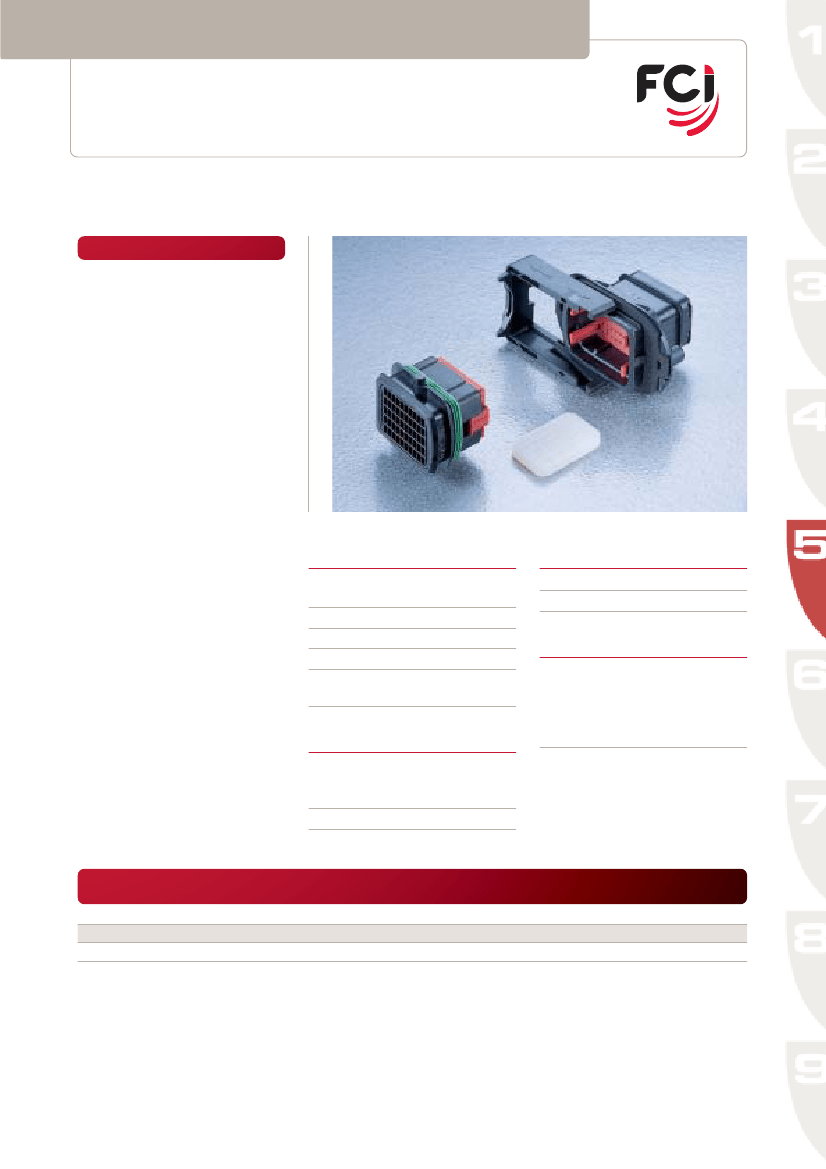

car connector locking cam black for 50way housing

DTB5000ST Parametric

Parameter NameAttribute value
MakerFCI [First Components International]
Product Categoryautomotive connector
productLocking Cam
Number of locations50
MaterialPolybutylene Terephthalate
colorBlack
FeaturesLocking arm Accesory for 50 way Door to Body
Installation stylePanel
EncapsulationBulk
Harness Sectioning Connectors
Panel-through connectors
Sicma
50 way panel-through system for 1.5 mm terminals
Features
High density connector using
1.5 mm terminals
Splashproof connector when
equipped with a rubber boot
Female housing fitted with a
silicone interfacial seal
Male housing equipped with a panel
seal and two integrated harpoons
for easy pre-locking on panel
Pre-assembled front grids support
blade terminals guiding and mating
Terminal position assurance (T.P.A.)
Locking cam
Particularly suitable for door
connection
Sealed version available with rear
mat-seal
Performance characteristics
Temperature range:
from -40°C to +125°C
Tooling
T.P.A. removal tool:
Terminal removal tool:
T25400
T25300
Contact retention force:
Contact insertion force:
Connector mating force:
> 80 N
< 10 N
< 90 N
Connector compatibility
Usable terminals:
-
-
-
-
Sicma-2
Sicma-2
Sicma-3
Sicma-3
1.5
1.5
1.5
1.5
mm
mm
mm
mm
female terminals
male terminals
female terminals
male terminals
Sealing protection:
IP 64
when equipped with a rubber boot
Construction
Housing material:
- PBT for male & female housings
- PBT for locking cam
Interfacial seal:
Silicone

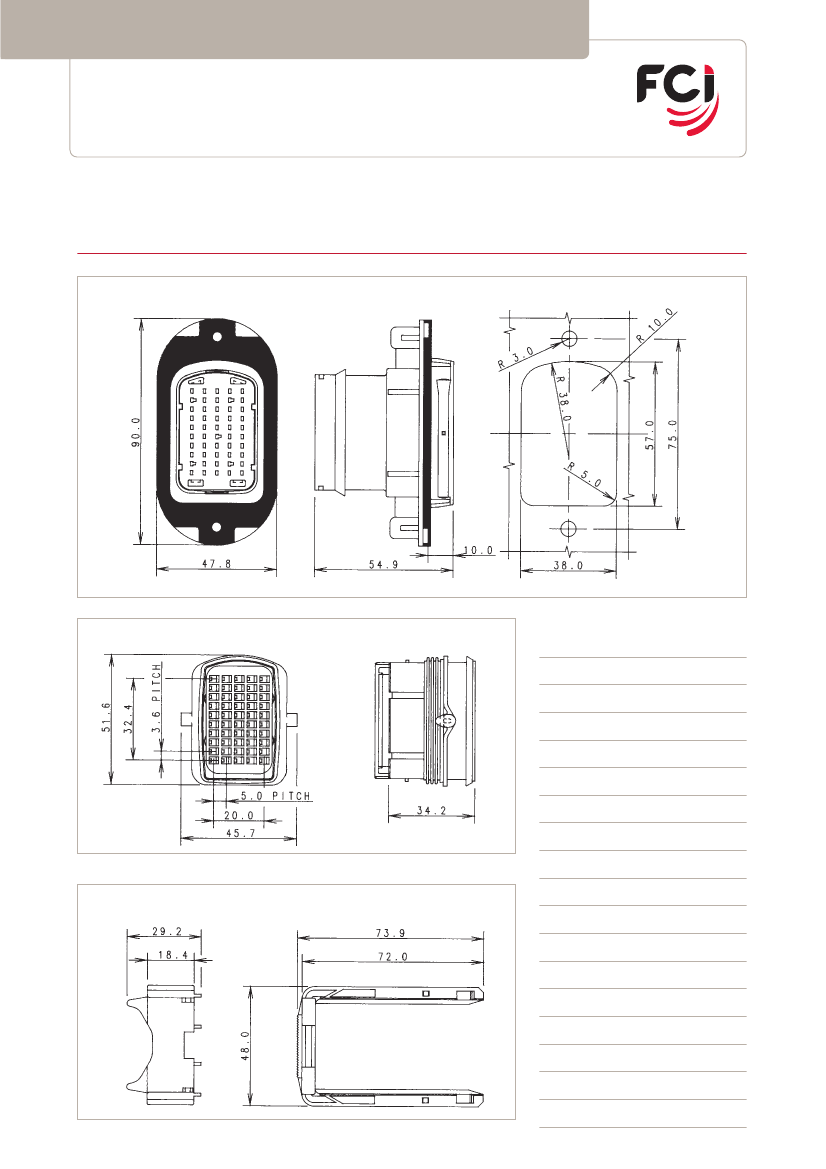

Part Numbers
DTB 5000 FH
DTB 5000 MH
DTB 5000 ST
No. of
position
50
50
Terminal size
1.5 mm
1.5 x 0.8 mm
Type
Female housing
Male housing
Locking cam
Colour
Black
Black
Black
5.40
