54F64/B2A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54F64/B2A

54F64/B2A: DescriptionIC F/FAST SERIES, 11-INPUT AND-OR-INVERT GATE, CQCC20, Gate; Categorylogic logic; File Size78KB，3 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

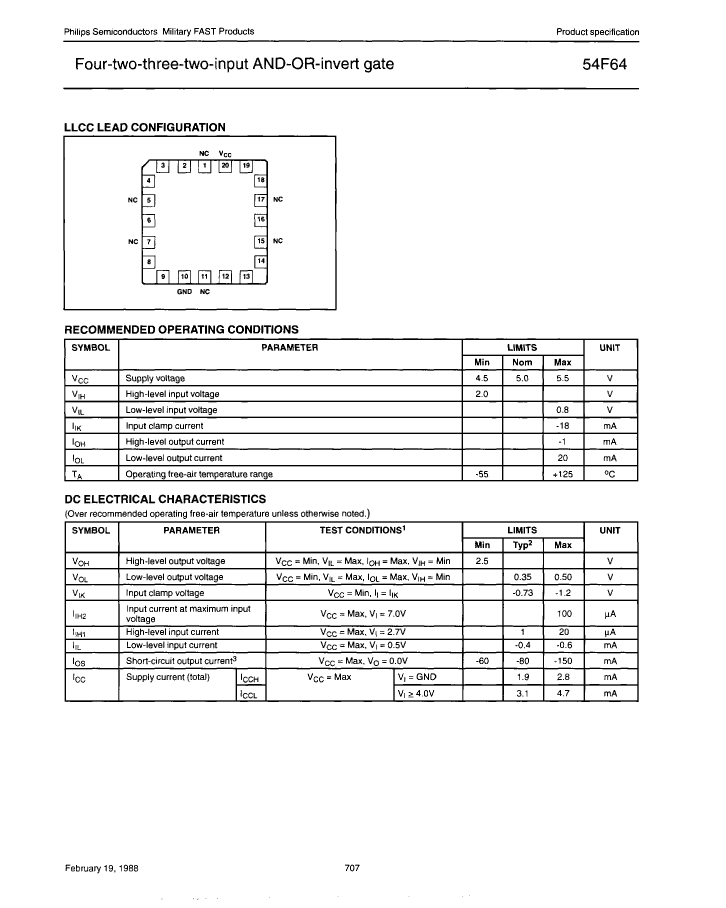

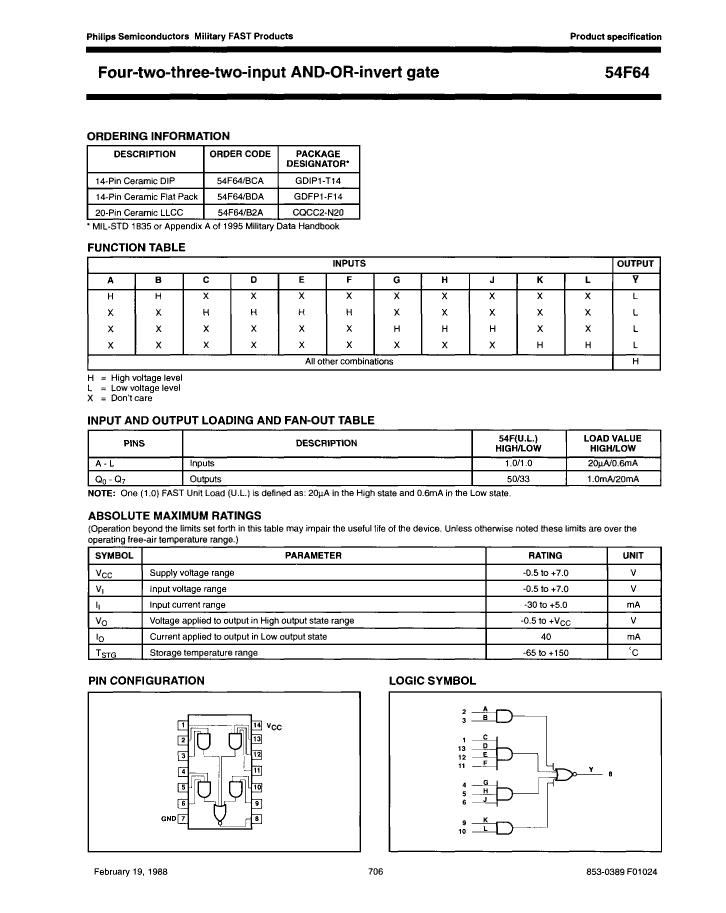

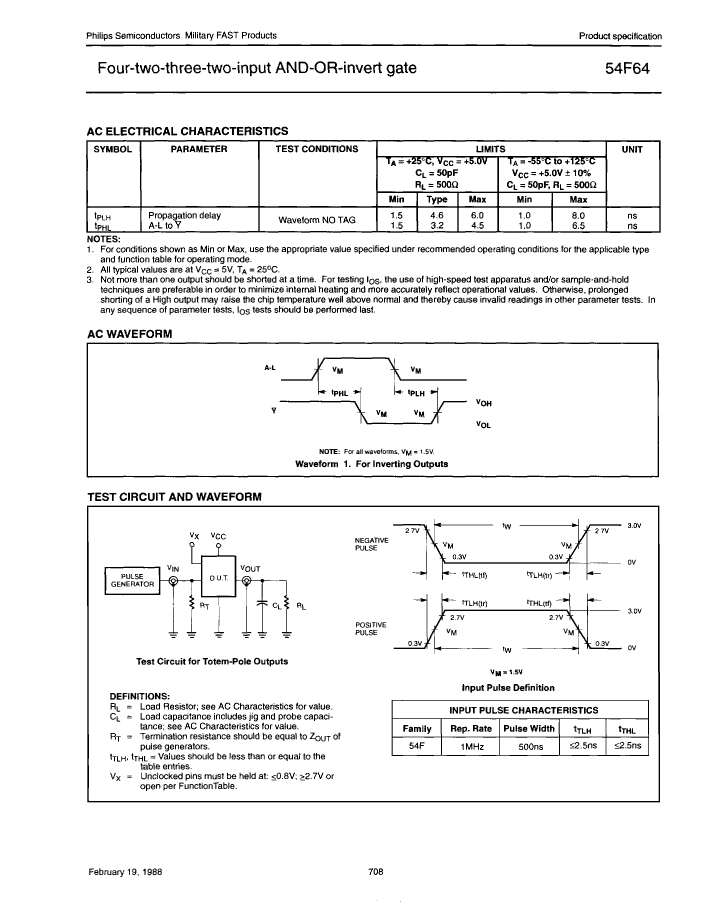

54F64/B2A Overview

IC F/FAST SERIES, 11-INPUT AND-OR-INVERT GATE, CQCC20, Gate

54F64/B2A Parametric

Parameter Name	Attribute value
package instruction	QCCN,
Reach Compliance Code	unknow
series	F/FAST
JESD-30 code	S-CQCC-N20
Load capacitance (CL)	50 pF
Logic integrated circuit type	AND-OR-INVERT GATE
Number of functions	1
Number of entries	11
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	SQUARE
Package form	CHIP CARRIER
Maximum supply current (ICC)	4.7 mA
propagation delay (tpd)	6.5 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal location	QUAD
Base Number Matches	1

Preview

Download Datasheet

View All

54F64/B2A Related Products

	54F64/B2A	54F64/BDA	N54F64/B2A	54F64/BCA	N54F64/BDA
Description	IC F/FAST SERIES, 11-INPUT AND-OR-INVERT GATE, CQCC20, Gate	IC F/FAST SERIES, 11-INPUT AND-OR-INVERT GATE, CDFP14, Gate	IC F/FAST SERIES, 11-INPUT AND-OR-INVERT GATE, CQCC20, CERAMIC, LLCC-20, Gate	IC F/FAST SERIES, 11-INPUT AND-OR-INVERT GATE, CDIP14, Gate	IC F/FAST SERIES, 11-INPUT AND-OR-INVERT GATE, CDFP14, CERAMIC, DFP-14, Gate
package instruction	QCCN,	DFP,	QCCN,	DIP,	DFP,
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown
series	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST
JESD-30 code	S-CQCC-N20	R-CDFP-F14	S-CQCC-N20	R-GDIP-T14	R-CDFP-F14
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	AND-OR-INVERT GATE	AND-OR-INVERT GATE	AND-OR-INVERT GATE	AND-OR-INVERT GATE	AND-OR-INVERT GATE
Number of functions	1	1	1	1	1
Number of entries	11	11	11	11	11
Number of terminals	20	14	20	14	14
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN	DFP	QCCN	DIP	DFP
Package shape	SQUARE	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	FLATPACK	CHIP CARRIER	IN-LINE	FLATPACK
Maximum supply current (ICC)	4.7 mA	4.7 mA	4.7 mA	4.7 mA	4.7 mA
propagation delay (tpd)	6.5 ns	6.5 ns	6.5 ns	6.5 ns	6.5 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	NO	YES
technology	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	NO LEAD	FLAT	NO LEAD	THROUGH-HOLE	FLAT
Terminal location	QUAD	DUAL	QUAD	DUAL	DUAL
Base Number Matches	1	1	1	1	1
Maximum seat height	-	-	1.905 mm	5.08 mm	2.159 mm
Terminal pitch	-	-	1.27 mm	2.54 mm	1.27 mm
width	-	-	8.89 mm	7.62 mm	6.2865 mm
