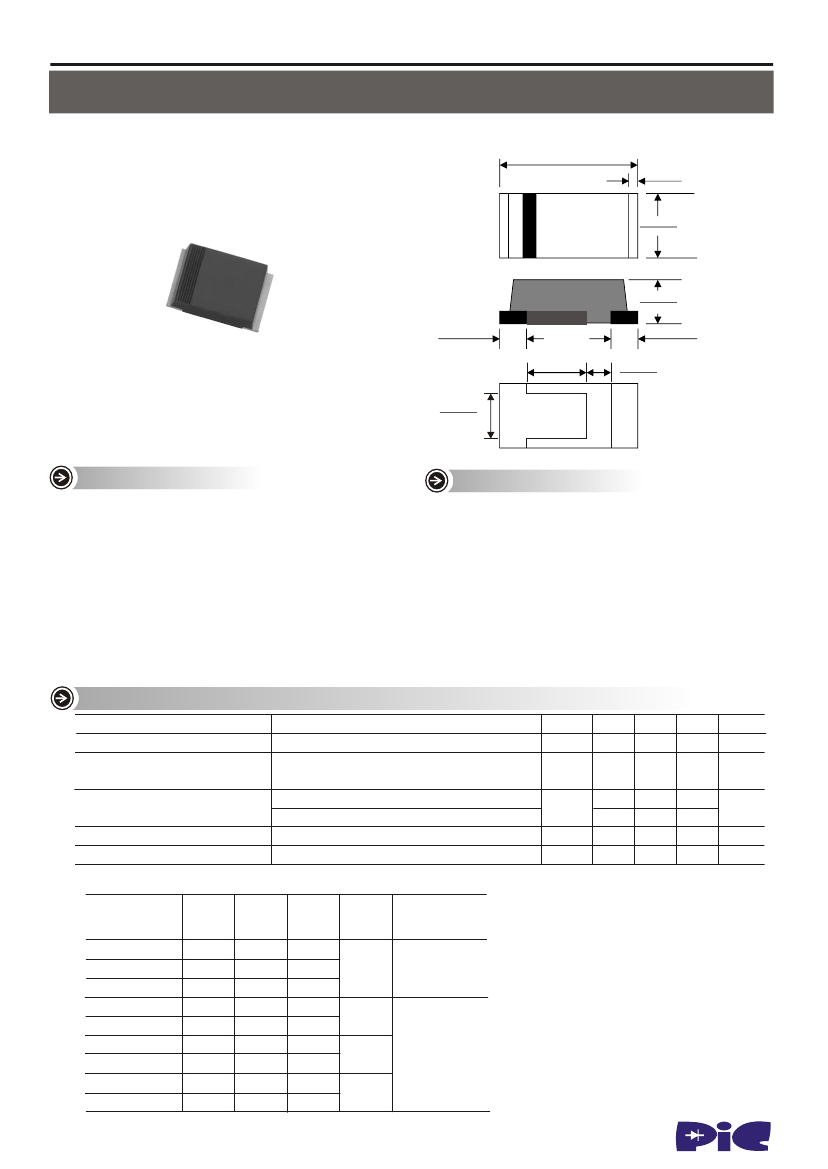

FM520-T1
thru
FM5200-T1
SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
VOLTAGE - 20 TO 200 VOLTS
CURRENT - 5.0 AMPERES
SMC-T1
0.272(6.9)
0.248(6.3)
0.020(0.5) Typ.
0.189(4.8)
0.165(4.2)
0.070(1.8)
0.056(1.4)
0.048(1.2) Typ.
0.048 (1.2) Typ.
0.144(3.6)
0.128(3.2)
0.040(1.0)
0.024(0.6)
0.128(3.2)
0.112(2.8)
Dimensions in inches and (millimeters)
FEATURES
•
Batch process design, excellent power dissipation offers
•
•
•
•
•
•
•
•
better reverse leakage current and thermal resistance.
Low profile surface mounted application in order to
optimize board space.
Low power loss, high efficiency.
High current capability, low forward voltage drop.
High surge capability.
Guardring for overvoltage protection.
Ultra high-speed switching.
Silicon epitaxial planar chip, metal silicon junction.
Lead-free parts meet environmental standards of
MIL-STD-19500 /228
MECHANICAL DATA
•
Epoxy:UL94-V0 rated flame retardant
•
Case : Molded plastic, DO-214AB / SMC-T1
•
Terminals : Solder plated, solderable per
MIL-STD-750, Method 2026
•
Polarity : Indicated by cathode band
•
Mounting Position : Any
•
Weight : Approximated 0.18 gram
Maximum ratings
(AT
PARAMETER
Forward rectified current
Forward surge current
T
A
=25
o
C unless otherwise noted)
CONDITIONS
See Fig.1
8.3ms single half sine-wave superimposed on
rate load (JEDEC methode)
V
R
= V
RRM
T
A
= 25
O
C
V
R
= V
RRM
T
A
= 125
O
C
Junction to ambient
Symbol
I
O
I
FSM
I
R
R
èJA
T
STG
-65
5
+175
MIN.
TYP.
MAX.
5.0
75
0.5
20
UNIT
A
A
Reverse current
Thermal resistance
Storage temperature
mA
O
C/W
O
C
SYMBOLS
FM520-T1
FM530-T1
FM540-T1
FM550-T1
FM560-T1
FM580-T1
FM5100-T1
FM5150-T1
FM5200-T1
*1
V
RRM
(V)
20
30
40
50
60
80
100
150
200
V
RMS
*2
(V)
14
21
28
35
42
56
70
105
140
*3
V
R
(V)
20
30
40
50
60
80
100
150
200
*4
V
F
(V)
Operating
temperature
T
J
, (
O
C)
-55 to +125
0.55
*1 Repetitive peak reverse voltage
*2 RMS voltage
0.75
0.85
-55 to +150
*3 Continuous reverse voltage
*4 Maximum forward voltage
1.00
www.paceleader.tw
1
FM520-T1
thru
FM5200-T1
SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

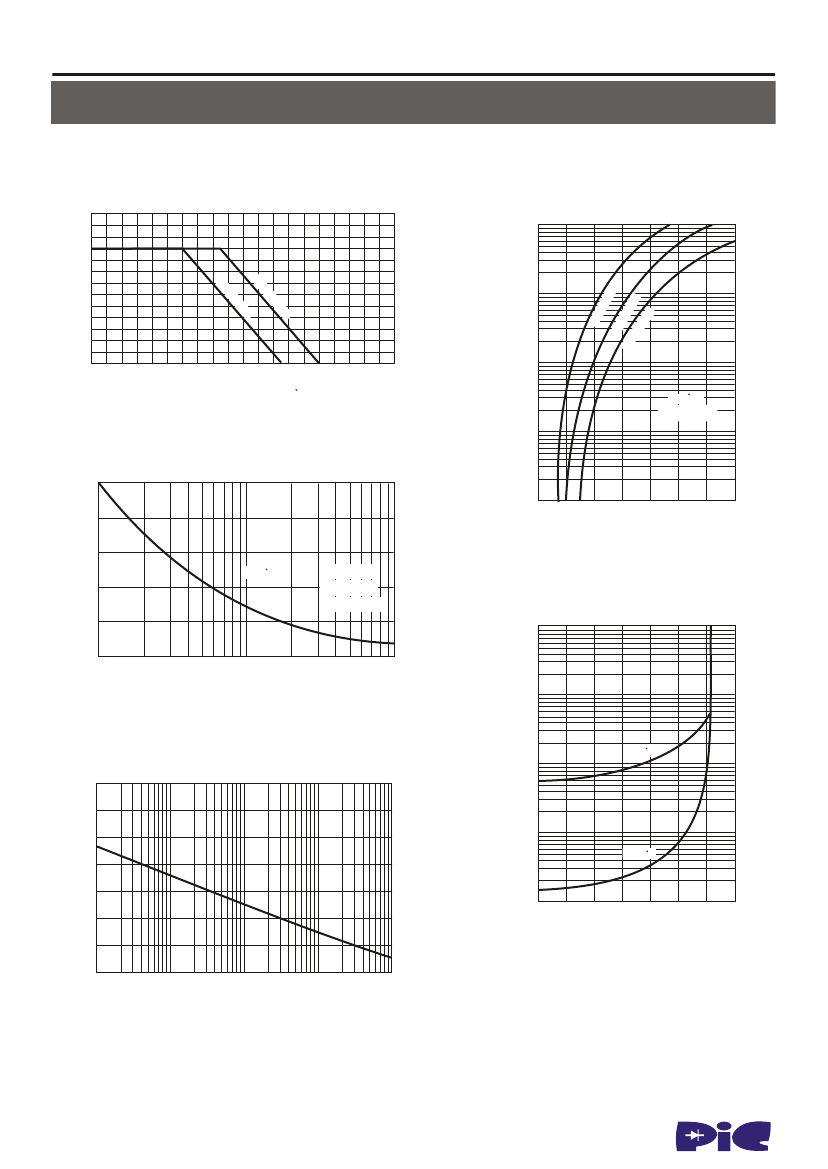

RATINGS AND CHARACTERISTIC CURVES FM520-1 THRU FM5200-T1
FIG.1-TYPICAL FORWARD CURRENT DERATING CURVE
AVERAGE FORWARD CURRENT,(A)
FIG.2-TYPICAL FORWARD
CHARACTERISTICS
6.0
5.0
50
INSTANTANEOUS FORWARD CURRENT,(A)
52
FM
0~
55
FM
4.0
54
FM
0~
52
FM
FM
52
0~
FM
56
0
3.0
2.0
1.0
0
0
20
40
60
10
3.0
1.0
0~
FM
54
0
80
100
120
140
160
180
200
AMBIENT TEMPERATURE,( C)
FM
58
FM
55
0~
FM
52
00
T
J
=25 C
Pulse Width 300us
1% Duty Cycle
00
FIG.3-MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
150
0
0.1
PEAK FORWARD SURGE CURRENT,(A)
.01
120
.1
.3
.5
.7
.9
1.1
1.3
1.5
FORWARD VOLT
AGE,(V)
90
T
J
=25 C
8.3ms Single Half
Sine Wave
JEDEC method
60
FIG.5 - TYPICAL REVERSE
CHARACTERISTICS
100
30
0
1
5
10
50
100
NUMBER OF CYCLES AT 60Hz
REVERSE LEAKAGE CURRENT, (mA)
10
T
J
=75 C
FIG.4-TYPICAL JUNCTION CAPACITANCE
1400
1200
1000
800
600
400
200
0
1.0
JUNCTION CAPACITANCE,(pF)
.1
T
J
=25 C
.01
0
20
40
60
80
100 120 140
PERCENT OF RATED PEAK REVERSE VOLTAGE,(%)
.01
.05
.1
.5
1
5
10
50
100
REVERSE VOLTAGE,(V)
www.paceleader.tw
2
