214-44-314-01-670799 datasheet, PDF

Datasheet> All Categories > The connector> socket> 214-44-314-01-670799

214-44-314-01-670799: DescriptionIC Socket, DIP14, 14 Contact(s), ROHS COMPLIANT; CategoryThe connector socket; File Size657KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

214-44-314-01-670799 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	214-44-314-01-670799	-	-	View	Buy Now

214-44-314-01-670799 Overview

IC Socket, DIP14, 14 Contact(s), ROHS COMPLIANT

214-44-314-01-670799 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Other features	DIP SOCKET
Contact to complete cooperation	TIN (100)
Contact completed and terminated	Tin (Sn)
Contact material	BERYLLIUM COPPER
Device slot type	IC SOCKET
Type of equipment used	DIP14
Shell material	NYLON46
JESD-609 code	e3
Number of contacts	14
Base Number Matches	1

Preview

Download Datasheet

View All

DUAL-IN-LINE

SOCKETS

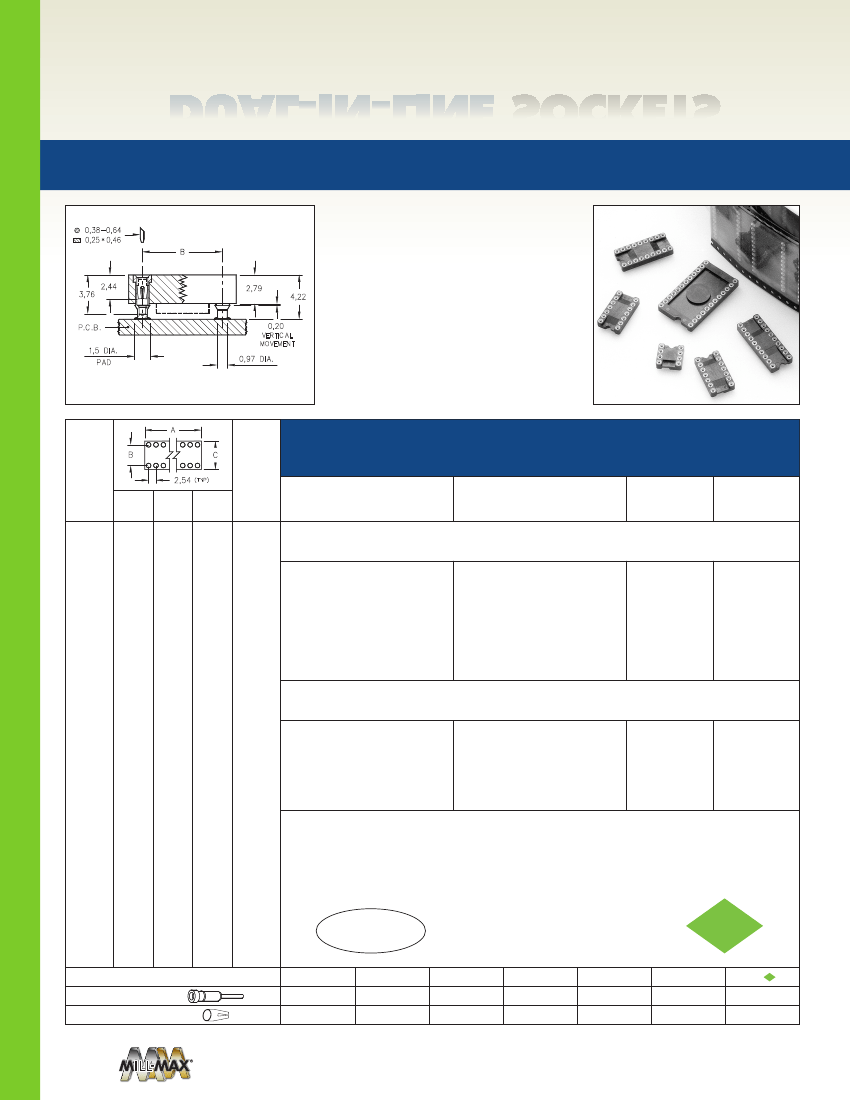

SERIES 214 • SURFACE MOUNT, AUTO PLACEMENT, STUB TAIL • CLOSED FRAME

•

Unique floating contacts compensate for the

0,38-0,64

0,25 * 0,46

•

2,79

3,76

2,44

•

4,22

•

P.C.B.

1,5 DIA.

PAD

0,20

VERTICAL

MOVEMENT

0,97 DIA.

See page 131 for Insulator Details

effects of unevenly screened solder paste

Available packaged in tubes or on tape & reel

per EIA-481

Hi-Rel, 4-finger BeCu #30 contact is rated at

3 amps. See page 253 for details

Series 214 uses MM #1434 pins. See page 162

for details

High temp. Nylon 46 insulator is suitable for

all surface mount soldering processes. Closed

frame insulator is vision system compatible

For Electrical, Mechanical and Environmental

Data, see page 264 for details

Total number

of pins

2,54

Quantity

per tube

ORDERING INFORMATION

Tube Packaging

Tape & Reel Packaging

Tape Width

(mm)

QTY per

Reel

VACUUM PAD TOP SURFACE ONLY

7,6

10,1

17,7

20,3

22,8

25,3

7,62

10,1

214-XX-306-01-670800

214-XX-308-01-670800

214-XX-314-01-670800

214-XX-316-01-670800

214-XX-318-01-670800

214-XX-320-01-670800

214-XX-306-01-670799

214-XX-308-01-670799

214-XX-314-01-670799

214-XX-316-01-670799

214-XX-318-01-670799

214-XX-320-01-670799

750

1000

750

VACUUM PAD TOP AND BOTTOM

30,4

35,5

40,6

50,8

15,24

17,7

214-XX-624-01-670800

214-XX-628-01-670800

214-XX-632-01-670800

214-XX-640-01-670800

214-XX-624-01-670799

214-XX-628-01-670799

214-XX-632-01-670799

NOT AVAILABLE

400

PAGE 108 | IC SOCKETS / TO SOCKETS

XX=Plating Code

See Below

2011/65/EU

RoHS - 2

SPECIFY PLATING CODE XX =

Sleeve

(Pin)

Contact

(Clip)

5,08μm

Sn/Pb

2,54μm

Sn/Pb

5,08μm

2,54μm

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
