Digital Timer
H5CN
CSM_H5CN_DS_E_2_1

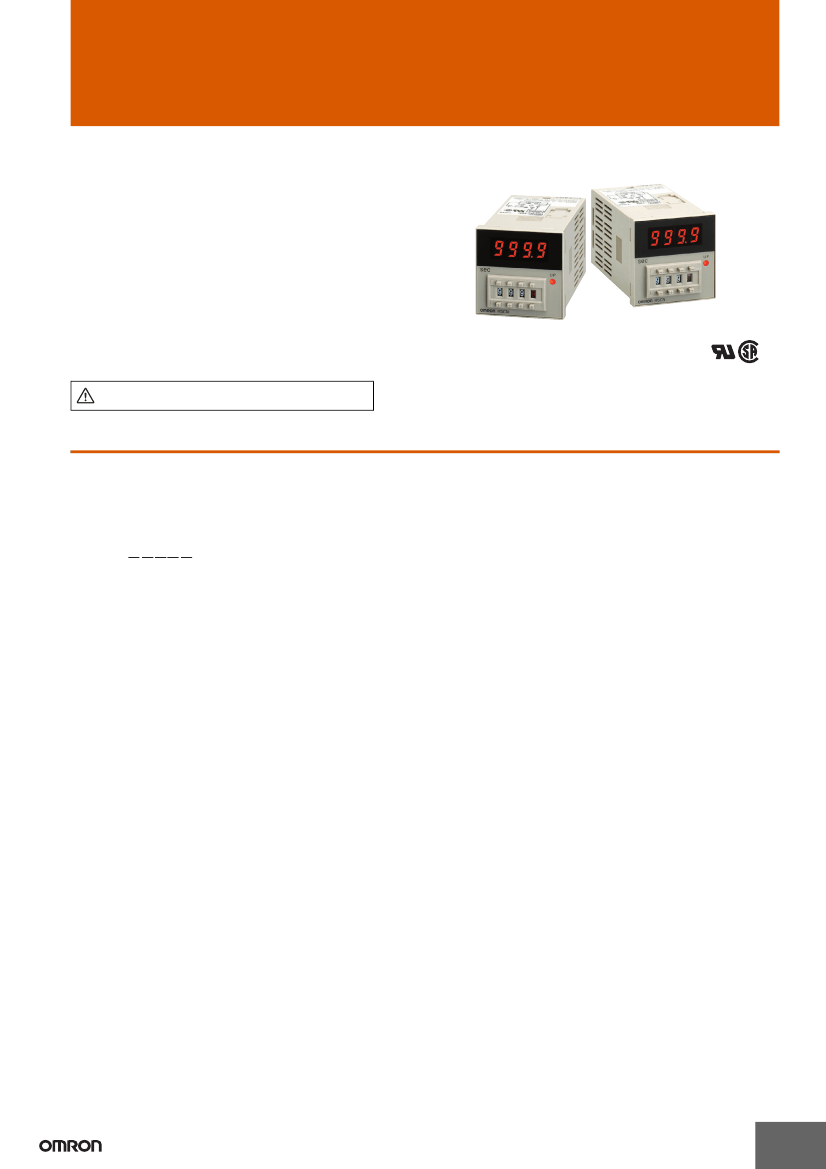

Miniature DIN-sized (48 x 48 mm) Quartz
Timer with Abundant Series Versions
• Series version cover a wide range of rated times; 9.999 s,
99.99 s, 999.9 s, 99 min 59 s, and 99 hrs 59 min.
• Selection of elapsed time indication, remaining time indication,
contact output, and solid-state output types to suit require-
ments.
• Power supply freely selectable within a range of 100 to
240 VAC, as well as 12 to 48 VDC.
• Certified for UL and CSA safety standards.
Refer to
Safety Precautions for All Timers.
Refer to
Safety Precautions
on page 13
Model Number Structure
■
Model Number Legend
Note:
This model number legend includes combinations that are not available. Before ordering, please check the
List of Models
on page 2 for avail-
ability.
H5CN-
@@N@@
1 2 3 4 5
1. Display
X: UP display (increments from 0 to the set time)
Y: DOWN display (decrements from the set time to 0)
2. Rated time
Z: 0.001 to 9.999 s
A: 0.001 to 99.99 s
B: 0.1 to 999.9 s
C:1 s to 99 min 59 s
D:1 min to 99 h 59 min
3. Output mode
N: N mode (Power ON-delay)
4. Backup power supply function for memory protection
None: Not provided
M:
Provided
5. Output type
None: Contact output (SPDT)
S:
Solid-state output
1
H5CN
Ordering Information
■
List of Models
Display type
Output type
Pin type
Backup power supply function for
memory protection
UP display timer (increments form DOWN display timer (decre-
0 to the set time)
ments form the set time to 0)
Contact output (SPDT)
11-pin
8-pin
Not provided
Uses external
battery (lithium).
(See notes 2 and
3.)
100 to 240 VAC
---
H5CN-XANM
H5CN-XBNM
H5CN-XCNM
H5CN-XDNM
100 to 240 VAC, 12 to 48 VDC
---
H5CN-XAN
H5CN-XBN
H5CN-XCN
H5CN-XDN
---
H5CN-YAN
H5CN-YBN
H5CN-YCN
H5CN-YDN
12 to 48 VDC
H5CN-XZNS
H5CN-XANS
---
---
---
UP display timer (increments from 0
to the set time)
Solid-state output
Supply voltage
Rated time
0.001 to 9.999 s
0.001 to 99.99 s
0.1 to 999.9 s
1 s to 99 min 59 s
1 min to 99 h 59 min
Note: 1.
Specify both the model number and supply voltage when ordering.
Example: H5CN-XAN 12 to 48 VDC
Supply voltage
2.
The Y92S-20 Backup Battery (sold separately) provides power backup for memory protection during power failures for approximately
5 years (at 20°C). Always connect a battery to the H5CN-X@NM. For details on connection methods, refer to page 5.
3.
The H5CN-X@NM does not support power resetting.
■
Accessories (Order Separately)
Name
Flush Mounting Adapter
Backup Battery
Track Mounting/Front
Connecting Socket
Back Connecting Socket
Protective Cover
Mounting Track
8-pin
11-pin
8-pin
11-pin
Hard Cover
Soft Cover
50 cm (I)
×
7.3 mm (t)
1 m (I)
×
7.3 mm (t)
1 m (I)
×
16 mm (t)
End Plate
Spacer
Y92F-30
Y92S-20
P2CF-08
P2CF-11
P3G-08
P3GA-11
Y92A-48B
Y92A-48D
PFP-50N
PFP-100N
PFP-100N2
PFP-M
PFP-S
Models
2
H5CN
Specifications
■
Ratings
Item
Rated supply voltage
Contact output
Solid-state output
100 to 240 VAC (50/60 Hz), 12 to 48 VDC (permissible rip- 12 to 48 VDC (permissible ripple: 20% max.)
ple: 20% max.) (See note 1.)
Approx. 12 VA at 240 VAC, 50 Hz
Approx. 2.5 W at 48 VDC
Surface mounting or flush mounting
7-segment LEDs (8-mm-high characters), UP indicator
Contact open and short-circuit input
Open-collector transistor ON/OFF input
Reset by power-OFF (See note 2.):
min. power OFF time: 0.5 s
External reset or gate (common to contact and solid-state inputs): min. reset input signal width: 0.02 s;
residual voltage: 2 V max.
N mode (Power ON-delay)
SPDT: 3 A at 250 VAC, resistive load (cosφ = 1)
Operating:–10°C to 55°C (with no icing or condensation)
Storage:–25°C to 65°C (with no icing or condensation)
Operating: 35% to 85%
Light gray (Munsell 5Y7/1)
Open collector: 100 mA max. at 30 VDC max.
Approx. 2.5 W at 48 VDC
Operating voltage range
85% to 110% of rated supply voltage
Power consumption
Mounting method
Display
Input method
Resetting system and
gate input
Output mode
Control outputs
Ambient temperature
Ambient humidity
Case color
Note: 1.
Models with memory backup function are available only for AC power.
2.
The H5CN-X@NM cannot be reset by turning OFF the power.
■
Characteristics
Accuracy of operating time
Setting error
Influence of voltage
Influence of temperature
Insulation resistance
Dielectric strength
Impulse withstand voltage
Noise immunity
100 MΩ min. (at 500 VDC) (between current-carrying terminal and exposed non-current carrying
metal parts, between power supply circuit and control output circuit)
2,000 VAC, 50/60 Hz for 1 min (between current-carrying terminal and exposed non-current-carrying
metal parts, between power supply circuit and control output circuit)
6 kV (between power supply terminal)
6 kV (between current-carrying terminal and exposed non-current carrying metal parts)
Square-wave noise by noise simulator
AC:
±2
kV (between power supply terminals)
DC:
±480
V (between power supply terminals),
±500
V (between input terminals)
Malfunction: 8 kV
Destruction:10 to 55 Hz with 0.75-mm single amplitude each in 3 directions for 2 hours each
Malfunction:10 to 55 Hz with 0.5-mm single amplitude each in 3 directions for 10 minutes each
Destruction:300 m/s
2
3 times each in 6 directions
Malfunction:100 m/s
2
3 times each in 6 directions
Mechanical:10,000,000 operations min.
Electrical:100,000 operations min. (3 A at 250 VAC, resistive load)
UL508, CSA C22.2 No. 14
Approx. 200 g
±0.01% ±0.05
s max. (see note 1),
±0.005% ±0.03
s max. (see note 2) (see note 3)
Static immunity
Vibration resistance
Shock resistance
Life expectancy
Approved standards
Weight
Note: 1.
When timer operation is started by power application.
2.
When timer operation is started after a reset input has been applied.
3.
These values represent the total accuracy of the timer including the repeat accuracy, setting error, and variation due to voltage and tem-
perature changes. Note that they also comprise errors due to the rise time of the power source and the operating times of the internal
and output circuits.
3
H5CN
■
Life-test Curve (Reference Values)
Number of switching operations (×10
4
times)
1,000
700
500
300
100
70
50
30
30 VDC cosφ =1
250 VAC cosφ =1
10
7
5
0
250 VAC cosφ =0.4
1
30 VDC L/R = 7 ms
2
3
4
Load current (A)
A maximum current of 0.15A can be switched at 125 VDC (cosφ = 1)
Maximum current of 0.1 A can be switched if L/R is 7 ms. In both
cases, a life of 100,000 operations can be expected. The minimum
applicable load is 10 mA at 5 VDC (failure level: P reference value).
4
H5CN
Connections
■

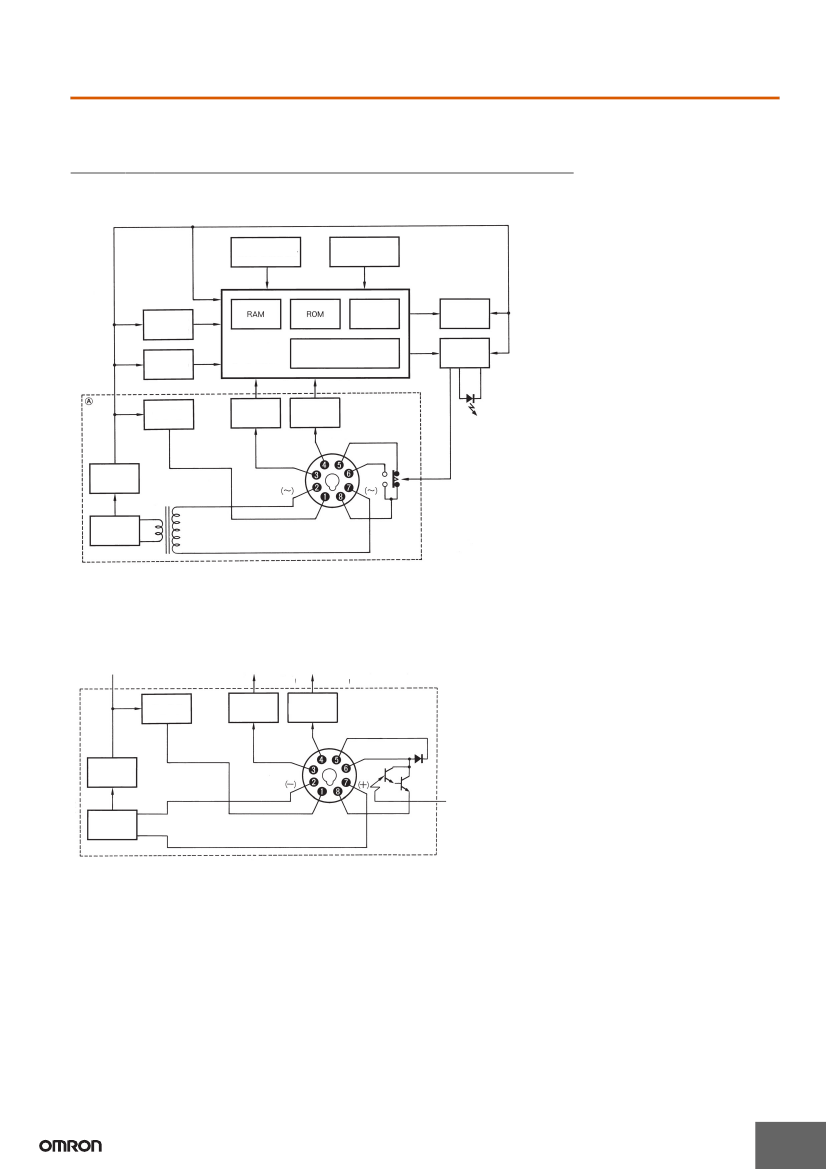

Block Diagram
H5CN-@@N (without Backup Power for Memory Protection)
Using an AC Power Supply (Contact Outputs)
Thumbwheel
switch
One-shot timer
circuit
Initial clear
circuit
Quartz-
crystal
oscillator
Microcomputer-
type custom LSI
Clock
7-segment
indicator
Output
circuit
Timer circuit
Reset input
Filter
Gate input
Filter
UP display
Filter
Constant-
voltage
circuit
Rectifier
circuit
Note: 1.
If the reset input is short-circuited (be-
tween terminals
A
and
C),
immediately
the count circuit is reset to 0 and the con-
trol output relay is reset to OFF. The tim-
er starts as soon as the reset input is
opened (between terminals
A
and
C).
2.
If the gate input is short-circuited (be-
tween terminals
A
and
D),
the count cir-
cuit stops immediately. The timer then
restarts as soon as the gate input is
opened (between terminals
A
and
D).
Using a DC Power Supply (Solid-state Outputs)
Note:
The following block diagram shows the differences for the equivalent section indicated by “a” in the above block diagram.
Reset input
Filter
Filter
Gate input
Note:
Terminals
A
and
B
are internally short-circuited.
Filter
Constant-
voltage
circuit
Power
supply
circuit
5
