Part Number

Search

39870-0207

Description
pluggable terminal blocks 5.00mm term block 7P vertical
CategoryThe connector    terminals
File Size32KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

39870-0207 Online Shopping

Suppliers Part Number Price MOQ In stock
39870-0207 - - View Buy Now

39870-0207 Overview

pluggable terminal blocks 5.00mm term block 7P vertical

39870-0207 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresPOLYAMIDE, 94V-0
Fastening methodSCREW
Manufacturer's serial number39870
Installation typeCABLE
Number of layers1
Rows1
Number of channels7
Rated current15 A
Rated voltage300 V
safety certificateUL; CSA
Terminal and terminal strip typesMODULAR TERMINAL BLOCK
Conductor cross section2.5 mm2
Wire gauge12 AWG
Base Number Matches1

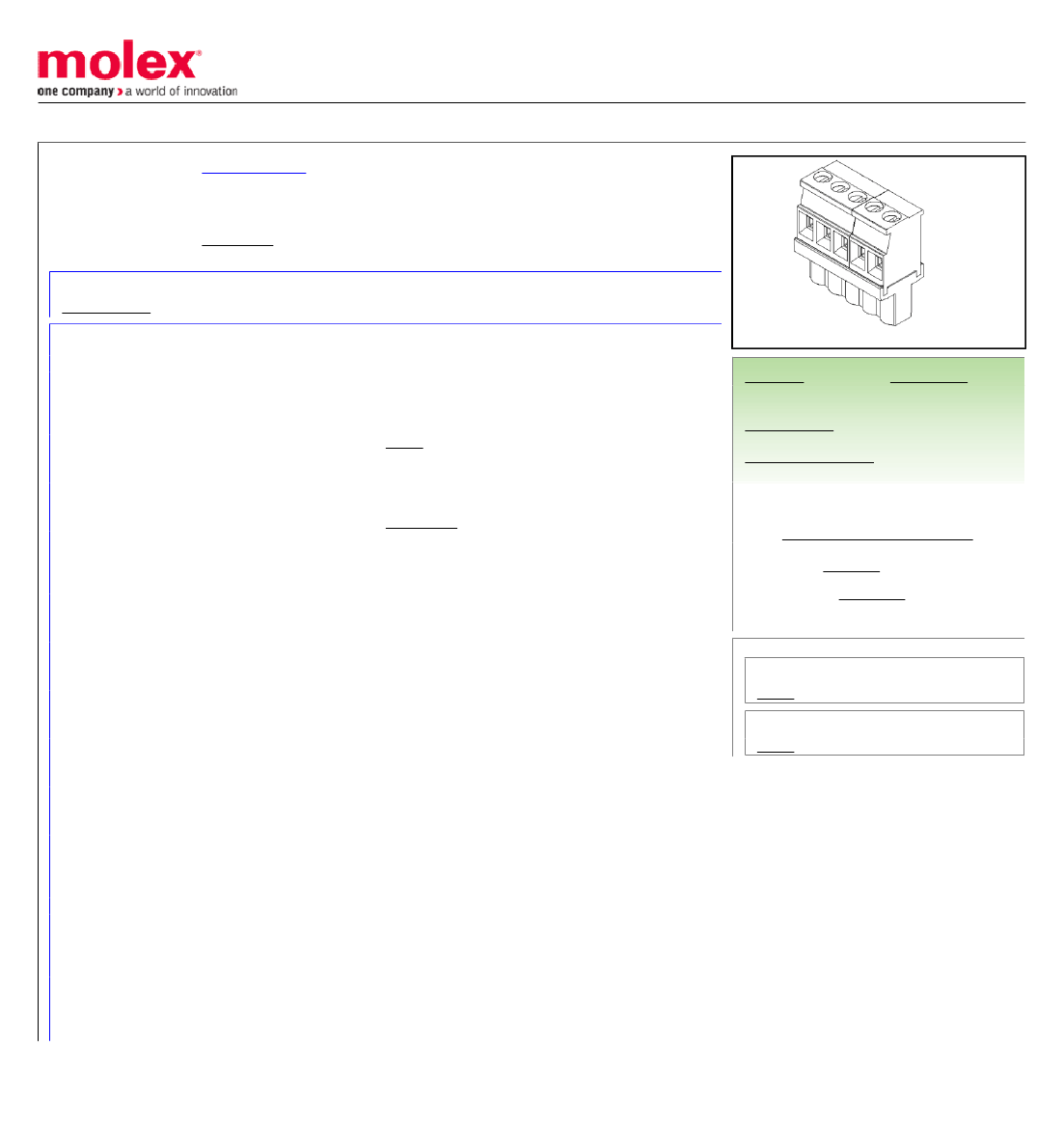

This document was generated on 11/15/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
Replacement Part
Number:
Documents:
Drawing (PDF)
0398700207
Obsolete
5.00mm (.197") Pitch Beau™ Eurostyle™ Pluggable PCB Terminal Block, 90° Wire
Entry, 7 Circuits
39523-2007
Agency Certification
CSA
UL
LR25562
E48521
Series
image - Reference only
EU RoHS
China RoHS
Compliance Status
Not Reviewed
REACH SVHC
Not Reviewed
Low-Halogen Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Application
Comments
Component Type
Product Name
Replacement Part Number
Type
Terminal Blocks
39870
Wire-to-Board
Gold plating and green housing available
Plug
Eurostyle™Pluggable
39523-2007
Euro Block
Physical
Circuits (Loaded)
Color - Resin
Entry Angle
Flammability
Lock to Mating Part
Material - Metal
Material - Resin
Number of Rows
Orientation
PCB Retention
Panel Mount
Pitch - Mating Interface
Pitch - Termination Interface
Polarized to Mating Part
Stackable
Temperature Range - Operating
Wire Size AWG
Wire Size mm²
7
Black
90° Angle
94V-0
None
Brass
Nylon
1
Vertical
N/A
No
5.00mm (.197")
5.00mm (.197")
Yes
Yes
110°C
12, 14, 16, 18, 20, 22, 24, 26
0.20 - 2.50
Search Parts in this Series
39870Series
Mates With
39870 Headers
Electrical
Current - Maximum per Contact
Voltage - Maximum
15A
300V
Material Info
Country of Origin
Old Part Number
MX, US
870807
Reference - Drawing Numbers
Sales Drawing
SD-39870-004
